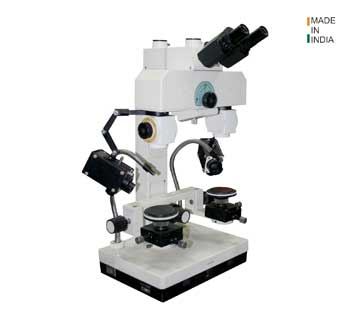

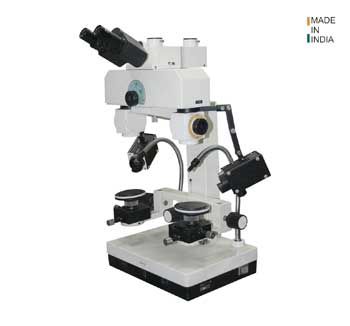

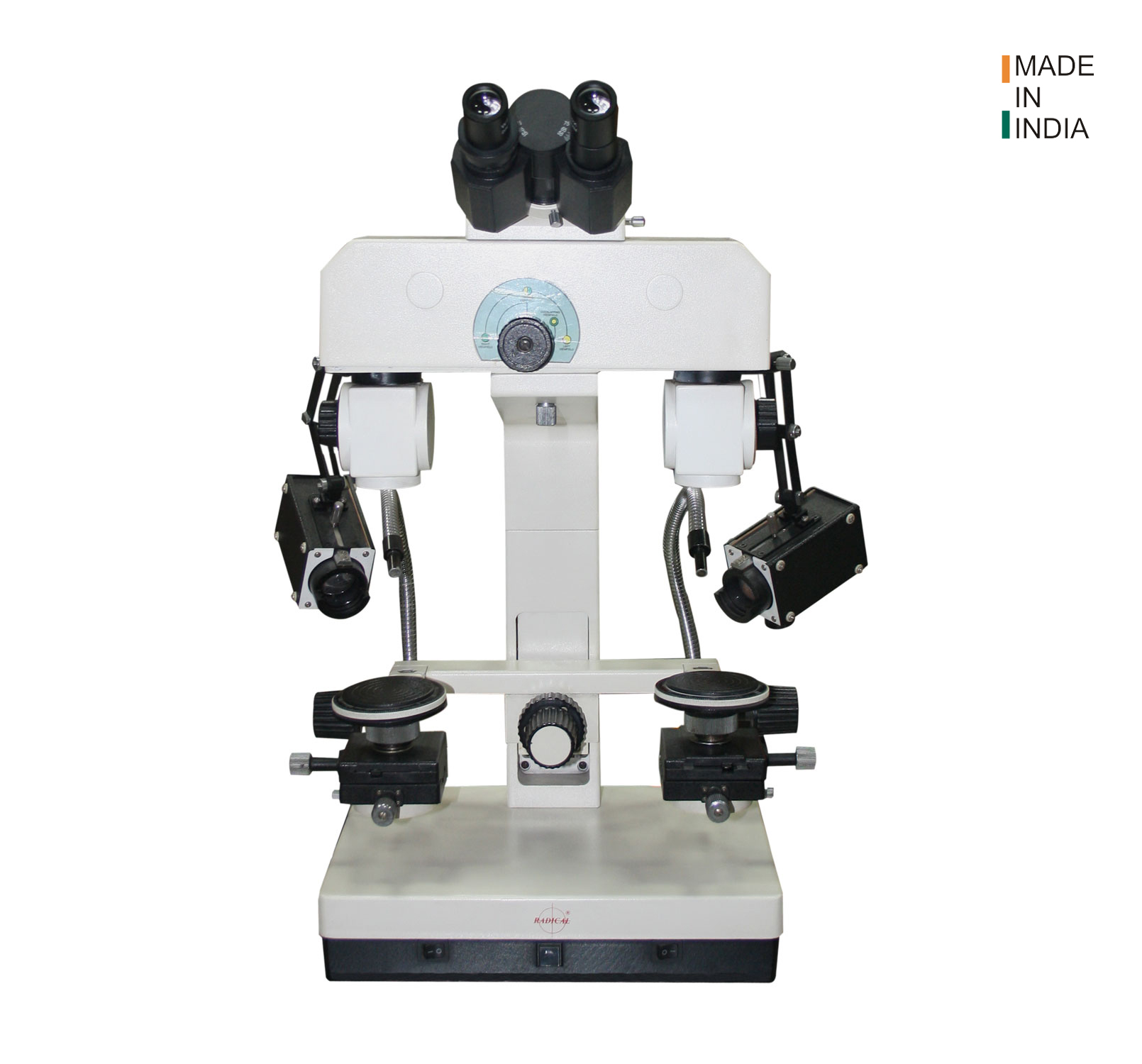

Low Power Forensic Comparison Microscope

RCM-22

This microscope is for Crime Scene Investigation and Forensic Science. Analyze and Compare Bullets, Bullet Cartridge Casings, Scratch Marks, Wires, Fibre, Hair, and Paint Fragments. Polarization Capable: Includes both Polarizer and Analyzer for viewing under Cross Polarization Conditions. Two Separate Specimens can be Studied Simultaneously with a Split Screen Viewing. The Comparison Bridge brings Both the Beam Paths together. The two images of the Objects under Examination can be Observed in the Field of View in Multiple Ways. They can be Observed together, Side-By-Side, Separated by a Thin Line that can be Moved to Either Side Allowing More or Less of Either Object to be Viewed. On the Extremes, the Field of View can show Only the Left Object or Only the Right Object.

Optical system Color corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated)
Illumination Reflected, transmitted and inclined koehler`s halogen/LED, Fiber optic, intensity adjustable, battery backup, auto cut-off
Viewing Head Trinocular with comparison bridge
Stage Two Fully Rotatable Mechanical X-Y-Z Movable Stages, X-Y Stage Movement Knobs Ball Socketed Inclinable Stages and other Vice Type Mechanical Holders
Objectives Five Built-In Objectives (Per Microscope) on Rotary Selector
Magnification Upto 144X
Stand Stage Bridge Frame Focusing Knob Moves Both Stages Up/Down Simultaneously.
Eyepiece Extra wide field, high point
Certification EU CE, ISI, ISO, TUV
Model RCM-22
Head Binocular/Trinocular with comparison bridge, Includes Two Photo Ports, One for Still Camera and One for CCD Video Camera!
Body Single body mounted on heavy and rugged metal base attached with a comparison bridge to split/side-by-side/Separated by a Thin Line that can be Moved to Either Side Allowing More or Less of Either Object to be viewed
Total Magnification 3.8X - 144X
Eyepiece 10X (25x optionally available)
Objective 0.8x, 1x, 2x, 3x and 4.8x.
Mechanical Stages Two fully rotatable mechanical X-Y-Z moveable stages, 65mm. diameter with graduation marks every 2° for the full 360°. Ball Socketed Inclinable Stages : Ball Socket Mounted Stages Provides Capability to incline.
Illumination Reflected halogen 6V-20W, intensity controllers & ON/OFF switch
Working Distance 105mm
Optional Accessories Photo micrographic Attachment Projection Screen Attachment, Semi Plan Objectives 2.5x, 20x, 60x, & Oil Immersion 100x, Spare Eyepieces, USB Camera with Necessary software etc.

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
