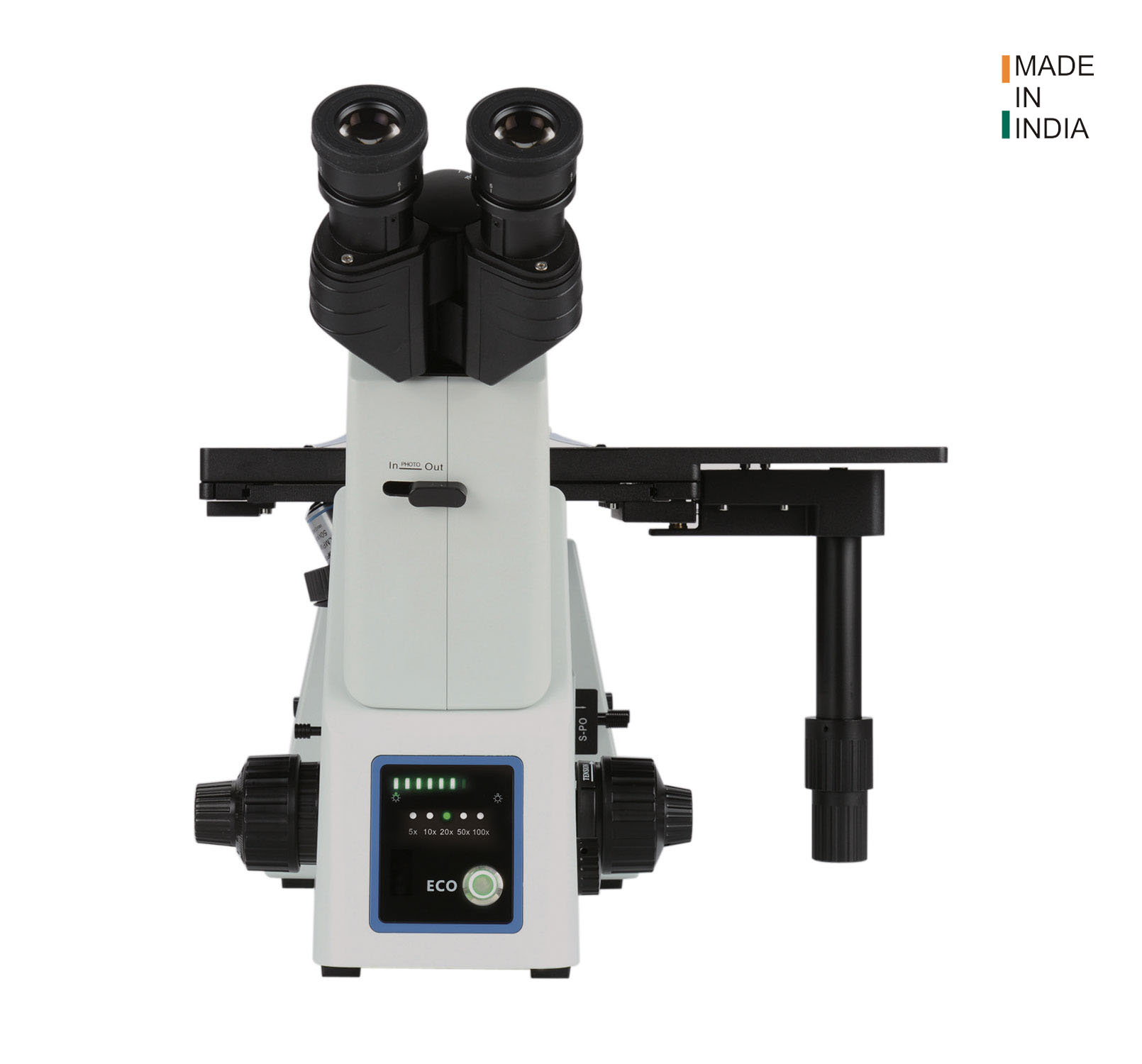

Advanced Metallurgical & Industrial Inspection Microscope

RMM-3EX

RMM-3 Inverted Metallurgical Microscope provides for a more comfortable user experience with its compact, ergonomic design for easy, durable use for observation of metallurgical samples, electronic components, and metal parts. Microscope is designed for routine metallurgical applications in industrial and educational applications.

BRIGHTFIELD
DARKFIELD
POLARIZING
Observation Method Infinite optical system, colour corrected
Illumination 50W Kohler illumination/LED
Viewing Heads Ergonomic siedentopf binocular/trinocular head, inclination 45° rotatable 360° with IPD 48-75mm, upper & lower position, diopter adjustable
Nosepiece Reversed Quintuple/Sextuple nosepiece
Objectives LWD Infinity plan semi APO chromatic plan
Eyepiece High Point Wide-field WF 10X with FOV 22/25mm
Mechanical Stage Fixed stage with 3point support, Attachable mechanical stage, X-Y coaxial control, moving range 120×78mm double layer mechanical stage 150×300mm, moving range 50×50mm
Focusing Coaxial, tension control & upper limit stopper high sensitivity focus drive with 0.01mm per revolution
Observation Bright Field, Darkfield & Polarizing
Magnification 50x-1000x
Filters Blue, Green, Built-in Slots for Analyzer & Polarizer
Part Name Part Code Description

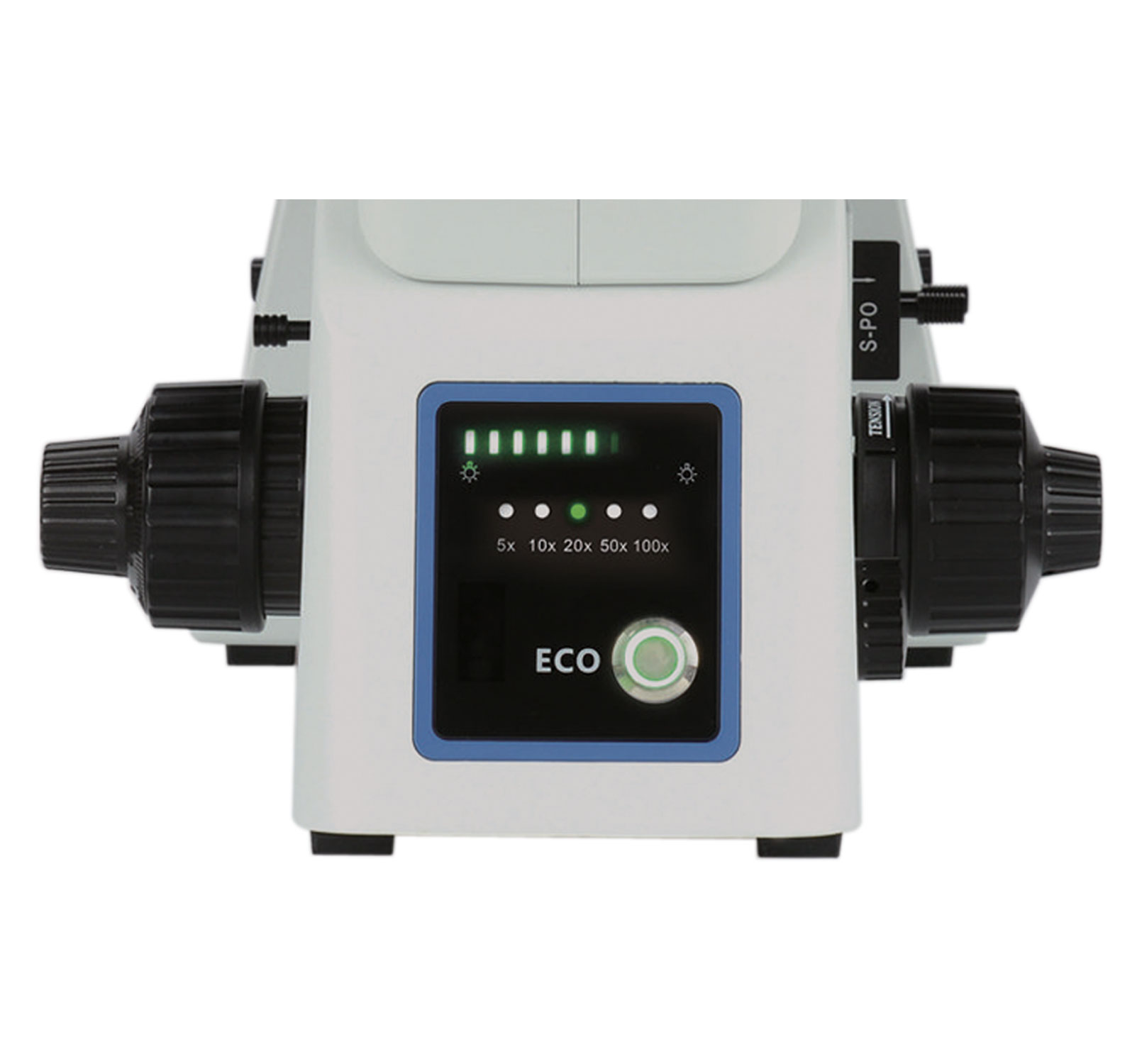

Body RMM3EXMB Rugged, ergonomic design, touch point treated, acid resistant texture painted, intensity controller & on/off switch, rubber feet, infrared Sensor-Eco illumination
Optical system RMM3EXiOS Infinite optical system, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), colour coded objectives, parfocal (60mm), pre-centered
Reflected Illumination RMM3EXHL50 Kohler, with iris diaphragm, centerable field diaphragm, halogen 12V -50W (Life 2000 hrs.)
Viewing Head RMM3EXT45P80 Trinocular inclined at 45°, ergonomic siedentopf Head, rotatable through 360°, IPD 54-75, diopter adjustable, splitting 2 position 100:0, 20:80
Nosepiece RMM3EX-5N Inward tilted, precise quintuple revolving on multiple ball bearing
Eyepiece RMM3EXEP1022 Paired, high eye point WF 10X, FOV-22mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, pre-centered, diopter adjustment on both eyepiece (±5mm)

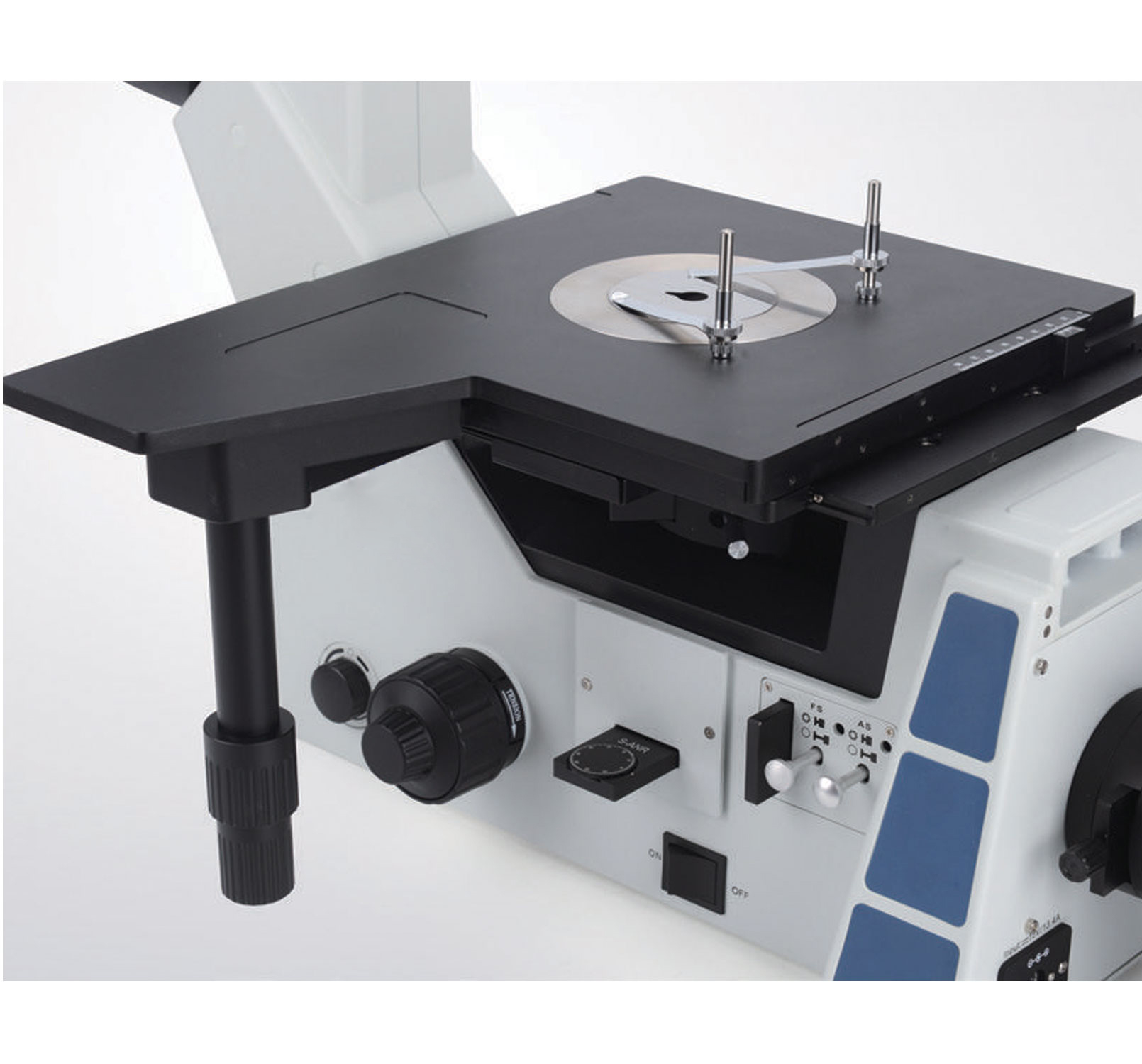

Mechanical Stage RMM3EXMS Rectangular low right/left hand control, horizontal, hard coating, double slide holder, fixed stage with 3-point support, stage size 160X250mm, X-Y movement 120X78mm, precision 0.1mm
Objectives RMM3EXPL04iM M5X, N.A. 0.15, W.D. 10.8mm, plan achromatic, infinite, unbreakable container for storage
RMM3EXPL10iM M10X, N.A. 0.3, W.D. 10mm, plan achromatic, infinite, unbreakable container for storage
RMM3EXPL20iM M20X, N.A. 0.45, W.D. 4.0mm, Plan Achromatic, infinite, unbreakable container for storage
RMM3EXPL50iM M50X, N.A. 0.55, W.D. 7.8mm, Plan SAPO, infinite, unbreakable container for storage

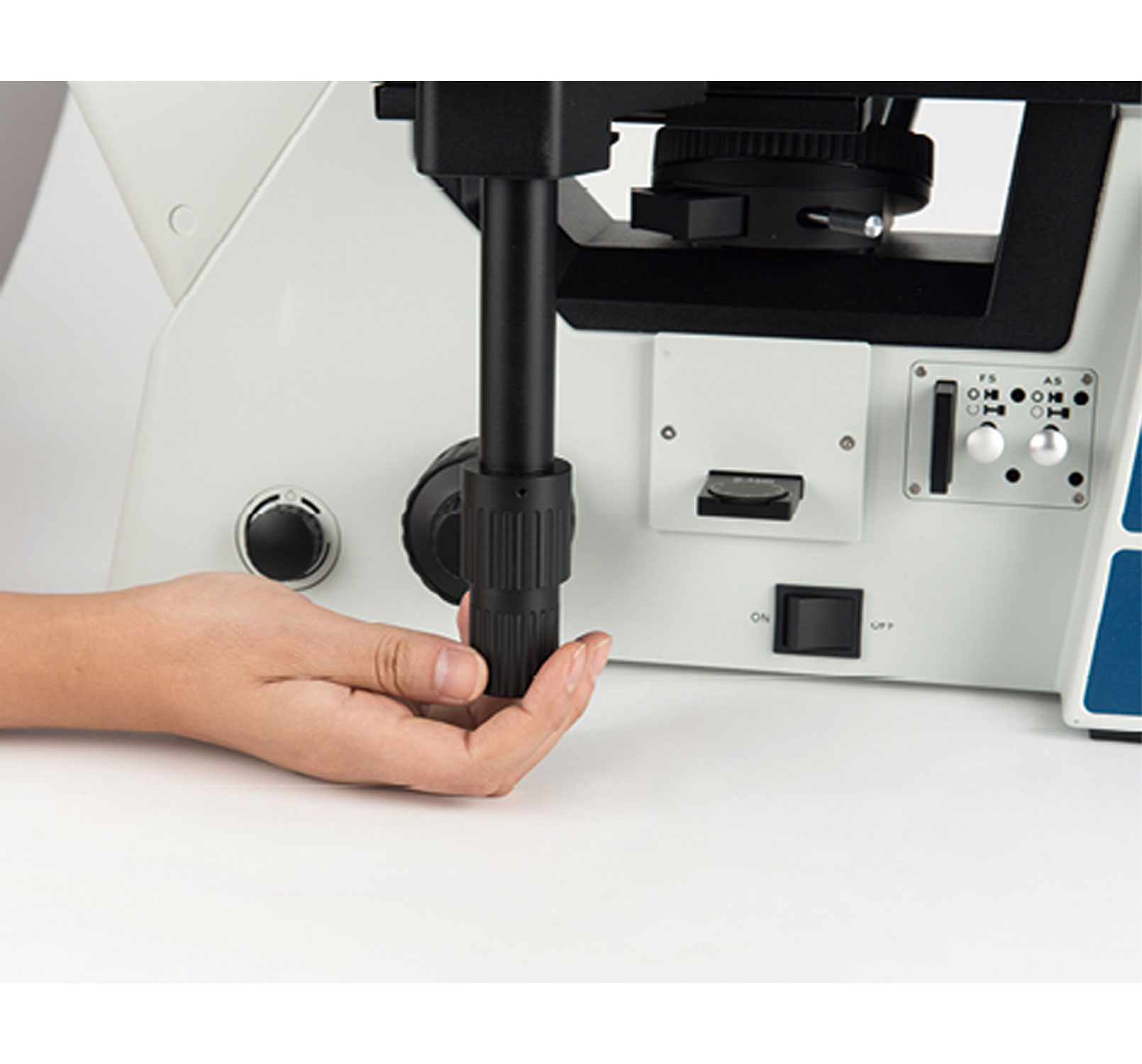

Focusing RXF25 Co-axial, coarse & fine, tension control, upper limit stopper, coarse range 38mm, high sensitivity focus drive with 0.25 mm per revolution, fine adjustment 2.5µm/Div.
Power Supply RSMPS620 SMPS based, wide voltage range, 90V-240V, 50/60Hz
Accessories RCC Cleaning cloth
RVC Vinyl cover
RAK Allen keys
RCLP C-clamp for tension adjustment
RMM3EXSTINSRT Round stage inserts with opening with 10mm, 15mm & 25mm
RMM3EXFILTER 32mm Yellow/Green/Blue/ND
RF5A Fuses - 2 no's
MANUAL Instruction manual
WARRANTY Warranty card
RBF Blue/Green/Yellow Filter
RPC Power Cord (country Specific)
  • Reflected Illumination
    • Part Name Part Code Description
      Reflected Illumination RMM3EXH50RL 12V-50W life 2000 hrs., with field and aperture diaphragm
      RMM3EXH100RL 12V-100W life 2000 hrs., with field and aperture diaphragm
      RMM3L5WRL LED 5W life 62000 hrs., Lumens equivalent 100W, with field and aperture diaphragm
  • Viewing Head
    • Viewing Head RMM3EXTST-C50 Trinocular inclined at 45°, siedentopf Head, rotatable through 360°, IPD 48-76, Diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 50(EP):50 (camera)
      RMM3EXTST-C80 Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD 48-76, Diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 20(EP):80 (camera)
      RMM3EXTST-3PC50 Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD 48-76, Diopter adjustment on both eyepiece, port for camera attachment, 3 position splitting ratio 100:0, 50:50, 0:100
      RMM3EXTST-3PC80 Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD 48-76, Diopter adjustment on both eyepiece, port for camera attachment, 3 position splitting ratio 100:0, 20:80, 0:100
  • Nosepiece
    • Nosepiece RMM3EX-4N Inward tilted, precise quadruple revolving on multiple ball bearing

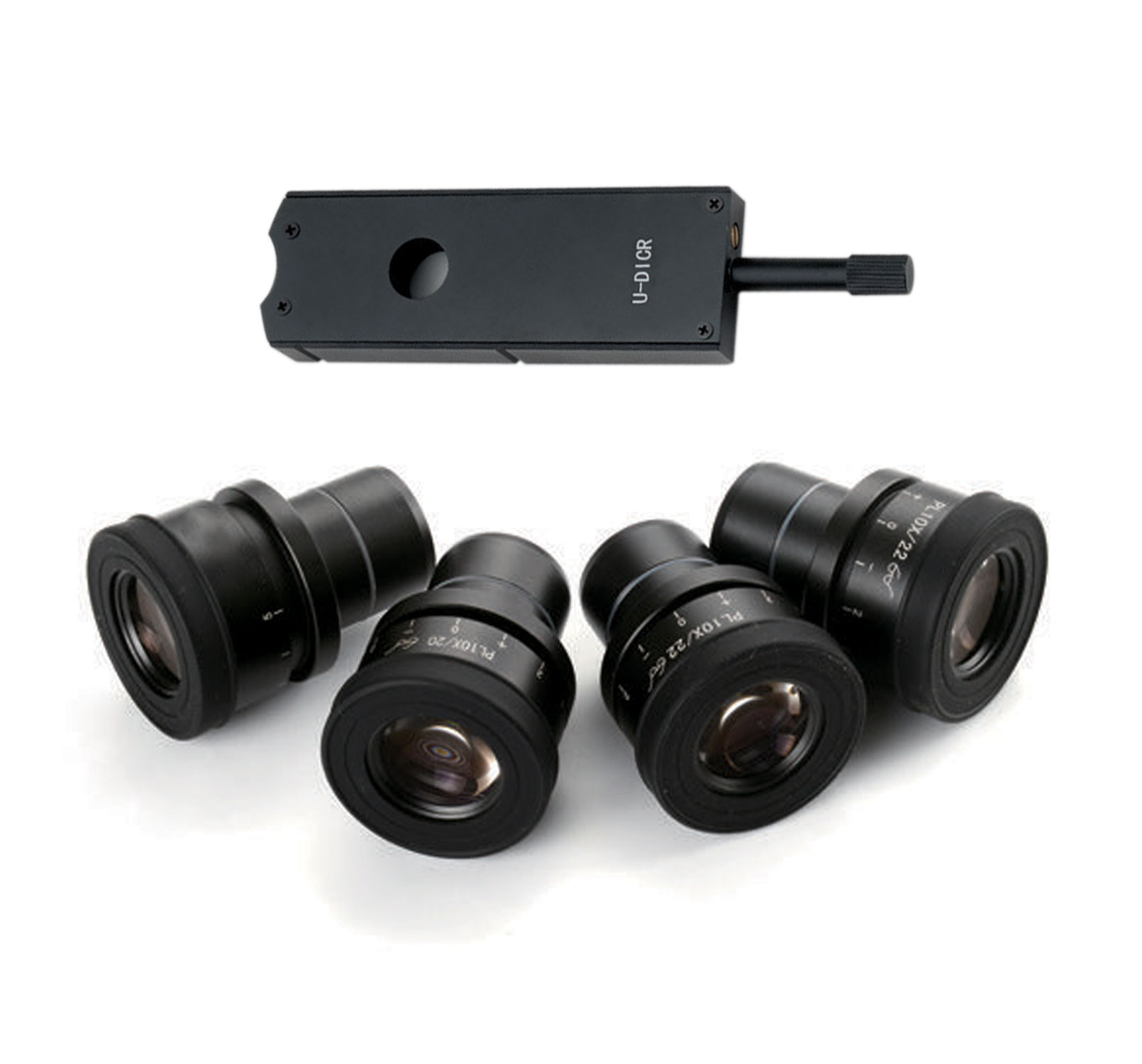

  • Eyepieces
    • Eyepieces RMM3EXEP1020M WF 10X, FOV-20mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM3EXEP1020P WF 10X, FOV-20mm, pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM3EXEP1022 WF 10X, FOV-22mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, Lockable
      RMM3EXEP1022M WF 10X, FOV-22mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM3EXEP1022P WF 10X, FOV-22mm, pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM3EXEP1025 Paired, WF 10X, FOV-25mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM3EXEP1025M WF 10X, FOV-25mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM3EXEP1025P WF 10X, FOV-25mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM3EXEP1515 Paired, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM3EXEP2010 Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RMM3EXEP-C Customized eyepiece of 5X/10x/12x/15x/16x/20x with different types of reticles / graticules
      RMM3EXECUP Eyecups (pair)
  • Mechanical Stage
    • Mechanical Stage RMM3EXMS-C Rectangular right/left hand control, horizontal, hard ceramic coating, double slide holder, stage size - customized as per requirement, X-Y movement - customized as per requirement
      RMM3EXMS-RK Rackless, Rectangular right/left hand control, horizontal, hard ceramic coating, double slide holder, stage size - customized as per requirement, X-Y movement - customized as per requirement
      RMM3EXMS-MOT Rectangular right/left hand control, horizontal, hard ceramic coating, double slide holder, X-Y movement motorized, stage size - customized as per requirement, X-Y movement - customized as per requirement with controller (PCI or USB)
  • Objectives
    • Objectives RMM3EXPL02iM 2X, N.A. 0.06, W.D. 7.50mm, plan achromatic, infinite, parfocal & pre-centered, oil immersed, spring loaded, unbreakable container for storage
      RMM3EXPL60iM 60X, N.A. 0.80, W.D. 0.30mm, plan achromatic, infinite, parfocal & pre-centered, oil immersed, spring loaded, unbreakable container for storage
      RMM3EXPL63iM 63X, N.A. 0.84, W.D. 0.28mm, plan achromatic, infinite, parfocal & pre-centered, oil immersed, spring loaded, unbreakable container for storage
      RMM3EX100iM 100X, N.A. 1.25, W.D. 0.18, plan achromatic, oil immersed, infinite, spring loaded, unbreakable container for storage
      RMM3EXP-100iDF 100X, N.A. 1.25, W.D. 0.18mm, plan achromatic, infinite, oil immersed, spring loaded, darkfield, unbreakable container for storage
      SEMI APO/Flotar/Fluor objectives RMM3EXP-SAPO04i 4X, N.A. 0.13, W.D. 17.1mm, SAPO, infinite, unbreakable container for storage
      RMM3EXP-SAPO10i 10X, N.A. 0.3, W.D. 16mm, SAPO, infinite, unbreakable container for storage
      RMM3EXP-SAPO20i 20X, N.A. 0.5, W.D. 2.1mm, SAPO, infinite, unbreakable container for storage
      RMM3EXP-SAPO40i 40X, N.A. 0.75, W.D. 0.72mm, SAPO, infinite, spring loaded, unbreakable container for storage
      RMM3EXP-SAPO60i 60X, N.A. 0.80, W.D. 0.3mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
      RMM3EXP-SAPO63i 63X, N.A. 0.85, W.D. 0.28mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
      RMM3EXP-SAPO100i 100X, N.A. 1.3, W.D. 0.20mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage.
          Please click for More Objectives...
  • Focusing
    • Focusing RXF10 Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.10 mm per revaluation, fine adjustment 1µm/Div.
      RXF20 Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.20 mm per revaluation, fine adjustment 2.0µm/Div.
      RMXF1.0-MOT Motorized focusing through stepper motor, precision controlled, external controller through PCI or USB
  • Power supply
    • Power supply RTF620 6V-20W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
        RTF630 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
        RSMPS630 SMPS based, wide voltage range, 90V-240V, 50/60Hz
        RPSLED LED power supply, wide voltage range, 90V-240V, 50/60Hz
  • Micrometer/Calibration slide
    • Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
        RCS100 Micrometer slide for calibration, 10mm with 100µm least count
  • C-mount
    • C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
        RCMT65X 0.65X Camera Adaptor/Tube/Mount
        RCMT70X 0.7X Camera Adaptor/Tube/Mount
        RCMT01X 1X Camera Adaptor/Tube/Mount
  • Packing
    • Packing RWBX Wooden box with separate container for accessories, lock & key, carrying handle
      RSTYRO standard Styrofoam packing
Slider RMM3EXSLDF Darkfield slider
Analyzer/Polarizer RMM3EXSLANA Set of analyzer and polarizer
Filters  RGF Green plane or frosted
Cleaning Kit RCLEAN Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
