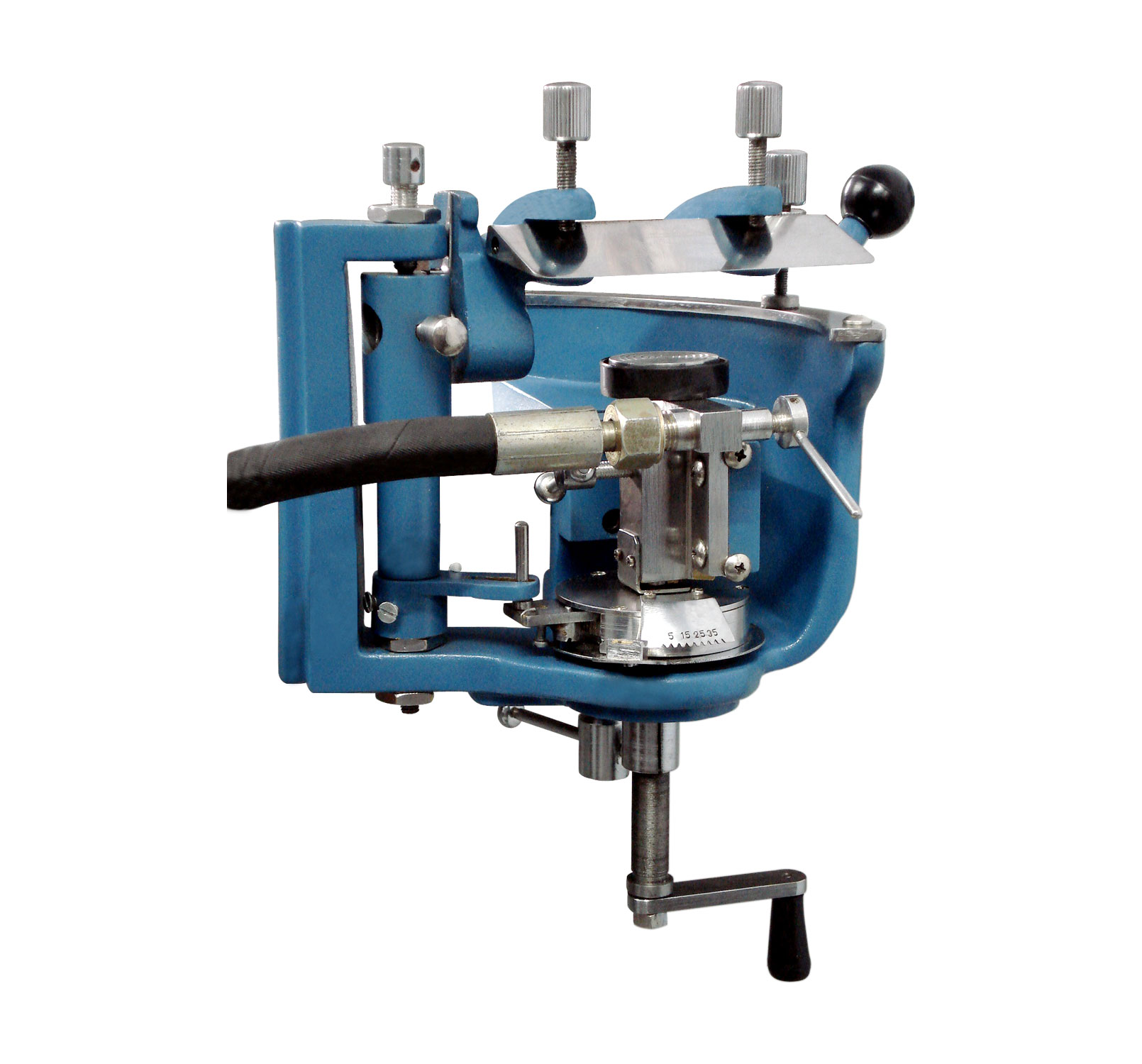

Freezing Microtome Model RMT - 40 is designed to the full purpose of accurate and quick diagnosis in surgery and also for the inspection of quality of rubbes and others. It has a table clamping device. The specimen rises accurately and automatically by a handle. The CO2 freezing attachment is provided with a hard rubber non-conducting plate between the corrugated surface to which the object is frozen and the rest of the apparatus, which prevents the conduction of heat from the other parts of the apparatus to the specimen; thus saving time and CO2.
In operating this freezing attachment the valve at the bottom should first be closed and valve at the cylinder slightly opened to admit the gas into the tube.
The Automatic feed mechanism can be thrown out of action by turning the Index Finger to the extreme left or it may be set to cut sections of any desired thickness. Each division of the graduated scale marks 5 µm, the Microtome range being 5-40 µm. The sturdy Knife Holder can be tilted to a convenient angle of the Knife suitable to the object.
|Freezing Stage||35 mm. dia.||Total Excursion of Feed||25 mm.|
|Feed Range||5 - 40 µm in steps of 5 µm each||Weight||13 kg. approx.|
|Size (in case)||39 x 34 x 30 cm.||High pressure flexible tubing||150 cm. (approx.)|
As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
