RPP-250C
Impact U/V Notch Profile Projector

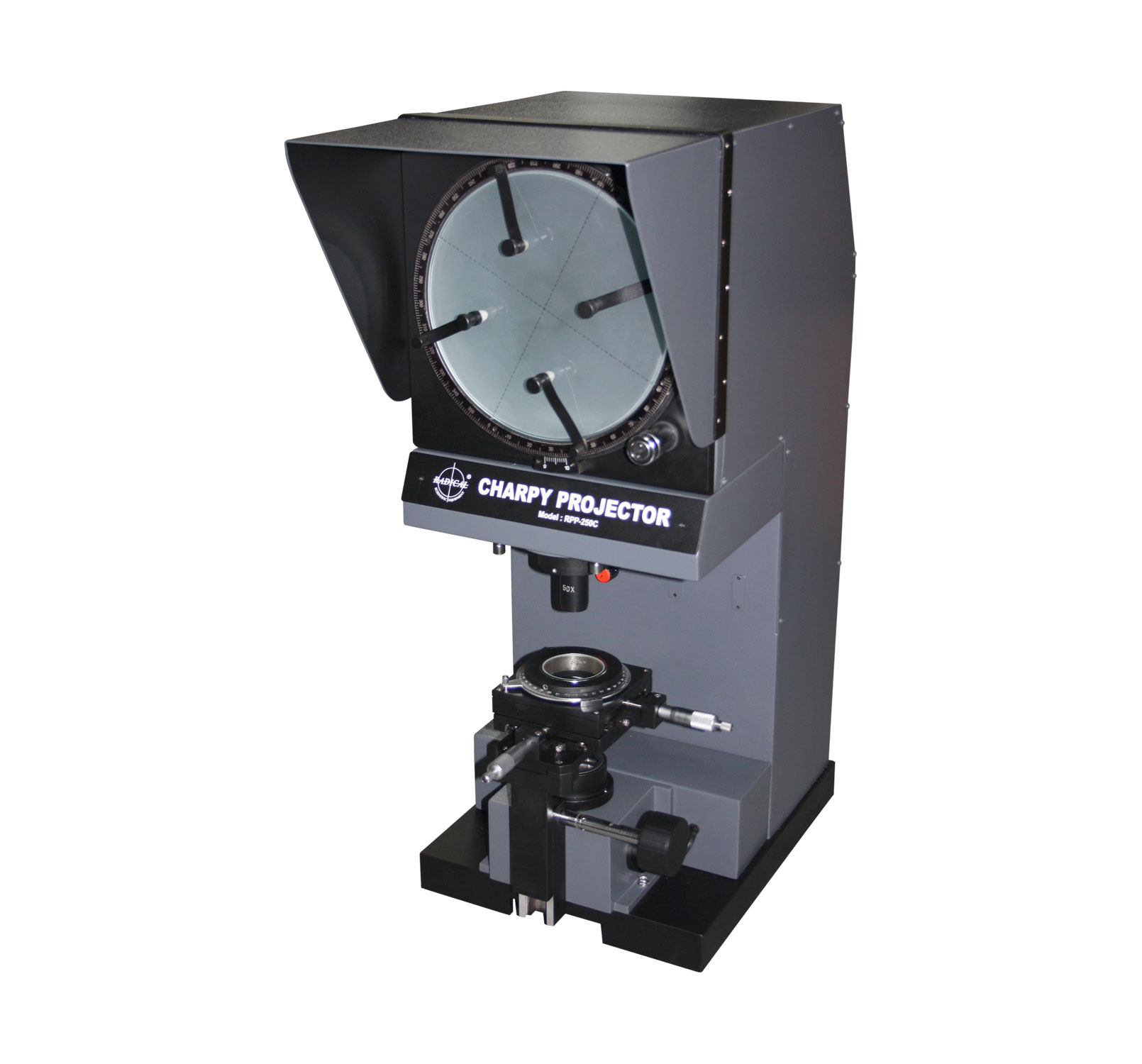

Charpy Profile Projector RPP-250C is designed as per requirement for impact sample gap, metal charpy impact test method. The instrument confirm to the test in U-Type and V-Type as per processing quality of impact specimen. The comparison is directly visible on the 250mm optical glass screen at 50 times magnifications. These are strictly designed according to the ASTM E 23, IS 1499 - 1977, IS 1757 - 1988 standards.
The instrument magnifies the impact specimen gap's outline & projects it on to screen for comparing with standards. This helps to check whether the tested specimen gap is within tolerance or not as per International Standards. The comparison is directly visible & operation is very simple with high accuracy.Its multilayer coated projection lens
| Projection Lens | Multilayer coated for high transmission with optimum contrast |
|---|---|
| Magnification | 50X |
| Projection Screen | 250 mm. optical glass screen |
| Field of View | 5 mm in 50x magnification |
| X-Y-Z Displacement | 40 x 40 x 40 mm. table travel |
| Specimen Platform | Size 160 x 300 mm |
| Magnification | 50X (Standard) | |
|---|---|---|
| Projection Screen | 250 mm. optical glass screen | |
| Field of View | 5 mm in 50x magnification | |
| X-Y-Z Displacement | 40 x 40 x 40 mm. table travel | |
| Specimen Platform | Size 160 x 300 mm (Interchangeable) | |
| Cross Travel Stage | X-Y Table size 125 x 125 mm Travel upto 40x40 mm Micro-Head Standard 0-25mm L.C.0.01mm Rotary stage glass diameter 62 mm. | |
| Illumination | Projection Light Source with 24V / 150W Halogen Lamp. Double Oblique Light Source for Surface Illumination. | |
| Dimensions/Weight | Nett 55x35x86 cm / 38 Kgs. Gross 74x46x 94 cm / 80 kgs. | |
Over Lay Chart
|
Swivel Center Support
|
V-Block With Clamp
|
Edge detector
|
Foot switch
|
fixture
|
Holder with clamp
|
D.R.O
|
Data Processor
|
