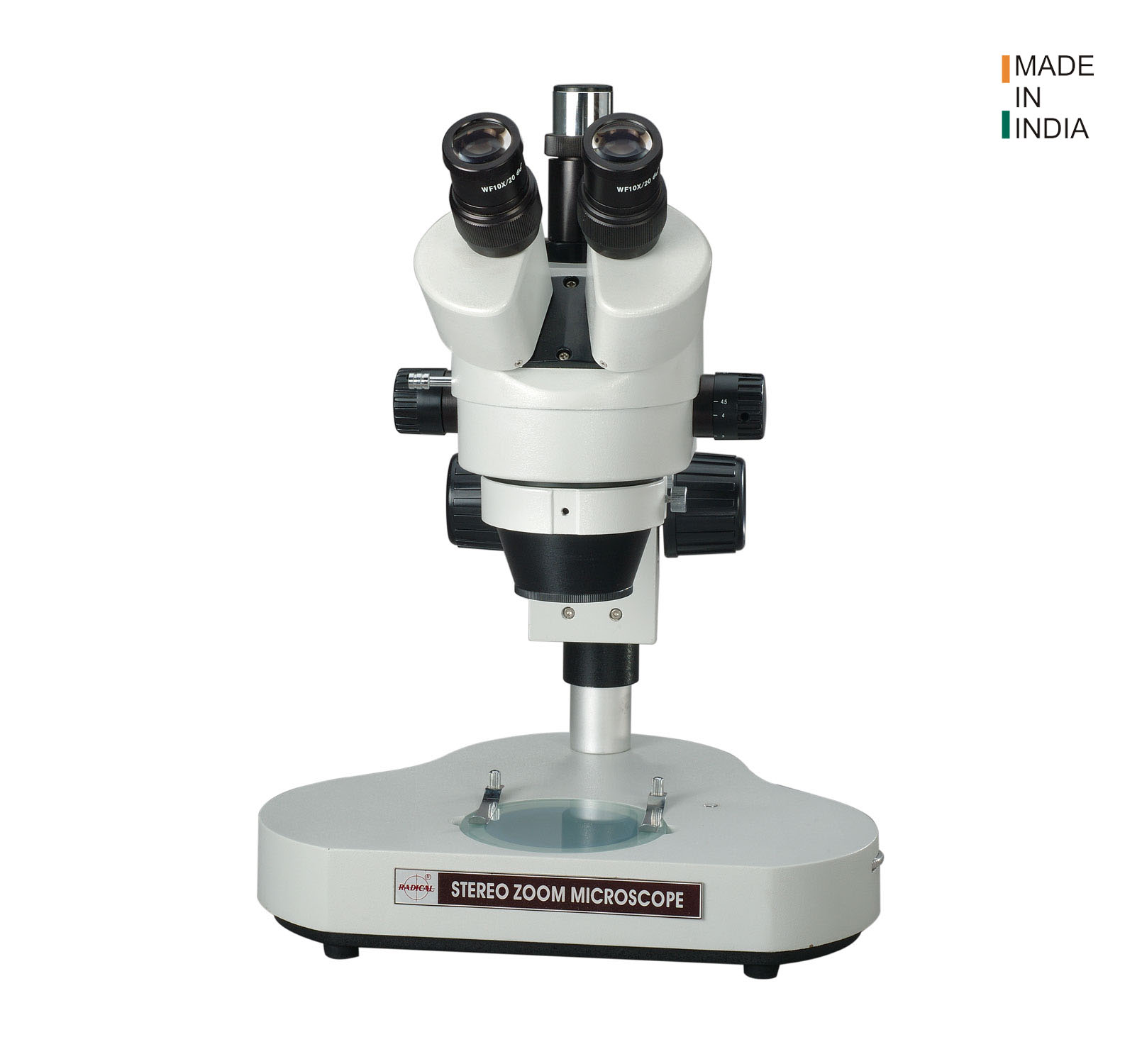

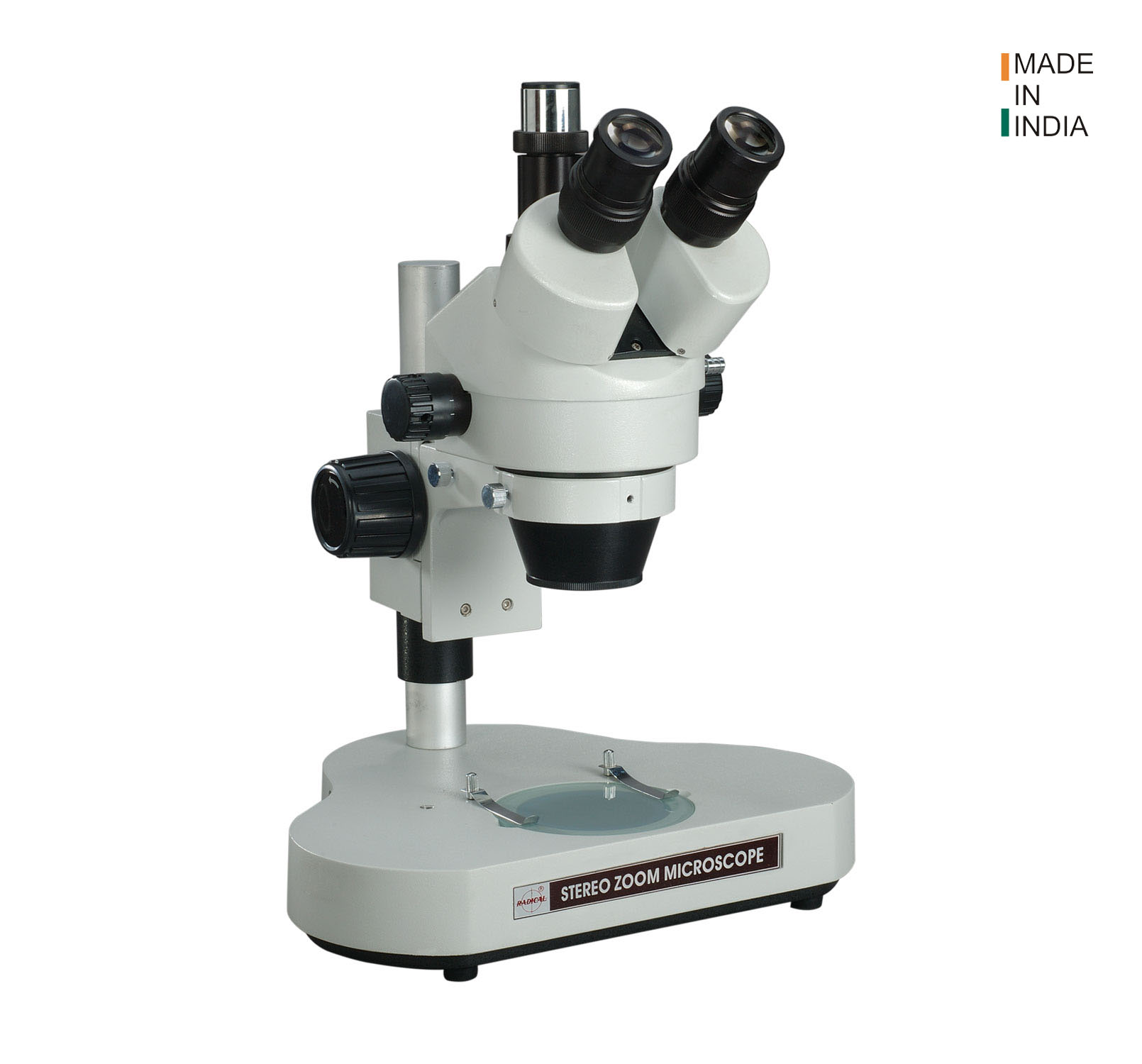

Stereo Zoom Microscope

RSM-8/9

RSM-8/9 Series models are highly professional, extremely robust stereo microscopes which are easy to use with zoom function which can be operated from both sides Due to its nature, column supports, as well as the integrated dimmable LED/halogen with reflected and transmitted light. Furthermore it offers precise resolution, extra large visual field and is completely colour true. These models are ideally suited for use in the quality control department, assembly and repair workstations in the electronics and semiconductor industries as well as in biological laboratories and in research.

BRIGHTFIELD
DARKFIELD
MODULATION CONTRAST
Optical system Greenough zoom lenses
Illumination LED/halogen/fluorescent transmitted & reflected
Viewing Head 45° inclined 360° rotatable
Stage Large stage with handrest
Objectives Long working distance
Zoom Continuous
Stand With two step focusing, universal, customized
Eyepiece Wide field with dioptric adjustment
Resolution 225 Lp/mm @ 45X
Microscopy Techniques Polarizing, Darkfield, oblique illumination
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RSM9MB Plain focusing stand, rugged, ergonomic design, touch point treated, anti mould, anti electrostatic, acid resistant texture painted, rubber feet & stage clips.
Optical System RSM9GOS Greenough Optical System
Total Magnifications RSM9TX 3.5x to 160x (using different combinations of Eyepeice, zoom lens & aux. objectives)
Standard Zoom Lens RSM9ZL 0.7X to 4.5X continously zoom with steps of 0.7x, 0.8X, 1X, 1.5X,2X, 3X, 4X & 4.5X
Zoom ratio RSM9ZR 1:6.4
Eyepeices RSM9EP1020 Paired, WF 10X, FOV-20mm, high point, multilayered coated, high quality, good contrast, aberration free, aplanatic, lockable, rubber eyecups
Head RSM9HT45 Trinocular head, 45° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom, top port for attaching camera with 50:50 splitting
Focussing  RSM9FOC Plain focusing by pillar clamp, working distance 115mm, Coarse focusing by pillar clamp and fine focusing by rack and pinion, road and poll made of Stainless steel
Illumination RSM9LED 3W LED (transmitted and reflected), separate intensity controller & on/off switch
Accessories RCC Cleaning cloth
RVC Vinyl cover
MANUAL Instruction manual
WARRANTY Warranty card
RPC Power Cord (Country Specific)
  • Body/Stand
    • Part Name Part Code Description
      Body/Stand RSR8MB2 Plain focusing stand, stereo zoom mounted on stable rod, rugged, ergonomic design, touch point treated, anti mould, anti-electrostatic, acid resistant texture painted, rubber feet & stage clips, antistatic polymer housing, frosted glass 100mm, black & white round plate-100mm.
      RSM9UNV Universal bracket arm, hight, angle position adjustable, vertical high 350mm, diameter 35mm, horizontal movement 400mm, no transmitted light
      RSM9COF Column flat base, black & white sheet dia 95mm, column height 240mm, dian32mm, no transmitted light, 2 object clip
      RSM9BLIT Base with table, 95mm glass, black & white plate, transmitted light 12V-15W halogen, 7W fluorescent optional, Intensity controller, coumn height 240mm, dia 32mm, base 20mmx255mm,40mm
      RSM9BLITL Base with table, 95mm/100m glass plate, black & white plate, transmitted light LED/12V-15W halogen, refleted light LED/12V-15W halogen, 7W fluorescent optional, Intensity controller, coumn height 240mm, dia 32mm, base 20mmx255mm,40mm
      RSM9LRFLT Large flat base, coumn height 240mm, dia 32mm, base size 380x260x20mm, no transmitted light
      RSM9FLTB Flat base, black & white plate 100mm, arm height 300mm, focusing knob 100mm
      RSM9LEDGSNK Flat base, black & white plate 95mm, arm height 250mm, Dual LED (3W) lighting gooseneck inbuilt into stand
      RSM9LEDRLTL Transmitted & reflected LED, intensity controller, column height 240mm,
      RSM9BFLAT Plain, flat base with coloum, no transmitted light
      RSM9XCOAX Co-axial coarse and focusing stand
      RSM9GEMSTD Gemological stand
      RSM9UNIVER Universal Stand
  • C-mount
    • C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
        RCMT65X 0.65X Camera Adaptor/Tube/Mount
        RCMT70X 0.7X Camera Adaptor/Tube/Mount
        RCMT01X 1X Camera Adaptor/Tube/Mount
  • Eyepiece
    • Eyepiece RSM9EP1018 Paired, WF 10X, FOV-18mm, high point, multilayered coated, high quality, good contrast, aberration free, aplanatic, lockable
      RSM9EP1022 Paired, WF 10X, FOV-22mm, high point, multilayered coated, high quality, good contrast, aberration free, aplanatic, lockable
      RSM9EP1015 Paired, WF 15X, FOV-15mm, high point, multilayered coated, high quality, good contrast, aberration free, aplanatic, lockable
      RSM9EP2010 Paired, WF 20X, FOV-10mm, high point, multilayered coated, high quality, good contrast, aberration free, aplanatic, lockable
        RSM9EP10C Focusable WF 10X, having graticule/reticle cross line or pointer or 10/100 mm scale or combination
  • Head
    • Head RSM9H451X2X Binocular head, 45° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom
      RSM9H301X3X Binocular head, 30° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom
      RSM9H301X3X Trinocular head, 30° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom
  • Illumination
    • Illumination RSM8LED 5W LED (incident and reflected), on/off switch
      RSM8HALRL 6V-20W Halogen illumination (Transmitted) /LED as required.
      RSM9RLTL120 Co-axial illuminator 12V-20W Halogen
      RSM9HAL15WRL Halogen bulb with reflector, 12V15W
      RSM9HAL 12V-20W Halogen (transmitted and reflected), separate intensity controller & on/off switch
      RSM9HALRL 6V-15W Halogen illumination (TOP)
      RSM9FLC 5W fluorescent illuminator, Bottom
      RSM9RLGSK1 Fibre optic light source with Single flexible light pipes
      RSM9RLGSK2 Fibre optic light source with double flexible light pipes
      RSM9RLTL100 Co-axial illuminator 12V-100W Halogen
      RSM9RLFLC Circular fluorescent illuminator (reflected)
      RSM9LEDR56 56 LED, ring light, intensity adjustable, color temperature 6400K, 24V6W
      RSM9LEDR60 60 LED, ring light, intensity adjustable, color temperature 6800K, 24V6W
      RSM9LEDRF LED, intensity adjustable, color temperature 4500K, 12V6W
      RSM9LED Cutomized as per user specification
      RSM9BB Battery backup from 2-12 hours for LED (internal/external)
  • Mechanical stage
    • Mechanical stage RSM9STAGE Stage, inbuilt transmitted illumination with object field diameter of 28.6 - 4.4mm inbuilt mounting system to maintain proper alignment of the internal optics.
      RSM9STAGE-1 Stage, X-Y movement, ball guide, 180X155X26mm, travel 35X30mm, size 185X140mm
  • Micrometer/Calibration slide
    • Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
        RCS100 Micrometer slide for calibration, 10mm with 100µm least count
  • Objective
    • Objective RSM9-1.0 1X (Working distance 100mm) in-built
      Auxillary Objectives RSM9AUX0.5 0.5X/185mm
      RSM9AUX1.5 1.5X/48mm
      RSM9AUX2.0 2X/30mm
  • Packing
    • Packing RWBX Wooden box with separate container for accessories, lock & key, carrying handle
      RSTYRO Standard Styrofoam packing
  • Standard Zoom Lens
    • Standard Zoom Lens RSM9ZL1 0.65X to 4.5X continuously zoom with steps of 0.65x, 0.8X, 1X, 1.5X, 2X, 3X, 4X & 4.5X
      RSM9ZL2 0.63X to 4.5X continuously zoom with steps of 0.63x, 0.8X, 1X, 1.5X, 2X, 3X, 4X & 4.5X
  • Total Magnifications
    • Total Magnifications RSM9TX1 3.25x to 180x (using different combinations of eyepiece, zoom lens & aux. objectives)
  • Zoom ratio
    • Zoom Ratio RSM9ZR1 1:6.9
      RSM9ZR2 1:7
Cleaning Kit RCLEAN Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution

Important Note   The above codes of RSM series will be changed to RSM-8 & RSM-9 respectively. All the specifications will remain same except zoom range/ratio

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
