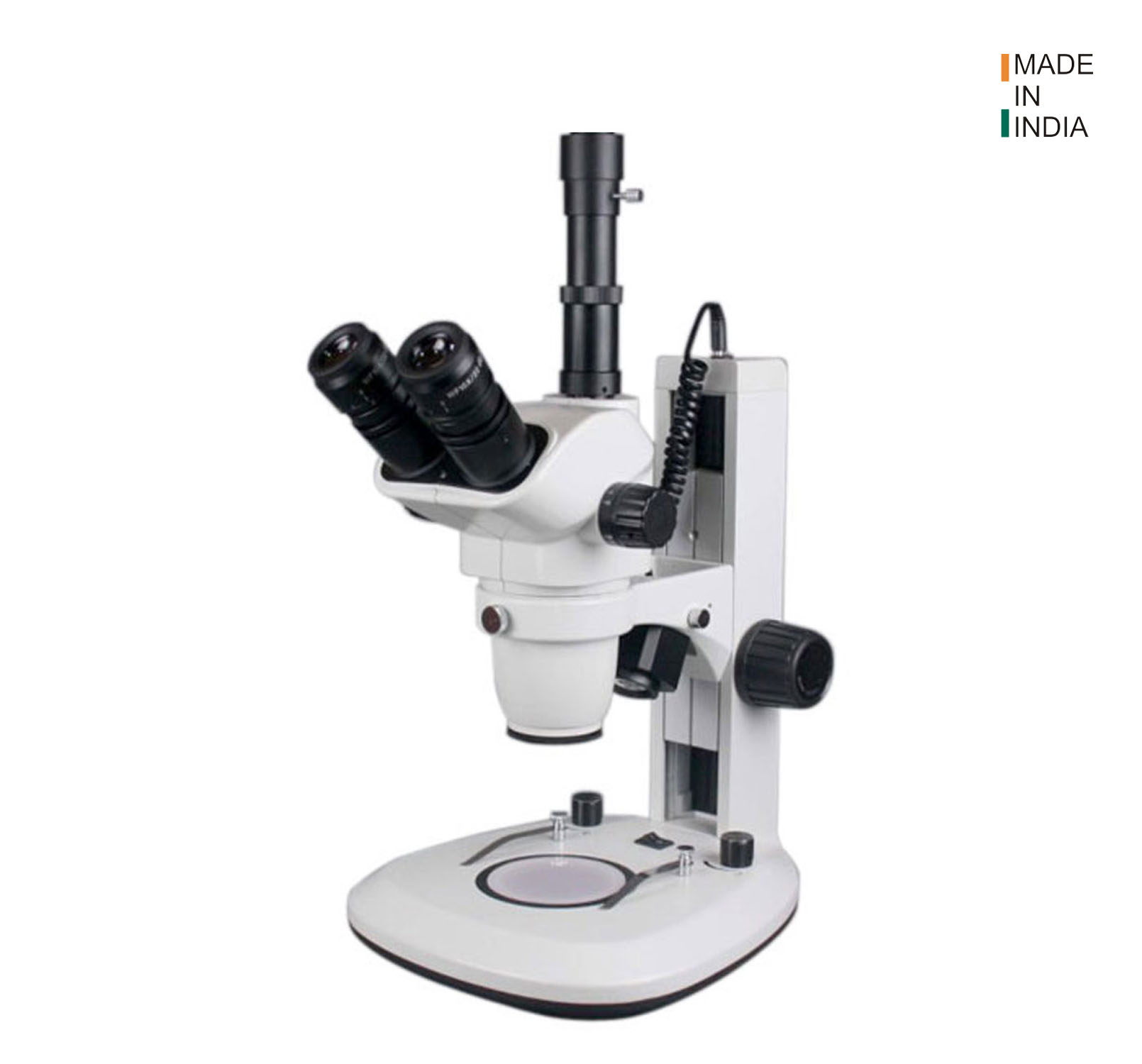

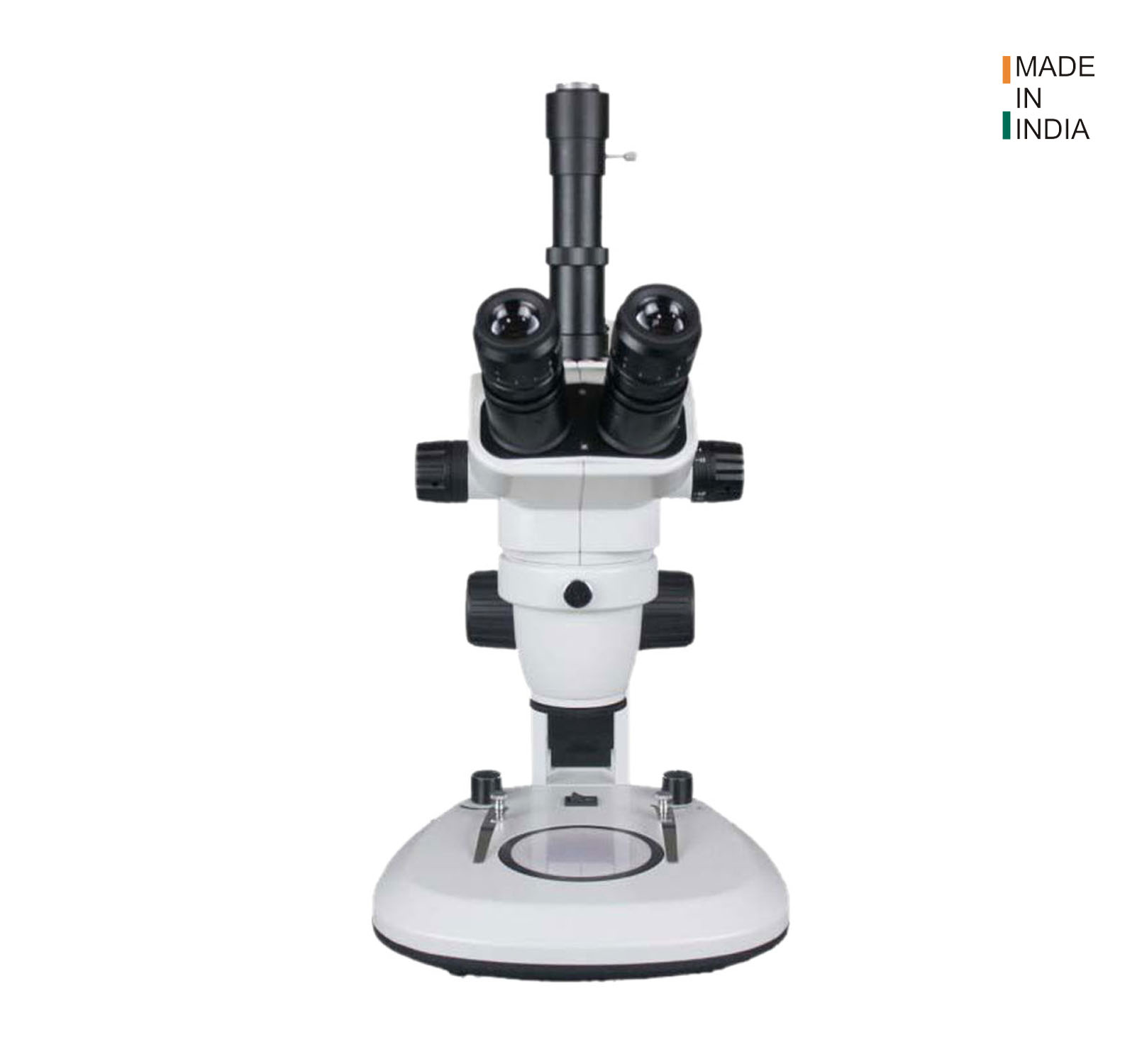

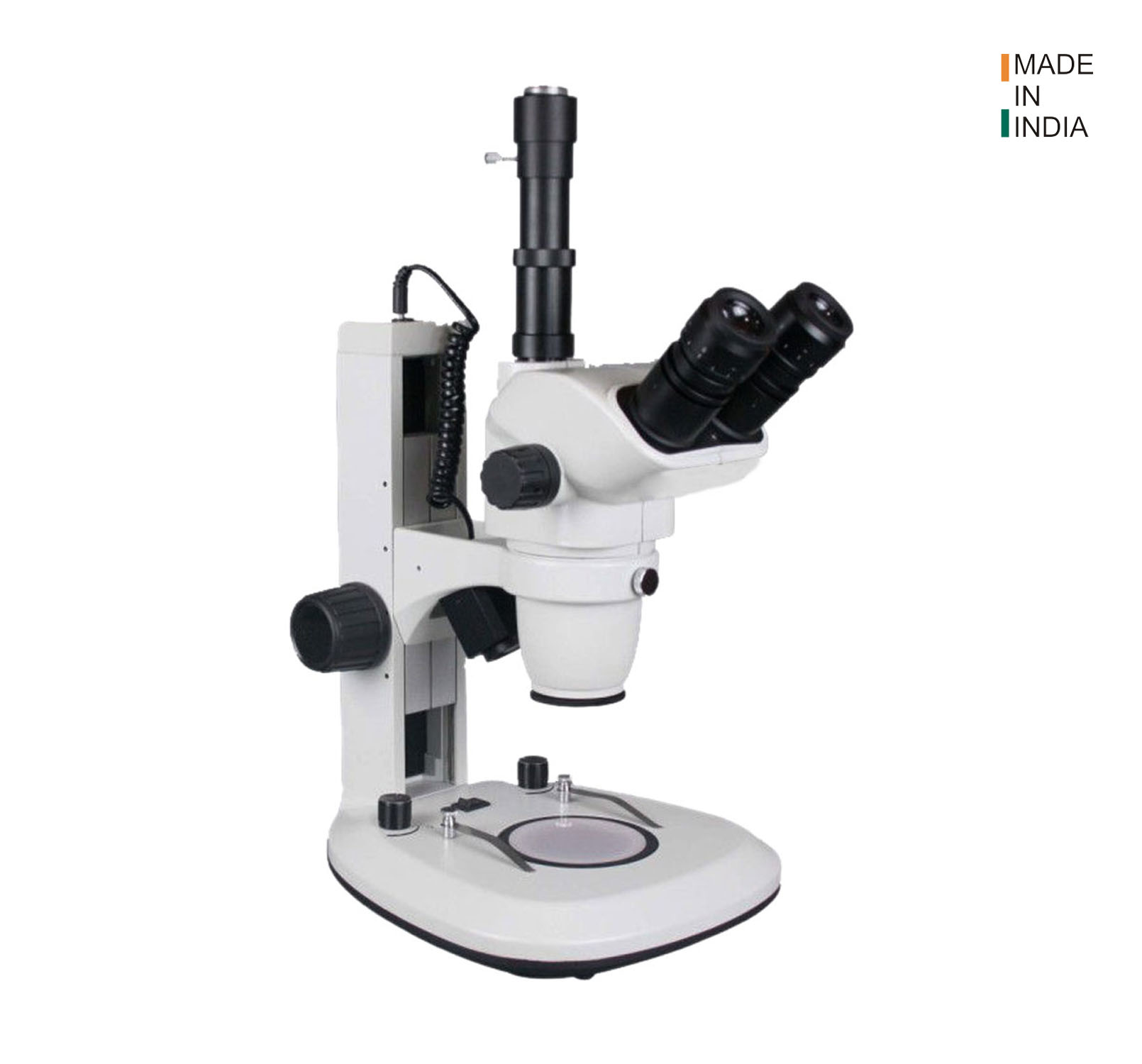

Advanced Stereo Zoom Microscope

RSMr-3/7/9

RSMr-3/7/9 Series To achieve larger zoom and higher magnification the Greenough or optionally with galilean optical system was redesigned. Adoption high grade raw material allows bright and high contrast images to be obtained at any magnification. It is having larger FOV and greater depth of focus together with long working distance makes it sought after zoom microscope in medical labs and industrial shop floors.

BRIGHTFIELD
DARKFIELD
MODULATION CONTRAST
Optical system Greenough System, Apo chromatic, lead free antifungal, antibacterial coated, high performance/resolution
Illumination Top Bottom LED, Coaxial, Cold Light, Diascopic
Viewing Head Interpupillary Adjustable
Eyepiece Extra Wide Field
Stage Large Stage With hand rest
Objectives Long Working Distance
Zoom Continuous
Stand With Two Step Focusing, Universal, Customized
Camera Port Single, Dual Port
Other Contrast Dark-field , Polarizing
Resolution 225 Lp/mm @ 45X, 450Lp/mm @ 250X
Motorized Control Motorized Focus and Zoom
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RSR3MB Plain focusing stand, rugged, ergonomic design, touch point treated, anti mould, anti-fungal, anti-electrostatic, acid resistant texture painted, modular system, rubber feet & stage clips, antistatic polymer housing, interchangeable protective glass for protection of optics from harmful fumes, splash, base plate size 277mm x 210mm x 22mm etc.
Optical System RSR3GOS Greenough apochromatic, single spindle design, optical system (convergence angle-10°) with depth of view upto 12mm with object field of 37mm, lead free, achromatic corrected, parfocal, pre-centered, resolution upto 600 lines per mm, in-built 1x objective with working distance upto 120mm 2D/3D dimensional observation of microscopic samples, FOV diameter 38.3mm.
Total Magnifications RSR3TX 3.25X to 270x (using different combinations of eyepiece, zoom lens & aux. objectives)
Standard Zoom Lens RSR3ZL 0.7X to 5.0X continuously zoom with steps of 0.7x, 1X, 1.5X,2X, 3X, 4X & 4.5X, 5.0X
Zoom Ratio RSR3ZR 1:7
Eyepieces RSR31020 Paired, WF 10X, FOV-20mm, compensating, diopter adjustment on one/both EP, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
Head RSR3HT45 Trinocular head, 45° inclined, rotatable 360°, IPD 48-75mm, top port for attaching camera
focusing  RSR3PFOC Plain focusing, hybrid stand, working distance upto 120mm, Stroke upto 50mm focus column of height 200mm, focus travel (lifting range) 145mm with adjustable focus
Illumination RSR3LEDRLTL 3W white LED (inbuilt transmitted and reflected), life hrs. 65,000, separate intensity controller & on/off switch, 6500K color temperature, constant colour temperature in entire FOV
Accessories RCC Cleaning cloth
RSR3ECUP Rubber eyecups (pair)
RVC Vinyl cover
Antistatic polymer microscopes cover optionally available on request
MANUAL Instruction manual
WARRANTY Warranty card
RPC Power Cord (Country Specific)
Eyepiece Micrometer 24mm- 1No.
Base Plate Black & white plate
  • Auxillary Objectives
    • Auxillary Objectives RSR3AUX0.3 0.3X
      RSR3AUX0.5 0.5X/165mm
      RSR3AUX0.5ia 0.5X, W.D.185mm
        RSR3AUX1.5 1.5X/60mm
        RSR3OBX1.0 Built-in 1X Apo objective, N.A 0.3, W.D. 115mm
        RSR3OBX1.0b Built-in 1X Apo objective, N.A 0.3, W.D. 90mm
        RSR3OBX1.0i Built-in 1X Apo objective, N.A 0.3, W.D. 100mm
        RSR3AUX1.0 1X Apo objective, N.A 0.05, W.D. 122mm
        RSR3AUX2.0 2X APO, W.D. 40mm
        0.5X, 0.75X & 1.5X
        0.5X, 0.7X & 2X
  • Body/Stand
    • Part Name Part Code Description
      Body/Stand RSR3UNV Universal bracket arm, height, angle position adjustable, vertical high 350mm (optionally upto 600mm), diameter 50mm, horizontal movement 400mm, no transmitted light
      RSR3UNV-1 Universal stand with ESD compatible, with sturdy base & dual swivel feature, height, angle position adjustable, swivel mechanism for bonder arm 180° & swivel mechanism for hoizental arm 360°, horizontal arm length: upto 600mm & movement upto 400mm, vertical high upto 500mm & movement upto 300mm, diameter 50mm, base plate size 250mm x 220mm x 34mm etc.
        RSR3MB2 Plain focusing stand, rugged, ergonomic design, touch point reated, anti mould, anti-electrostatic, acid resistant texture painted, rubber feet & stage clips, antistatic polymer housing, frosted glass 100mm, black & white round plate-100mm.
        RSR3MB-3 Plain focusing stand, rugged, ergonomic design, touch point treated, anti mould, anti-electrostatic, acid resistant texture painted, rubber feet & stage clips, antistatic polymer housing, frosted glass 100mm/ black & white round plate-100mm, mount: 76mm, load capacity: 5kg.
        RSR3MSG provision for rotary stage 360° rotation with precise vernier included crosshair reticle for measuring distance and angles
        RSR3COF Column flat base, black & white sheet dia 95mm, column height 240mm, dia 32mm, no transmitted light
        RSR3SDRL Stand with ESD Protection, Antistatic surface, grounding socket, RL Control-on/off/dimming, Integrated power socket for RL, Black and white plate, Column 250mm with drive and handle, lifting range 145mm, working surface D195xW160mm.
        RSR3SDRL1 Stand with ESD Protection, Antistatic surface, grounding socket, RL Control-on/off/dimming, integrated power socket for RL, black and white plate, column 310mm with drive and handle, lifting range 300mm, working surface D195xW160mm.
        RSR3BLIT Base with table, 95mm glass, black & white plate, transmitted light LED/12V-15W halogen (life hrs. 2,000), 7W fluorescent optional, intensity controller, column height 240mm, dia 32mm, base 20mmx255mm, 40mm
        RSR3BLITi Base with table, 95mm glass, black & white plate, transmitted light 5/7W fluorescent lamp, reflected light 12V-15W halogen (life hrs 2,000) intensity controller, column height 240mm.
        RSR3BLITi-LED Base, Flat top, 95mm glass, black & white, plate, transmitted light 5/7W fluorescent lamp, reflected /incident light 3/5W LED life hrs. 65,000, separate intensity controller & on/off switch.
        RSR3LRFLT Large flat base, column height 240mm, dia 32mm, base size 380x260x20mm, no transmitted light
        RSR3LRFLT-1 300mm column with focusing brackets having range upto 136mm
        RSR3FLTB Flat base, black & white plate 95mm, arm height 300mm, focusing knob 100mm, with sliding head arm (holder), specimen clamp.
        RSR3LEDGSNK Flat base, black & white plate 95mm, arm height 250mm, dual LED (3W-life hrs. 65,000) lighting gooseneck inbuilt into stand
        RSR3LEDRLTL Transmitted & reflected LED(3W/5W-life hrs. 65,000), intensity controller, column height 240mm.
        RSR3LEDRLTLi 3W LED (inbuilt transmitted and reflected), life hrs. 65,000, separate intensity controller & on/off switch, color temperature, 6100°K (daylight).
        RSR3BFLAT Plain, flat base with coloum, no transmitted light
        RSR7MB-100 Plain focusing stand, rugged, ergonomic design, touch point treated, rubber feet anti-static with 100mm glass plate.

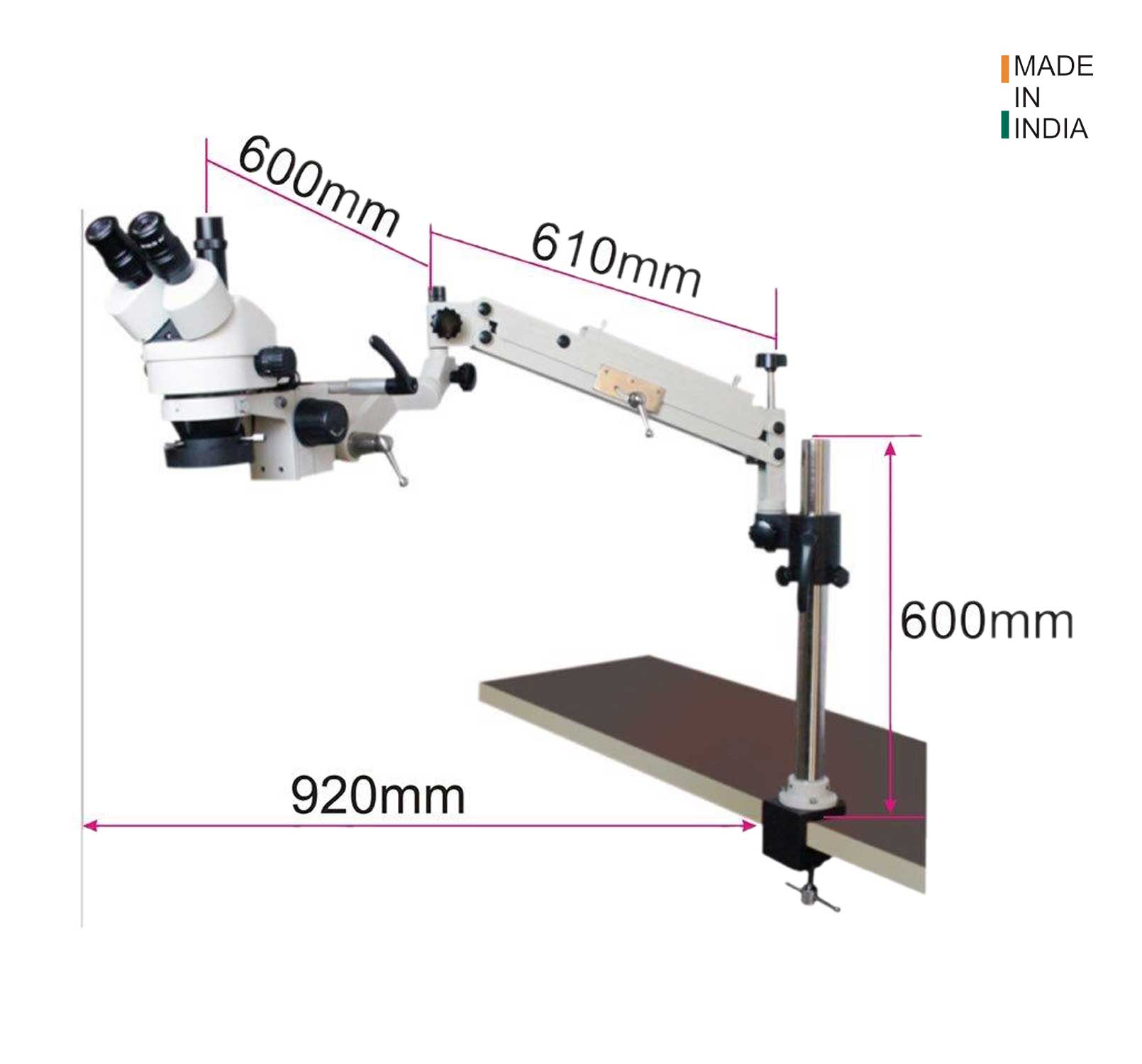

          Stand Type - articulating stand, max. extension - 920mm, clamp - 100 x 105mm, table thickness - upto 90mm
          Plain focusing stand, rugged, ergonomic design, touch point treated, anti mould, anti-fungal, anti electrostatic, acid resistant texture, modular system, painted, rubber feet & stage clips, antistatic polymer housing, interchangeable protective glass for protection of optics from harmful fumes, splash, base plate size 331mm x 275mm x 35mm etc.
  • Eyepiece
    • Eyepiece RSR3EP1021 Infinity, paired, WF 10X, FOV-21mm, (large depth of field), diopter adjustment on both EP, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, rubber eye shields, one with micrometer reticle
      RSR3EP1022 Infinity, paired, WF 10X, FOV-22mm, (large depth of field), diopter adjustment on both EP, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, rubber eye shields, one with micrometer reticle
      RSR3EP1022i Infinity, paired, WF 10X, FOV-22mm, (large depth of field), diopter adjustment on both EP (±6), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, rubber eye shields.
        RSR3EP1023 Paired, WF 10X, FOV-23mm, diopter adjustment on one/both EP, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, suitable for eyeglass wearers with reticule, FOV: 32.8mm-4.6mm.
        RSR3EP1018 Paired, WF 10X, FOV-18mm, diopter adjustment on one/both EP, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RSR3EP1515 Paired, WF 15X, FOV-15mm, diopter adjustment on one/both EP, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RSR3EP1516 Paired, WF 16X, FOV-16mm, diopter adjustment on one/both EP, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RSR3EP2010 Paired, WF 20X, FOV-10mm, diopter adjustment on one/both EP, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RSR3EP2510 Paired, WF 25X, diopter adjustment on one/both EP, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RSR3EP3008 Paired, WF 30X, FOV-8mm, diopter adjustment on one/both eyepieces, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
  • Focusing
    • Focusing RSR3PFOC-9 Plain focusing, hybrid stand, working distance upto 120mm, stroke upto 50mm focus column of height 300mm, focus travel (lifting range) 145mm with adjustable focus.
      RSR3PFOC-9 Plain focusing, hybrid stand with column height 250mm, focus travel 140mm with adjustable focus
      RSMR3PFOS Plain focusing 135mm, focus drive 300mm, zoom drive with horizontal drive system with focusing stopper
      RSR67PFOC Plain focusing, working distance upto 90/100/110mm
        RSR3XCOAX Co-axial coarse and focusing hybrid stand, working distance upto 118mm with 1x objective
  • Head
    • Head RSR3BH45 Binocular head, 45° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom, depth of field- 10mm
        RSR3BH30 Binocular head, 30° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom
        RSR3TH30 Trinocular head, 30° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom, top port for attaching camera, beam splitting ratio (100:0, 0:100/50:50).
        RSR3HB35 Binocular head, 35° inclined, rotatable 360°, IPD 52-76mm, intermediate parallel zoom, max. objective field - 50mm, max. depth of field-13.6mm.
        RSR3HB35i Trinocular head, 35° inclined, rotatable 360°, IPD 50-75mm, intermediate parallel zoom, max. objective field-50mm, max. depth of field-13.6mm.
        RSR3HB45 Binocular head, 45° inclined, rotatable 360°, IPD 48-76mm
        RSR3HT35 Trinocular head, 35° inclined, rotatable 360°, IPD 52-76mm, intermediate parallel zoom, top port for attaching camera.
        RSR3HT35b Trinocular viewing head, inclined at 35° with 2 position beam splitting ratio (100:0, 0:100/50:50), rotatable 360°, IPD 54-75mm, intermediate parallel zoom/ Greenough, top port for attaching camera
        RSR3HT35C Trinocular viewing head, inclined at 35° with 2 position beam splitting ratio (100:0, 0:100/50:50), rotatable 360°, IPD 55-75mm, intermediate parallel zoom/ Greenough, top port for attaching camera
        RSR3HT45e Trinocular head (binocular head with camera adopter), 45° inclined, rotatable 360°, IPD 55-75mm, top port for attaching camera
        RSR3HT45-30-70 Trinocular head, 45° inclined, rotatable 360°, IPD 48-75mm, top port for attaching camera, Splitting Ratio 30:70
        RSR3HT76 Trinocular head, 45° inclined, rotatable 360°, IPD 50-76mm, top port for attaching camera.
        RSR3HT76i Trinocular head, 45° inclined, rotatable 360°, IPD 50-76mm, top port for attaching camera, switchable 100% for video or photo and 100% for observation.
        RSR67HT45 Trinocular head, 45° inclined, rotatable 360°, IPD 52-76mm, intermediate parallel zoom, top port for attaching camera (100:0, 50:50)
        RSR3TH45-CR Binocular head, 45° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom with customized zoom ratio.
        RSR3TH45-CR-1 Trinocular head, 35° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom. top port for attaching camera splitting ration 100:0, 50:50
  • Illumination
    • Illumination RSR3RLGSK1 Fibre optic light source with single flexible light pipes (halogen-life hrs. 2,000 or LED-life hrs. 65,000)
        RSR3RLGSK2 Fibre optic light source with double flexible light pipes (halogen-life hrs. 2,000 or LED-life hrs. 65,000) Colour Temp: 5600k, Light source, collector lens. (Dual interlock light guide) length 600mm, Control Box/ Panel with intensity control & on/off switch.
        RSMR3OM Specially designed rectangular base (Approx. 325x250mm) flat LED light 3 point arc, with arm rest (suitable for Transmitted BF & DF) with working surface 195x160 & intensity controller, (Adjustable friction), with switchable 2 sockets for IVI and illuminator, having transparent stage glass with LED light having single side coated mirror for he projecting light at different angles cold source illumination
        RSMR3OM1 Specially designed rectangular base (Approx. 275x200x100mm) flat LED light, with arm rest (suitable for Transmitted BF & DF) with working surface & intensity controller, having transparent stage glass with LED light having single side coated mirror for projecting light in different angles
        RSR3RLTL100 Co-axial illuminator 12V-100W halogen, life hrs. 2,000
        RSMR3LEDR56-S 56 LED, ring light with 4 different segmentation modes, colour temperature 6400K, 24V6W (life hrs.50,000), with separate controls for segmentation and rotation 4modes: full, half, quarter circle, 2 facing quarter circles with diffuser to reduce glossy effect.
        RSR3RLFLC Circular fluorescent illuminator (reflected)
        RSR3LEDR60 60 LED, ring light, intensity adjustable (10 steps/continuous), colour temperature 6400K, 24V-15W, life hrs. 65,000
        RSR3LEDR56 Transmitted/Reflected 56 LED, Ring Light, colour temperature 6400K, 24V 6W, life hrs. 65,000 with 150mm working distance
        RSMR8LEDR56-S 56 LED, ring light with 4 different segmentation modes, colour temperature 6400K, 24V6W (life hrs. 50,000), with separate controls for segmentation and rotation 4modes: full, half, quarter circle, 2 facing quarter circles with diffuser to reduce glossy effect
        RSR3LEDDIC 100mm disc LED inbuilt for transmitted illumination, life hrs. 65,000, intensity controller & on/off switch, intensity 80,000 lux, constant color temperature 6300k.
        RSR3HAL15W Halogen bulb with reflector, 12V, 15W, life hrs. 2,000, separate intensity controller & on/off switch
        RSR3GEMSTD Gemological stand
        RSR3UNIVER Universal stand
  • Micrometer/Calibration slide
    • Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
        RCS100 Micrometer slide for calibration, 10mm with 100µm least count
  • Optical System
    • Optical System RSR3GOSAPO Greenough optical system, apochromatically corrected, parfocal, pre-centered, resolution upto 450 lines per mm, in-built 1x objective with working distance upto 115mm
      RSR3GOS-1 Fusion Greenough Apochromatic, High resolution with 12 mm depth of field, optical system (convergence angle-10°), lead free, achromatic corrected, par-focal, pre-centred, resolution up to 600 lines per mm, in-built 1x objective with working distance up to 122mm, 2D/3D dimensional observation of microscopic samples.
  • Packing
    • Packing RSR3WBOX Wooden box with separate container for accessories, lock & key, carrying handle
        RSR3STYP Standard Styrofoam packing
  • Zoom Ratio
    • Zoom Ratio RSR3ZL-1 0.65X to 4.5X continuously zoom with steps of 0.65x, 0.8X, 1X, 1.5X,2X, 3X, 4X & 4.5X
        RSR3ZL-2 Zoom 1 : 6.9 with 0.65X to 4.5X continuously zoom with steps of 0.65x, 0.8X, 1X, 1.5X, 2X, 3X, 4X & 4.5X
        RSR3ZL-3 Zoom 1 : 6.7 with 0.67X to 4.5X continuously zoom with steps of 0.65x, 0.8X, 1X, 1.5X,2X, 3X, 4X & 4.5X
        RSR3ZL-4.5 Zoom 1 : 7.5 with 0.6X to 4.5X continuously zoom with steps of 0.6x, 0.8X, 1X, 1.5X, 2X, 3X, 4X & 4.5X
        RSR3ZR-1 Zoom- 1:7.5, 0.67X to 5.0X continuously zoom with steps of 0.65x, 1X, 1.5X, 2X, 3X, 4X & 4.5X, 5.0X
        RSR3ZR-7 1:7
        RSR3ZR7.5.0 Zoom- 1:9, 0.65X to 5.0X continuously zoom
        RSR3ZR7.5.0-1 Zoom- 1:8.3, 0.6X to 5.0X continuously zoom with steps of 0.6X, 1X, 1.5X, 2X, 3X, 4X & 4.5X, 5.0X – customized* steps and zoom range
        RSR3ZR7-5.5 Zoom- 1:7, 0.6X to 5.5X continuously zoom with steps of 0.6X, 1X, 1.5X, 2X, 3X, 4X & 4.5X, 5.5X - customized* steps and zoom range
        RSR3ZR7-5.5I Zoom- 1:9, 0.6X to 5.5X continuously zoom with steps of 0.6X, 1X, 1.5X, 2X, 3X, 4X & 5X, 5.5X-customized* steps and zoom range.
        RSR3ZR7-6.3 Zoom - 1: 8 with standard zoom from 0.63X to 5X, continuously zoom with steps of 0.63X, 0.8X, 1X, 1.25X, 1.5X, 1.6X, 2X, 2.5X, 3X, 3.2X, 4X & 4.5X, 5.0X- customized* steps and zoom range
        RSR3ZR7i-6.3 Zoom - 1: 6.3 with standard zoom from 0.8X to 5X (continuous) with steps of 0.8x, 1X, 1.5X, 2X, 3X, 4X & 4.5X, 5.0X & click stop.
        RSR3ZR7-6.7 Zoom - 1: 6.7 with standard zoom from 0.75X to 5X (continuous)
        RSR3ZR8-7.5 Zoom - 1: 8 with standard zoom from 0.75X to 6X, continuously zoom with steps of 0.75X, 0.8X, 1X, 1.25X, 1.5X, 2X, 2.5X, 3X, 3.2X, 4X & 4.5X, 6.0X with click stops.
        RSR3ZR8-8.0 Zoom- 1:8, 1.0X to 8X continuously zoom with steps of 1X, 1.5X, 2X, 3X, 4X & 5X, 8X - customized* steps and zoom range
        RSR3ZR9-5.5 Zoom- 1:9, 0.6X to 5.5X continuously zoom with steps of 0.6x, 1X, 1.5X, 2X, 3X, 4X & 4.5X, 5.5X - customized* steps and zoom range
        RSR3ZR-C customized* zoom range with zoom steps
Accessories ADOPTER C-Mount (Stainless Steel with matte black anodized aluminium insert)
Depth of field 70mm at WF10X (FOV 23mm)
Thread M24X0.5 for polarizer
Additional Eyepieces (Pairs)   WF15X, FOV-16mm, WF20X, FOV-12mm, WF30X, FOV-8mm
Zoom Adjustment Knob   Single Shaft horizontal knob (both sides) with stopper.
Analyzer/Polarizer RSMR8POLANA Set of analyzer and polarizer
RSMR3POLANA Set of analyzer and polarizer
Mechanical stage RSR3STAGE Stage size 210x155mm, X-Y movement 80x50mm, ball guide.
Incident Illumination 30° oblique Incident illumination, 3.3W LED with life hrs. 65,000 with 6500K colour temperature and Uniform Light for entire FOV, with on-off switch and intensity controller.
Incident/Reflected Illumination 30° oblique Incident illumination, 3.3W LED with life hrs. 65,000 with 6500K colour temperature and Uniform Light for entire FOV, with on-off switch and intensity controller.
Stage Plate   Acrylic opal & black (dia customized)
Interchangeable optics RSMRIOs Front optics 0.63x, interchangeable 1.5x magnification
C-Mount RSR3CMNT Compatible cmount for all types of camera
Power Supply RSMPS620 SMPS based, wide voltage range, 90V-240V / 50Hz, 0.55 AC
Cleaning Kit RSR3CLK Anti static cleaning brush, cleaning tissue paper, Lens cleaning solution

Important Note The above codes of RSMr-3 will be changed to RSR7 & RSR9 for RSMr-7 & RSMr-9 respectively. All the specifications will remain same except zoom range/ratio

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
