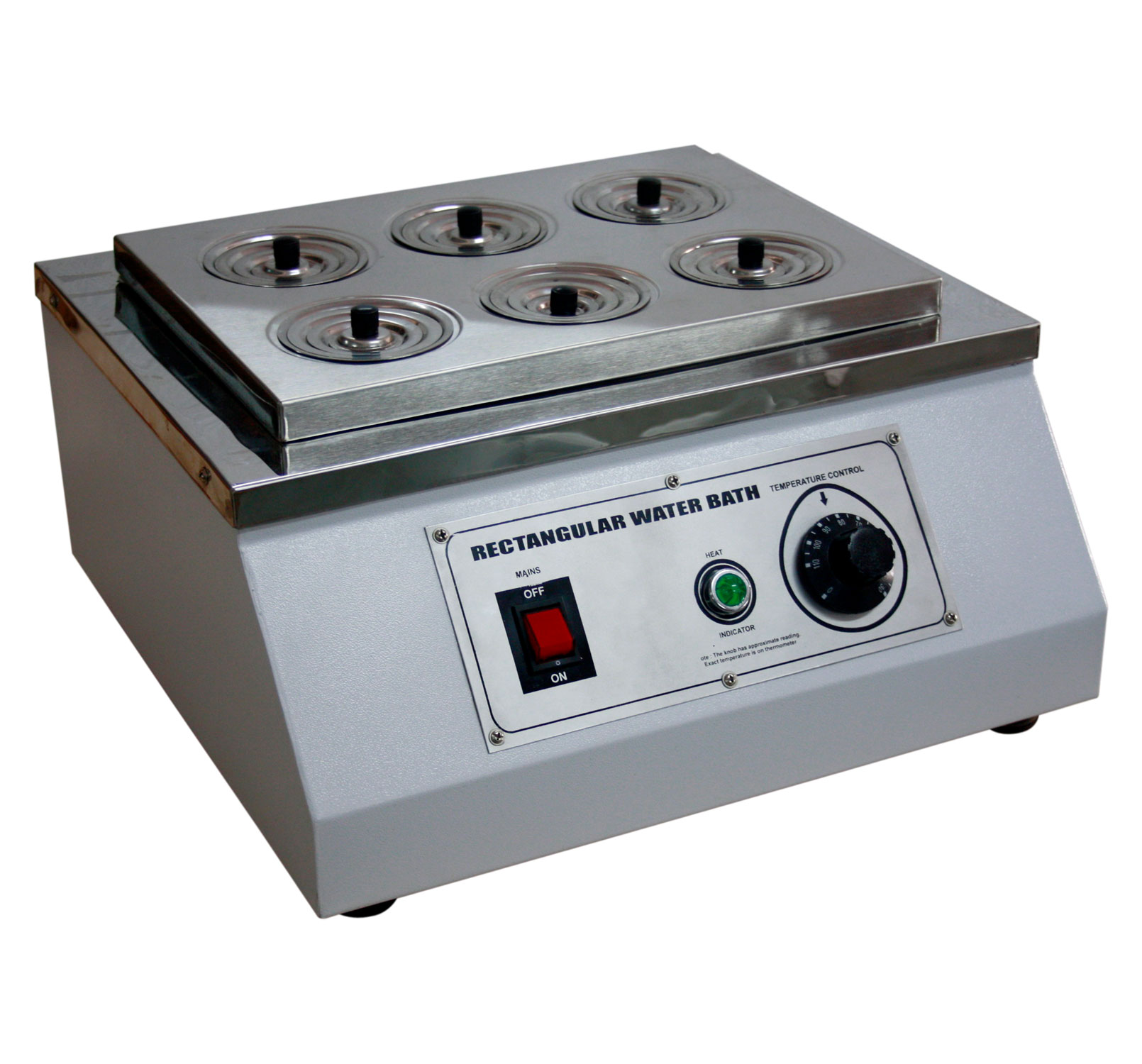

It is a double walled unit inner chamber made up of S.S. Sheet and outside of M.S. duly powder coated. The gap between the walls is fitted with special grade glass wool in order to avoid thermal losses. Concentric rings can be removed to accommodate containers of various sizes. Temperature from ambient to 100°C is controlled by Hydraulic capillary type thermostat with accuracy of + 1° C . Workable on 220V AC 50Hz Single Phase.
|Inner Chamber Size are available||Holes||Cap. (Aprox.)|
|300x250x100 mm||6 Holes of 75mm||8L|
|355x405x100 mm||12 Holes of 75mm||15L|
As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
