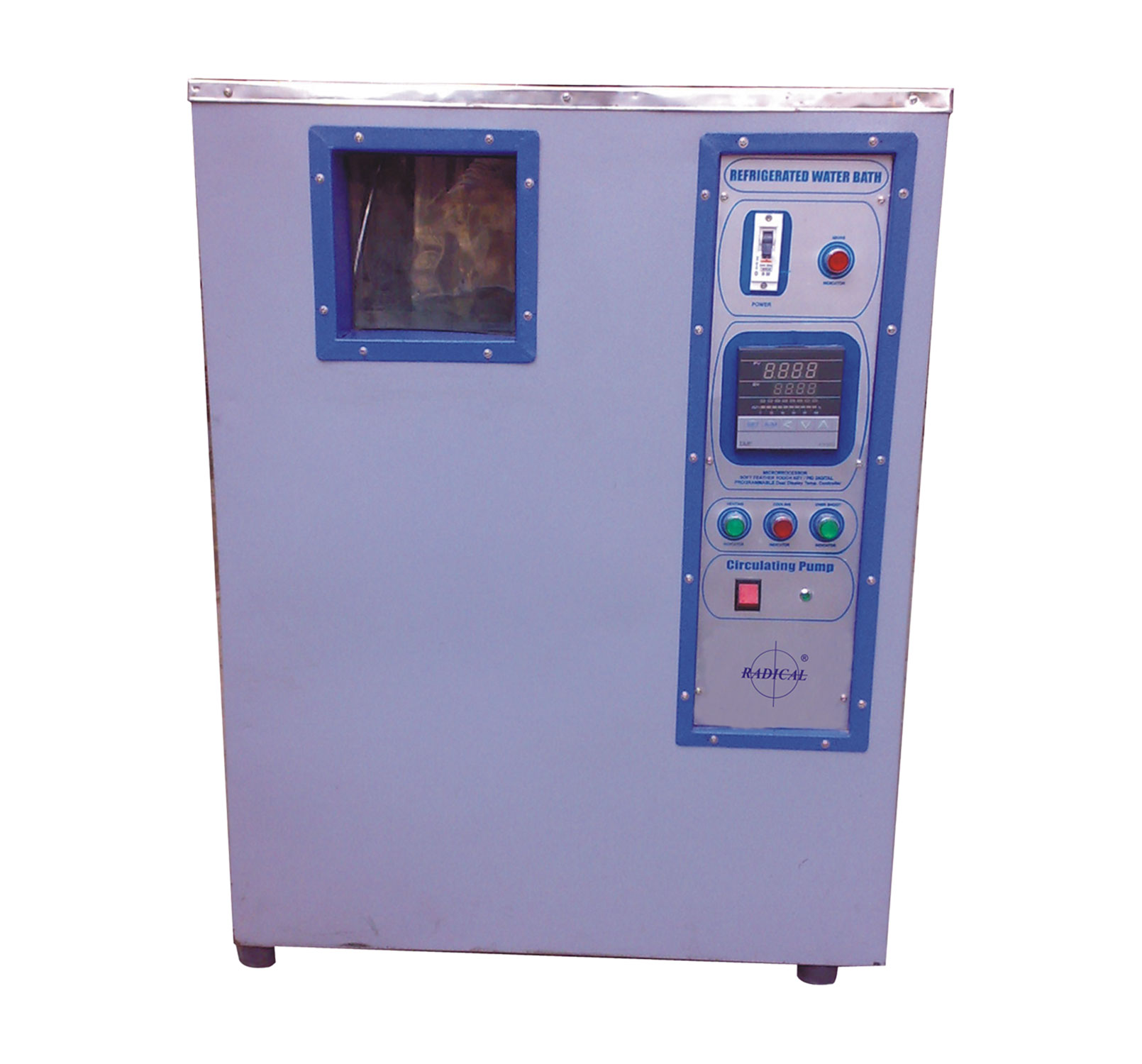

Outer body is made of thick mild steel duly powder coated painted and inner chamber is made up of 304 grade stainless steel. Lid is also double walled properly insulated and is with locking facility. Whole unit is mounted on sturdy angle iron frame the cooling coils are brazes to the outer side of S.S. chamber thus ensuring perfect and uniform cooling. Insulation is done with thick glass wool to prevent any temp. loss. For attaining the temp. below ambient, the refrigeration is done through CFC free hermetically sealed compressor and & for attaining the temp. above ambient, heating is done with immersion type heating element. Fitted with stirrer for temperature unifomity throughout the chamber. Temprature range is from 5°C to 90°C is controlled by dual Display Microprocessor PID Digital Temprature Indicator cum Controller with a accuracy of +0.5°C digital temp. To work on 220/230volts AC supply. The unit is also fitted with a FHP PUMP for circulating the cooled liquid to an external source such as condenser coils, etc.
Low Temperature Refrigerated Liquid Bath RSTI-142 Series
General specifications Same as RSTI-141, but temperature range is -10°C.
PUFF insulation in the chamber & can be used as a circulating water bath in external instruments.
Inner Chamber Size are available
As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
