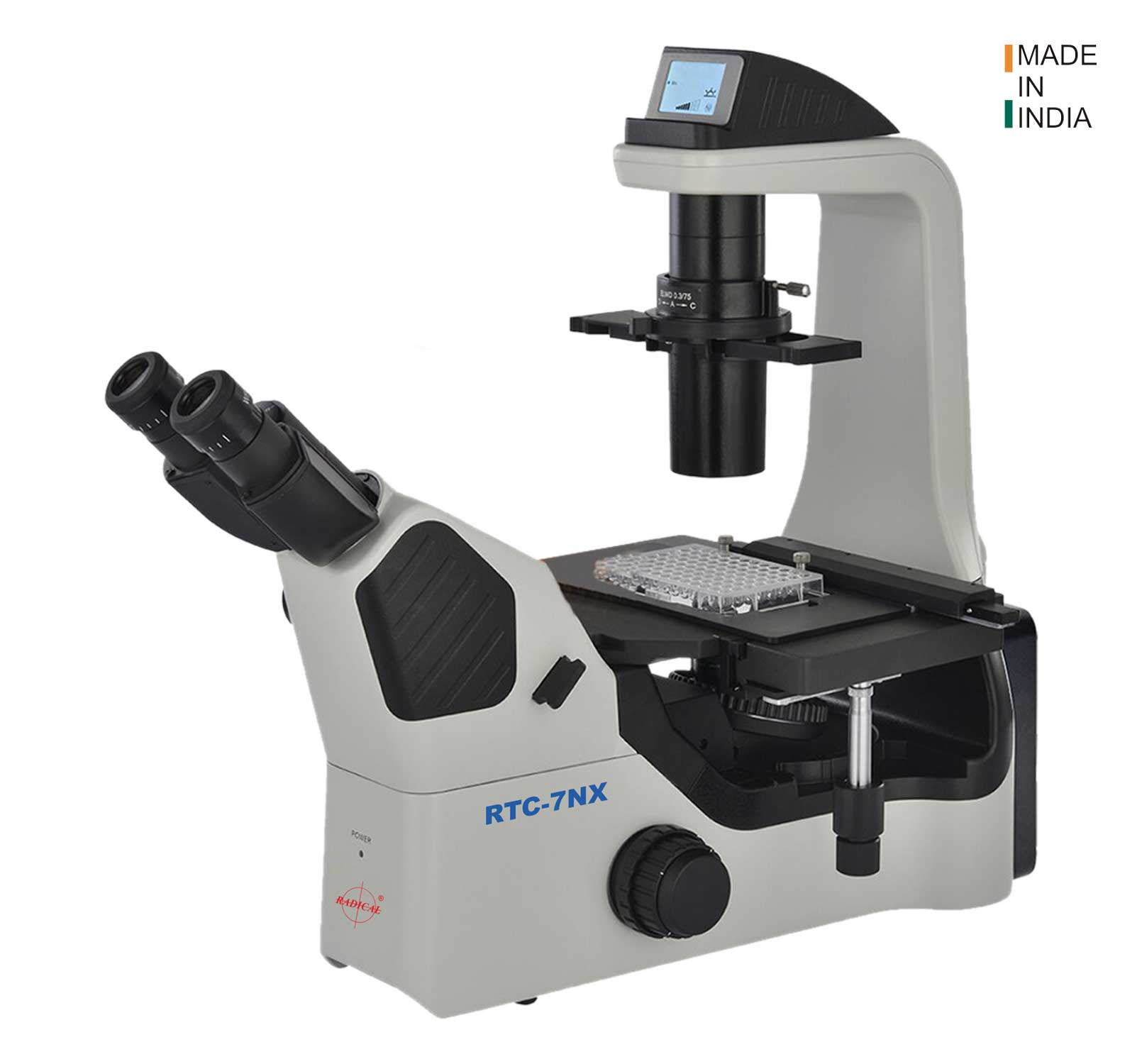

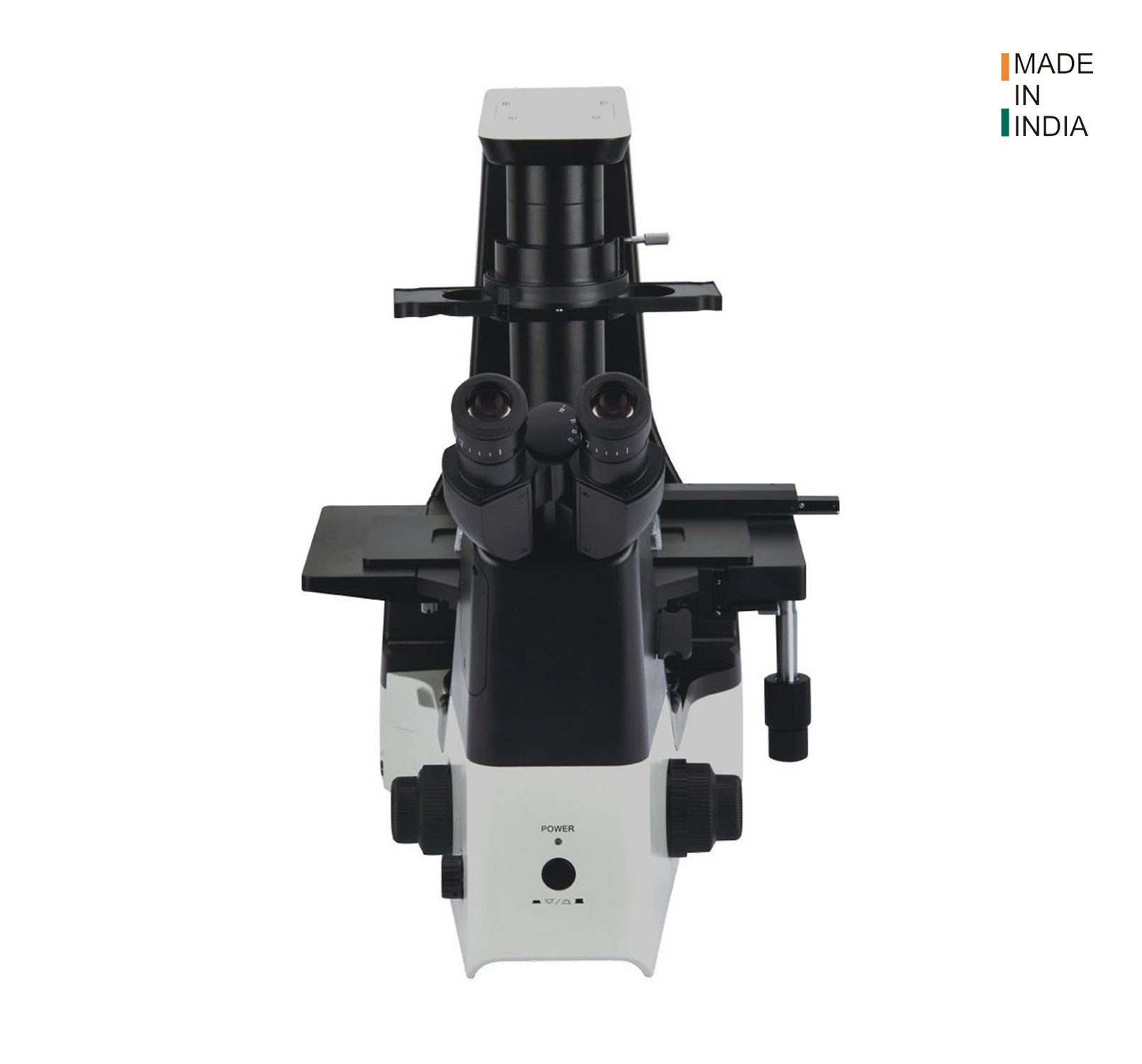

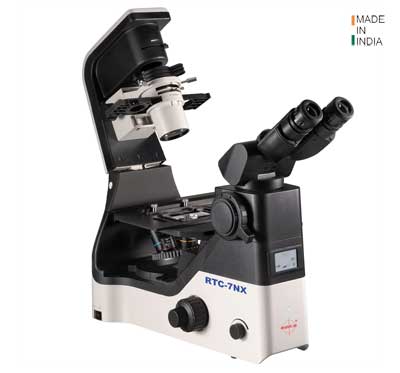

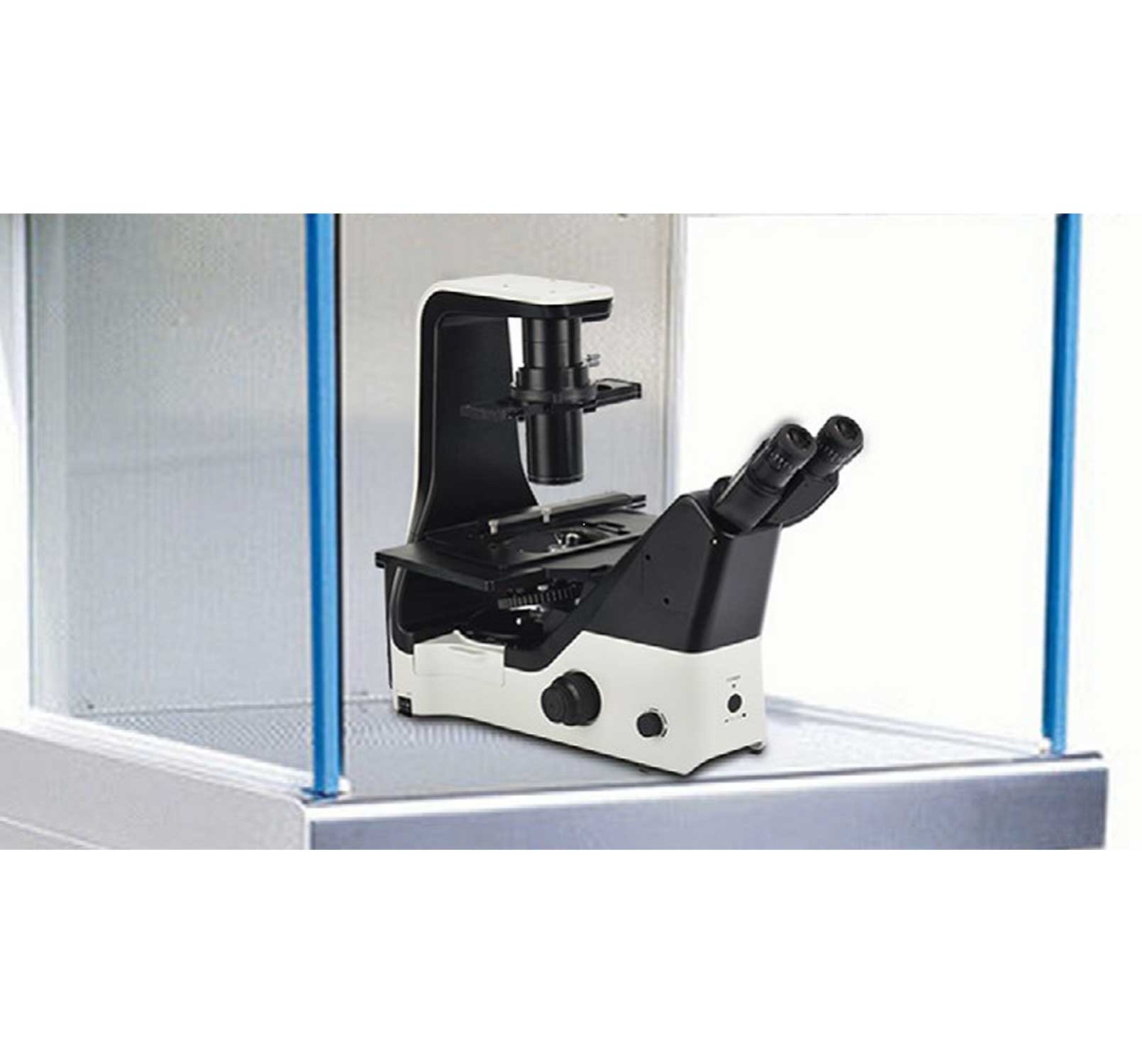

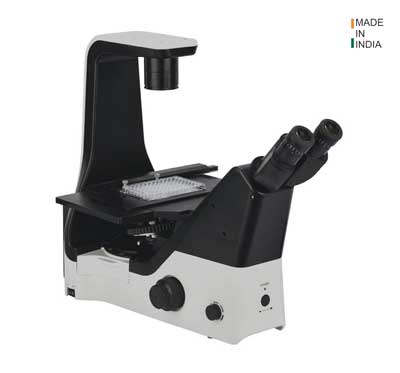

Advanced Inverted Research Microscope

RTC-7NX

RTC-7NX with NIS60 is suitable for broad range of observation methods. Smaller body and improved ease of use will directly benefit research laboratories and improve workflow. In addition to conventional contrast, microscope is versatile in observation methods, including Phase Contrast, DIC,and Hoffman Modulation Contrast.

BRIGHTFIELD
FLUORESCENCE
PHASE CONTRAST
Body Rugged, ergonomic design, touch point treated
Optical system Infinite optical system (IOS), Color corrected (CCIS), anti-fungal, anti-bacterial coated (multi-layered hard coated)
Illumination Halogen/LED, intensity adjustable, battery backup, auto cut-off
Viewing Head Ergonomic Sidentopf Binocular/Trinocular Head
Mechanical Stage Fixed stage with 3 point support, hard coated surface, multiple stage insert, detachable travelling stage with right/left hand control, low position coaxial movement
Objectives LWD infinity Semi Plan/Plan/Flotar/S-APO/APO objectives
Condenser LWD with iris diaphragm & filter slot. brightfiled, phase contrast
Nosepiece Quadruple/Quintuple/Sextuple nosepiece with ball-bearing, rubber/metal grip & click stop
Eyepiece Extra wide field, high point with diopter adjustment
Focusing Feather Touch Ultra Precise Coaxial (low position), both side, Coarse & Fine with tension control & upper limit stopper
Motorized Z-axis motorized focussing, motorized LED fluorescence
Power Supply 90V-240V/50Hz AC (SMPS)
Microscopy Techniques Brightfield, fluorescence, phase contrast, hoffman phase, 3D emboss contrast
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RT7NX4-MB Rugged, ergonomic design, touch point treated, Intensity controller & ON/OFF Switch, Rubber feet
Optical system RT7NX4iOS Infinite optical system, chromatic free, Color corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), color coded objectives, parcentered, suitable for bright filed, phase, DIC, Emboss, DIC/inversion contrast, IMC etc
Illumination RT7NX4L3WL3 3W LED illumination life 30,000 hrs, equivalent to 50W halogen, suitable for bright field, phase, fluorescence, IMC, hoffman, DIC/inversion contrast, emboss etc. flexible/retroverted ensuring large space, transmitted/epi-fluorescent control knobs located on right side of body-easy to operate
Viewing Head RT7NX4B45 Binocular inclined at 45°, sidentopf head having 30mm dia ocular, rotatable through 360°, IPD-from 48-75, left side camera port with splitting ratio 100:0, 0:100 (with relay lens upto 0.7x)
Nosepiece RT7NX45N Inward tilted, Precise Quintuple revolving on multiple ball bearing, inbuilt DIC slot
Eyepiece RT7NX4EP1022 Paired, high eye-point WF 10X, FOV-22mm, multilayered coated, high quality, good contrast, abrresion free, aplantic, precentered, diopter adjustment on both eyepiece (±5mm)
Mechanical Stage RT7NX4MS Rectangular, fixed Size 170(X)x250(Y)mm, attachable mechanical stage : 130(X)x84(Y)mm, accepts different types of micro-testplate, glass slide holder & culture flask holder, clear acrylic/glass circular insert, universal holder for holding all types of plates
Objectives RT7NX404i Infinity, Long Working Distance, Plan LWD4X,  N.A. 0.13, W.D. 22mm, unbreakable container for storage
  RT7NX410i Infinity, Long Working Distance, Plan LWD10X,  N.A. 0.3, W.D. 7.94mm, unbreakable container for storage
  RT7NX420i Infinity, Long Working Distance, Plan LWD20X,  N.A. 0.45, W.D. 7.66mm, unbreakable container for storage
  RT7NX440i Infinity, Long Working Distance, Plan LWD40X,  N.A. 0.65, W.D. 3.71mm, unbreakable container for storage
Phase slider RT7NX4PHSL Phase slider for 4X and single phase slider for 10X/20X/40X, empty position for bright field
Focusing RXF10 Co-axial, coarse & fine, coarse range-37.5mm, coarse-9mm per rotation, fine precision 1µm, fine 0.1mm per rotation, Tension Control
Condenser RT7NX4RCON Long working distance condenser N.A. 0.3, WD 80mm with condenser, without condenser WD 190, dismountable, Optinally turret condenser with working distance 36mm, 6-positions for phase, DIC, brightfield is also available
Power Supply RSMPS620 SMPS based, wide voltage range, 90V-240V, 50/60Hz
C-Shield RT7NX4SHILD Contrast shield, for effectively blocking the interference of external light
Standard Accessories RCC Cleaning cloth
  RVC Vinyl cover
  RAK Allen keys
  RF5A Fuses - 2 no's
  MANUAL Instruction manual
  WARRANTY Warranty card
  RBF Blue Filter (frosted & Plain)
  RPC Power Cord (country Specific)
Part Name Part Code Description
Illumination RT7NX4H30 Halogen 6V -30W, life 2000 hrs., suitable for bright field, phase, fluorescence, IMC, Hoffman, DIC/inversion contrast, Emboss  etc. flexible/retroverted ensuring large space, transmitted/Epi-fluorescent control knobs located on right side of body-easy to operate
  RT7NX4H50 Halogen 12V -50W, life 2000 hrs., suitable for bright field, phase, fluorescence, IMC, Hoffman, DIC/inversion contrast, Emboss  etc. flexible/retroverted ensuring large space, transmitted/Epi-fluorescent control knobs located on right side of body-easy to operate
  RT7NX4L3WL3 LED 3W, life 30000 hrs., Lumens equivalent 50W halogen, suitable for bright field, phase, fluorescence, IMC, Hoffman, DIC/inversion contrast, Emboss  etc. flexible/retroverted ensuring large space, transmitted/Epi-fluorescent control knobs located on right side of body-easy to operate
  RT7NX4L5WL3 LED 5W, life 30000 hrs., Lumens equivalent 100W halogen, suitable for bright field, phase, fluorescence, IMC, Hoffman, DIC/inversion contrast, Emboss  etc. flexible/retroverted ensuring large space, transmitted/Epi-fluorescent control knobs located on right side of body-easy to operate
  RT7NX4L3WL6 LED 3W life 65000 hrs., Lumens equivalent 50W halogen, suitable for bright field, phase, fluorescence, IMC, Hoffman, DIC/inversion contrast, Emboss  etc. flexible/retroverted ensuring large space, transmitted/Epi-fluorescent control knobs located on right side of body-easy to operate
  RT7NX4L3WL8 LED 3W life 82000 hrs., Lumens equivalent 50W halogen, suitable for bright field, phase, fluorescence, IMC, Hoffman, DIC/inversion contrast, Emboss  etc. flexible/retroverted ensuring large space, transmitted/Epi-fluorescent control knobs located on right side of body-easy to operate
  RT7NX4L5WL6 LED 5W life 65000 hrs., Lumens equivalent 100W halogen, suitable for bright field, phase, fluorescence, IMC, Hoffman, DIC/inversion contrast, Emboss  etc. flexible/retroverted ensuring large space, transmitted/Epi-fluorescent control knobs located on right side of body-easy to operate
  RT7NX4L5WL8 LED 5W life 82000 hrs. , Lumens equivalent 100W halogen, suitable for bright field, phase, fluorescence, IMC, Hoffman, DIC/inversion contrast, Emboss  etc. flexible/retroverted ensuring large space, transmitted/Epi-fluorescent control knobs located on right side of body-easy to operate
  RT7NX4LBB Battery backup from 2-12 hours forLED (Internal/External)
  RT7NX4ACUT Intelligent ECO infrared sensing system
  RT7NX4L-C Extra long life LED upto 1,00,000 hrs 3W/5W
  RT7NX4SOLAR Solar power battery charger for LED
  RT7NX4ECOILL Eco illumination, auto-cut off in case of no operator
Fluorescence Attachment RT7NX4F4LED LED fluorescence lamp house, built in Fly-Eye lens, can be configured with up to 3 different fluorescent LED units, 1 seperate for brightfiled, easy to change (push & click), B & G filters, other filters on demand, noise terminator mechanishm, attachable contrast sheild
  RT7NX4FL4100 Turret 4 position (3+1) 100W Mercury Epi-illumination is through High pressure Mercury Lamp in a lamp housing attached to the fluorescent filter block. The exciting light spectrum range is 330nm-700nm & the Fluorescent Light spectrum range is 420nm-650nm. Illumination is controlled through Digital Power Supply with time Display unit & Trigger ,Life span of 100W Hg Lamp is 2000Hrs under standard working conditions. UV protection screen is provided to safeguard the operator from harmful radiations
  RT7NX4FL4120 Turret 4 position (3+1) 120W, cooled fibre, Mercury/Metal Helide fluorescence lamp house, built in Fly-Eye lens, easy to change (push & click), B & G filters, other filters on demand, noise terminator mechanishm, attachable contrast sheild
  RT7NX4FL4130 Turret 4 position (3+1) 130W cooled fibre, Mercury/ metal helide fluorescence lamp house, built in Fly-Eye lens, easy to change (push & click), B & G filters, other filters on demand, noise terminator mechanishm, attachable contrast sheild
  RT7NX4FL4200 Turret 4 position (3+1) 200W cooled fibre, Mercury/metal helide, built in Fly-Eye lens, easy to change (push & click), B & G filters, other filters on demand, noise terminator mechanishm, attachable contrast sheild
Viewing Head RT7NX4TST-C50 Trinocular inclined at 45°, Sidentopf Head, rotatable through 360°, IPD - from 48-76, Diopter adjustment on both Eye Piece, port for camera attachment, splitting ratio 50(EP):50(camera)
  RT7NX4TST-C80 Trinocular inclined at 45°, Sidentopf Head, rotatable through 360°, IPD - from 48-76, Diopter adjustment on both Eye Piece, port for camera attachment, splitting ratio 20(EP):80(camera)
Nosepiece RT7NX4-6N Inward tilted, Precise Sextuple revolving on multiple ball bearing
Eyepiece RT7NX4EP1020M WF 10X, FOV-20mm, Micrometer (10/100mm), Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RT7NX4EP1020P WF 10X, FOV-20mm, Pointer/ cross hair, Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RT7NX4EP1020  Paired, WF 10X, FOV-20mm, Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RT7NX4EP1022M WF 10X, FOV-22mm, Micrometer (10/100mm), Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RT7NX4EP1022P WF 10X, FOV-22mm, Pointer/cross hair, Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RT7NX4EP1025  Paired, WF 10X, FOV-25mm, Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RT7NX4EP1025M WF 10X, FOV-25mm, Micrometer(10/100mm), Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RT7NX4EP1025P WF 10X, FOV-25mm, Pointer/cross hair, Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RT7NX4EP1515 Paired, WF 15X, FOV-15mm, Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RT7NX4EP2010 Paired, WF 20X, FOV-10mm, Multilayered coated,High Quality, good contrast, abresion free, Aplantic, Lockable
  RT7NX4EP-C Cutomized eyepiece of 5X/10x/12x/15x/16x/20x with different types of reticles/graticules
  RT7NX4ECUP Eyecups (pair)
Mechanical Stage RT7NX4MS-RK Rackless, rectangular right/left hand low drive control, horizontal, hard ceramic coating, double slide holder, stage size-customized as per requirement, X-Y movement-customized as per requirement
Objectives RT7NX4PL60i LWD 60X, N.A. 0.70, W.D. 0.30mm, plan achromatic, infinite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
  RT7NX4PL100i LWD 100X, N.A. 0.74, W.D. 0.28mm, plan achromatic, infinite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
Phase objectives RT7NX4P-PH10i LWD PH10X, N.A. 0.25, W.D. 7.94mm, plan achromatic, infinite, unbreakable container for storage
  RT7NX4P-PH20i LWD PH20X, N.A. 0.4, W.D. 7.66mm, plan achromatic, infinite, unbreakable container for storage
  RT7NX4P-PH40i LWD PH40X, N.A. 0.60, W.D. 3.71mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
  RT7NX4P-PH60i LWD PH60X, N.A. 0.80, W.D. 0.30mm, plan achromatic, infinite, oil immered, spring loaded, unbreakable container for storage
SEMI APO objectives RT7NX4P-SAPO04i LWD 4X, N.A. 0.16, W.D. 13.0mm, SAPO,  Infinite, unbreakable container for storage
  RT7NX4P-SAPO10i LWD 10X, N.A. 0.40, W.D. 3.1mm, SAPO,  Infinite, unbreakable container for storage
  RT7NX4P-SAPO20i LWD 20X, N.A. 0.75, W.D. 0.6mm, SAPO,  Infinite, unbreakable container for storage
  RT7NX4P-SAPO40i LWD 40X, N.A. 0.95, W.D. 0.18mm, SAPO,  Infinite, spring loaded, unbreakable container for storage
  RT7NX4P-SAPO60i LWD 60X oil, N.A. 1.35, W.D. 0.15mm,SAPO, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
  RT7NX4P-SAPO100i LWD 100X oil, N.A. 1.40, W.D. 0.13mm, SAPO, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
SEMI APO Objectives Phase RT7NX4P-SAPO10i LWD 10X, Phase,  N.A. 0.40, W.D. 3.1mm, SAPO,  Infinite, unbreakable container for storage
  RT7NX4P-SAPO20i LWD 20X, Phase, N.A. 0.75, W.D. 0.6mm, SAPO,  Infinite, unbreakable container for storage
  RT7NX4P-SAPO40i LWD 40X, Phase, N.A. 0.95, W.D. 0.18mm, SAPO,  Infinite, spring loaded, unbreakable container for storage
  RT7NX4P-SAPO60i LWD60X oil, Phase, N.A. 1.35, W.D. 0.15mm,SAPO, Infinite,  oil immered, Spring Loaded, unbreakable container for storage
  RT7NX4P-SAPO100i 100X oil, Phase, N.A. 1.40, W.D. 0.13mm, SAPO, Infinite,  oil immered, Spring Loaded, unbreakable container for storage.


Please click for More Objectives...

Focusing RXF10 Co-axial, Tension Control, coarse range-37.5mm, Upper Limit Stopper, High Sensitivity Focus Drive with 0.10 mm per revoluation, Fine adjustment 1µm/Div.
RXF20 Co-axial, Tension Control, coarse range-37.5mm, Upper Limit Stopper, High Sensitivity Focus Drive with 0.20 mm per revoluation, Fine adjustment 2µm/Div.
Condenser RT7NX4RCON1 Long working distance condenser N.A. 0.50, WD 45mm with condenser, without condenser WD 190, dismountable, suitable for bright field, phase contrast, IMC & DIC
  RT7NX4RCON2 Long working distance condenser N.A. 0.55, WD 27mm with condenser, without condenser WD 190, dismountable, suitable for bright field, phase contrast, IMC & DIC
Slider RT7NX4PH20-SL Phase slider ring for 20X, centrable, with two handle
  RT7NX4PH40-SL Phase slider ring for 40X, centrable, with two handle
  RT7NX4DF-SL Darkfield slider, centrable, with two handle
Hoffman phase kit RT7NX4-HOFFKIT 10X, 20X, 40X Hoffman Condenser, Special objective
Relief 3D contrast RT7NX4-3DREL Condenser and Eyepiece with Emboss Contrast 10X, 20X, 40X Universal Emboss contrast slide
Heating Stage RHS50 Biotherm heating stage
Filters  RGF Green plane or frosted
Power supply RTF620 6V-20W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
  RTF630 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
  RSMPS630 SMPS based, wide voltage range, 90V-240V, 50/60Hz
  RPSLED LED power supply, wide voltage range, 90V-240V, 50/60Hz
Immersion oil RIO Immersion oil (10ml)
  RIO100 High quality immersion oil 100ml
Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
  RCS100 Micrometer slide for calibration, 10mm with 100µm least count
C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
  RCMT65X 0.65X Camera Adaptor/Tube/Mount
  RCMT70X 0.7X Camera Adaptor/Tube/Mount
  RCMT01X 1X Camera Adaptor/Tube/Mount
Packing  RABX Aluminum box with separate container for accessories, lock & key, carrying handle
  RSTYRO Standard Styrofoam packing
Cleaning Kit RCLEAN Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution
Holders RT7NX4-HOL Petridish Holder 65mm, Petridish Holder 90mm Terasaki Holder for Terasaki Holder and dia 65 dish, Slide glass holder for glass slides dia 54 dish and hemocytometer,Universal Holder for Terasaki Plate holder and glass slide, dia 35-65 dish, Test Tubes and hemocytometer
Hoffman Kit RT7NX4-HFKIT 10x, 20x, 40x Hoffman Condenser, Special Objective
Emboss Contrast Kit RT7NX4-EMB Condenser and Eyepiece with Emboss Contrast 10x, 20x, 40x, Universal Emboss Contrast Slide
Filters RT7NX4FLTLBD LBD color teemputerature change filter(φ45mm)
  RT7NX4FLTGRN IF550 green interference filter(φ45mm)
  RT7NX4-CTELE Centering telescop φ30
  RT7NX4-GPLATE Glass plate
  RT7NX4-MPLATE Metal  plate (kidney hole)
  RT7NX4-RULERS Mechanical mobile ruler, moving range120(X)*78(Y)mm
  RT7NX4-EXTPLATE Stage extension plate
  RT7NX4-PDHOL φ35 Petri dish holder
  RT7NX4-SLHOLD Slides holder(φ54 and 26.5x76.5)
  RT7NX4-TERAHOL Teraseki holder(φ65 and 56X81.5)

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
