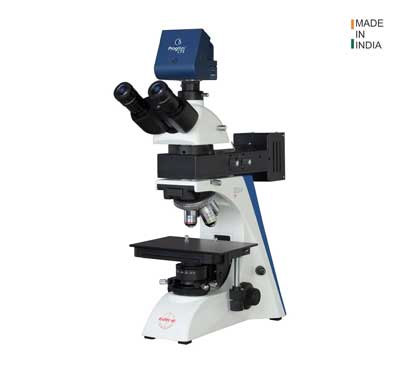

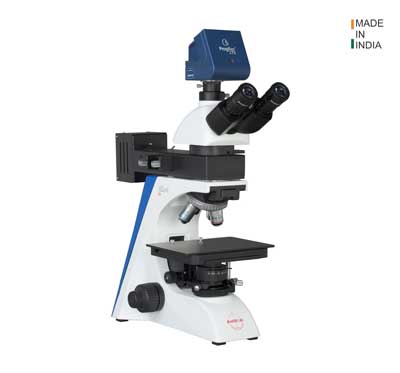

Advanced Laboratory Metallurgical Microscope

RXLr-4M

RXLr-4M Upright microscopes are characterised by the illumination system being mounted above the specimen stage so that light is directed through the objectives onto the specimen and then reflected back to the eyepieces. Microscope is very economically priced, robust, basic yet competent model equipped with plan achromatic LWD objectives. It gives best price to performance ratio

METALLURGICAL
PARTICAL COUNT
MORPHOMETRY
POLARIZING

Body Rugged, single die cast, ergonomic design, touch point treated
Optical system Universal infinite optical system (IOS), Color corrected (CCIS), anti-fungal, anti-bacterial coated (multi-layered hard coated)
Koehler's Illumination Koehler halogen/LED, intensity adjustable, battery backup, auto cut-off
Incident Illumination LED/halogen with aperture and field diaphragm
Viewing Head Ergonomic siedentopf Binocular/Trinocular Head
Mechanical Stage Right/left hand control, hard coated surface, double layer, low position coaxial movement
Objectives Japanese Infinity Semi Plan/Plan/Flotar/S-APO/APO objectives
Condenser Abbe with iris diaphragm & filter slot.
Nosepiece Quadruple/Quintuple with ball-bearing, slot for polarizer & analyzer, rubber/metal grip & click stop
Eyepiece Extra wide field, high point with diopter adjustment
Focusing Feather Touch Ultra Precise Coaxial (low position), both sides, Coarse & Fine with tension control & upper limit stopper
Motorized Z-axis motorized focusing
Power Supply 90V-240V/50Hz AC (SMPS)
Microscopy Techniques Polarizing, darkfield
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RXR4MMB Rugged, single die cast, ergonomic design, touch point treated, acid resistant texture painted, intensity controller & ON/OFF switch, rubber feet, slot for Ana/Pol
Optical System RXR4MiOS Universal infinite optical system, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), colour coded objectives, parfocal (60mm), parcentered, suitable for Brightfield, Darkfield, POL etc
Reflected Illumination RXR4MH30 Halogen 6V -30W (Life 2000 hrs.)
Viewing Head RXR4MB30ST Binocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, fixed diopter
Nosepiece RXR4M-5N Inward tilted, precise quintuple revolving on multiple ball bearing
Eyepiece RXR4MEP1020 Paired, high eye point WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, precentered, diopter adjustment on both eyepiece (±5mm)
Mechanical Stage RXR4MMS Rectangular right/left hand low drive control, hard coating, double slide holder, stage size 200×150mm, X-Y Movement 77-52mm, precision 0.1mm
Objectives RXR4MP04i 4X, N.A. 0.10, W.D. 25mm, plan achromatic, infinite, unbreakable container for storage
RXR4MP10i 10X, N.A. 0.25, W.D. 18.48mm, plan achromatic, infinite, unbreakable container for storage
RXR4MP20i 20X, N.A. 0.40, W.D. 8.35mm, plan achromatic, infinite, unbreakable container for storage
RXR4MP50i 50X, N.A. 0.75, W.D. 1.95mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
Condenser RXR4MCON Abbe Condenser N.A. 1.25 for Brightfield, separate movement from focusing (Rack & Pinion), with (objective-coded iris diaphragm), with centre adjustable.
Focusing RXF25 Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.25 mm per revolution, fine adjustment 2.5µm/Div.
Power supply RSMPS620 Integrated SMPS based, wide voltage range, 90V-240V, 50/60Hz, with multi-plug.
Accessories RCC Cleaning cloth
RVC Vinyl cover
RIO Immersion oil (10ml)
RAK Allen keys
RF5A Fuses - 2 no's
RMANUAL Instruction manual
WARRANTY Warranty card
RBF Blue Filter (frosted & Plain)
RPC Power Cord (country Specific)
  • C-mount
    • C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
        RCMT65X 0.65X Camera Adaptor/Tube/Mount
        RCMT70X 0.7X Camera Adaptor/Tube/Mount
        RCMT01X 1X Camera Adaptor/Tube/Mount
  • Eyepieces
    • Eyepiece RXR4MEP1020M WF 10X, FOV-20mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR4MEP1020P WF 10X, FOV-20mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR4MEP1022  Paired, WF 10X, FOV-22mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR4MEP1022M WF 10X, FOV-22mm, Micrometer (10/100mm), Multilayered coated, High Quality, good contrast, abrasion free, aplanatic, lockable
        RXR4MEP1022P WF 10X, FOV-22mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR4MEP1025 Paired, WF 10X, FOV-25mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR4MEP1025M WF 10X, FOV-25mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR4MEP1025P WF 10X, FOV-25mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR4MEP1515 Paired, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR4MEP2010 Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR4MEP-C Customized eyepiece of 5X/10x/12x/15x/16x/20x with different types of reticles / graticules
        RXR4MECUP Eyecups (pair)
  • Focusing
    • Focusing RXF20 Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.20 mm per revaluation, fine adjustment 2µm/Div.
        RXF10 Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.10 mm per revaluation, fine adjustment 1µm/Div.
  • Mechanical Stage
    • Mechanical Stage RXR4MMS-C Rectangular right/left hand low drive control, horizontal, hard ceramic coating, double slide holder, stage size - customized as per requirement, X-Y Movement - customized as per requirement
        RXR4MMS-RK Rackless, Rectangular Rectangular right/left hand low drive control, horizontal, hard ceramic coating, double slide holder, stage size-Customized as per requirement, X-Y Movement-customized as per requirement
        RXR4MMS-RKL Double layer Rackless Mechanical Stage, Rectangular, right/left hand low drive control, horizontal, hard ceramic coating, tempered glass plate, double slide holder, stage size 233×147mm, X-Y Movement 78-54mm, precision 0.1mm.
  • Nosepiece
    • Nosepiece RXR4M-4N Inward tilted, precise quadruple revolving on multiple ball bearing
  • Micrometer/Calibration slide
    • Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
        RCS100 Micrometer slide for calibration, 10mm with 100µm least count
  • Objectives
    • Objectives RXR4MPL02i 2X, N.A. 0.06, W.D. 7.50mm, plan achromatic, infinite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
      RXR4MPL05i M5X, N.A. 0.13, W.D. 15.5mm, plan achromatic, infinite, unbreakable container for storage
        RXR4MPL40i 40X, N.A. 0.65, W.D. 3.9mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RXR4MPL45i 45X, N.A  0.25, W.D 1 mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
        RXR4MPL60i 60X, N.A. 0.80, W.D. 0.30mm, plan achromatic, infinite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
        RXR4MPL63i 63X, N.A. 0.84, W.D. 0.28mm, plan achromatic, infinite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
        RXR4MPL80i 80X, N.A. 0.8, W.D. 0.85mm, plan achromatic, infinite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
        RXR4MP-100i 100X, N.A. 0.60, W.D. 1.00mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
        RXR4MP-100io 100X, N.A. 1.25, W.D. 0.18mm, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR4MP-100iDF 100X, N.A. 1.25, W.D. 0.18mm, plan achromatic, infinite, oil immersed, spring loaded, darkfield, unbreakable container for storage
      SEMI APO/Flotar/Fluor Objectives RXR4M-SAPO04i 4X, N.A. 0.13, W.D. 17.1mm, SAPO, infinite, unbreakable container for storage
        RXR4M-SAPO05i 5X, N.A. 0.15, W.D. 10.5mm, SAPO, infinite, unbreakable container for storage
        RXR4M-SAPO10i 10X, N.A. 0.3, W.D. 16mm, SAPO, infinite, unbreakable container for storage
        RXR4M-SAPO20i 20X, N.A. 0.5, W.D. 2.1mm, SAPO, infinite, unbreakable container for storage
        RXR4M-SAPO40i 40X, N.A. 0.75, W.D. 0.72mm, SAPO, infinite, spring loaded, unbreakable container for storage
        RXR4M-SAPO50i 50X, N.A. 0.8, W.D. 1.3mm, SAPO, infinite, dry, spring loaded, unbreakable container for storage.
        RXR4M-SAPO60i 60X, N.A. 0.80, W.D. 0.3mm,SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR4M-SAPO63i 63X, N.A. 0.85, W.D. 0.28mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR4M-SAPO100i 100X, N.A. 0.9, W.D. 1mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage.
          Please click for More Objectives...
  • Power Supply
    • Power Supply RTF630 Integrated 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
         RSMPS630 Integrated SMPS based, wide voltage range, 90V-240V, 50/60Hz
  • Packing
    • Packing RWBX Wooden box with separate container for accessories, lock & key, carrying handle
        RSTYRO Standard Styrofoam packing
  • Reflected Illumination
    • Part Name Part Code Description
      Reflected Illumination RXR4ML3WRL3 LED 3W, life 30000 hrs., lumens equivalent 6V-20W, with field and aperture diaphragm
      RXR4ML3WRL3.6 (EPI- Illumination): X-LED white 3.6W LED, colour temperature: 6,300k, life 30000 hrs., lumens equivalent 6V-20W, with brightness control, field and aperture diaphragm.
        RXR4MLBBRL Battery backup from 2-12 hours for LED (Internal/external)
        RXR4ML5WRL3 LED 5W, life 30000 hrs., lumens equivalent 6V-30W, with field and aperture diaphragm
        RXR4ML3WRL6 LED 3W life 65000 hrs., lumens equivalent 6V-20W, with field and aperture diaphragm
        RXR4ML3WRL8 LED 3W life 82000 hrs., lumens equivalent 6V-20W, with field and aperture diaphragm
        RXR4ML5WRL6 LED 5W life 65000 hrs., lumens equivalent 6V-30W , with field and aperture diaphragm
        RXR4ML5WRL8 LED 5W life 82000 hrs., lumens equivalent 6V-30W, with field and aperture diaphragm
        RXR4MLCRL1RL Extra long life LED upto 1,00,000 hrs 3W/5W, with field and aperture diaphragm
        RXR4MSOLARRL Solar power battery charger for LED
        RXR4MH50RL 12V-50W life 2000 hrs., with field and aperture diaphragm
  • Transmitted Light
    • Transmitted Light RXR4MH30TL Halogen 6V -30W, life 2000 hrs., with field and aperture diaphragm
        RXR4ML3WTL3 LED 3W, life 30000 hrs., lumens equivalent 6V-20W, with field and aperture diaphragm
        RXR4ML3WTL3.6 (Fixed Koehler illumination): X-LED white 3.6W LED, colour temperature: 6,300k, life 30000 hrs., lumens equivalent 6V-20W, with brightness control.
        RXR4MLBBTL Battery backup from 2-12 hours for LED (Internal/external)
        RXR4ML5WTL3 LED 5W, life 30000 hrs., lumens equivalent 6V-30W, with field and aperture diaphragm
        RXR4MACUTTL Auto-cutoff
        RXR4ML3WTL6 LED 3W life 65000 hrs., lumens equivalent 6V-20W, with field and aperture diaphragm
        RXR4ML3WTL8 LED 3W life 82000 hrs., lumens equivalent 6V-20W, with field and aperture diaphragm
        RXR4ML5WTL6 LED 5W life 65000 hrs., lumens equivalent 6V-30W , with field and aperture diaphragm
        RXR4ML5WTL8 LED 5W life 82000 hrs., lumens equivalent 6V-30W, with field and aperture diaphragm
        RXR4ML-CTL Extra long life LED upto 1,00,000 hrs 3W/5W, with field and aperture diaphragm
        RXR4MSOLARTL Solar power battery charger for LED
        RXR4MH50TL 12V-50W life 2000 hrs.,with field and aperture diaphragm
  • Viewing Head
    • Viewing Head RXR4MTST-C50 Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 50(EP):50(camera)
        RXR4MTST-C80 Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 20(EP):80(camera)
Condenser for Transmitted Light RXR4MCONBF Kohler illumination Abbe condenser N.A. 1.25 for Brightfield, separate movement from focusing (Rack & Pinion), suitable for, dark field, with iris diaphragm, with centre adjustable
Slider RXR4MPH-TR Darkfield slider
Analyzer/Polarizer RXR4MPH-TR Set of analyzer and polarizer
Heating Stage RHS50 Biotherm heating stage
Filters  RGF Green plane or frosted
Immersion Oil RIO100 High quality immersion oil 100ml
Cleaning Kit RCLEAN Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
