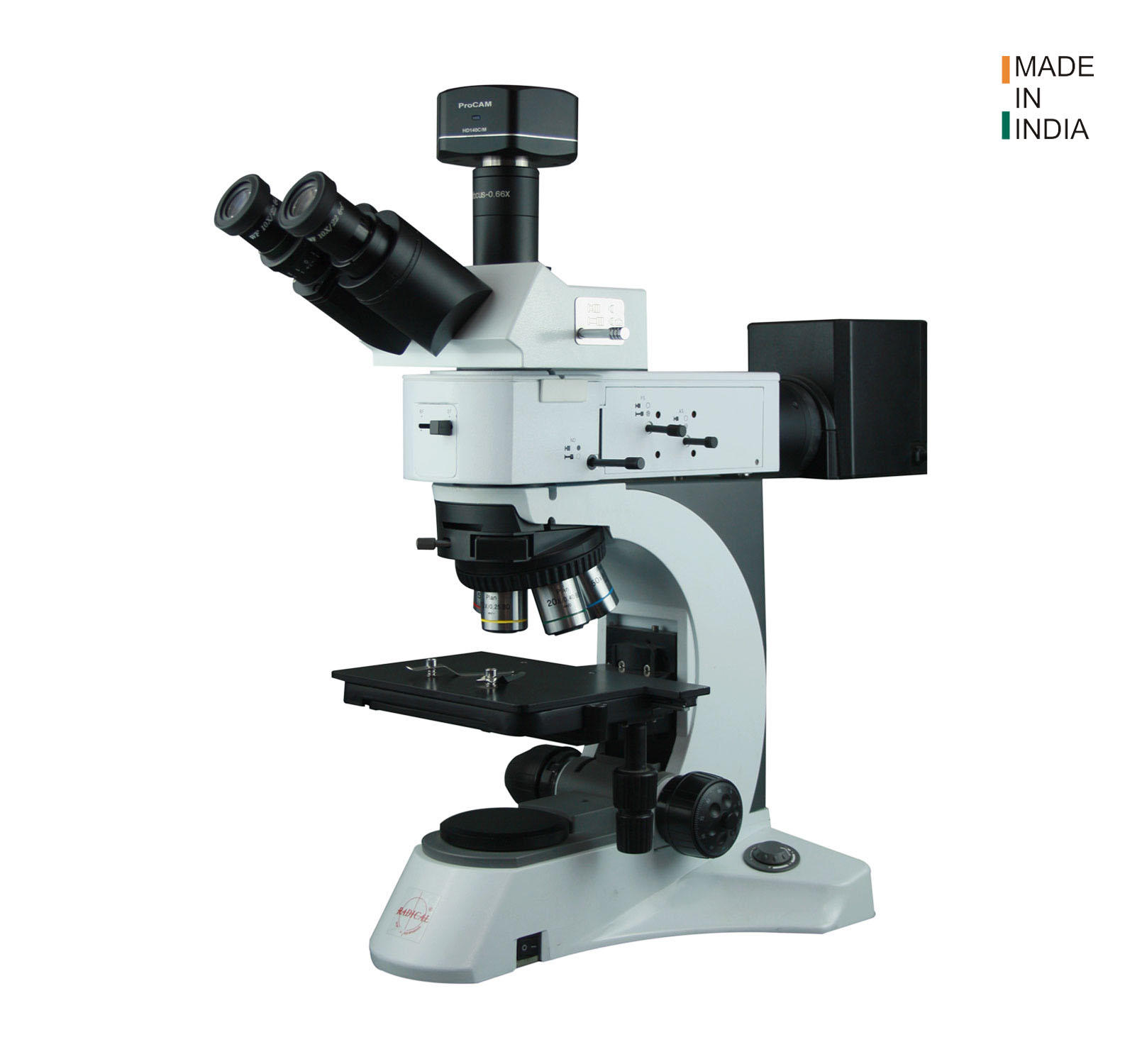

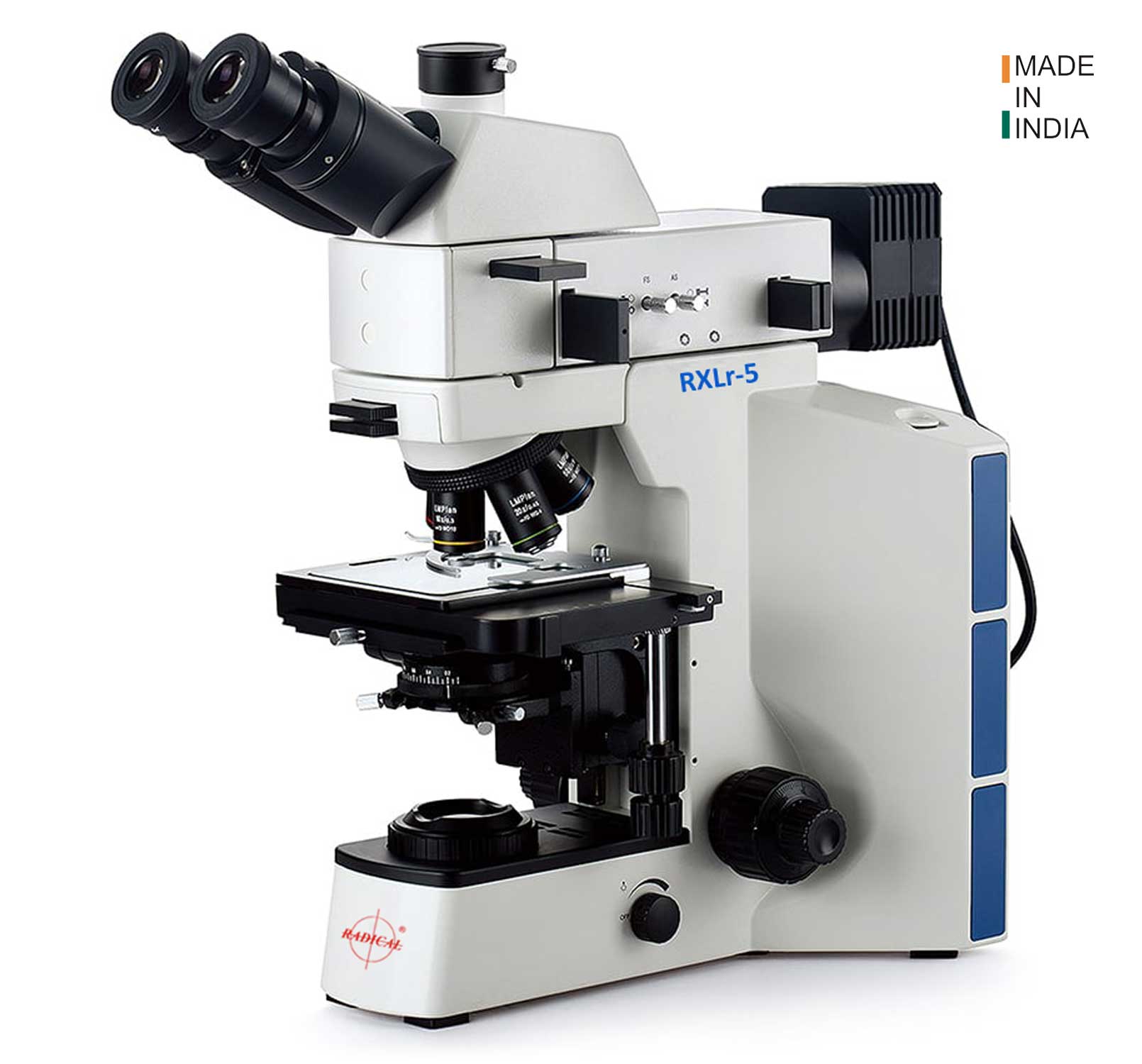

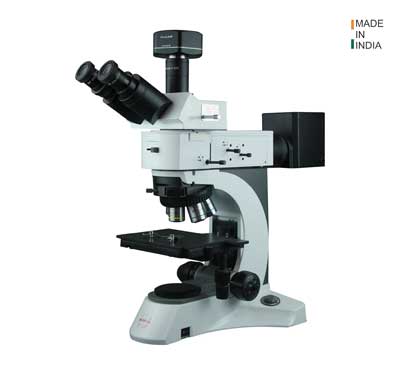

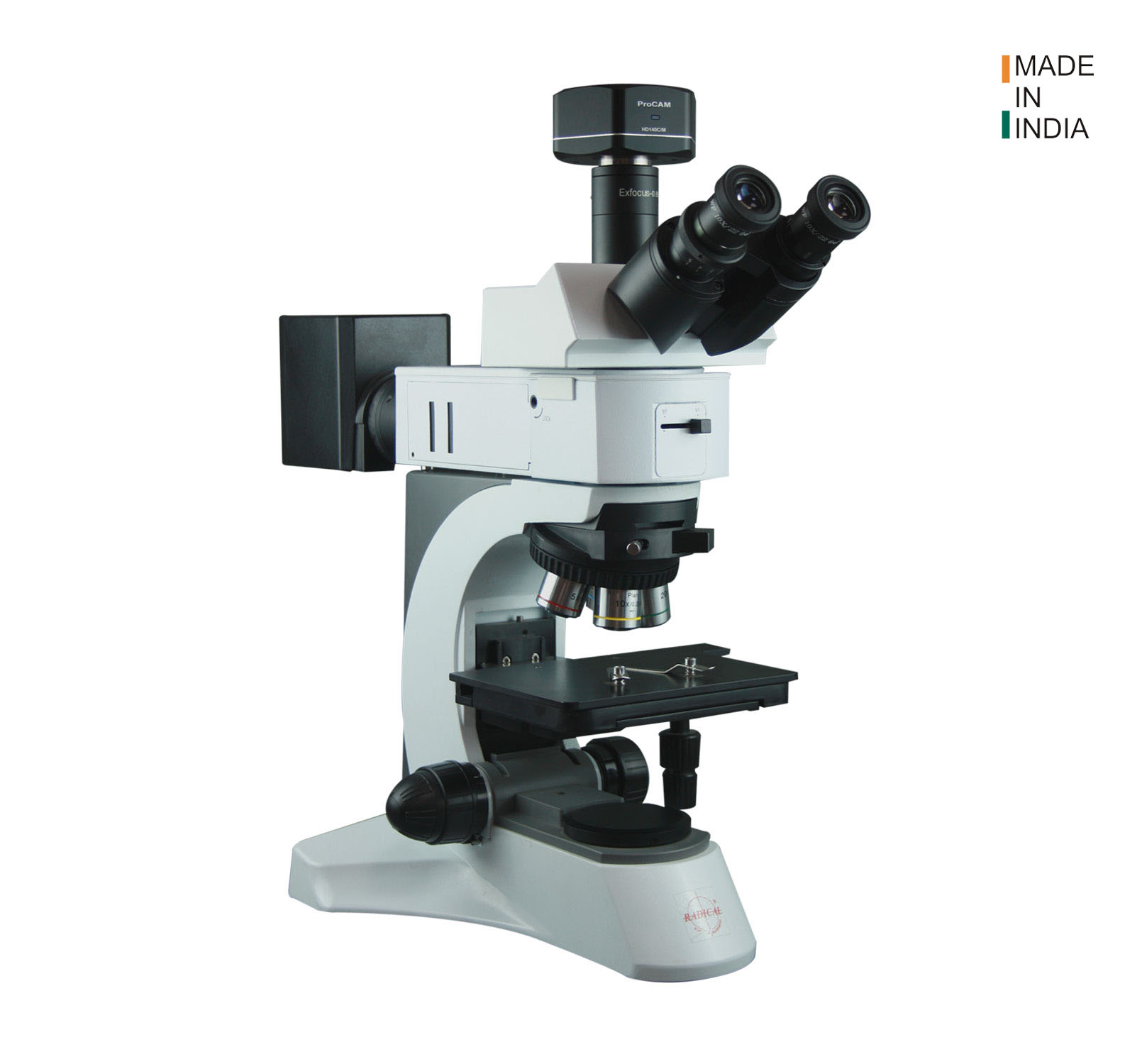

Advanced Research Material Microscope

RXLr-5M

RXLr-5M offers versatile multi-mode system expandability to suit a vast range of imaging possibilities, Ideal instrument for industry inspection and science research.Having powerful transmitted and reflected system with Kohler illumination is suitable for metallurgical bright field, dark field and polarization observation system.

DARKFIELD
METALLURGICAL
PARTICAL COUNT
MORPHOMETRY
POLARIZING
Body Rugged, die cast, ergonomic design, touch point treated
Optical system Universal infinite optical system (IOS), Color corrected (CCIS), anti-fungal, anti-bacterial coated (multi-layered hard coated)
Koehler's Illumination Koehler halogen/LED, intensity adjustable, battery backup, auto cut-off
Incident Illumination LED/halogen with aperture and field diaphragm, BF & DF optical light path selector, pre-centered lamp house, slot for polarizer/ Analyzer
Viewing Head Ergonomic siedentopf Binocular/Trinocular head
Mechanical Stage Right/left hand control, hard coated surface, double layer, low position coaxial movement
Objectives Japanese Infinity BF/DF Semi Plan/Plan/Flotar/S-APO/APO objectives
Condenser Abbe with iris diaphragm & filter slot.
Nosepiece Quadruple/Quintuple with ball-bearing, slot for polarizer & analyzer/DIC, rubber/metal grip & click stop
Eyepiece Extra wide field, high point with diopter adjustment
Focusing Feather touch ultra precise coaxial (low position), both sides, coarse & fine with tension control & upper limit stopper
Motorized X-Y stage & Z-axis motorized focusing
Power Supply 90V-240V/50Hz AC (SMPS)
Microscopy Techniques Brightfield, polarizing, darkfield
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RXR5MMB Rugged, single die cast, ergonomic design, touch point treated, acid resistant texture painted, intensity controller & on/off switch, rubber feet, slot for DIC or Ana/Pol & slot for filter slider having ND & yellow filter, suitable for reflected & transmitted illumination.
Optical system RXR5MiOS Universal infinite optical system, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), colour coded objectives, parfocal (45mm), parcentered, suitable for bright field, Dark field, Polarizing, Fluorescence & DIC
Reflected Illumination RXR5MHL50 Halogen 12V -50W (Life 2000 hrs.)
Viewing Head RXR5MB30 Binocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, fixed diopter
Nosepiece RXR5M-5N Inward tilted, interchangeable precise quintuple revolving on multiple ball bearing
Eyepiece RXR5MEP1020 Paired, high eye-point WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, pre-centered, diopter adjustment on both eyepiece (±5mm)
Mechanical Stage RXR5MMS Rectangular right/left hand low drive control, horizontal, hard coating, double slide holder, stage plate, stage size 140×150mm, X-Y movement 55-80mm, precision 0.1mm
Objectives RXR5M05i 5X, N.A. 0.12, W.D. 15.5mm, plan achromatic, infinite for BF/DF, unbreakable container for storage
RXR5M10i 10X, N.A. 0.25, W.D. 10.0mm, plan achromatic, infinite for BF/DF, unbreakable container for storage
RXR5M20i 20X, N.A. 0.40, W.D. 4.3mm, plan achromatic, infinite for BF/DF, unbreakable container for storage
RXR5M50i 50X, N.A. 0.75, W.D. 0.32mm, plan achromatic, infinite for BF/DF, unbreakable container for storage
RXR5M100i 100X, N.A. 0.80, W.D. 0.20, plan achromatic, infinite for BF/DF, spring loaded, Dry, unbreakable container for storage
Focusing RXF25 Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.25 mm per revolution, fine adjustment 2.5µm/Div.
Power supply RSMPS620 Integrated SMPS based, wide voltage range, 90V-240V, 50/60Hz
Accessories RCC Cleaning cloth
RVC Vinyl cover
RIO Immersion oil (10ml)
RAK Allen keys
RF5A Fuses - 2 no's
MANUAL Instruction manual
WARRANTY Warranty card
RBF Blue Filter (frosted & Plain)
RPC Power Cord (country Specific)
  • Analyzer/Polarizer
    • Analyzer/Polarizer TL-1 (Polarizer) Mounted below the condenser with scale marking & rotatable 360°
      RL-1 (Polarizer) Polarizer Rotatable upto 90° for incident illumination with slider (click stop) at 0°, 45°, 90°
      ANA-1 (Analyzer) Built in Analyzer with scale removable from optical path, rotatable 360° with 0.1° L.C. POL direction.
  • Reflected Illumination
    • Part name Part Code Description
      Reflected Illumination RXR5ML3WRL LED 3W, life 30000 hrs., lumens equivalent 50W, with field and aperture diaphragm
      RXR5MLBBRL Battery backup from 2-12 hours for LED (internal/external)
      RXR5ML5WRL3 LED 5W, life 30000 hrs., lumens equivalent 100W, with field and aperture diaphragm
      RXR5ML3WRL6 LED 3W life 65000 hrs., lumens equivalent 50W, with field and aperture diaphragm, adjustable brightness, light Intensity controller.
      RXR5ML3WRL8 LED 3W life 82000 hrs., lumens equivalent 50W, with field and aperture diaphragm
      RXR5ML5WRL6 LED 5W life 65000 hrs., lumens equivalent 100W , with field and aperture diaphragm, suitable for bright field, DIC & Polarizing.
      RXR5ML5WRL8 LED 5W life 82000 hrs., lumens equivalent 100W, with field and aperture diaphragm
      RXR5MLCRL1RL Extra long life LED upto 1,00,000 hrs 3W/5W, with field and aperture diaphragm
      RXR5MSOLARRL Solar power battery charger for LED
      RXR5MH50RL 12V-50W life 2000 hrs., with field and aperture diaphragm
      RXR5MH100RL 12V-100W life 2000 hrs., with field and aperture diaphragm
  • Transmitted light
    • Transmitted light RXR5MH50TL Halogen 12V -50W, life 2000 hrs., with field and aperture diaphragm
      RXR5ML3WTL3 LED 3W, life 30000 hrs., lumens equivalent 50W, with field and aperture diaphragm
      RXR5MLBBTL Battery backup from 2-12 hours for LED (internal/external)
      RXR5ML5WTL3 LED 5W, life 30000 hrs., lumens equivalent 100W, with field and aperture diaphragm
      RXR5MACUTTL Auto-cutoff
      RXR5ML3WTL6 LED 3W life 65000 hrs., lumens equivalent 50W, with field and aperture diaphragm
      RXR5ML3WTL8 LED 3W life 82000 hrs., lumens equivalent 50W, with field and aperture diaphragm
      RXR5ML5WTL6 LED 5W life 65000 hrs., lumens equivalent 100W , with field and aperture diaphragm
      RXR5ML5WTL8 LED 5W life 82000 hrs., lumens equivalent 100W, with field and aperture diaphragm
      RXR5ML-CTL Extra long life LED upto 1,00,000 hrs 3W/5W, with field and aperture diaphragm
      RXR5MSOLARTL Solar power battery charger for LED
      RXR5Mi50TL 12V-50W life 2000 hrs., with field and aperture diaphragm
      RXR5Mi100RL 12V-100W life 2000 hrs., with field and aperture diaphragm
  • Viewing Head
    • Viewing Head RXR5MTST-C50 Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepieces, port for camera attachment, splitting ratio 50(EP):50(camera)
      RXR5MTST-C80 Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepieces, port for camera attachment, splitting ratio 20(EP):80(camera)
      RXR5MTST-C3P50 Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepieces, port for camera attachment, 3 position splitting ratio 100:0, 50:50, 0:100, FOV upto 25mm.
      RXR5MTST-C3P80 Trinocular inclined at 30°, siedentopf head, rotatable through 360°, IPD - from 48-76, Diopter adjustment on both eyepieces, port for camera attachment, 3 position splitting ratio 100:0, 20:80, 0:100
  • Nosepiece
    • Nosepiece RXR5M-4N Inward tilted, interchangeable precise quadruple revolving on multiple ball bearing
      RXR5M-6N Inward tilted, interchangeable precise sextuple revolving on multiple ball bearing, manual rotatable, slot for DIC/Pol. Suitable for BF/DF/DIC/Pol etc.
  • Eyepieces
    • Eyepieces RXR5MEP1020M WF 10X, FOV-20mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RXR5MEP1020P WF 10X, FOV-20mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RXR5MEP1022 Paired, WF 10X, FOV-22mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RXR5MEP1022M WF 10X, FOV-22mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RXR5MEP22CH WF 10X, FOV-22mm, cross hair (90°), micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RXR5MEP1022P WF 10X, FOV-22mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RXR5MEP1025 Paired, WF 10X, FOV-25mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RXR5MEP1025M WF 10X, FOV-25mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RXR5MEP1025P WF 10X, FOV-25mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RXR5MEP1515 Paired, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RXR5MEP2010 Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
      RXR5MEP-C Customized Eye-piece of 5X/10x/12x/15x/16x/20x with different types of reticles / graticules
      RXR5MECUP Eyecups (pair)
  • Mechanical Stage
    • Mechanical Stage RXR5MMS-B Rectangular right/left hand low drive control, hard ceramic coating, dual slide holder, stage size 182×195mm, triple plate for X-Y movement 55-80mm on wire, height adjustable co-axial movement knob on ball bearing mechanism, precision 0.1mm.
      RXR5MMS-C Rectangular Right/Left hand low drive control, horizontal, hard ceramic coating, double Slide holder, stage size - Customized as per requirement, X-Y Movement - customized as per requirement
      RXR5MMS-RK Rackless, Rectangular Right/Left hand low drive control, horizontal, hard ceramic coating, double Slide holder, stage size - Customized as per requirement, X-Y Movement - customized as per requirement
  • Objectives
    • Objectives RXR5MPL02i 2X, N.A. 0.06, W.D. 7.50mm, plan achromatic, infinite, parfocal & pre-centered, oil immersed, spring loaded, unbreakable container for storage
      RXR5MPL60i 60X, N.A. 0.80, W.D. 0.30mm, plan achromatic, infinite, parfocal & pre-centered, oil immersed, spring loaded, unbreakable container for storage
      RXR5MPL63i 63X, N.A. 0.84, W.D. 0.28mm, plan achromatic, infinite, parfocal & pre-centered, oil immersed, spring loaded, unbreakable container for storage
      RXR5MPL100iDF 100X, N.A. 1.25, W.D. 0.18mm, plan achromatic, infinite,  oil immersed, spring loaded, darkfield, unbreakable container for storage
      SEMI APO/Flotar/Fluor objectives RXR5M-SAPO04i 4X, N.A. 0.13, W.D. 17.1mm, SAPO, infinite, unbreakable container for storage
      RXR5M-SAPO05i 5X, N.A. 0.15, W.D. 20mm, SAPO, infinite, unbreakable container for storage
      RXR5M-SAPO10i 10X, N.A. 0.3, W.D. 16mm, SAPO, infinite, unbreakable container for storage
      RXR5M-SAPO10ii 10X, N.A. 0.30, W.D. 11mm, SAPO, infinite, unbreakable container for storage
      RXR5M-SAPO20i 20X, N.A. 0.45, W.D. 4.0mm, SAPO, infinite, unbreakable container for storage
      RXR5M-SAPO20ii 20X, N.A. 0.45, W.D. 3.1mm, SAPO, infinite, unbreakable container for storage
      RXR5M-SAPO40i 40X, N.A. 0.75, W.D. 0.72mm, SAPO, infinite, spring loaded, unbreakable container for storage
      RXR5M-SAPO50i 50X, N.A. 0.55, W.D. 9.5mm, SAPO, infinite, spring loaded, unbreakable container for storage
      RXR5M-SAPO50ii 50X, N.A. 0.80, W.D. 1.0mm, SAPO, infinite, spring loaded, unbreakable container for storage
      RXR5M-SAPO60i 60X, N.A. 0.80, W.D. 0.3mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
      RXR5M-SAPO63i 63X, N.A. 0.85, W.D. 0.28mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
      RXR5M-SAPO100i 100X, N.A. 0.90, W.D. 2.1mm, SAPO, infinite, spring loaded, unbreakable container for storage.
      RXR5M-SAPO100ii 100X, N.A. 1.3, W.D. 0.20mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage.
          Please click for More Objectives...
  • Focusing
    • Focusing RXF20 Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.20mm per revaluation, fine adjustment 2µm/Div.
      RXF10 Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.10mm per revaluation, fine adjustment 1µm/Div. sample height 56mm (without spacer), coarse & fine graduate.
  • Power supply
    • Power supply RTF620 Integrated 6V-20W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
        RTF630 Integrated 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
        RSMPS630 Integrated SMPS based, wide voltage range, 90V-240V, 50/60Hz
        RPSLED LED power supply, wide voltage range, 90V-240V, 50/60Hz
  • Micrometer/Calibration slide
    • Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
        RCS100 Micrometer slide for calibration, 10mm with 100µm least count
  • C-mount
    • C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
        RCMT65X 0.65X Camera Adaptor/Tube/Mount
        RCMT70X 0.7X Camera Adaptor/Tube/Mount
        RCMT01X 1X Camera Adaptor/Tube/Mount
  • Packing
    • Packing RWBX Wooden box with separate container for accessories, lock & key, carrying handle
      RSTYRO Standard Styrofoam packing
Condenser for Transmitted Light RXR5MCONBF Kohler illumination Abbe condenser N.A. 1.25 for Brightfield, separate movement from focusing (Rack & Pinion), suitable for brightfield & dark field, with iris diaphragm, with centre adjustable
Slider RXR5MPH-TR Darkfield slider
Analyzer/Polarizer RXR5MPH-TR Set of analyzer and polarizer
Heating Stage RHS50 Biotherm heating stage
Filters  RGF Green plane or frosted
Immersion oil RIO100 High quality immersion oil 100ml
Cleaning Kit RCLEAN Anti-static cleaning brush, cleaning tissue paper, Lens cleaning solution

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
