Heating Stage



Fits Slide Holder Clamp
Ideal for Tissues & Semen
Power Input 220V
Temperature Control Ambient to 50 Degrees C
Thermometer Mounted on Stage for Accurate Readings
Heating Stage with thermometer
Power Supply
Power & connecting cable

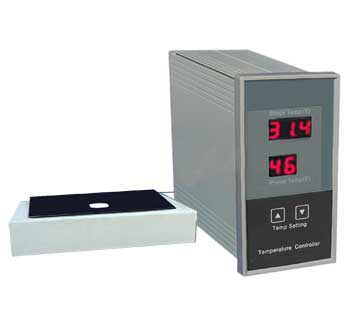

Bio Therm Heating Stage



It can afford the constant temperature and can be mainly applied to the microscope that used in the biological technology for special request of constant temperature when viewing the specimen (Living Cell).. Convenient Installation: It can be installed on any standard stages of Microscope.Quick reaching constant temperature : After plugging in the power & setting the temperature, it takes 1-2 minutes to preheat the stage & reach the constant temperature in the certain range of temperature.

Input : 110V/60Hz or 220V/50Hz, AC
Power : 50W
Temperature Controlling Range : 20ºC (> room temperature) to 50ºC
Temperature setting division : 1ºC
Temperature displaying division : 0.1ºC
Various between setting & displaying temperature : <+/-1ºC
Various between actual stage temperature & displaying temperature : <+/-1ºC
STANDARD OUTFIT
Temperature Controller : 2 LED digital display screens and two touching buttons for adjusting temperature, ON/OFF switch at the rear.
Temperature Controlled Stage : Built - in heater and heat sensor with the size of 150mmx130mmx5.8mm.

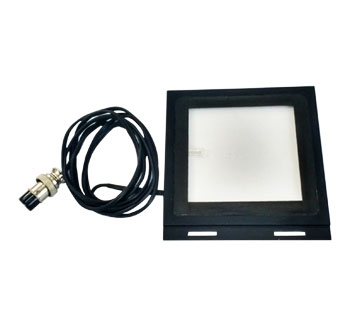

Glass Heating Stage



Allows you to heat your samples on 80x59mm transparent sapphire surface. The heated Transparent sapphire plate provides thin profile and uniformly heated surface. Built-in temperature sensor Flat top surface is flashed with the 128x86mm mounting frame (Al-5mm thick). The PID controller and display(0.1°C) features continuous current control, minimizing focus drift generated by heat compared to the standard on-off control method. Especially effective for observation when high magnification is required. The stage is useful in many biological and biotechnological microscopy observations. The frame is the size of standard multi-well plates. Can be used to heat plates, flasks, slides and Petri dishes.
Optical window 80x59mm
Dimensions 83x64x5mm
Glass thickness 0.5mm
Temperature range from ambient to 50°C
Temperature stability 0.1°C
Temperature accuracy 0.1°C

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
