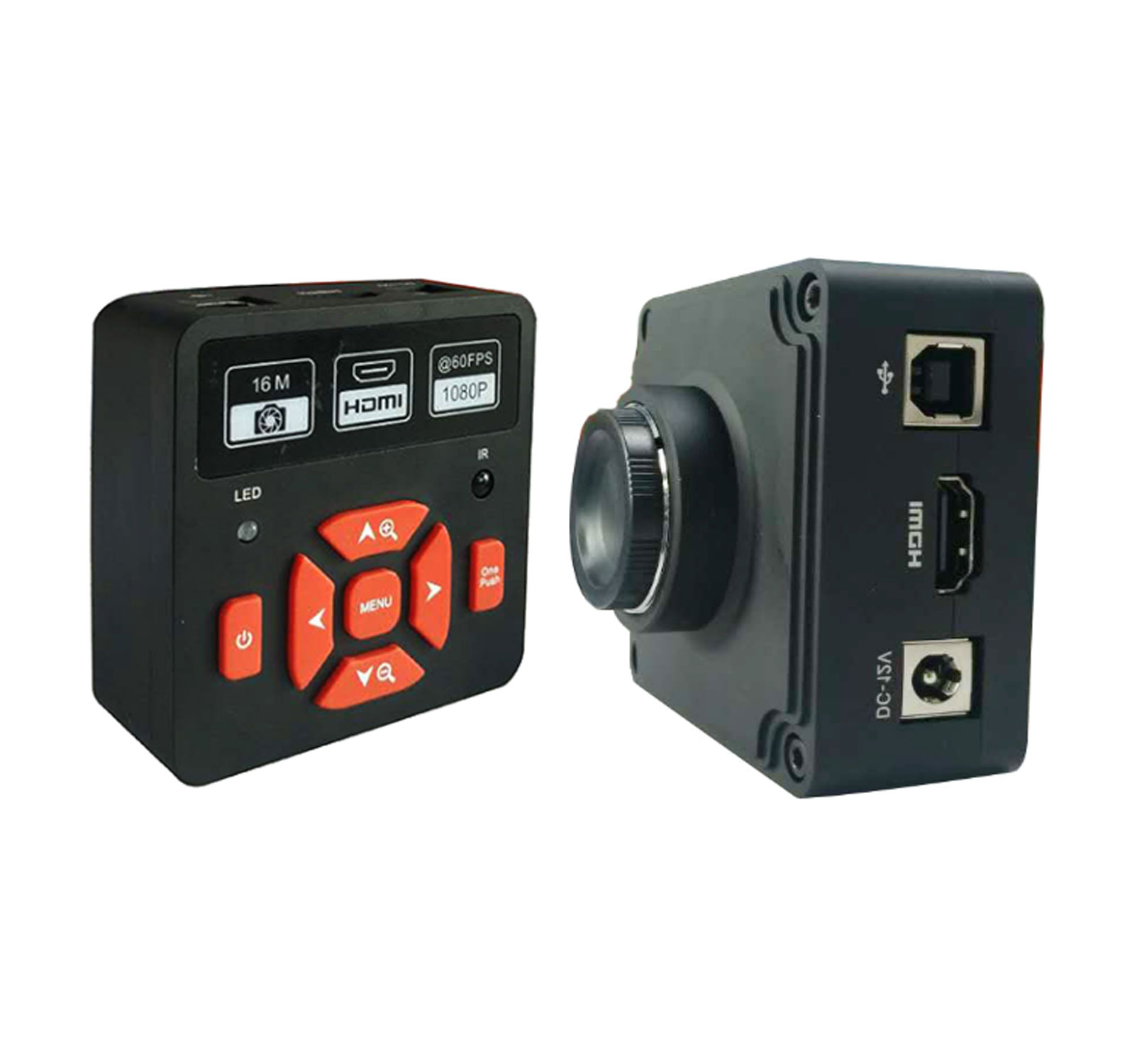

CMOS HDMI High MP Cameras



This standalone HDMI scientific imaging solution offers users 60 fps@3840* 2160 live preview with perfect color reproduction streaming directly to a monitor. The HDMI camera can be operated by connecting directly to a monitor without the need for a PC. Images can be captured and saved to the included TF card, or the camera can be used as a standard USB 2.0 camera. The HDMI camera reacts to lighting changes in any life science, clinical or material applications. With video output via an HDMI connection, the on-camera buttons allow for easy access to features and settings.

  • Perfect color reproduction
  • Excellent image quality
  • High resolution & fast live image
  • Fit to any PC and microscope
  • Safe investment
  • Best price-performance ratio
  • 16mp image resolution
  • HDMI 60 fps@3840* 2160 output
  • Live Resolution: 1920 1080
  • Still resolution: 3260 x 1836
  • Video Record: 1020
  • Output: HMDI, USB2, TF card
  • Operating Support: XP or later, MAC OS X
  • Parameter button (1): Exposure, White Balance, Gamma, Gain, Sharpness, Saturation, Contrast
  • Parameter button (2): Cross-line, Image Comparator, Image Freeze
  • Software ISCapture full paramenter control
  • Model HDMI CMOS 16MP HDMI CMOS-LD 16MP
    Sensor size 1/1.8 inch 1/2.3 inch
    Pixel size 1.34μm*1.34μm 2.35μm*2.35μm
    Effective pixels 16M
    Frame Rate 60 fps@3840 * 2160
    Output HDMI, USB, TF Card
    A/D Conversion 24(3x8) bit
    Exposure time min.-max. Upto 0.5ms-600s
    Power DC-12V/1A
    Software function Point coordinates, Reticle, Coordinates, Text annotation
    Length measurement Straight length, broken line length, curve line length, distance between parallel lines, point-line distance
    Center distance of circles Radius setting circle, two points setting circle, three points setting circle
    Geometric measurement Line length, radius setting circle, two points setting circle, three points setting circle, concentric circles
    Geometry area Polygon, rectangle
    Image capture Supports 12M static pictures
    Video record Support 1080 p video
    Size 75*75*38.8 MM
    Accessory HDMI cable, power supply, mouse, remote(Optional)

    As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
    For complete updated specifications, please do ask for latest brochures
