Horizontal Profile Projectors
RPH Series

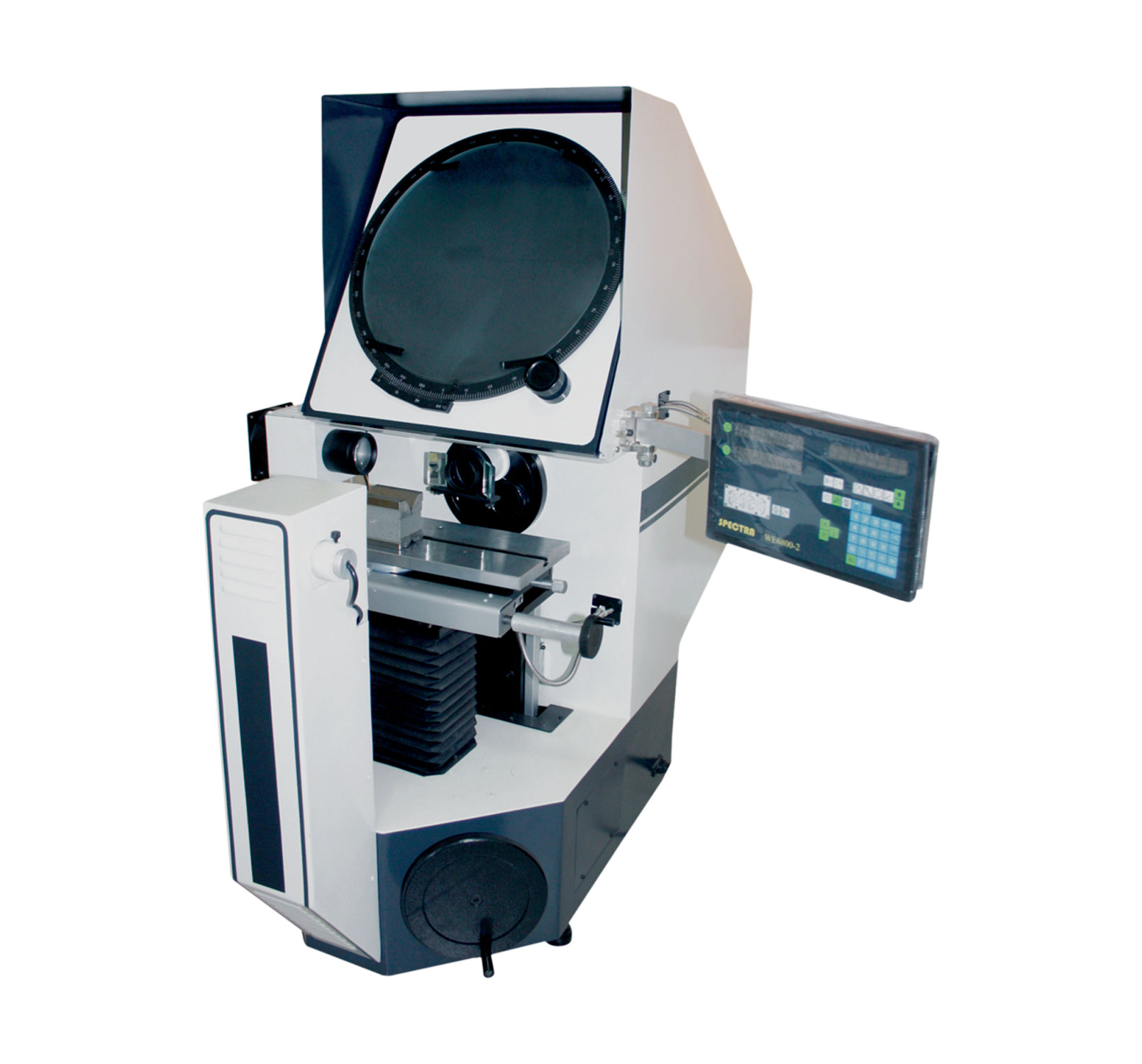

Horizontal Profile projector features world class lens technology and workmanship that are combined to provide a bright, crisp image for error free inspection. The heavy duty work stage with machined slot for holding accessories enables the inspection of heavy work pieces, such as from cutters, hobs, gears, large screw threads, thread rolls and large turned components etc.
Features:
Impeccable performance
Excellent functionality
Low maintenance
Rust proof body
| Screen | Upto 600mm dia and etched center crossline |
|---|---|
| Focussing Range | 150mm |
| Magnification | Upto 100X |
| Protactor Screen | 360° Rotation with 2 minutes vernier resolution |
| Magnification Accuracy | ± 0.05% on contour and ± 0.1% on surface |
| Lens Mounting | 3 turret type for safety and easy use. |
| Resolution | 0.001mm |
| Illumination | 24V, 150W Halogen, Forced Air cooled, Light intensity controller for variable backgrounds |
| Filter colour | Green (Yellow - option) |
| Power Supply | AC Single Phase 230V, 50Hz |
| Model No | RPP-300HDR | RPP-400HDR | RPP-500HDR | RPP-600HDR |
|---|---|---|---|---|
| Screen Diameter | 300mm | 400mm | 500mm | 600mm |
| Work Stage Table Top Area | 400x150mm. with T-Slots Helixable at 15° either sides |
500 x 170mmwith T-Slots |
600x200mm. T-Slots |
600mm x 200mm. T-Slots |
| Focussing Range | 100mm. | 100mm. | 150mm. | 200mm. |
| Stage Travel X-Y axis | 200x150mm. | 250x150mm. | 300x200mm. | 300x250mm. |
| Magnification Standard | 10x | |||
| Magnification Optional | 20x, 25x, 50x, 100x | |||
| Magnification Accuracy | ± 0.05% on contour and ± 0.1% on surface. | |||
| Projactor Screen | 360° Rotation with 2 minutes vernier resolution | |||
| Resolution | 0.001mm. | |||
| Measuring System | By X-Y digital read out | |||
| Illumination | 24V, 150W Halogen, Forced Air cooled, Light intensity controller for variable backgrounds | |||
| Filter colour | Green/Yellow | |||
| Power Supply | AC Single Phase 230V, 50Hz | |||
| Standard Accessory | Projection Lamps, Operating Manual & In-House Calibration Certificate. | |||
| Optional Accessory | V-Block/Digital Read out with different options/Geometrical Data Processors/edge Detector Sensor/Rotary Encoder with Counter for Angular Measurements/ Vertical Work Piece Holder/Projection Lamps/Calibration Glass Scale, Over Lay Charts. | |||
| Mass. Approx. | 125Kg. | 140Kg. | 175kg. | 200Kg. |
Range Of Accessories
Over Lay Chart
|

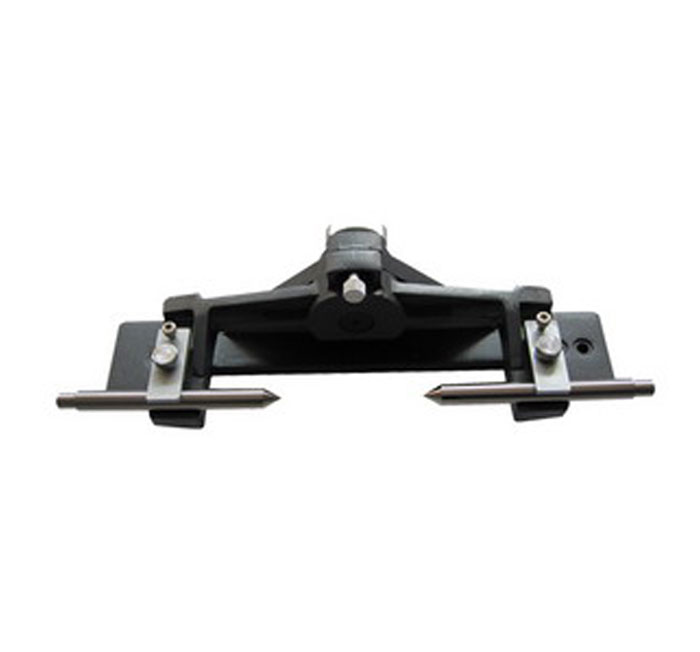

Swivel Center Support
|

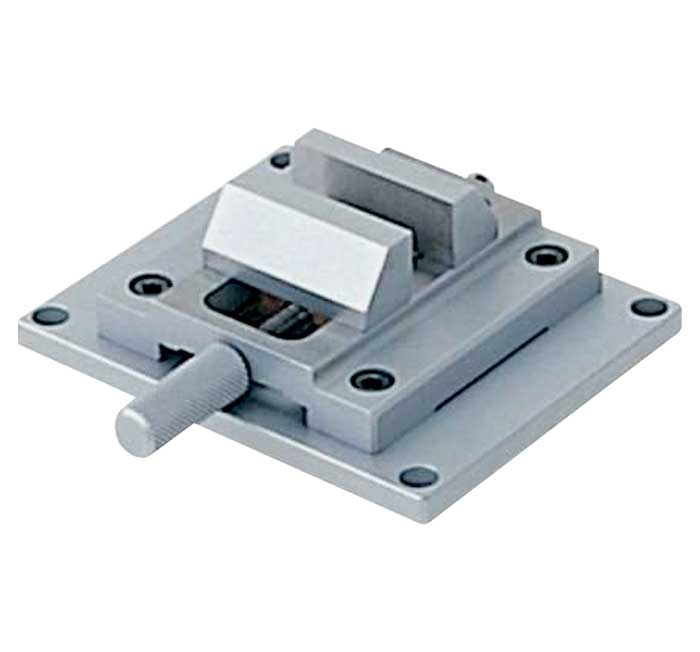

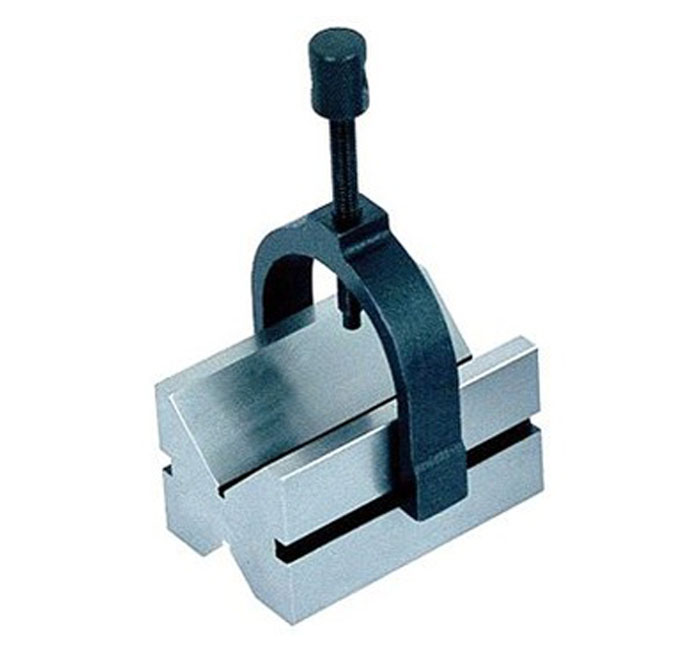

V-Block With Clamp
|

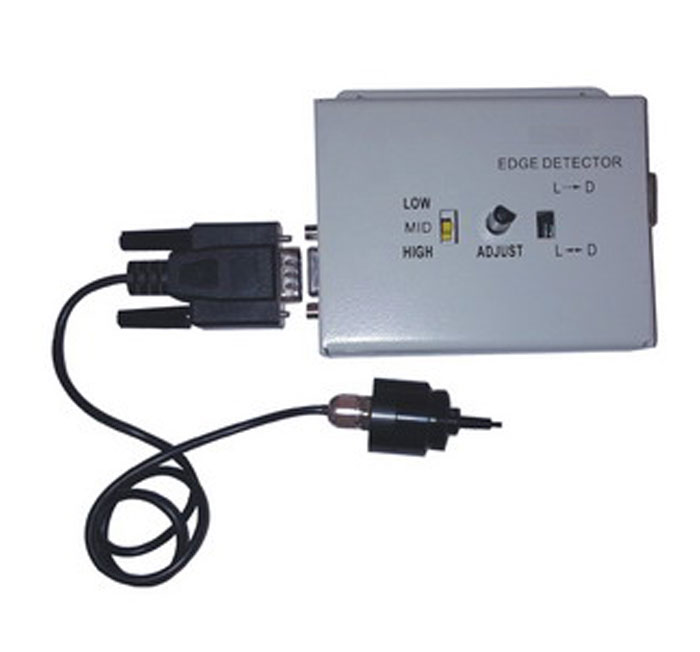

Edge detector
|

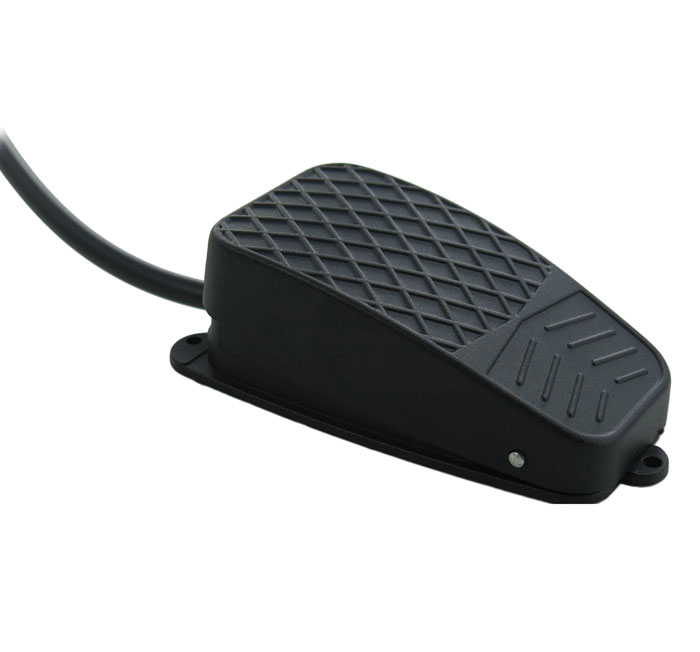

Foot switch
|
fixture
|

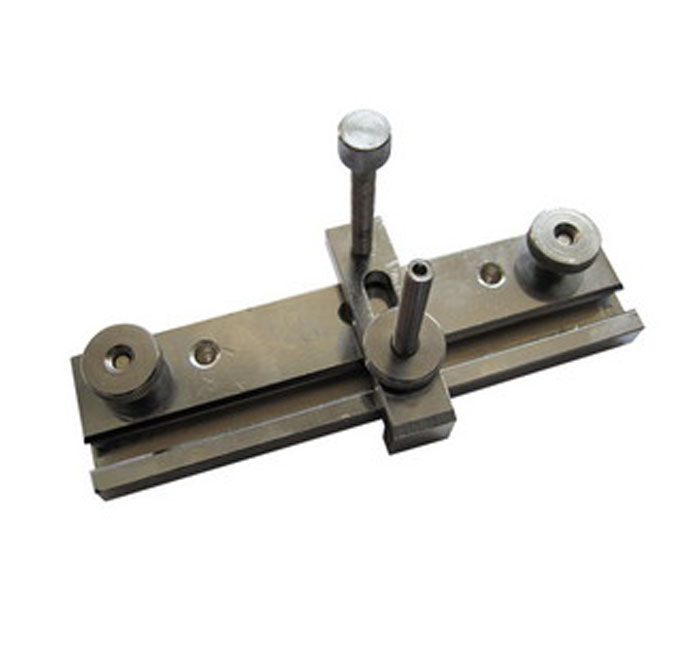

Holder with clamp
|

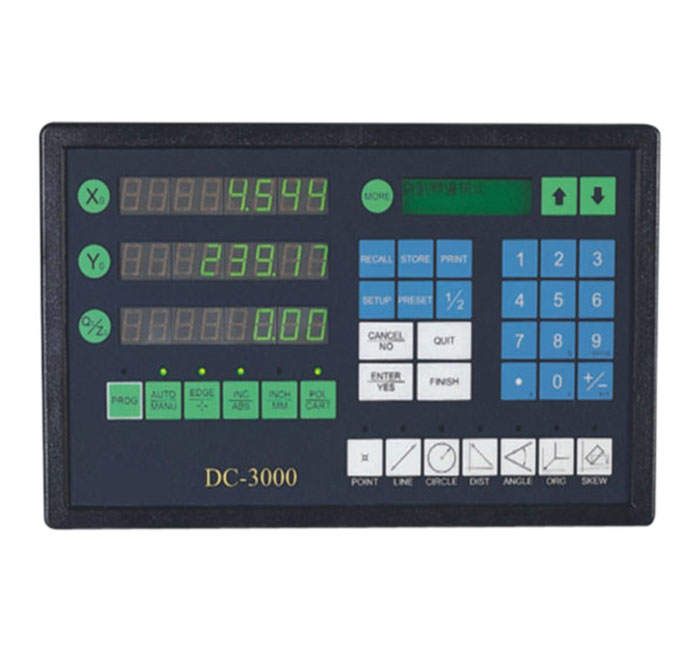

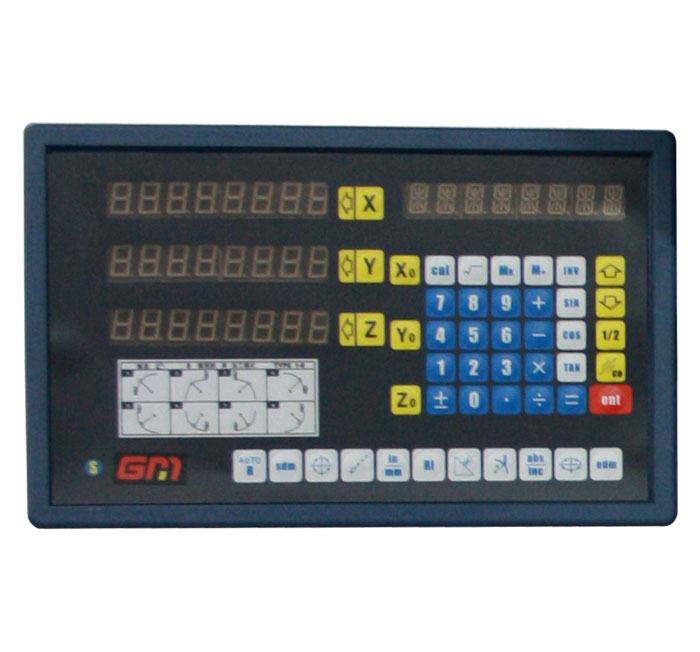

D.R.O
|
Data Processor
|
