Cmos Cameras
Cmos Cameras



Designed to provide maximum versatility and cost effectiveness, the digital microscope cameras of the ProgResindi CMOS range enable quick and precise setting of specimen and microscope. The fast live images meet the requirements of professionals, and the outstanding CMOS technology and the high resolutions make these ProgResindi cameras the first choice imaging solution for usage in education institutes and training labs.

  • CMOS microscope camera
  • 35 fps
  • Firewire/USB interface
  • 3.2 x 3.2 µm pixel size
  • 1/2 sensor
  • 12 bit
  • Software included

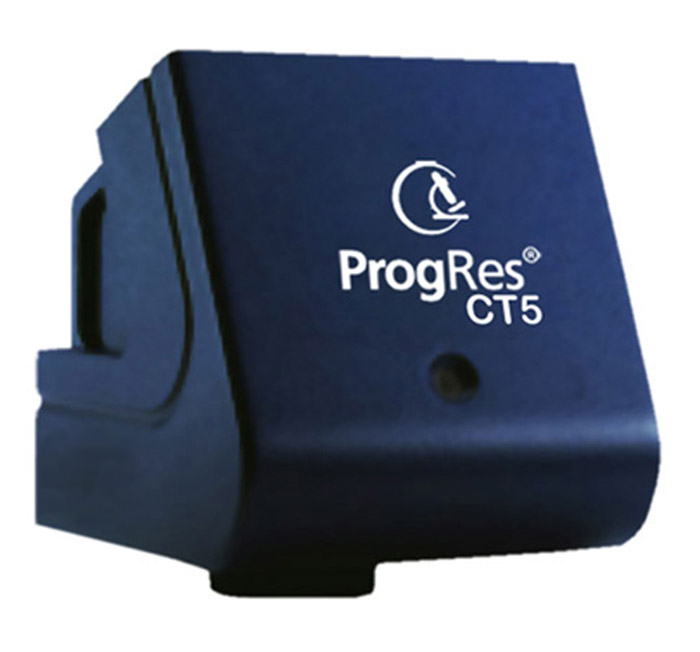

ProgRes® camera type CT3 CT3 USB CT5 USB
Image Sensor 1/2´´ CMOS
3.15 Mpix
1/2.5´´ CMOS
5 Mpix
Color/Monochrome Color Color/Monochrome
Pixel size [W x H] 3.2 µm x 3.2 µm 2.2 µm x 2.2 µm
Dynamic range 58 dB 66 dB
Exposure times 50 μs ... 3 s 100 μs ... 3 s 150 μs ... 3 s
Max.frame rate(image size)
[image size in pixel]
10 fps [2048 x 1536]
26 fps [1024 x 768]
9 fps [2048 x 1536]
35 fps [1024 x 768]
5.5 fps [2592 x 1944]
17 fps [1296 x 972]
Cooling No
Digital Interface Firewire a USB 2.0
Trigger In/Out No Yes
Voltage supply Firewire powered USB powered
Dimensions (LxWxH) 89mm x 84mm x 93mm
Weight approx. 700 g

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
