Toolmaker Microscopes

RTM Series

Toolmaker microscopes are satisfies the increasing industrial requirements on measurements. The well designed basic unit with long working distance objectives, wide field eye pieces and a telecentric illumination system have been engineered for long period comfortable opration. It is an ideal instrument for simplyfying inspection of forming tools, gauges-template checking, thread inspection verification of tool angles etc.

  • Both transmitted and reflected Illumination intensity can be adjusted.
  • Angle measurement is performed easily by turning the angle scale disc to align the Cross-hair reticule with the work piece image.
  • Bright field observation, clear and flare less image, wide field of view.
  • Different XY stages with variable travel ranges are available
  • Comparison of thread forms with master profiles engraved in the eyepiece, measurement of pitch and effective diameter.
  • Comparison of an enlarged, projected image with a tracing fixed to the projecting screen.

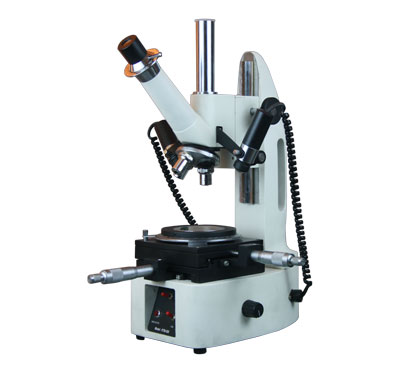

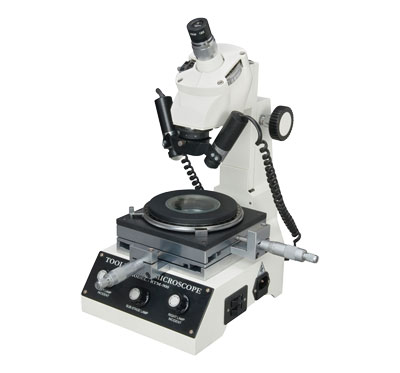

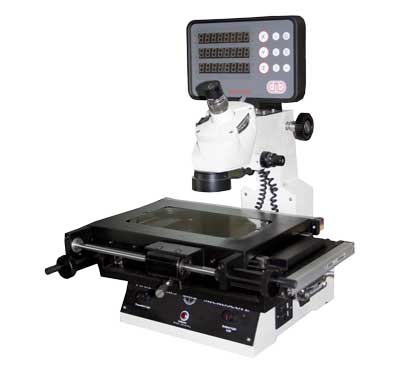

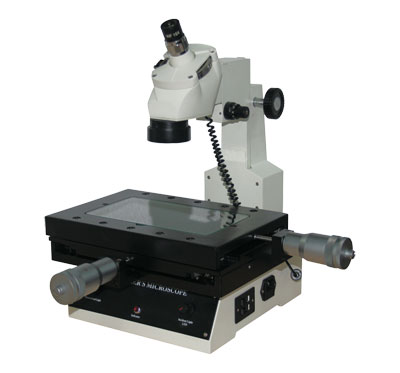

  • Model No. RTM-500 RTM-99 RTM-99A RTM-900 RTM-901A
    Observation Tube Monocular, 45° inclined Monocular, 30° inclined Monocular, 30° inclined Monocular, 45° inclined
    Head Goniometric head, 360° graduated Graduated eyepice protractor, 360° graduated
    Base Large and haavy base provides extra over all rigidity to the instrument
    Stage 125mm X 125mm with interchangeable intermediate table to receive different optional accessories. Equipped with micrometer head. Rotary measuring stage dia 130mm is mounted on the table with 55mm glass aperture, circular graduated scale is divided into 360°. 300mm X 200mm size assembled on ball bearing guides to provide accurate and smooth stage stroke upto 50mm in each direction. Glass plate size 200 X 100mm. Measurement through Digital Read-Out System. Resolution:0.001mm. 300mm X 200mm thread less stage assembled on ball bearing guides. Glass plate size 200 X 100mm. Measurement through Digital Read-Out System Resolution: 0.001mm. 152mm X 152mm size assembled on ball bearing guides to provide accurate and smooth stage stroke upto 50mm in each direction. 300mm. x 200mm. size assembled on ball bearing guide to provide accurate and smooth stage provided with D.R.O. (Digital Read Out) least count 1 micron to 5 micron.
    Illumination Sub-stage lamp emits transmitted light from a bottom source equipped with collimated green filter halogen light. Oblique illuminator with adjustable inclination for surface illumination of sample with relief structure, is also provided. Three separate knobs for different illumination are provided with variable light control on the front panel. Sub-stage lamp emits transmitted light from a bottom source equipped with collimated green filter halogen light. Oblique illumination through circular flourescent light. Bottom illumination Lamps illumination, oblique illumination-Led Lights. Sub-stage lamp emits transmitted light from a bottom source equipped with collimated green filter halogen light. Oblique illuminator with adjustable inclination for surface illumination of sample with relief structure, is also provided. Three separate knobs for different illumination are provided with variable light control on the front panel. Sub-Stage Lamp emits transmitted light from a bottom source equipped with collimated green filter Halogen Light Circular LED light, Two knob for different illumination are arranged with variable control on front panel.
    Objective 2x-3x-5x 2x achromatic 2x achromatic, 3x optional.
    Eyepiece WF 10x (with cross) H10x (with micrometer) & H15x. WF 15x with cross reticle.
    Accessories Different optional accessories are available. RTM-900MT - Supplied with Standard Micrometer, Least Count 0.01mm. & Tungsten Lights. Different optional accessories are available.
    RTM-900ML-Supplied with Standard Micrometer, Least Count 0.01mm. & LED Lights.
    RTM-900DT- Supplied with Digital Micrometer, Least Count 0.001mm. & Tungsten Lights.
    RTM-900DL-Supplied with Digital Micrometer, Least Count 0.001mm. & LED Lights.
    Range Of Accessories

    Swivel Center Support
    V-Block With Clamp
    fixture
    D.R.O
    Holder with clamp
    Foot switch
    Data Processor
