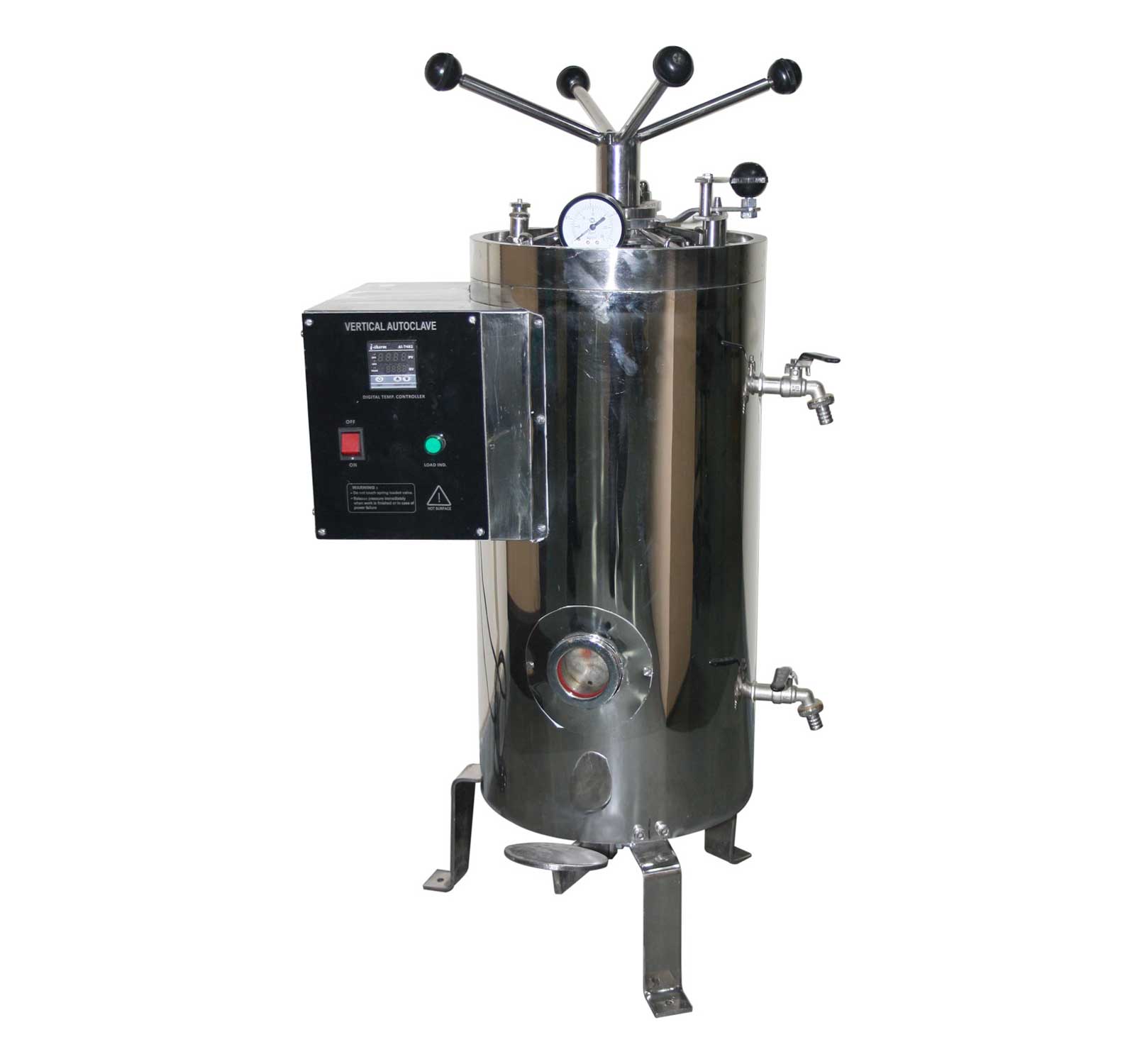

Vertical Autoclave



Vertical Radial locking Autoclave made using high grade stainless steel. Radial locking lid, incorporated with pressure Gauge, manual exhaust valve & water level indicator, makes sure that vertical radical locking autoclave is safe to use. Inner chamber, outer chamber & support ring are fully made of SS. Heater cover, stand & carrier/ bucket are made of stainless steel. Lid is fitted with pressure Gauge, Spring loaded safety valve, double safety valve, manual exhaust valve, vacuum breaker as a safety device & water level indicator. Drain valve facility for easy cleaning of the chamber. Moulded joint less rubber gasket. All internal joints are argon arc welded, ground & polished to give service free internals. Miniature circuit breaker for mains on/off plus safety of control panel. Industrial grade energy efficient heaters reduce power bills drastically.

Inner Dimensions (Inch/mm) Capacity Heater Load
10x18” / 250x450 22 L 2.0 KW
12x20” / 300x500 40 L 2.0 KW
14x22” / 350x550 50 L 3.0 KW
16x24” / 400x600 78 L 4.0 KW
18x24” / 450x600 98 L 4.0 KW
22x30” / 550x750 187 L 4.0 KW
Sterilizing Pressure 1.2 kgf/cm2 (15 Psi) at 121°C
Operating Pressure : 15 Psi
Pressure Vessel made of High Grade SS
External Wall made of High Grade SS.
Top Lid High Grade SS
Basket High Grade SS
Power Supply 220 - 230V AC, 50/60Hz
Optional :
  1. Automatic Pressure Control Switch
  2. Automatic Low water cut off system.

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
