Optical Microscopes Industrial Microscopes RMM-88 Series

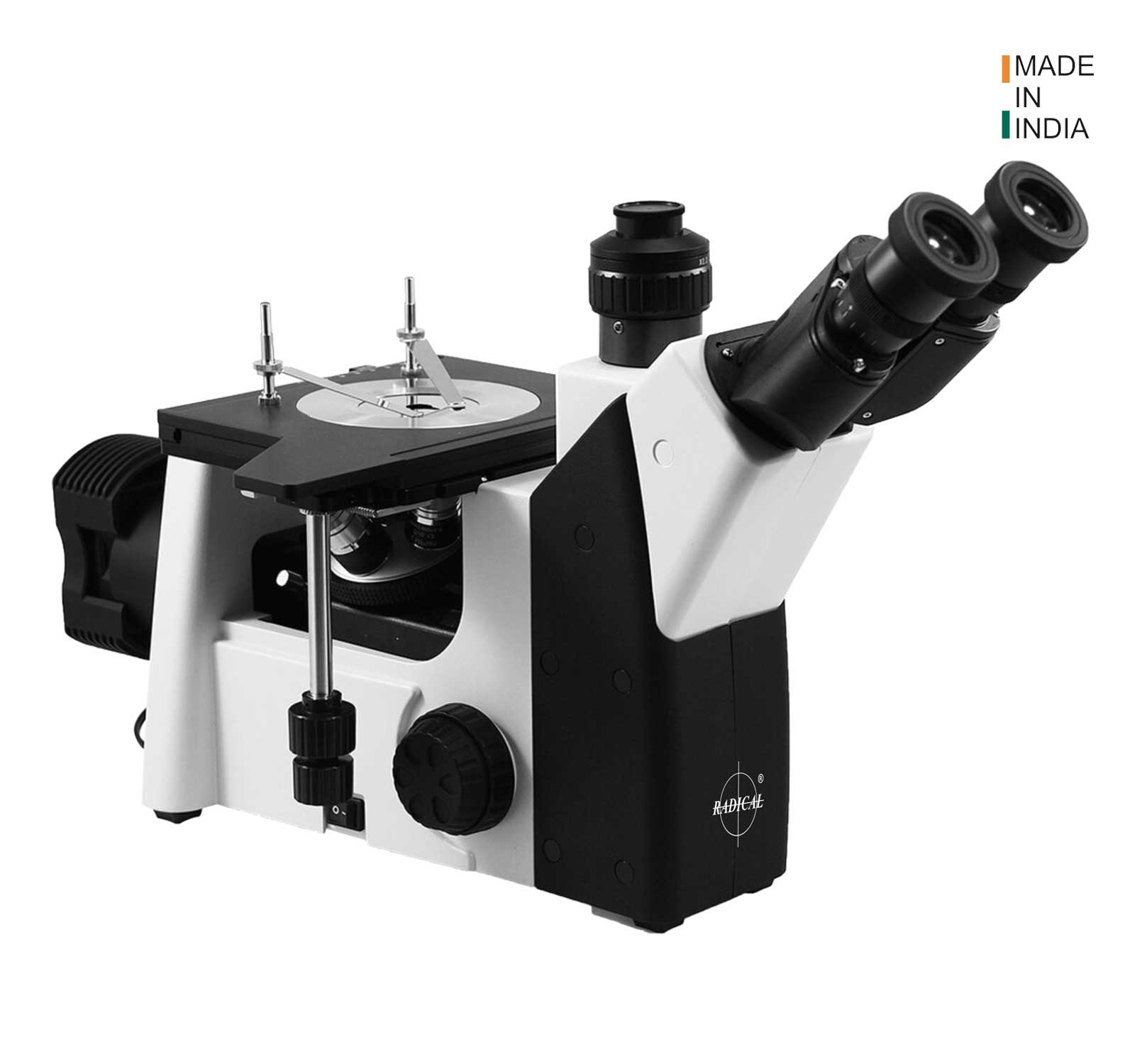

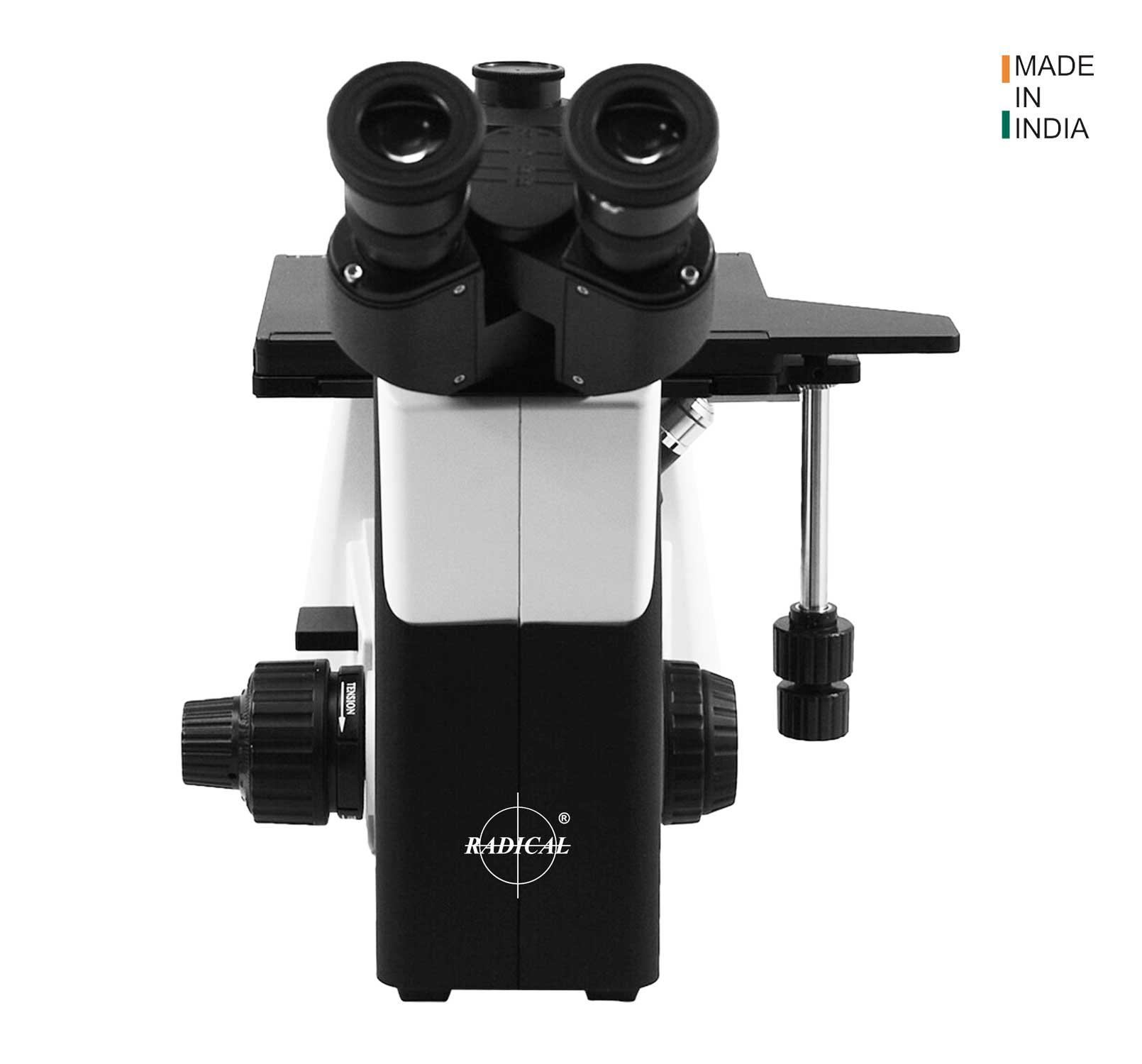

Inverted Metallurgical Microscope

RMM-88

A latest Binocular inverted Metallurgical Microscope equipped with vertical illuminator having centring provision, field and aperture, diaphragm and slot for dropping filters, built-in base, variable solid state transformer, large sturdy stage with co-axial arrangement for x-y axis movements, coarse and fine graduated focussing knobs. Supplied with two coloured filters in metal mount, Rexine cover, wooden base stand with drawer and following optical combination.

BRIGHTFIELD

POLARIZING

Observation Method	Optical system, colour & spherical aberration corrected
Illumination	50W Kohler illumination/LED
Viewing Heads	Ergonomic siedentopf binocular/trinocular head, inclination 45° rotatable 360° with IPD 48-75mm, upper & lower position, diopter adjustable
Nosepiece	Reversed quintuple/quadruple nosepiece
Objectives	LWD infinity plan/SEMI APO chromatic
Eyepiece	High point wide-field WF 10X with FOV 22/25mm
Mechanical Stage	Fixed stage with 3point support, attachable mechanical stage, X-Y coaxial control, moving range 120×78mm double layer mechanical stage 150×300mm, moving range 50×50mm
Focusing	Coaxial, tension control & upper limit stopper high sensitivity focus drive with 0.01mm per revolution
Observation	Bright field, darkfield & polarizing
Magnification	50x-1000x
Filters	Blue, Green, built-in slots for analyzer & polarizer

Part Name	Part Code	Description
Body	RMM88MB	Rugged, ergonomic design, touch point treated, intensity controller & on/off switch, rubber feet
Optical system	RMM88iOS	Infinite optical system, color corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), color coded objectives, parfocal (60mm), pre-centered
Reflected Illumination	RMM88HL50	Reflection Kohler illumination with iris diaphragm and centerable field diaphragm, halogen 6V-30W (life 2000 hrs.), with continuous intensity control
Viewing Head	RMM88T45	Trinocular inclined at 45°, ergonomic siedentopf head, rotatable through 360°, IPD 54-75, diopter adjustable, splitting 20:80
Nosepiece	RMM88-5N	Inward tilted, precise quintuple revolving on multiple ball bearing
Eyepiece	RMM88EP1020	Paired, high eye point WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, pre-centered, diopter adjustment on both eyepieces (±5mm)
Mechanical Stage	RMM88MS	Three-ply large graduated mechanical stage, three point support, area 180mmX155mm, right hand low position co-axial control, moving range:75mm×40mm; Metal stage plate, center hole dia.φ12mm
Objectives	RMM88PL10iM	M10X, N.A. 0.25, W.D. 8.7mm, plan achromatic, infinite, unbreakable container for storage
	RMM88PL20iM	M20X, N.A. 0.40, W.D. 8.8mm, plan achromatic, infinite, unbreakable container for storage
	RMM88PL50iM	M50X, N.A. 0.60, W.D. 5.1mm, plan achromatic, infinite, unbreakable container for storage
Focusing	RXF20	Low position coaxial coarse fine adjustment, upper limit stopper, with tightness adjustment coarse adjustment range 38mm precision of fine adjustment: 2um, with slide travelling on bearing guide ways.
Power supply	RSMPS620	Built-in SMPS based, wide voltage range, 90V-240V, 50/60Hz
Accessories	RCC	Cleaning cloth
	RVC	Vinyl cover
	RAK	Allen keys
	RMM88INSRT	Round stage inserts with opening with 10mm, 15mm & 25mm
	RMM88FILTER	32mm Yellow / Green / Blue / ND
	RF5A	Fuses - 2 no's
	MANUAL	Instruction manual
	WARRANTY	Warranty card
	RPC	Power Cord (country Specific)

Reflected Illumination

Part Name	Part Code	Description
Reflected Illumination	RMM88H50RL	12V-50W life 2000 hrs., with field and aperture diaphragm
	RMM88H100RL	12V-100W life 2000 hrs., with field and aperture diaphragm
	RMM88L5WRL	LED 3W life 62000 hrs., Lumens equivalent 100W, with field and aperture diaphragm and filter slot, with continuous intensity control.
	RMM88L5WRLi	Epi-Koehler’s illumination LED 5W lamp having life of 62000 hrs., AC 85-230V with field and aperture diaphragm and filter slot, with continuous intensity control.

Viewing Head

Viewing Head	RMM88TST-C50	Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD 48-76, Diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 50(EP):50(camera)
	RMM88TST-C80	Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD 48-76, Diopter adjustment on both eyepiece, port for camera attachment, splitting ratio 20(EP):80(camera)
	RMM88TST-C80e	Trinocular inclined at 30°, ergonomic siedentopf head, rotatable through 360°, inter pupillary distance 52-75, diopter adjustable.
	RMM88TST-3PC50	Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD 48-76, Diopter adjustment on both eyepiece, port for camera attachment, 3 position splitting ratio 100:0, 50:50, 0:100
	RMM88TST-3PC80	Trinocular inclined at 45°, siedentopf head, rotatable through 360°, IPD 48-76, Diopter adjustment on both eyepiece, port for camera attachment, 3 position splitting ratio 100:0, 20:80, 0:100

Nosepiece

Nosepiece	RMM88-4N	Inward tilted, precise quadruple revolving on multiple ball bearing, positive click stops.
	RMM88-6N	Inward tilted, precise sextuple revolving on multiple ball bearing

Eyepieces

Eyepieces	RMM88EP1018	WF 10X, FOV-18mm, compensating, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RMM88EP1020M	WF 10X, FOV-20mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RMM88EP1020P	WF 10X, FOV-20mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RMM88EP1022	WF 10X, FOV-22mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RMM88EP1022M	WF 10X, FOV-22mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RMM88EP1022P	WF 10X, FOV-22mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RMM88EP1025	Paired, WF 10X, FOV-25mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RMM88EP1025M	WF 10X, FOV-25mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RMM88EP1025P	WF 10X, FOV-25mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RMM88EP1513	Paired, WF 15X, FOV-13mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RMM88EP2010	Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
	RMM88EP-C	Customized eyepiece of 5X/10x/12x/15x/16x/20x with different types of reticles/graticules
	RMM88ECUP	Eyecups (pair)

Mechanical Stage

Mechanical Stage	RMM88MS1	Three-ply large graduated mechanical stage, three-point support, area 180mmX155mm, right hand low position co-axial control, moving range:75mm×40mm; Metal stage plate, center hole dia.φ12mm
	RMM88MS-C	Rectangular right/left hand control, horizontal, hard ceramic coating, stage size - customized as per requirement, X-Y Movement - customized as per requirement
	RMM88MS-RK	Rackless, rectangular right/left hand control, horizontal, hard ceramic coating, stage size - customized as per requirement, X-Y Movement - customized as per requirement
	RMM88MS-MOT	Rectangular right/left hand control, horizontal, hard ceramic coating, X-Y movement motorized, stage size - customized as per requirement, X-Y Movement - customized as per requirement with controller (PCI or USB)

Objectives

Objectives	RMM88PL2iM	2X, N.A. 0.06, W.D. 7.50mm, plan achromatic, infinite, Parfocal & pre-centered, oil immersed, spring loaded, unbreakable container for storage
	RMM88PL5iM	M5X, N.A. 0.12, W.D. 14mm, plan achromatic, infinite, unbreakable container for storage
	RMM88PL45iM	M45X, N.A. 0.65, W.D. 0.7mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
	RMM88PL60iM	60X, N.A. 0.80, W.D. 0.30mm, plan achromatic, infinite, parfocal & pre-centered, oil immersed, spring loaded, unbreakable container for storage
	RMM88PL63iM	63X, N.A. 0.84, W.D. 0.28mm, plan achromatic, infinite, parfocal & pre-centered, oil immersed, spring loaded, unbreakable container for storage
	RMM88PL-100i	100X, N.A. 0.80, W.D. 2.0mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
	RMM88PL100iM	M100X, N.A 1.25, W.D 0.18mm, plan achromatic, oil immersed, unbreakable container for storage
	RMM88PL-100iDF	100X, N.A. 1.25, W.D. 0.18mm, plan achromatic, infinite, oil immersed, spring loaded, darkfield, unbreakable container for storage
SEMI APO/Flotar/Fluor Objectives	RMM88P-SAPO05i	4X, N.A. 0.14, W.D. 20.5mm, SAPO, infinite, unbreakable container for storage
	RMM88P-SAPO10i	10X, N.A. 0.25, W.D. 16mm, SAPO, infinite, unbreakable container for storage
	RMM88P-SAPO20i	20X, N.A. 0.40, W.D. 7.8mm, SAPO, infinite, unbreakable container for storage
	RMM88P-SAPO50i	50X, N.A. 0.55, W.D. 7.9mm, SAPO, infinite, spring loaded, unbreakable container for storage
	RMM88P-SAPO100i	100X, N.A. 0.80, W.D. 2.1, SAPO, infinite, spring loaded, unbreakable container for storage
		Please click for More Objectives...

Focusing

Focusing	RXF10	Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.10 mm per revaluation, fine adjustment 1µm/Div.
	RXF30	Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.30 mm per revaluation, fine adjustment 3.0µm/Div.
	RMF100-MOT	Motorized focusing through stepper motor, precision controlled, external controller through PCI or USB

Micrometer/Calibration slide

Micrometer/Calibration slide	RCS10	Micrometer slide for calibration, 1mm with 10µm least count
	RCS100	Micrometer slide for calibration, 10mm with 100µm least count

C-mount

C-mount	RCMT50X	0.5X Camera Adaptor/Tube/Mount
	RCMT65X	0.65X Camera Adaptor/Tube/Mount
	RCMT70X	0.7X Camera Adaptor/Tube/Mount
	RCMT01X	1X Camera Adaptor/Tube/Mount

Packing

Packing	RWBX	Wooden box with separate container for accessories, lock & key, carrying handle
	RSTYRO	Standard Styrofoam packing

Slider	RMM88SLDF	Darkfield slider
Analyzer/Polarizer	RMM88SLANA	Set of analyzer and polarizer, 360° rotary analyzer, the polarizer & analyzer both can shift out of optical path
Filters	RGF	Green plane or frosted
Power supply	RSMPS630	SMPS based, wide voltage range, 90V-240V, 50/60Hz
Cleaning Kit	RCLEAN	Anti-static cleaning brush, cleaning tissue paper, Lens cleaning solution
