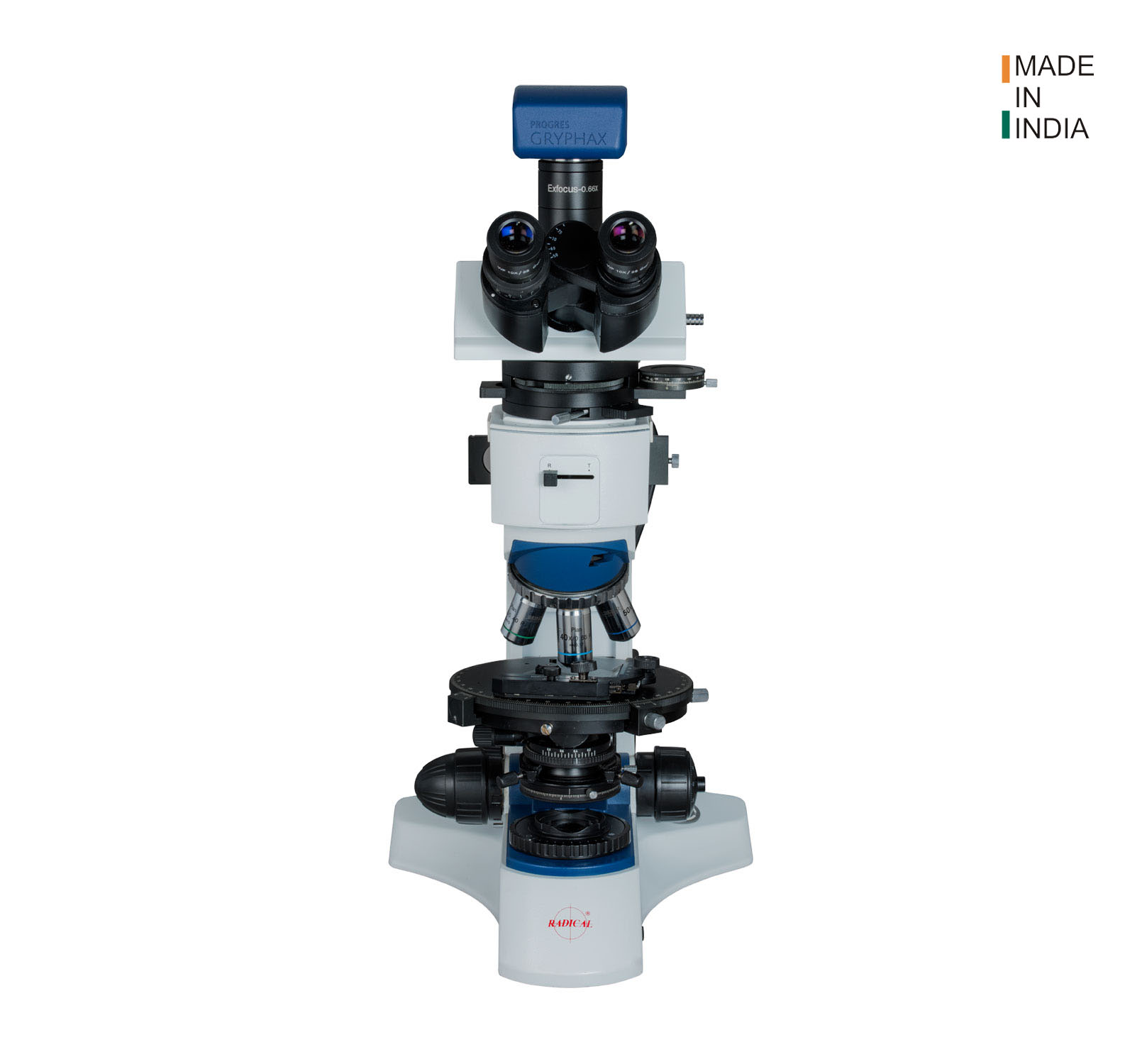

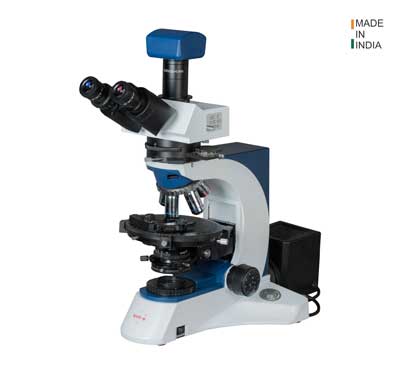

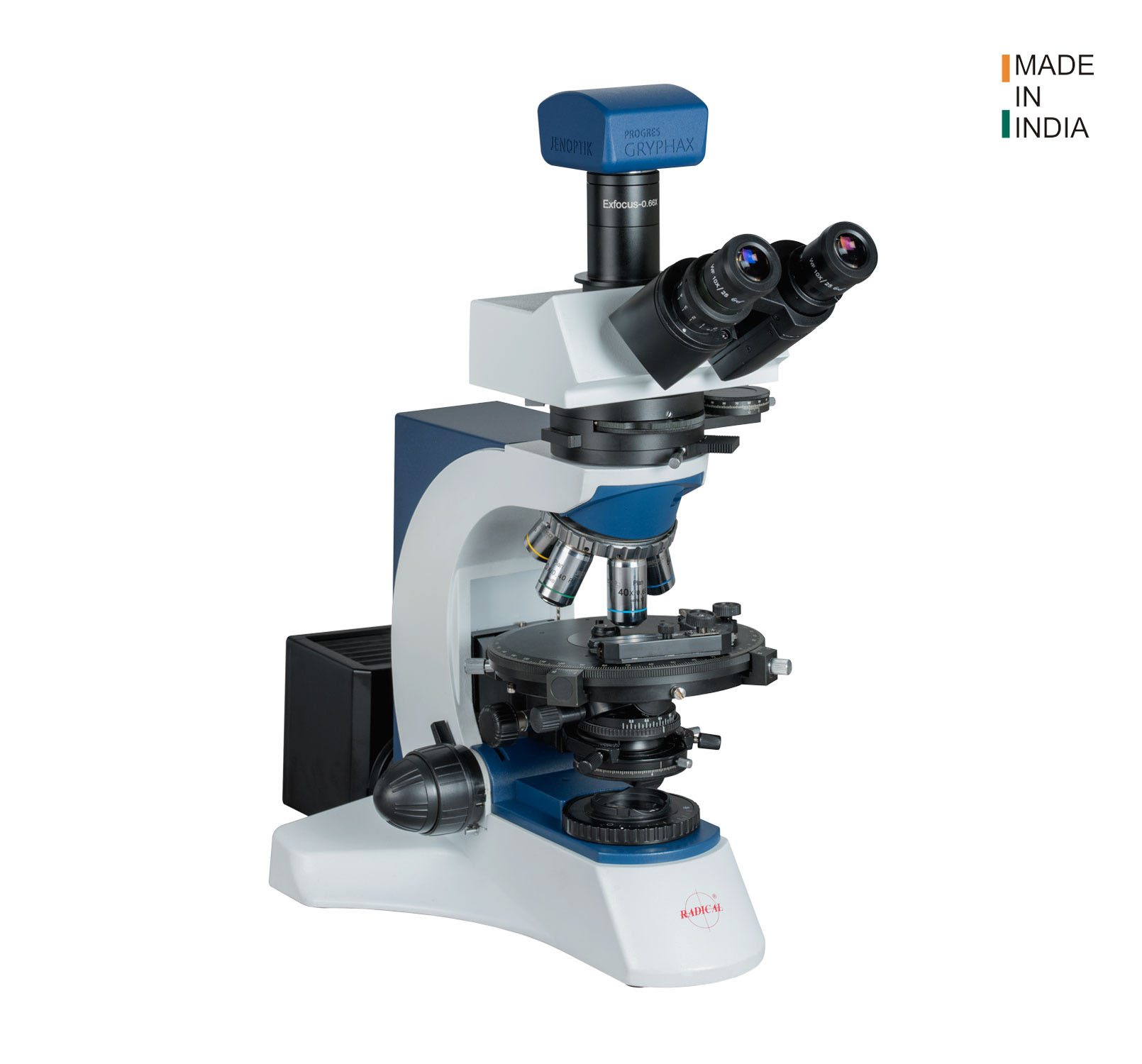

Advanced Research Polarizing Microscope

RXLr-5POL

RXLr-5 Pol Professional polarizing microscope for geology, petroleum, chemicals, polymer, LED field. Produces high quality and contrast image with special strain free objectivises. Designed for single polarization, orthogonal polarization and conoscopic observations. Brightness adjustable transmitted light and reflected light. Stage with 45°click, attachable mechanical stage with large moving range, high efficiency without any interferencewhile turning objectives.

BRIGHTFIELD
DARKFIELD
POLARIZING
Body Rugged, single die cast, ergonomic design, touch point treated
Optical system Strain free achromatic optical system, Color corrected, Anti-fungal, Anti-bacterial Coated (multi-layered hard coated)
Illumination Koehler halogen/LED, intensity adjustable, battery backup, auto cut-off
Incident Illumination LED/halogen with aperture and field diaphragm, Pre-centered lamp house, Slot for Polarizer/ Analyzer
Intermediate attachment Slots for Compensator Plates
Switchable Orthoscopic/Conoscopic
Built-in focusable & centerable bertrand lens
Polarizing Facilities Polarizer mounted below the condenser
Analyzer Analyzer with scale removable from optical path, rotatable, focusable & centerable bertrand lens
Retarding Plates λPlate, 1/4 λ(Mica) & Quartz Wedge
Viewing Head Monocular/Binocular/Trinocular Head
Nosepiece Centerable Quadruple/Quintuple with Multiple Ball-Bearing, Rubber/metal Grip & Click Stop
Eyepiece Extra wide field with diopter adjustment
Objectives (Engraved) POL Plan, S-APO/APO, Infinite objectives
Mechanical Stage Graduated large circular rotary stage
Condenser Abbe with iris diaphragm & filter slot. Brightfiled, polarizing
Focusing Coaxial (low position), both side, Coarse & Fine with Tension control & upper limit stopper
Attachment Slots for Compensator Plates
Switchable Orthoscopic/Conoscopic
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RXR5PMB Rugged, single die cast, ergonomic design, touch point treated, Intensity controller, ON/OFF Switch, Rubber feet,Kohler Illunimation with aperture and field diaphragm, heat protection filter, blue filter (45mm) for white light (4500K)
Optical system RXR5PiOS Infinite optical system, Colorcorrected, Anti-fungal, Anti-bacterial Coated (multi-layered hard coated), Color Coded Objectives, parfocal distance (60mm)
Transmitted Illumination RXR5P-TL50 Prefoucsed, Halogen Lamp, 12V/50W, Std. life 2,000 hrs.
Viewing Head RXR5P-HB30 Binocular with sidentopf head 30°, 360° rotating, Interpupillary adjustment (48-75mm), FOV 22mm, diopter adjustment one/both eyepiece
Nosepiece RXR5P-5N Inward tilted, Precise Quintuple revolving, ball bearing with slot for Pol & Analyzer, centrable
Eyepiece RXR5P-1022 Paired, WF 10X, FOV-22mm, Multilayered coated,High Quality, antiglare, good contrast, abrresion free, Aplantic, precentered, Lockable, diopter adjustment on one/both eyepiece
Mechanical Stage RXR5P-MS160 Large Circular Rotary metal stage, Dia. 160mm, 360° rotatable, 2° increment, stage lock, precise vernier scale of 0.1° with click stop at 45° increments. Provision for fixing stage clips; attachable mechanical XY travel, object guide with vernier 0.1mm, centrable, optional refocusing
Objectives RXR5P-PF04i PL4X, N.A. 0.13, W.D. 30mm, Plan POL Achromatic, unbreakable container for storage
  RXR5P-PF10i PL10X, N.A. 0.25, W.D. 7.0mm, Plan POL Achromatic, unbreakable container for storage
  RXR5P-PF20i PL20X, N.A. 0.40, W.D. 3.7mm, Plan POL Achromatic, unbreakable container for storage
  RXR5P-PF40i PL40X, N.A. 0.65, W.D. 0.63mm, Plan POL Achromatic, unbreakable container for storage
Focusing RXR5P-F2.5 Coaxial, coarse and fine focus adjustment knobs (low positioned,both side) with rack & pinion arrangement, with tension control, upper limit stopper, full stroke range 30mm, high sensitive focus drive with 0.20mm per revolution, Fine adjustment 2.0µm/Div.
Intermediate Tube RXR5P-ITUBEB Removable bertrand lens, slot for analyser & compensators, switchable Orthoscopic/Conoscopic, built-in focusable & centerable bertrand lens.
Retarding Plates RXR5P-RPLT Compensator Gypum 1 λ Plate, (1st order red Compensating plate, 560 nanometers) (Mica 1/4 λ 145 nanometers) & Quartz Wedge
Condenser RABC Centerable Abbe Condenser N.A. 0.9/1.25, sliding-in/swing-out, Iris Diaphragm, Blue Filter, separate movement from focussing (rack & pinion) suitable for brightfield and polarizing
Analyzer/Polarizer RXR5PAPOL Polarizer mounted below the condenser, built in analyzer with scale removable from optical path, 360°, rotatable with 0.1° L.C.
Power Supply RSMPS620 SMPS based, wide voltage range, 90V-240V, 50/60Hz
Standard Accessories RCC Cleaning cloth
  RVC Vinyl cover
  RAK Allen keys
  RF5A Fuses - 2 no's
  MANUAL Instruction manual
  WARRANTY Warranty card
  RBF Blue Filter (frosted & Plain)
  RPC Power Cord (country Specific)
Part Name Part Code Description
Body RXR5PCXMB Rugged, single die cast, ergonomic design, touch point treated, Intensity controller, ON/OFF Switch, Rubber feet, Kohler Illunimation with aperture and field diaphragm, heat protection filter, blue filter (45mm) for white light (4500K)
Optical System RXR5PiOSi Infinite optical system, Color corrected, Anti-fungal, Anti-bacterial Coated (multi-layered hard coated), Color Coded Objectives, parfocal distance (45mm)
Incident/Reflected Illumination RXR5P-RL30 Halogen lamp, 6V/30W std. life 2,000 hrs., inbuilt heat protection filter, aperture & field diaphragm, daylight filter & polarizing slider
  RXR5P-RL50 Halogen Lamp, 12V/50W Std. life 2,000 hrs., Inbuilt Heat Protection Filter, aperture & field diaphragm, daylight filter & polarizing slider
  RXR5P-RL100 Halogen Lamp, 12V/100W Std. life 2,000 hrs., Inbuilt Heat Protection Filter, aperture & field diaphragm, daylight filter & polarizing slider
  RXR5P-RL10024 Halogen Lamp, 24V/100W Std. life 2,000 hrs. , Inbuilt Heat Protection Filter, aperture & field diaphragm, daylight filter & polarizing slider
  RXR5P-H30RL Halogen 6V-20W, life 2000 hrs.
  RXR5P-L3WRLL3 LED 3W, life 30000 hrs., Lumens equivalent 20W Halogen
  RXR5P-LBBRL Battery backup from 2-12 hours for LED (internal/external)
  RXR5P-L5WRL3 LED 5W, life 30000 hrs., Lumens equivalent 50W Halogen
  RXR5P-ACUT-RL Auto-cutoff
  RXR5P-L3W-RLL6 LED 3W life 65000 hrs., Lumens equivalent 20W Halogen
  RXR5P-L3W-RLL8 LED 3W life 82000 hrs., Lumens equivalent 20W Halogen
  RXR5P-L5W-RLL6 LED 5W life 65000 hrs., Lumens equivalent 50W  Halogen
  RXR5P-L5W-RLL8 LED 5W life 82000 hrs. , Lumens equivalent 50W Halogen
  RXR5P-L-C-RLL1 Extra long life LED upto 1,00,000 hrs 3W/5W
  RXR5P-SOLARRL Solar power battery charger for LED
Transmitted Illumination RXR5P-H20TL Halogen 6V -20W, life 2000 hrs.
  RXR5P-H50TL Halogen 12V -50W, life 2000 hrs.
  RXR5P-TL100 Halogen Lamp, 12V/100W Std. life 2,000 hrs. , Inbuilt Heat Protection Filter, aperture & field diaphragm, daylight filter & polarizing slider
  RXR5P-TL10024 Halogen Lamp, 24V/100W Std. life 2,000 hrs. , Inbuilt Heat Protection Filter, aperture & field diaphragm, daylight filter & polarizing slider
  RXR5P-L3WTLL3 LED 3W, life 30000 hrs., Lumens equivalent 20W Halogen
  RXR5P-LBBTL Battery backup from 2-12 hours for LED  (internal/external)
  RXR5P-L5WTLL3 LED 5W, life 30000 hrs., Lumens equivalent 50W Halogen
  RXR5P-ACUTTL Auto-cutoff
  RXR5P-L3W-TLL6 LED 3W life 65000 hrs. , Lumens equivalent 20W Halogen
  RXR5P-L3W-TLL8 LED 3W life 82000 hrs., Lumens equivalent 20W Halogen
  RXR5P-L5W-TLL6 LED 5W life 65000 hrs., Lumens equivalent 50W  Halogen
  RXR5P-L5W-TLL8 LED 5W life 82000 hrs. , Lumens equivalent 50W Halogen
  RXR5P-L-C-TL Extra long life LED upto 1,00,000 hrs 3W/5W
  RXR5P-SOLARTL Solar power battery charger for LED
Viewing Head RXR5P-BST45 Binocular inclined at 45°, sidentopf head, rotatable through 360°, IPD - from 48-76, with constant focus, diopter adjustment on one eyepiece
  RXR5P-TST-2P50 Trinocular inclined at 30°, sidentopf head, rotatable through 360°, IPD - from 48-76, with constant focus, diopter adjustment on one eyepiece, port for camera attachment, splitting ratio 50(EP):50(camera)
  RXR5P-TST-2P80 Trinocular inclined at 30°, sidentopf head, rotatable through 360°, IPD - from 48-76, with constant focus, diopter adjustment on one eyepiece, port for camera attachment, splitting ratio 20(EP):80(camera)
  RXR5P-TST-3P50 Trinocular inclined at 30°, sidentopf head, rotatable through 360°, IPD - from 48-76, with constant focus, diopter adjustment on one eyepiece, port for camera attachment, splitting ratio 100:0,50:50,0:100
  RXR5P-TST-3P80 Trinocular inclined at 30°, sidentopf head, rotatable through 360°, IPD - from 48-76, with constant focus, diopter adjustment on one eyepiece, port for camera attachment, splitting ratio 100:0,20:80,0:100
  RXR5P-DIP2 Additional diopter on both eyepieces.
Nosepiece RXR5P-6N Inward tilted, precise sextuple revolving, ball bearing with slot for Pol & Analyzer, centrable
Eyepiece RXR5P-EP0518 WF 5X, FOV-18mm, multilayered coated, high quality, good contrast, abresion free, Aplantic, Lockable
  RXR5P-EP1018 WF 10X, FOV-18mm, multilayered coated, high quality, good contrast, abresion free, Aplantic, Lockable
  RXR5P-EP1018M WF 10X, FOV-18mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RXR5P-EP1018P WF 10X, FOV-18mm, pointer, multilayered coated, high quality, good contrast, abresion free, Aplantic, Lockable
  RXR5P-EP1020 WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abresion free, Aplantic, Lockable
  RXR5P-EP1020M WF 10X, FOV-20mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abresion free, aplantic, Lockable
  RXR5P-EP1020P WF 10X, FOV-20mm, pointer, multilayered coated, high quality, good contrast, abresion free, Aplantic, Lockable
  RXR5P-EP1022M WF 10X, FOV-22mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abresion free, Aplantic, Lockable, disk Dia 27mm
  RXR5P-EP1022P WF 10X, FOV-22mm, pointer, multilayered coated, high quality, good contrast, abresion free, Aplantic, Lockable
  RXR5P-EP1025 Paired, WF 10X, FOV-25mm, multilayered coated, high quality, good contrast, abresion free, Aplantic, Lockable
  RXR5P-EP1025M WF 10X, FOV-25mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abresion free, Aplantic, Lockable
  RXR5P-EP1025P WF 10X, FOV-25mm, pointer, multilayered coated, high quality, good contrast, abresion free, Aplantic, Lockable
  RXR5P-EP1515 Paired, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, abresion free, Aplantic, Lockable
  RXR5P-EP2010 Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abresion free, Aplantic, Lockable
  RXR5P-EP-C Cutomized Eyepiece of 5X/10x/12x/15x/16x/20x with different types of reticles/graticule, adjustable focusable
  RXR5P-ECUP Eyecups (pair)
Mechanical Stage RXR5P-MS-C Large Circular Rotary Stage, Dia. upto 200mm-customized, 360° rotatable, with 1° interval, precise vernier scale of 0.1° with click stop at 45° increments. Provision for fixing stage clips; attachable mechanical XY travel, object guide with vernier 0.1mm, centrable
Objectives RXR5P-PL2.5i PL2.5X, N.A. 0.1, W.D. 30mm, Plan POL Achromatic, Infinite, unbreakable container for storage
  RXR5P-PL5i PL5X, N.A. 0.16, W.D. 18.5mm, Plan POL Achromatic, Infinite, unbreakable container for storage
  RXR5P-PL50i PL50X, N.A. 0.80, W.D. 0.41mm, Plan POL Achromatic, Infinite,  Spring Loaded, unbreakable container for storage
  RXR5P-PL63i PL63X, N.A. 0.85, W.D. 0.28mm, Plan POL Achromatic, Infinite,  Spring Loaded, unbreakable container for storage
  RXR5P-PL100i PL100X, N.A. 1.25, W.D. 0.13mm, plan POL achromatic, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
Phase objectives RXR5P-PH04i PH4X, N.A. 0.10, W.D. 30mm, Plan POL Achromatic,  unbreakable container for storage
  RXR5P-PH10i PH10X, N.A. 0.25, W.D. 6.1mm, Plan POL Achromatic,  unbreakable container for storage
  RXR5P-PH20i PH20X, N.A. 0.4, W.D. 2.10mm, Plan POL Achromatic,  unbreakable container for storage
  RXR5P-PH40i PH40X, N.A. 0.65, W.D. 0.65mm, Plan POL Achromatic,  spring loaded, unbreakable container for storage
  RXR5P-PH60i PH60X, N.A. 0.80, W.D. 0.30mm, Plan POL Achromatic, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
  RXR5P-PH63i PH63X, N.A. 0.84, W.D. 0.28mm, Plan POL Achromatic, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
  RXR5P-PH100i PH100X, N.A. 1.25, W.D. 0.18mm, Plan POL Achromatic, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
SEMI APO/Flotar/Fluor Objectives RXR5P-SAPO04i 4X, N.A. 0.15, W.D. 17.1mm, POL SAPO,  unbreakable container for storage
  RXR5P-SAPO10i 10X, N.A. 0.3, W.D. 16mm, POL SAPO,  unbreakable container for storage
  RXR5P-SAPO20i 20X, N.A. 0.5, W.D. 2.1mm, POL SAPO,  unbreakable container for storage
  RXR5P-SAPO40i 40X, N.A. 0.75, W.D. 0.72mm, POL SAPO,  spreing loaded, unbreakable container for storage
  RXR5P-SAPO60i 60X, N.A. 0.80, W.D. 0.3mm,POL SAPO, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
  RXR5P-SAPO63i 63X, N.A. 0.85, W.D. 0.28mm, POL SAPO, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
  RXR5P-SAPO100i 100X, N.A. 1.3, W.D. 0.20mm, POL SAPO, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
APO Objectives RXR5P-APO02i 2X, N.A. 0.1, W.D. 8.5mm, POL APO,  unbreakable container for storage
RXR5P-APO04i 4X, N.A. 0.20, W.D. 15.7mm, POL APO,  unbreakable container for storage
  RXR5P-APO10i 10X, N.A. 0.45, W.D. 4mm, POL APO,  unbreakable container for storage
  RXR5P-APO20i 20X, N.A. 0.75, W.D. 1.0mm, POL APO,  unbreakable container for storage
  RXR5P-APO40i 40X, N.A. 0.95, W.D. 0.14mm, POL APO,  spring loaded, unbreakable container for storage
  RXR5P-APO40i-O 40X (Oil), SL,  N.A. 1.0, W.D. 0.16mm, POL APO,  spring loaded, unbreakable container for storage
  RXR5P-APO60i-D 60X, DRY, N.A. 0.95, W.D. 0.15mm, POL APO, Infinite, Spring Loaded, unbreakable container for storage
  RXR5P-APO60i-O 60X, Oil, N.A. 1.0, W.D. 0.2mm, POL APO, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
  RXR5P-APO63i 63X, N.A. 0.89, W.D. 0.28mm, POL APO, Infinite,  Oil immered, Spring Loaded, unbreakable container for storage
  RXR5P-APO100i-D 100X, Dry, N.A. 0.9, W.D. 0.30mm, POL APO, Infinite, Spring Loaded, unbreakable container for storage
  RXR5P-APO100i-O 100X, Oil, N.A. 1.4, W.D. 0.20mm, POL APO, Infinite, Oil immered, Spring Loaded, unbreakable container for storage.


Please click for More Objectives...

Focusing RXF10 Co-axial, Tension Control, Upper Limit Stopper, High Sensitivity Focus Drive with 0.10 mm per revoluation, Fine adjustment 1µm/Div.
  RXF20 Co-axial, Tension Control, Upper Limit Stopper, coarse stroke 37mm per rotation, High Sensitivity Focus Drive with 0.20 mm per revoluation, Fine adjustment 2µm/Div.
Condenser RCDF Abbe N.A. 1.25 for Darkfield, separate movement from focussing (Rack & Pinion)
  RCPH-SL Abbe N.A. 1.25 for Phase (sliding type), upto 4 position, separate movement from focussing (Rack & Pinion), filter holder
  RCPH-TR Abbe N.A. 1.25 for Phase (Turret type), upto 6 position, separate movement from focussing (Rack & Pinion), filter holder
Fluorescence Attachment RXR5PFL4100 Turret 4 filter holder, 100W Hg, std fluorescence filter B & G, others on request.
  RXR5PFL6100 Turret 6 filter holder, 100W Hg, std fluorescence filter B & G, others on request.
  RXR5PFL6LED Turret 6 filter holder, LED, std fluorescence filter B & G, others on request.
  RXR5PFL1LED Single LED with battery backup, std. B fluorescence filter, others on request.
Heating Stage RHS50 Biotherm heating stage
Filters  RGF Green plane or frosted
Centering Tube RCTUBE Centering objective for Fluorescence observation
Power supply RTF620 6V-20W Transformer based, wide voltage range, 90V-250V, 50/60Hz,
  RTF630 6V-30W Transformer based, wide voltage range, 90V-250V, 50/60Hz,
  RSMPS630 SMPS based, wide voltage range, 90V-250V, 50/60Hz
  RPSLED LED power supply, wide voltage range, 90V-250V, 50/60Hz
Immersion oil RIO100 High quality immersion oil 100ml
Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
  RCS100 Micrometer slide for calibration, 10mm with 100µm least count
C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
  RCMT65X 0.65X Camera Adaptor/Tube/Mount
  RCMT70X 0.7X Camera Adaptor/Tube/Mount
  RCMT01X 1X Camera Adaptor/Tube/Mount
Packing  RWBX Wooden box with separate container for accessories, lock & key, carrying handle
  RSTYRO Standard Styrofoam packing
Cleaning Kit RCLEAN Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
