Optical Microscopes Medical Research Microscopes RXLr-5NX Series

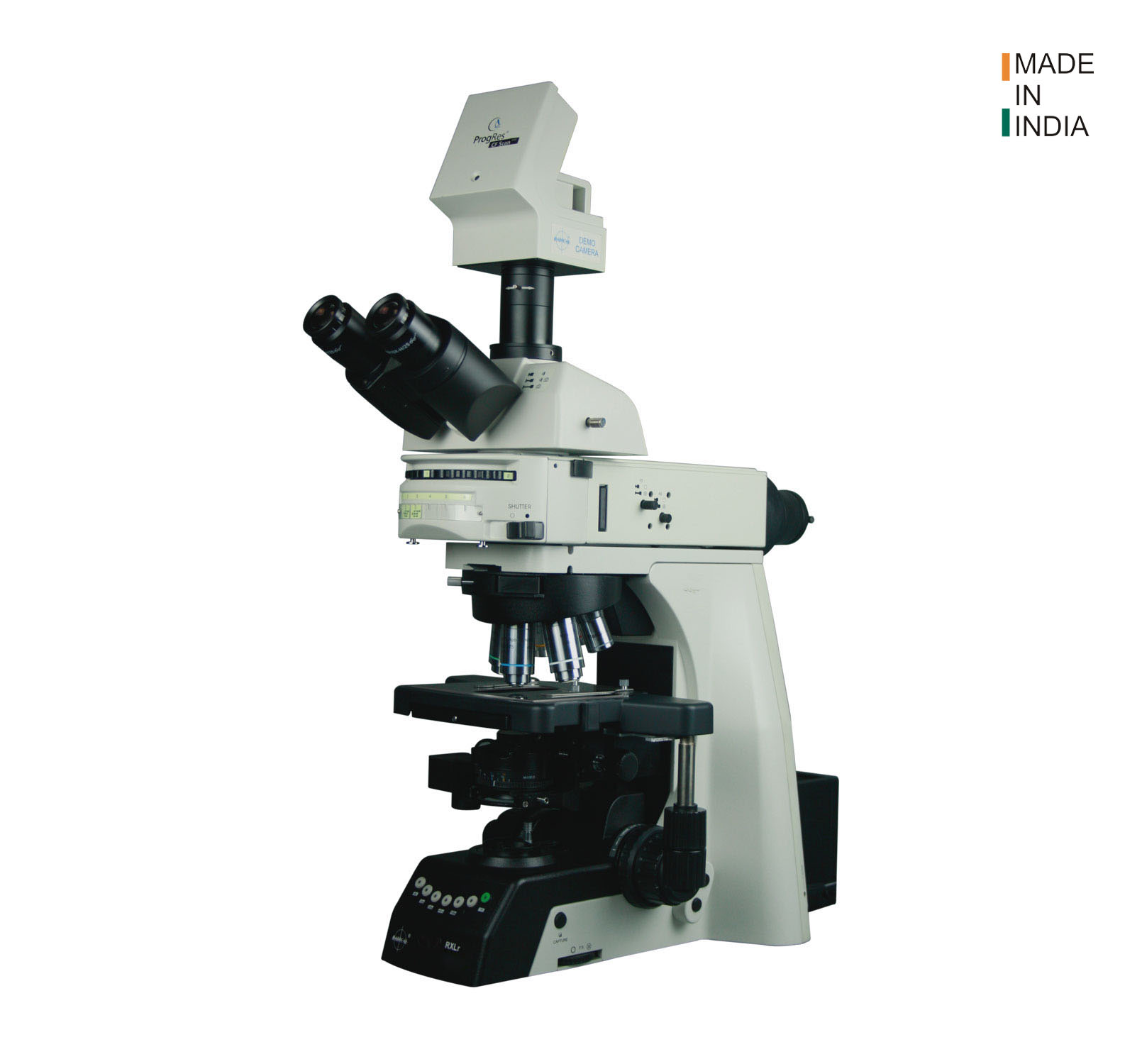

Motorized Research Microscope

RXLr-5NX

RXLr-5NX series with motorization will overall increase in throughput due to the automation of many imaging techniques and reduced operator skill requirements as the system can be set up through software, allowing for a simplified interface and use. This will also improve repeatability of images and measurements between operators at varying skill levels. Adding of Eco and Auto illumination feature not only saved the energy but also helps in increasing lamp life. Ergonomic tilting head increased the user comfort during long working hours.

BRIGHTFIELD
DARKFIELD
FLUORESCENCE
PHASE CONTRAST
DIC
POLARIZING
Optical system Universal Infinite optical system, color corrected
Kohler's Illumination S-LED, Kohler Illumination, Eco-Energy Saving, Auto Cut Off, Fly Eye Lens built-in filters
Viewing Head Inclined, Two/Three position ergo head
Nosepiece Motorized Septuple/Sextuple nosepiece (Auto Kohler's illumination ) with slots for POL / DIC
Eyepiece Super wide field
Mechanical Stage Motorized Double Layer, Rackless Ceramic Hard Coated, height adjustable co-axial movement knob, Stage Lock, Dual Slide Holder, single hand operation
Objectives Plan, Phase Achromatic, Fluotar, SEMI-APO, APO
Condenser Motorized swing-out abbe, universal Five/Six position
Focusing 3/2 step focusing
Fluorescence Six filter turret holders
Fluorescence Lamp High intensity mercury lamp, cool LED, fiber optic illumination
Fluorescence Filter Wide, Narrow Band Pass, Multi Band
Darkfield Attachment Cardioid oil condenser all magnification range
DIC Slot for holding DIC plate and prism
Teaching Head Upto 22 person multi viewing attachment
Filters Built-in ND Filters
Motorized Nosepiece, focus, condenser, fluorescence
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RXR5NXMB Rugged, single aluminium die cast with stain-resistance, sturdy, ergonomic & modular design, skin friendly material, touch point treated, acid resistant texture painted, intensity controller & on/off switch, rubber feet, slot for ana/pol/DIC, optional inbuilt upto 4 transmitted diffusion/filters LBD/ND6/ND25 slider, ECO illumination IR sensor (auto cutoff with time delay, sleep mode) with LED indicator, filed diaphragm, switch, image capture button/remote, Ag treated, integrated compensation mechanism to eliminate any focus drift, motorized nosepiece and synchronized condenser with nosepiece, light preset switch, image capture button, inbuilt memory/RAM for memorizing the intensity set for illumination for each objective with LCD display* for intensity level, Light Intensity Manager (LIM) & SET, objective selected etc, handle/ grip on the back, built-in cord wrap, built in filter holder with Day light filter, grey, green, USB for camera power and neutral light with density filters.
Optical system RXR5NXiOS Universal infinite Corrected optical system, harmonic compensated, colour/chromatic & spherical aberration APO corrected, anti-fungal, anti-dust, anti-microbial, anti-mould, anti-bacterial coated (multi-layered hard coated), focal length 200mm, anti-mould treated, high contrast & resolution, fly eye lens, lead free, colour coded objectives, parfocal (60mm), parcentered, suitable for BF, DF, FL phase contrast DIC, POL, plastic DIC, phase contrast application & other microscopy techniques
Kohler's Illumination RXR5NXHL100 Rectangular filament halogen 12V-100W (life 2000hrs.) (optionally available with reflector) with inbuilt adjustable iris diaphragm for full Kohler illumination, precentered, constant colour temperature, heat absorbent filter intensity adjustable, field diaphragm, microprism/flyeye lens,uniform illumination over whole field, suitable for multi head.
Viewing Head RXR5NXTHT403P Trinocular, top/back port for camera, ergonomic tilting head between 0°-40°, siedentopf head upto 50mm adjustable viewing height with 30mm (ID) ocular, rotatable through 360°, IPD-from 48-75, FOV upto 25/27mm, 3 position splitting ratio 100:0, 50:50/20:80, 0:100, height movement adjustment upto 60mm
Nosepiece RXR5NX6NMOT Inward tilted, interchangeable precise sextuple revolving on multiple ball bearing, next generation auto sync. (motorized) with positive click stops & rubber grip, slot for Pol/Ana & DIC with automatic light intensity manager.

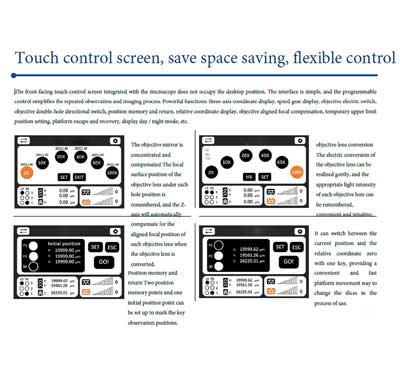

Keypad & Control RXR5NXMKEY 7 programmable keys, 6 for objective/nosepiece control, 1 toggle key for switching between any 2 objective, 4 side programmable keys (for condenser swing-in/out, nosepiece rotation) image capture button, built in RAM, intensity memorizing function
Eyepiece RXR5NXEP1025 Paired, high eye-point super WF10X, FOV-25mm, with soft rubber eye guard, anti-fungal coated, multilayered coated, high quality, good contrast, abrasion free, aplanatic, precentered, diopter adjustment on both eyepieces (±5mm)

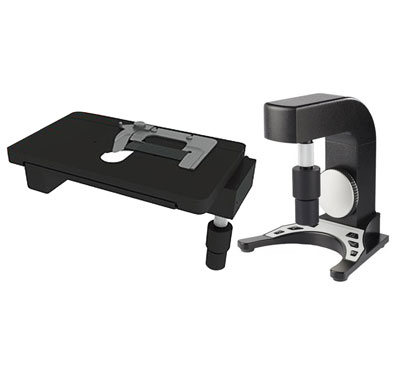

Mechanical Stage RXR5NXMSG Rectangular, rounded stage edges, next generation, rackless, amoled glass stage, supper hard & scratch resistant, spill resistant, antimicrobial treated, super/ultra hard ceramic coated, surface, hard coated anodized surface, anti-corrosive and anti-friction, fabrication processing, refocusing optionally available, easy slide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, height & tension adjustable co-axial movement knob, upto 270° rotatable, two way linear guide, stage size 190x152mm, X-Y Movement 80-50mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable/stage handle hight, removeable rubber covers
Objectives RXR5NXP04i 4X, N.A 0.10, W.D 25mm, plan achromatic, infinite, unbreakable container for storage
  RXR5NXP10i 10X, N.A 0.25, W.D 6.1mm, plan achromatic, infinite, unbreakable container for storage
  RXR5NXP20i 20X, N.A 0.45, W.D 2.1mm, plan achromatic, infinite, unbreakable container for storage
  RXR5NXP40i 40X, N.A 0.65, W.D 0.65mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
  RXR5NXP100i 100X, N.A 1.25, W.D 0.21, plan achromatic, infinite, oil immersed, spring loaded, stopper, unbreakable container for storage
Focusing RXF10 Both side low position ergonomic Co-axial, height adjustable harmonic drive focus knob, tension control, upper limit stopper, coarse adjustable distance 25/30mm, focusing stroke 35mm, high sensitivity focus drive with 0.10mm per revolution, fine adjustment 1.0µm/Div, 3 step tension, coarse, medium & fine graduate (9.3mm per coarse rotation)
Condenser RXR5NXCBF Motorized & synchronized with nose piece, Kohler illumination abbe condenser N.A. 0.9/1.25 achromatic swingout (2X to 100X), colour coded, for brightfield, separate movement from focusing (rack & pinion), with iris diaphragm
Power supply RSMPS620 Integrated SMPS based, wide voltage range, 90V-250V, 50/60Hz with power backup
Accessories RCC Cleaning cloth
  RVC Vinyl cover
  RIO Immersion oil (10ml)
  RAK Allen keys (Tool Kit)
  RF5A Fuses - 2 no's
  MANUAL Instruction manual
  WARRANTY Warranty card
  RBF Blue Filter (frosted & Plain)
  RPC Power Cord (country Specific)
  RTIS Lens Cleaning Tissue
  Suitable C-mount
  • Analyzer/Polarizer
    • Analyzer/Polarizer RXR5NXANA Set of analyzer and polarizer 360° rotatable on ball bearing mechanism and lambda plate with Ribbed
      RXR5NXANA1 Set of analyzer and polarizer, rotatable & removeable, with labda plate and fixed analyzer in the transmitted light path
  • Body
    • Part Name Part Code Description
      Body RXR5NXMBm Rugged, sturdy single die cast, ergonomic & modular design, touch point treated with corrosion acid resistant texture painted, intensity controller & on/off switch, rubber feet, auto photo preset switch, slot for Ana/Pol/DIC, variable stage mounting position, inbuilt upto 3 transmitted diffusion/filters LBD or NCB11, ND6/ND8/ND11/ND25/ND32 slider, ECO illumination IR sensor (auto cutoff) with filed diaphragm handle/grip on the back snap button for capturing image, modular illumination for halogen to LED switching, optionally available- inbuilt memory/RAM for memorizing the intensity set for illumination for each objective with LCD display for intensity level, light intensity manager & SET, objective selected with slot for Analyzer, having natural cooling and built in noise termination mechanism, setting for coarse, medium & fine adjudtment etc.
        RXR5NXMBd Rugged, single die cast, ergonomic & modular design, touch point treated, Ag treated, acid resistant texture painted, anti-rust material, intensity controller & on/off switch, rubber feet, slot for ana/pol/DIC, inbuilt upto 3 transmitted diffusion /filters LBD or ND2/ND6/ND8/ND11 /ND25/ND32 slider, ECO illumination IR sensor (auto cutoff), field diaphragm, auto light intensity adjustment manager (inbuilt RAM), light preset switch, image capture button*, having achromatic illumination adapter, single hand operation for focusing and stage manipulation, provision to replace halogen with LED* LCD display*(for intensity level, objective used), 3 step focusing adjustment, suitable for reflected & transmitted illumination, slot for memory card, handle/ grip on the back, built-in cord wrap.
        RXR5NXMB6 Rugged, single die cast, ergonomic & modular design, touch point treated, anti mould treated, acid resistant texture painted, intensity controller & on/off switch (low position), rubber feet, slot for ana/pol /DIC, inbuilt upto 6 transmitted diffusion/filters LBD or ND6/ND8 or ND11 or ND25, ND32 slider, ECO illumination IR sensor (auto cutoff) with LED indicator, adjustable field diaphragm & field lens, micro prism filter for uniform illumination in entire FOV.
        RXR5NX-MOD Modular universal microscope stands for easy conversion between halogen and LED transmitted light application or halogen or LED incident light application.
  • Condenser
    • Condenser RXR5NX-APC aplanatic condenser N.A 1.4 for 2X-100X magnification (corrected for colour and spherical aberration)
        RABC Abbe condenser N.A. 1.25 (2X-100X) with quick change dovetail movement, aspheric lens (light relay) for brightfield, uniform illumination for entire FOV, separate movement on ball bearing guideways from focusing (rack & pinion), metal guide with aperture iris diaphragm having center adjustable, removable filter holder, objective guide marking & focusable with slot for phase/darkfield slider.
        RABC-2 Universal colour coded condenser for bright field and dark field applications
        RXR5NXAB Aplanatic/achromatic, abbe type swing-out condenser N.A 0.9/1.30/1.40 (2X-100X), colour coded & iris diaphragm, suitable for BF upto 100x, PH* upto 100x, DF upto 40x, slot for DIC*, observation abbe N.A. 1.25 (turret type), separate movement from focusing (rack & pinion), condenser focusing stroke 27mm, upgradable to phase contrast, dark field Application, Pol, DIC etc.
        RXR5NXABC Abbe type swing-out compound achromatic condenser N.A 0.9/1.25 (1.25-100X), slot in, colour coded, focusable, centrable, filter holder & iris diaphragm with both side knob, suitable for BF, DF, POL, FL & DIC upto 100x, observation abbe N.A. 1.25 (turret type), separate movement from focusing (rack & pinion), center adjustable upgradable to motorization
        RXR5NX-ABC0.80 Aplanatic/ achromatic swing out abbe condenser N.A.0.80 with aspheric lens, for brightfield, having uniform illumination for entire FOV, separate movement from focusing (rack & pinion), with iris diaphragm, with centre adjustable for magnification 2x-100x, corrected for colour and spherical aberration with aberration with snap in blue day light filter, rack & pinion movement on stainless steel guides colour cord condenser, slot PH/DF slider
        RXR5NXAB09 Achromatic & aplanatic condenser with N.A 0.9 colour coded & iris/aperture diaphragm, separate movement from focusing (rack & pinion), with switchable head, slot for BF & POL (qualitative), switchable condensor head.
        RXR5NXABC1.1 Abbe type swing-out condenser N.A 1.1 colour coded & iris diaphragm with both side knob
        RXR5NXC Swing-out condenser (N.A 0.9-0.1) for 1.25X-100X magnification colour coded & iris diaphragm, separate movement from focusing (rack & pinion).
        RXR5NXCBF1 Kohler illumination abbe condenser N.A. 0.9/1.25achromatic swing out (1X-100X), color coded, for bright-field, separate movement from focusing (Rack & Pinion),with iris diaphragm
        RXR5NXAB-1 Abbe type swing-out achromatic condenser N.A 0.22/1.2 (1x-100x), colour coded & iris diaphragm, optionally motorized/ sync with nosepiece
        RXR5NXAB-2 Abbe type swing-out condenser N.A 0.90/0.22 (1X-100X), colour coded & iris diaphragm with both side knob, for 1x-100x
        RXR5NXAB-2b Abbe type swing-out condenser N.A 0.90/0.22 (1X-100X), aspheric lens, colour coded & iris diaphragm with both side knob, for 1x-100x, snapping filter holder.
        RXR5NXAB-5 Aplanatic/achromatic, abbe type swing-out condenser N.A 0.9/1.30/1.40 (2X-100X), colour coded & iris diaphragm, suitable for BF upto 100x, observation abbe N.A. 1.25 (turret type), Both side knob, clamp screw, separate movement from focusing (rack & pinion)
        RXR5NXUNV1.1 Universal condenser for BF upto 100x, PH upto 100x, DF upto 40x, observation abbe N.A. 1.1 /1.45 (turret type), colour coded with adjustable aperture diaphragm, separate movement from focusing (rack & pinion), filter holder, 5 position including 3 positions for phase, 1 position for BF, 1 position for DF & 1 position optional suitable for 2x-100x BF & FL.
        RXR5NXUNV1.25 Universal condenser for BF upto 100x, PH upto 100x, DF upto 40x, observation abbe N.A. 0.9/1.25 (turret type), with adjustable aperture, iris diaphragm, separate movement from focusing (rack & pinion), filter holder, upto 6 position including 3 positions for phase, 1 position for BF/POL, 1 position for DF (optional) & 1 position for DIC
        RXR5NXUNV1.25-5 Pre-centered & Pre-focused Universal condenser for BF upto 100x, PH upto 100x, DF upto 40x, observation abbe N.A. 0.9/1.25 with moular disk (2x to 100x) turret type, with adjustable aperture, separate movement from focusing (rack & pinion), filter holder, upto 5 position including 3 positions for phase (Ph1, Ph2, Ph3), 1 position for BF/POL, 1 position for DF/DIC/Plas DIC.
        RXR5NXUNV1.25A Universal condenser swing out abbe N.A. 0.9/1.25 (turret type) separate movement from focusing (rack & pinion), Suitable for 2x-100x, BF, PH, DF, Fluorescence, Pol/DIC etc.
        RXR5NXUNV1.25B Universal condenser abbe N.A. 0.9/1.25 (turret type) with 5 position separate movement from focusing (rack & pinion), darkfield upto 40x, Suitable for 2x-100x, BF, PH, DF, fluorescence, Pol/DIC etc.
        RXR5NXUNV1.25B1 Universal condenser switchable abbe N.A. 0.9/1.25 (turret type) with color coding for easy adaptation of the aperture to the objective, Dry & immersion, separate movement from focusing (rack & pinion), slot for light ring slide DF/PH with 5 position, darkfield upto 40x, Suitable for 2x-100x, BF, PH, DF, Fluorescence, Pol/DIC etc.
        RXR5NXUNV1.25s Universal condenser swing out for BF upto 100x, PH upto 100x, DF upto 40x, observation abbe N.A. 0.9/1.25 (turret type), separate movement from focusing (rack & pinion), with iris diaphragm, filter holder, 5 position including 3 positions for phase, 1 position for BF/POL/ DIC, 1 position for DF (optional) & 1 position optional suitable for 2x-100x BF, Pol, fluorescence etc. Phase inserts/Rings for 10x, 20x, 40x, 100x
        RXR5NXUNV1.25DU Universal condenser for BF upto 100x, PH upto 100x, DF upto 40x, observation abbe N.A. 0.9/1.25 (turret type), with adjustable aperture, separate movement from focusing (rack & pinion), filter holder, upto 6 position for optical element with polarizer for DIC observation & imaging, DIC for 40x, 60x & 100x objectives, polarizer rotatable 360°
        RXR5NXUNV1.25Z Universal condenser for BF upto 100x, PH upto 100x, DF upto 40x, observation abbe N.A. 0.9/1.25 Zernike rotation, with adjustable aperture, separate movement from focusing (rack & pinion), filter holder, Position for Phase annula, BF, Darkfield Stop.
        RXR5NXUNV1.25pol Universal condenser for BF upto 100x, PH upto 100x, DF upto 40x, observation abbe N.A. 0.9/1.25 (turret type), with adjustable aperture, separate movement from focusing (rack & pinion), for 2x-100x, Whole, Quater wave plate, polarizer mounted below the condenser 32mm, filter holder, upto 5 position including 3 positions for phase, 1 position for BF/POL, 1 Empty position for DF/PH & 1 position for DIC, Ana/Pol.
        RXR5NXUNV1.30 Universal condenser for BF upto 100x, PH upto 100x, DF upto 40x, observation abbe N.A. 1.30 (turret type), separate movement from focusing (rack & pinion), filter holder, 6 position including 3 positions for phase, 1 position for BF, 1 position for DF (optional) & 1 position optional
        RXR5NXUNV1.40 Universal condenser for BF upto 100x, PH upto 100x, DF upto 40x, observation abbe N.A. 1.40 (turret type), separate movement from focusing (rack & pinion), filter holder, 6 position including 3 positions for phase, 1 position for BF, 1 position for DF (optional) & 1 position optional
        RXR5NXUNV1.40-7P Universal condenser for BF upto 100x, PH upto 100x, DF upto 40x, observation abbe N.A. 1.40 (turret type), separate movement from focusing (rack & pinion), filter holder, 7 position including 3 positions for phase, 1 position for BF, 1 position for DF (optional) & 2 position optional
        RXR5NXUNV0.85 Universal condenser for BF upto 100x, PH upto 100x, DF upto 40x, observation abbe N.A. 0.85 (turret type), separate movement from focusing (rack & pinion), filter holder, 5 position including 3 positions for phase, 1 position for BF, 1 position for DF & 1 position optional suitable for 2x-100x BF & FL.
        RXR5NXUNV0.9 Universal Condenser swingout/switchable for BF, PH, DF, observation abbe N.A. 0.9 (turret type), colour coded for fast and easy adjustment with adjustable aperture diaphragm, separate movement from focusing (rack & pinion), filter holder, 5 position including 3 positions for phase, 1 position for Bright field & 1 position for DF/FL/POL applications.
        RXR5NXUNV88 Universal condenser for BF upto 100x, PH upto 100x, DF upto 40x, observation abbe N.A. 0.88 (dry) (turret type), separate movement from focusing (rack & pinion), 5/6 optional positions for phase, DF, BF, DIC, FL, Pol etc. turret slider for PH 40x, PH 100x & BF
        RXR5NXCONDF-1 Darkfield condenser N.A 0.8-0.95, W.D 4mm (dry) for objective 20x-40x with spot annular
        RXR5NXCONDF-2 Darkfield oil condenser N.A 1.2-1.43, W.D 1.5mm for objective 20x-100x
        RXR5NXCONDF-3 Darkfield condenser N.A 0.8-0.95, W.D 4mm (dry) for objective 10x, 20x, 40x
        RXR5NX-ABC Aplanatic/achromatic abbe condenser N.A 1.25 with aspheric lens, for brightfield, having uniform illumination for entire FOV, separate movement from focusing (rack & pinion), with iris diaphragm, with centre adjustable, for magnification 2x-100x, corrected for colour and spherical aberration with aberration with snap-in blue day light filter, rack and pinion movements on stainless steel guides colour cord condenser slot for PH/DF slider
        RXR5NXCBFd Kohler illumination abbe condenser N.A. 0.9-1.25 achromatic swingout (2X to 100X), colour coded, for brightfield, separate movement from focusing (rack & pinion), with iris diaphragm
        RXR5NXCBF-B Motorized & synchronized with nose piece, Kohler illumination abbe condenser N.A. 0.9/1.25 achromatic swingout (2X to 100X), colour coded, for brightfield, darkfield, phase & pol, automated switchable top, separate movement from focusing (rack & pinion), with iris diaphragm.
  • C-mount
    • C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
        RCMT65X 0.65X Camera Adaptor/Tube/Mount
        RCMT70X 0.7X Camera Adaptor/Tube/Mount
        RCMT01X 1X Camera Adaptor/Tube/Mount
  • DIC/Plas DIC Kit
    • DIC/Plas DIC Kit RXR5NXDICKIT DIC kit including condensor/objectives(prisms/polarizer)
        RIAADIC Analyser for DIC
        RIAPDIC Polarizer for DIC
        RIAPDIC-10 DIC Prism for 10x
        RIAPDIC-20 DIC Prism for 20x
        RIAPDIC-40 DIC Prism for 40x
        RIAPDIC-60 DIC Prism for 60x
        RIAPDIC-100 DIC Prism for 100x
  • Eyepiece
    • Eyepiece RXR5NXEP1216 WF 12.5X, FOV-16mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR5NXEP1614 WF 16X, FOV-14mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR5NXEP1020 WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, harmonic components abrasion free, anti-fungal coated, anti-dust construction, aplanatic, with provision to add reticle/graticules, lockable rubber eyecups, focusable, diopter adjustment on both eyepieces (±5mm), fixed to prevent damage/loss when moved.
        RXR5NXEP1020P WF 10X, FOV-20mm, Pointer, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR5NXEP1022 WF 10X, FOV-22mm, Harmonic corrected, multilayered coated, high quality, good contrast, abrasion free, anti-fungal coated, aplanatic, with provision to add reticle/graticules, pointer/cross hair graticule in left/right eyepiece, lockable eyecups with eye guard, diopter adjustment on both eyepieces (±5mm) Micrometer, ideal for fatigue proof screening, suitable for both with or without glass wearer
        RXR5NXEP1022B WF 10X, FOV-22mm, sliding with graduated multilayered coated, high quality, good contrast, abrasion free, anti-fungal coated, aplanatic, with provision to add reticle/graticules, lockable eyecups, diopter adjustment on both eyepieces (±5mm), with eye guard
        RXR5NXEP1022-h WF 10X, FOV-22mm, multilayered coated, high quality, good contrast, abrasion free, anti-fungal coated, aplanatic, with helicoid, lockable eyecups with eye guard, diopter adjustment on both eyepieces (±5mm)
        RXR5NXEP1022M WF 10X, FOV-22mm, micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, dioptric adjustment on both eyepieces
        RXR5NXEP1022P WF 10X, FOV-22mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR5NXEP1023 Paired, high eye-point super WF 10X, FOV-23mm, anti-fungal coated, with soft rubber eye guard, multilayered coated, high quality, good contrast, abrasion free, aplanatic, precentered, provision to add reticle/graticules, diopter adjustment on both eyepieces (±5mm)
        RXR5NXEP1024 Paired, high eye-point WF 10X, FOV-24mm, with soft rubber eye guard, anti-fungal coated, multilayered coated, high quality, good contrast, abrasion free, aplanatic, precentered, diopter adjustment on both eyepieces (+2 to -8mm)
        RXR5NEP1025M Paired, WF 10X, FOV-25mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR5NEP1026 Paired, WF 10X, FOV-26.5mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR5NXEP1026M WF 10X, FOV-26.5mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR5NXEP1026P WF 10X, FOV-26.5mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR5NXEP1515 Paired, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR5NXEP1516 Paired, WF 15X, FOV-16mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR5NXEP2010 Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR5NXEP2510 Paired, WF 25X, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable
        RXR5NXEP-C Customized eyepiece of 5X/10x/12x/12.5/15x/16x/20x with different types of reticles/graticules
        RXR5NXECUP Eyecups (pair)
  • Fluorescence Attachment
    • Fluorescence Attachment RXR5NXFL2LED 2 Position filter slider, LED, lifespan 30,000 hrs, with blue fluorescence 1 LED filter, others on request
      RXR5NXFL4LED 4 Position Turret, wide spectrum, inbuilt solid state LED (BG & UV) Illuminator with life span of 30,000 hrs, zero-pixel shift technology, iris diaphragm and aperture diaphragm, central adjustable, separate power supply & controller, having LED display showing intensity & filter used, on/off switch and intensity adjustable knobs, suitable from UV to Cy7.
        RXR5NXFL4LED-D Turret 4 filter holder, LED 5W (equivalent to 100W halogen), with coded filter blocks. iris diaphragm & aperture diaphragm, with separate power supply control panel for LED light source & LCD display, with display of LED selection & illumination intensity
        RXR5NXFL4LED-D1 Turret 4/5 position filter holder one empty posistion for BF LED fluorescence lamp house, life hrs. 30,000, built in fly-eye lens, individual channels LED light source takes use of 4 high power LED lamp, computer, providing high brightness and uniform brightness without lamp shadow, each channel light intensity can be controlled separately by computer and support TTL electric frequency pulse mode trigger. Digital screen touchable control panel works for users to continuously adjust light intensity and choose different lighting mode, UV Protection shield, easy to change (push & click), 0 pixel shift technology, noise terminator mechanism, Peak wavelength 335nm/365nm/385nm/395nm; 460nm/475nm; 520nm/550nm; 625nm.
        RXR5NXFL5LEDC Turret 5 filter holder, LED fluorescence life upto 30000 hrs., zero-pixel shift technology, iris diaphragm and aperture diaphragm, with separate power supply & contrllor, central adjustable, with filter slot and polarizing slot suitable from UV to Cy7.
        RXR5NXFL4100 Turret 4 filter holder, 100W Hg, std fluorescence filter iris diaphragm and aperture diaphragm, with separate power supply central adjustable, easy click & lock fluorescence cubes with transmittance of more than 90% noise terminator mechanism with filter slot and polarizing slot
        RXR5NXFL5100 Turret 5 filter holder, 100W Hg, iris diaphragm and aperture diaphragm, with separate power supply central adjustable, easy click & lock fluorescence cubes with transmittance of more than 90%, noise terminator mechanism with filter slot and polarizing slot, zero Pixels shift corrected.
        RXR5NXFL6100 Turret 6 filter holder, 100W Hg, lamp life 200 hrs., with built-in shutter, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm, with separate power supply central adjustable, easy click & lock fluorescence cubes with transmittance of more than 90%, noise terminator mechanism with filter slot and polarizing slot
        RXR5NXFL6100C 6 Position coded reflector Turret, Automatic mechanical shutter in TL for fluorescence imaging, 100W Hg, lamp life 200 hrs., iris diaphragm and aperture diaphragm, with separate power supply central adjustable, easy click & lock fluorescence cubes with transmittance of more than 90%, noise terminator mechanism with filter slot and polarizing slot.
        RXR5NXFL6LED 6 Position reflector Turret, Automatic mechanical shutter in TL for fluorescence imaging, wide spectrum, monochromatic, inbuilt solid state LED (B,G,UV & V, accommodate in single box) Illuminator with life span of 30,000 hrs, separate power supply having LED display showing intensity & filter used, on/off switch and intensity adjustable knobs, LED controlled through PC software, 0 pixel shift technology, Natural Cooling, noise terminator mechanism Peak wavelength 335nm/365nm /385nm/395nm; 460nm/475nm; 520nm/550nm; 621/625nm.
        RXR5NXFL6LEDC Fluorescence turret 6 position rotating filter holder, LED cooled fiber, std fluorescence life upto 25000 hrs., 1 position for brightfield & balance 5 position for fluorescent filters, suitable for 360nm-700nm wavelength excitation, zero-pixel shift technology, filter B & G, others on request, iris diaphragm and aperture diaphragm, with separate power supply & contrllor, central adjustable, with filter slot and polarizing slot LED controlled through remote/ PC software, suitable for FISH application, suitable from UV to Cy7.
        RXR5NXFL6LED4 Intelligent Turret 6 filter holder wide band LED illumination, suitable for 360nm-700nm wavelength excitation, intensity adjustable, life 40,000 hrs., zero-pixel shift technology, iris diaphragm and aperture diaphragm, with separate power supply central adjustable, with filter slot and polarizing slot.
        RXR5NXFL6LED5 Fluorescence turret 6 position rotating filter holder, LED cooled fiber, fluorescence life upto 50000 hrs., 1 position for brightfield & balance 5 position for fluorescent filters, easy to change (push & click), zero-pixel shift technology, iris/field diaphragm and aperture diaphragm, with separate power supply & controller, central adjustable, with filter slot and polarizing slot LED controlled through remote/ PC software, UV Protection shield, shield cap, indication plate & shield plate, suitable from UV to Cy7.
        RXR5NXFL6L30 Multicolour 6 filter holder, LED cooled fibre, std fluorescence life 30,000 hrs., 1 position for brightfield & balance 5 position for Fluorescent Filters, zero-pixel shift technology, iris diaphragm and aperture diaphragm, with separate power supply central adjustable, with filter slot and polarizing slot, suitable from UV to Cy7.
        RXR5NXFL6120C Turret 6 filter holder, 120W cooled fiber, LED, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm, with separate power supply central adjustable, with filter slot and polarizing slot
        RXR5NXFL6130C Turret 6 filter holder, Hg 130W cooled fiber guide, light block shutter/LED, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm, centre adjustable with separate power supply continuous intensity adjustable, lamp life 2000 hrs., with filter slot and polarizing slot
        RXR5NXFL6200C Turret 6 filter holder, 200W cooled fiber, LED, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm, with separate power supply central adjustable, with filter slot and polarizing slot
        RXR5NXFmini-Reflectance Turret 6 filter holder wide band LED illumination, suitable for 360nm-700nm wavelength excitation, intensity adjustable, life 25000 hrs., zero-pixel shift technology, iris diaphragm and aperture diaphragm, with separate power supply central adjustable, with filter slot and polarizing slot.
        RXR5NXFL8100 Turret 8 filter holder, 100W Hg, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm, with separate power supply central adjustable, easy click & lock fluorescence cubes with transmittance of more than 90%, noise terminator mechanism with filter slot and polarizing slot
        RXR5NXFL8LEDC Turret 8 filter holder, LED cooled fiber, std fluorescence life 25000 hrs., zero-pixel shift technology, filter B & G, others on request, iris diaphragm and aperture diaphragm, with separate power supply central adjustable, with filter slot and polarizing slot
        RXR5NXFL8120C Turret 8 filter holder, 120W cooled fiber, LED, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm, with separate power supply central adjustable, with filter slot and polarizing slot
        RXR5NXFL8130C Turret 8 filter holder, Hg 130W cooled fiber guide, light block shutter/LED, std fluorescence filter B & G, others on request, iris diaphragm and aperture diaphragm, centre adjustable with separate power supply continuous intensity adjustable, lamp life 2000 hrs., with filter slot and polarizing slot
        RXR5NXFLMOT Upto 8 position filter motorized turret
  • Focusing
    • Focusing RXF-10D Both side low position Co-axial, height adjustable harmonic drive focus knob, tension control, upper limit stopper, coarse adjustable distance 25mm, (Z-travel range), focusing stroke 37.7mm, (Z-travel range), focusing stroke 37.7mm, high sensitivity focus drive with 0.10mm per revolution, fine adjustment 1.0µm/Div., 3 step, coarse, medium & fine (9.3mm per coarse rotation), Five focusing functions (Coarse, medium, fine, focus height stops, adjustable torque)
      RXF10Da Both side low position Co-axial, Coarse & fine focus with 200 graduations, total travel 24mm, high sensitivity focus drive with precision 1µm, 0.2mm per rotation, coarse & fine graduate with Rack-stop, Friction adjustment torque adjustment
      RXF10Di Both side low position Co-axial, height adjustable harmonic drive focus knob, tension control, upper limit stopper (re- focusing stopper), coarse adjustable distance 25mm, high sensitivity focus drive with 0.10mm per revolution, fine adjustment 10nm, coarse & fine graduate (9.3mm per coarse rotation)
      RXF10-R Both side low position ergonomic Co-axial, height adjustable harmonic drive focus knob, coarse motion tension/torque adjustable, upper limit stopper, refocusing function, coarse adjustable distance 25mm, focusing stroke 30mm, high sensitivity focus drive with 0.10mm per revolution, fine adjustment 1.0µm/Div, coarse & fine graduate (9.3mm per coarse rotation)
      RXF10-Z Low position coarse & fine Co-axial, built-in tension control, upper limit stopper, coarse adjustable distance 25mm, Z focus drive, full stroke 45mm, high sensitivity focus drive with 0.10mm per revolution, fine adjustment 1.0µm/Div, (coarse & fine graduated) height adjustable 15mm.
      RXF10-FD Co-axial, tension control, upper limit stopper & stage lock, manual Z drive, coarse adjustable distance 37mm, high sensitivity focus drive with 0.10 mm per revolution/rotation of fine motion, fine adjustment 1.0µm/Div, Temperature compensating and self-adjusting focus mechanism to avoid any focus drift, sample height upto 65mm, coarse & fine graduate.
      RXF10i Both side low position Co-axial motorized, tension control, upper limit stopper, coarse adjustable distance 25mm, focusing stroke 30mm, high sensitivity focus drive with fine adjustment 10nm, 3 step, coarse, medium & fine.
      RXF-10m Both side low position Co-axial, height adjustable harmonic drive focus knob, tension control, upper limit stopper (refocusing stopper), coarse adjustable distance 25mm, high sensitivity focus drive with 0.10mm per revolution, fine adjustment 1.0µm/Div, 3step, coarse, fine & ultra-fine graduate (9.33mm per coarse rotation)
      RXF-10SF Both side low position Co-axial, height adjustable harmonic drive focus knob, tension control, Refocusing mechanism, upper limit stopper, focusing stroke 30mm, high sensitivity focus drive with 0.10mm per revolution, fine adjustment 1.0µm/Div, coarse & fine graduate 9.33mm per coarse rotation
      RXF20 Adjustable low position co-axial, both side co-axial coarse & fine focusing, tension/torque control, upper limit stopper, coarse adjustable distance 30mm, focusing stroke 35mm, high sensitivity focus drive with 0.20mm per revolution, fine adjustment 2.0µm/Div with refocusing function*.
        RXF30 Low position Co-axial, tension control, upper limit stopper, coarse adjustable distance 30mm, high sensitivity focus drive with 0.10 mm per revolution, fine adjustment 1.0µm/Div
        RXF30b Both side low position Co-axial, height adjustable harmonic drive focus knob, weighted coaxial focus controls, self-adjusting focus mechanism at least 300 micros per fine focus rotation with 3-micron increments.
        RXF30Z Low position Co-axial both side (left & right), tension control, upper limit stopper, coarse adjustable distance 30mm, 15mm Z focus range, high sensitivity focus drive with 0.10 mm per revolution, fine adjustment 1.0µm/Div
        RXF104 3-gear focusing coarse, (medium), fine with micron scale, 1 and 4 μm micron scale, coarse focus torque, adjustable stage height stop. Travel 25mm. Z Stroke per Turn of the Focus Knob - z fine: 0.10 mm or better, z medium: 0.40 mm or better, z coarse: 14mm.
  • Incident Attachment
    • Incident Attachment RXR5NXF 5W LED Kohler integrated illumination upto 4 position coded turret type, LED life 65,000hrs or 2,000hrs halogen, constant color temperature 4500K, centrable color coded, iris aperture & field diaphragm BF/DF/DIC/POL optical light path selector, per-centered lamp house, slot for DIC & Pol/Ana, Eco energy saving auto cut Off, fly eye lens, built-in filters.
      RXR5NXObq DIC/Oblique illumination attachment
  • Kohler's Illumination
    • Kohler's Illumination RXR5NXH30 Halogen Lamp 6V -30W, life 2000 hrs., (changeable) with inbuilt adjustable iris diaphragm for full Kohler illumination, precentered, constant colour temperature, heat absorbent filter intensity adjustable, field diaphragm, filter holder for filter upto 50mm, micro prism/flyeye lens, uniform illumination over whole field.
      RXR5NXH30L3 Halogen Lamp 6V/30W and 3W LED, lumens adjustable, life 65,000 hrs.,with inbuilt adjustable iris diaphragm for full Kohler illumination, precentered, constant colour temperature, heat absorbent filter intensity adjustable, micro prism /flyeye lens, uniform illumination over whole field.
      RXR5NXH50 Halogen 12V-50W, life 2000 hrs.
        RXR5NXHL2400 Rectangular filament halogen 24V-100W (life 2000hrs.) with inbuilt adjustable iris diaphragm for full Kohler illumination, precentered, constant colour temperature, heat absorbent filter intensity adjustable, field diaphragm, uniform illumination over whole field.
        RXR5NXL3WL3 Uniform colour LED 3W, life 30000 hrs., lumens equivalent 50W halogen having 4500K colour temperature with inbuilt adjustable iris diaphragm for full Kohler illumination
        RXR5NXL3WL3neo Diascopic Uniform colour Neo LED 3W, life 30000 hrs., lumens equivalent, 50W halogen having 4500K colour temperature with inbuilt ustable iris diaphragm for full Kohler illumination
        RXR5NXLBB Battery backup from 2-12 hours for LED (internal/external)
        RXR5NXL5WL3 Uniform colour solid state LED 5W, life 30000 hrs., lumens equivalent 12V-100W halogen having 6000K colour temperature, with inbuilt adjustable iris diaphragm for full Kohler illumination, optionally available auto sync. (auto light intensity adjustable while objective change) with nosepiece, white light, suitable for BF, DF, PH, DIC techniques (light intensity controller located in the centrally) high colour reproducibility
        RXR5NXL3WL6 Uniform colour (white) LED 3W life 65000 hrs., lumens equivalent 50W halogen having 5600K colour temperature with inbuilt adjustable iris diaphragm for full Kohler illumination, different color temperature, selectable monochromatic or dichromatic/ adjustable lumens 2000-6000K.
        RXR5NXL3WL8 Uniform colour LED 3W life 82000 hrs., lumens equivalent 50W halogen having 4500K constant colour temperature with inbuilt adjustable iris diaphragm for full Kohler illumination
        RXR5NXL5WL6 Uniform colour solid state Eco white LED 5W life 65000 hrs., (pre-centered), Kohler illumination, lumens equivalent 100W halogen having 6000K constant colour temperature, with inbuilt adjustable iris diaphragm, full Kohler illumination for transmitted light & fixed field diaphram, optionally available auto sync. (auto light intensity adjustable while objective change) with nosepiece, white light, suitable for BF, DF, PH, DIC techniques (light intensity controller located in the centrally) high colour reproducibility, low positioned light intensity adjustment knobs, micro prism/flyeye lens filter for uniform illumination in entire FOV with blue light blocking filter, suitable for multi head, provision to replace halogen with LED, detachable and replaceable.
        RXR5NXL5WL8 Uniform colour LED 5W life 82000 hrs., lumens equivalent 100W halogen having 6000K constant colour temperature, with inbuilt adjustable iris diaphragm for full Kohler illumination, optionally available auto sync. (auto light intensity adjustable while objective change) with nosepiece, white light, suitable for BF, DF, PH, DIC techniques (light intensity controller located in the centrally) high colour reproducibility
        RXR5NXL6WL6 Uniform colour LED 6W Eco-illumination life 65000 hrs., having 6000K constant colour temperature with inbuilt adjustable iris diaphragm for full Kohler illumination, Fly-eye lens for uniform illumination to entire F.O.V.
        RXR5NXL10WL5 Uniform colour white LED 10W life 50000 hrs., lumens equivalent 100W halogen having 6000K colour temperature with inbuilt adjustable iris diaphragm for full Kohler illumination, auto sync. with nosepiece, white light, suitable for BF, DF, PH, DIC techniques, high colour reproducibility, low positioned light intensity adjustment knobs, micro prism/fly eye lens filter for uniform illumination in entire FOV, halogen-LED inter convertable. (ECO-constant colour)
        RXR5NXL10WL6 Uniform colour ECO LED 10W life 65000 hrs., lumens equivalent 50/100W halogen having 6000K constant colour temperature with inbuilt adjustable iris diaphragm for full Kohler illumination, transmitted light, light intensity manager, auto sync. with nosepiece, white light, suitable for BF, DF, PH, DIC techniques, high colour reproducibility, low positioned light intensity adjustment knobs, micro prism/fly eye lens filter for uniform illumination in entire FOVand at all magnifications, suitable for Brightfield application, auto off, suitable for multi head, halogen-LED inter convertable.
        RXR5NXL10WL8 Uniform colour LED 10W life 82000 hrs., having 6000K constant colour temperature with inbuilt adjustable iris diaphragm for full Kohler illumination
        RXR5NXL14WL6 Uniform colour LED 14W life 65000 hrs., lumens equivalent to 12V-100W halogen having 6000K constant colour temperature with inbuilt adjustable iris diaphragm for full Kohler illumination, with centrally located intensity controller knob, constant color temperature, micro prism filter for uniform illumination in entire FOV.
        RXR5NXL15WL6 Uniform colour LED 15W life 65000 hrs., lumens equivalent to 100W halogen having 6000K constant colour temperature with inbuilt adjustable iris diaphragm for full Kohler illumination, with intensity controller, auto sync. with nosepiece, white light, suitable for BF, DF, PH, DIC techniques, high colour reproducibility, constant color temperature, micro prism filter for uniform illumination in entire FOV.
        RXR5NXL22WL6 Uniform colour white LED 22W life 65000 hrs., lumens equivalent to 100W halogen having 6000K constant colour temperature with inbuilt adjustable iris diaphragm for full Kohler illumination, high colour reproducibility, low positioned light intensity adjustment knobs, micro prism/fly eye lens filter for uniform illumination in entire FOV.
        RXR5NXFLLED1 ULED reflection illumination, single band blue filter with corresponding LED module inside, intensity adjust knob, BF/FL switching knob.
        RXR5NXACUT Auto-cutoff ECO illumination IR sensor
        RXR5NXL-CL1 Extra long life LED upto 5,00,000 hrs 3W/5W/10W
        RXR5NXSOLAR Solar power battery charger for LED
  • Mechanical Stage
    • Mechanical Stage RXR5NXMSG-A Rectangular, rounded stage edges, next generation, rackless, amoled glass stage, supper hard & scratch resistant, spill resistant, antimicrobial treated, ultra hard ceramic coated, hard coated anodized surface, anti-corrosive and anti-friction, fabrication processing, easy slide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, height & tension/torque adjustable co-axial movement knob, upto 270° rotatable, two way linear guide, stage size 190x152mm, X-Y Movement 75-50mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable.
      RXR5NXMSG-1 Rectangular, rounded stage edges, next generation, rackless, amoled glass stage, supper hard & scratch resistant, spill resistant, antimicrobial treated, ultra hard ceramic coated, anti-corrosive and anti-friction, fabrication processing, easy slide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, height & tension adjustable co-axial movement knob, upto 270° rotatable, two way linear guide, stage size 250x160mm, X-Y Movement 80-30mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable
      RXR5NXMSG-2 Double layer, Rectangular, rounded stage edges, next generation, reckless, amoled (Sapphire Crystal) glass stage, supper hard & scratch resistant, spill resistant, antimicrobial treated, ultra hard ceramic coated, hard coated anodized surface, anti-corrosive and anti-friction, fabrication processing, easy slide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, height & tension adjustable co-axial movement knob, upto 270° rotatable, two way linear guide, stage size 145x125mm, X-Y Movement 78-32mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable.
      RXR5NXMSG-3 Rectangular, rounded stage edges, next generation, rackless, amoled glass stage, supper hard & scratch resistant, spill resistant, antimicrobial treated, ultra hard ceramic coated, anti-corrosive and anti-friction, fabrication processing, easy slide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, height & tension adjustable co-axial movement focus knob, upto 270° rotatable, two way linear guide, stage size 185(wide) x140mm (deep), X-Y Movement 78-54mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable (having stage handle at equidistant from operator)
      RXR5NXMSG-4 Ergonomic, Double layer, Rectangular, rounded stage edges, next generation, rackless, amoled glass stage, supper hard & scratch resistant, spill resistant, antimicrobial treated, ultra hard ceramic coated, surface, hard coated anodized surface, anti-corrosive and anti-friction, abrasion free, easy slide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, height & tension adjustable co-axial movement knob, rotatable, two way linear guide, stage size 191x128mm, X-Y Movement 80-50mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable.
      RXR5NXMSG-4c Ergonomic, Double layer, Rectangular, amoled glass stage, supper hard & scratch resistant,spill resistant, antimicrobial treated, ultra hard ceramic coated surface, hard coated anodized surface, anti-corrosive and anti-friction, abrasion free, easy slide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, height & tension adjustable co-axial movement knob, rotatable, two way linear guide, stage size 220x150mm, X-Y Movement 75-50mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable
      RXR5NXMSG-5 Rectangular, rounded stage edges, next generation, rackless, amoled glass stage, supper hard & scratch resistant, spill resistant, antimicrobial treated, ultra hard ceramic coated, surface, hard coated anodized surface, anti-corrosive and anti-friction, fabrication processing, easy slide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, height & tension adjustable co-axial movement knob, rotatable, two way linear guide, stage size 174x89mm, X-Y Movement 76-30mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable.
      RXR5NXMS-B Rectangular, rounded stage edges, next generation, rackless, amoled glass stage, supper hard & scratch resistant, ultra hard ceramic coated surface, easy slide gliding control with spring in left lever, stainless steel dual slide holder, extension plate, petri dish holder, teraseki holder, metal plate, glass plate, single hand operation, left/right hand low drive control, height & tension adjustable co-axial movement knob, rotatable, two way linear guide, stage size 215x250mm, X-Y Movement 120-80mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable.
      RXR5NXMS-C 2 Layer, rectangular right/left hand low drive control, super ultra hard, stage vertical movement stopper, anodized, refocusing with locking facility, hard ceramic coating, ergonomic, easy slide gliding control with spring in left lever, dual slide holder, stage size-customized as per requirement (std stage size 152×190mm), X-Y movement-customized as per requirement (std X-Y movement 80-55mm on wire, ball bearing), height and tension adjustable co-axial movement knob, stage lock, precision 0.1mm by attached vernier.
      RXR5NXMS-C2 Layer, rectangular right/left hand low drive control, super ultra hard, anodized, refocusing with locking facility, hard ceramic coating, ergonomic, easy slide gliding control with spring in left lever, dual slide holder, stage size- 190x152mm, X-Y movement-X-Y movement 75-50mm on wire, ball bearing), height and tension adjustable co-axial movement knob, stage lock, precision 0.1mm by attached vernier.
      RXR5NXMS-C7 Double layer, rectangular right/left hand low drive control, super ultra hard, anodized, refocusing with locking facility, hard ceramic coating, ergonomic, easy slide gliding control with spring in left lever, dual slide holder, sheet holder, stage size- 211x154mm, X-Y movement 76-52mm on wire, ball bearing), specimen position scale, height and tension adjustable co-axial movement knob, stage lock, precision 0.1mm by attached vernier.
      RXR5NXMSG-C Ergonomic stand, Rectangular, rounded stage edges, next generation, rackless, amoled glass stage, supper hard & scratch resistant, spill resistant, antimicrobial treated, ultra hard ceramic coated, hard coated anodized surface, anti-corrosive and anti-friction, fabrication processing, refocusing optionally available, easy slide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, height & tension adjustable co-axial movement knob, two way linear guide, stage size 191x168mm, X-Y Movement 76-25mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable.
      RXR5NXMSG-C1 Rectangular, next generation, rackless, amoled glass stage, sapphire crystal ultra hard-wearing stage & scratch resistant, spill resistant, antimicrobial treated, ceramic coated, anti-corrosive and anti-friction, easy slide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, height & tension adjustable co-axial movement knob, upto 270° rotatable, two way linear guide, stage size 190x152mm, X-Y Movement 80-50mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable
      RXR5NXMSG-C3 Rectangular, next generation, rackless, amoled glass stage, sapphire crystal ultra hard ceramic coated, wearing stage & scratch resistant, spill resistant, antimicrobial treated, ceramic coated, anti-corrosive and anti-friction, easy slide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, height & tension adjustable co-axial movement knob, upto 270° rotatable, two way linear guide, stage size 190x152mm, X-Y Movement 80-50mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable
      RXR5NXMSG-C4 Rectangular, rounded stage edges, next generation, rackless, amoled glass (Gorilla glass) stage, supper hard & scratch resistant, spill resistant, antimicrobial treated, ultra hard ceramic coated,anti-corrosive and anti-friction, fabrication processing, easyslide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, height & tension adjustable co-axial movement knob, upto 270° rotatable, two way linear guide, stage size 152x190mm, X-Y Movement 32-78mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable
      RXR5NXMSG-C5 Rectangular, rounded stage edges, amoled glass stage, easy slide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, height & tension Adjustable co-axial movement knob, two way linear guide, stage size 190x152mm, X-Y Movement 76-52mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable.
        RXR5NXMS-RK Detachable, Rackless wire driven, rectangular right/left hand low drive control, anodized, ultra hard ceramic coating, easy slide gliding control with spring in left lever, dual slide holder, stage size-customized as per requirement (std stage size 152×190mm), X-Y movement -customized as per requirement (std X-Y movement 32-78mm on wire), height and tension adjustable co-axial movement knob, ball bearing mechanism, precision 0.1mm by attached vernier, stage rotatable.
        RXR5NXMSMOT Motorized, Rectangular, next generation, rackless, amoled glass stage, supper hard & scratch resistant, ceramic coated, easy slide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, object clamp for oil immersion, height adjustable co-axial movement knob, two way linear guide, stage size 152×190mm, X-Y Movement 75-50mm on wire, precision 0.1mm by attached vernier, tension adjustable
        Rectangular, rounded stage edges, next generation, amoled glass stage, supper hard & scratch resistant, spill resistant, antimicrobial treated, ultra hard ceramic coated, anti-corrosive and anti-friction, fabrication processing, easy slide gliding control with spring in left lever, stainless steel dual slide holder, single hand operation, left/right hand low drive control, height & tension adjustable co-axial movement focus knob, upto 270° rotatable, two way linear guide, stage size 185x142mm, X-Y Movement 75-55mm on wire, precision 0.1mm by attached vernier, stage lock, tension adjustable
        Optional for Above M-Stages Wear resistant ultra hard sapphire crystal layer
  • Multi Head Attachment
    • Multi Head Attachment RXR5NX-2H Multi head attachment for 1 main observer and 1 viewers (side by side) having uniform light distribution, same field of view, image alignment at all head
        RXR5NX-2HB Multi head attachment for 1 main observer and 1 viewers (opposite/face-to-face) having uniform light distribution, same field of view, image alignment at all head
        RXR5NX-3H Multi head attachment for 1 main observer and 2 viewers having uniform light distribution, same field of view, image alignment at all head
        RXR5NX-5H Multi head attachment for 1 main observer and 4 viewers having uniform light distribution, same field of view, image alignment at all head
        RXR5NX-8H Multi head attachment for 1 main observer and 7 viewers having uniform light distribution, same field of view, image alignment at all head
        RXR5NX-10H Multi head attachment for 1 main observer and 9 viewers having uniform light distribution, same field of view, image alignment at all head
        RXR5NX-MH Multi head attachment for 1 main observer and upto 21 viewers having uniform light distribution, same field of view, image alignment at all head
  • Micrometer/Calibration Slide
    • Micrometer/Calibration Slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
        RCS100 Micrometer slide for calibration, 10mm with 100µm least count
  • Nosepieces
    • Nosepieces RXR5NX-5N Inward tilted, interchangeable precise quintuple revolving on multiple ball bearing, click stop mechanism, manual rotatable, suitable for BF/DIC/DF/POL & slot for DF/ANA/POL/DIC.
        RXR5NX-5C Backward quintuple nosepiece (coded) with anti-collision mechanism, it can memorize the illumination brightness when using each objective. When nosepiece is rotated the light intensity gets automatically adjusted to reduce visual fatigue and improve work efficiency, slot for ANA/POL/DIC. upgradable to motorization
        RXR5NX-5NMOT Inward tilted, interchangeable precise quintuple revolving on multiple ball bearing, next generation auto sync. with slot for Pol/Ana/DIC.
        RXR5NX-6N Inward tilted, interchangeable precise coded (with intensity memorized function) sextuple revolving on multiple ball bearing, parfocal, click stop mechanism/anti-Collison mechanism for smooth and accurate alignment, manual rotatable, rubber grip, slot for Ana/Pol/DIC, It can memorize the illumination brightness scale bar while using each objective. When nosepiece is rotated the light intensity gets automatically adjusted to reduce visual fatigue and improve work efficiency
        RXR5NX-6Nm Inward tilted (detachable), interchangeable precise Sextuple (accommodate 6 objectives at a time) revolving on multiple ball bearing, manual rotatable, slot for analyzer/polarizer/DIC/Tint plate
        RXR5NX-7N Inward tilted, interchangeable precise septuple revolving on multiple ball bearing, click stop mechanism, manual rotatable with slot for analyzer/DIC
        RXR5NX-7Nc Backward encoded septuple precentered nosepiece (coding) It can memorize the illumination brightness when using each objective. When nosepiece is rotated the light intensity gets automatically adjusted to reduce visual fatigue and improve work efficiency.
  • Objectives
    • Objectives RXR5NXPL02 2X, N.A. 0.12, W.D. 11.3mm, plan achromatic, infinite
      RXR5NXPL02i 2X, N.A. 0.07, W.D. 11.3mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
      RXR5NXPL02ie 2X, N.A. 0.06, W.D. 7.50mm, plan achromatic, infinite, unbreakable container for storage
        RXR5NXPL02.5 2.5X, N.A. 0.06, W.D. 20mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RXR5NXPL02.5i 2.5X, N.A. 0.07, W.D. 11.3mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RXR5NXP04 4X, N.A 0.10, W.D 30mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RXR5NXP04L 4X, N.A 0.10, W.D 19.8mm, plan achromatic, infinite, unbreakable container for storage
        RXR5NXP04ia 4X, N.A 0.13, W.D 26.2mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RXR5NXPL05i 5X, N.A. 0.12, W.D. 14mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RXR5NXP10ia 10X, N.A 0.25, W.D 10.5mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RXR5NXP10ib 10X, N.A 0.25, W.D 10.6mm, plan achromatic, infinite, unbreakable container for storage
        RXR5NXP10ie 10X, N.A 0.25, W.D 12mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
        RXR5NXP20cc 20X, N.A 0.45, W.D 2.1mm, plan achromatic, infinite with cover glass, unbreakable container for storage
        RXR5NXP20ia 20X, N.A 0.45, W.D 1.2mm, plan achromatic, infinite, unbreakable container for storage
        RXR5NXP20ie 20X, N.A 0.4, W.D 10.6mm, plan achromatic, infinite, unbreakable container for storage
        RXR5NXP20ies 20X, N.A 0.40, W.D 0.9mm, plan achromatic, unbreakable container for storage
        RXR5NXP20s 20X, N.A 0.45, W.D 2.1mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
        RXR5NXP40cc 40X, N.A 0.65, W.D 0.65mm, plan achromatic, infinite, spring loaded with cover glass, unbreakable container for storage
        RXR5NXP40ie 40X, N.A 0.65, W.D 0.80mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
        RXR5NXP40ies 40X, N.A 0.65, W.D 0.36mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
        RXR5NXPL60i 60X, N.A. 0.80, W.D. 0.30mm, plan achromatic, infinite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
        RXR5NXPL60cc 60X, N.A. 0.80, W.D. 0.30mm, plan achromatic, infinite, spring loaded with cover glass, unbreakable container for storage
        RXR5NXPL60iD 60X, N.A. 0.80, W.D. 0.30mm, plan achromatic, infinite, spring loaded, unbreakable container for storage
        RXR5NXPL63i 63X, N.A. 0.84, W.D. 0.28mm, plan achromatic, infinite, parfocal & precentered, oil immersed, spring loaded, unbreakable container for storage
        RXR5NXPL63ie 63X, N.A. 0.75, W.D. 0.30mm, plan achromatic, infinite, oil immersed, spring loaded
        RXR5NXP100cc 100X, N.A 1.25, W.D 0.21, plan achromatic, infinite, oil immersed, spring loaded with cover glass, unbreakable container for storage
        RXR5NXP100ie 100X, N.A 1.3, W.D 0.15, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR5NXP100iK 100X, N.A 1.25-0.6, W.D 0.13, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR5NXP100ies 100X, N.A 1.25, W.D 0.10, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR5NXP-100iDF 100X, N.A. 1.25, W.D. 0.18mm, plan achromatic, infinite, oil immersed, spring loaded, darkfield, unbreakable container for storage
        RXR5NXP-100iDFi 100X, N.A. 0.5-1.25, W.D.0.23mm, plan achromatic, infinite, oil immersed, spring loaded, with iris diaphragm suitable for darkfield, unbreakable container for storage
      Phase Objectives RXR5NXP-PH04i PH4X, N.A. 0.10, W.D. 30mm, phase, plan achromatic, infinite, unbreakable container for storage
        RXR5NXP-PH05i PH5x, N.A. 0.15, W.D.12mm, phase, plan achromatic infinite, parfocal & precentered, unbreakable container for storage
        RXR5NXP-PH10a PH10X, N.A. 0.25, W.D. 12mm, phase, plan achromatic, infinite, unbreakable container for storage
        RXR5NXP-PH10i PH10X, N.A. 0.25, W.D. 6.5mm, phase, plan achromatic, infinite, unbreakable container for storage
        RXR5NXP-PH20i PH20X, N.A. 0.45, W.D. 2.10mm, phase, plan achromatic, infinite, spring loaded, unbreakable container for storage
        RXR5NXP-PH40a PH40X, N.A. 0.65, W.D. 0.36mm, phase, plan achromatic, infinite, spring loaded, unbreakable container for storage
        RXR5NXP-PH40i PH40X, N.A. 0.65, W.D. 0.65mm, phase, plan achromatic, infinite, spring loaded, unbreakable container for storage
        RXR5NXP-PH60i PH60X, N.A. 0.80, W.D. 0.30mm, phase, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR5NXP-PH63i PH63X, N.A. 0.84, W.D. 0.28mm, phase, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR5NXP-PH100a PH100X, N.A. 1.25, W.D. 0.10mm, phase, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR5NXP-PH100i PH100X, N.A. 1.25, W.D. 0.18mm, phase, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR5NXP-PH100ib PH100X, N.A. 1.25, W.D. 0.29mm, phase, plan achromatic, infinite, oil immersed, spring loaded, unbreakable container for storage
      SAPO Phase Objectives RXR5NXP-SAPO05i 5X, N.A. 0.15, W.D. 13.70mm, SAPO, infinite
        RXR5NXP-SAPO05iPH 5X, N.A. 0.12, W.D. 13.70mm, SAPO, infinite
        RXR5NXP-SAPO10iPH 10X, N.A. 0.32, W.D. 16mm, SAPO, phase, infinite
        RXR5NXP-SAPO10iPH1 10X, N.A. 0.25, W.D. 16mm, SAPO, phase ring, infinite
        RXR5NXP-SAPO20iPH 20X, N.A. 0.5, W.D. 2.1mm, SAPO, phase, infinite
        RXR5NXP-SAPO40iPH 40X, N.A. 0.80, W.D. 0.72mm, SAPO, phase, infinite, spring loaded,
        RXR5NXP-SAPO60iPH 60X, N.A. 0.80, W.D. 0.3mm, SAPO, phase, infinite, spring loaded
        RXR5NXP-SAPO100iPH 100X, N.A. 1.32, W.D. 0.20mm, SAPO, phase, infinite, oil immersed, spring loaded,
      DIN Plan Achromatic Objectives RXR5NXP04D PH4X, N.A. 0.10, W.D. 30mm, DIN plan achromatic, infinite
        RXR5NXP05D 5X, N.A. 0.15, W.D. 13.70mm, DIN plan achromatic, infinite
        RXR5NXP10D PH10X, N.A. 0.25, W.D. 6.1mm, DIN plan achromatic, infinite
        RXR5NXP20D PH20X, N.A. 0.40, W.D. 2.1mm, DIN plan achromatic, infinite
        RXR5NXP40D PH40X, N.A. 0.65, W.D. 0.65mm, DIN plan achromatic, infinite, spring loaded
        RXR5NXP100D PH100X, N.A. 1.25, W.D. 0.20mm, DIN plan achromatic, infinite, oil immersed, spring loaded
      SEMI APO/Flotar/Fluor Objectives RXR5NXP-SAPO01.25i 1.25X, N.A. 0.04, W.D. 3.5mm, SAPO, infinite, unbreakable container for storage
        RXR5NXP-SAPO02i 2X, N.A. 0.06, W.D. 5.05mm, SAPO, infinite, unbreakable container for storage
        RXR5NXP-SAPO02.5i 2.5X, N.A. 0.08, W.D. 10.7mm, SAPO, infinite, unbreakable container for storage
        RXR5NXP-SAPO04i 4X, N.A. 0.13, W.D. 17.1mm, SAPO, infinite, unbreakable container for storage
        RXR5NXP-SAPO04iB 4X, N.A. 0.13, W.D. 27.2mm, SAPO, infinite, unbreakable container for storage
        RXR5NXP-SAPO04d 4X, N.A. 0.13, W.D.17.1mm, SAPO, infinite, dry, unbreakable container for storage
        RXR5NXP-SAPO10i 10X, N.A. 0.3, W.D. 16mm, SAPO, infinite, unbreakable container for storage
        RXR5NXP-SAPO10iL 10X, N.A. 0.3, W.D. 5.0mm, SAPO, infinite, unbreakable container for storage
        RXR5NXP-SAPO10d 10X, N.A. 0.3, W.D. 16mm, SAPO, infinite, dry, unbreakable container for storage
        RXR5NXP-SAPO20i 20X, N.A. 0.5, W.D. 2.1mm, SAPO, infinite, spring, unbreakable container for storage
        RXR5NXP-SAPO20i1 20X, N.A. 0.4, W.D. 2.1mm, SAPO, infinite, unbreakable container for storage
        RXR5NXP-SAPO40i 40X, N.A. 0.80, W.D. 0.72mm, SAPO, infinite, spring loaded, unbreakable container for storage
        RXR5NXP-SAPO40ie 40X, N.A. 0.75, W.D. 0.66mm, SAPO, infinite, spring loaded, unbreakable container for storage
        RXR5NXP-SAPO50i 50X, N.A. 0.80, W.D. 0.72mm, SAPO, infinite, spring loaded, (suitable for Bright field and Dark field) unbreakable container for storage
        RXR5NXP-SAPO60i 60X, N.A. 0.80, W.D. 0.3mm,SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR5NXP-SAPO63i 63X, N.A. 0.85, W.D. 0.28mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
        RXR5NXP-SAPO100i 100X, N.A. 1.3, W.D. 0.20mm, SAPO, infinite, oil immersed, spring loaded with iris diaphragm, suitable for darkfield, unbreakable container for storage.
        RXR5NXP-SAPO100iL 100X, N.A. 1.25, W.D. 0.36mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage.
      Infinity Corrected Plan Fluorite Objectives RIPFOX-04 Plan Fluor 4X, N.A.0.15, W.D.21.6mm, unbreakable container for storage
        RIPFOX-10 Plan Fluor 10X, N.A.0.35, W.D.2.9mm, unbreakable container for storage
        RIPFOX-20 Plan Fluor 20X, N.A.0.60, W.D.1.5mm, unbreakable container for storage
        RIPFOX-20L Plan Fluor 20X, N.A.0.65, W.D.0.70mm, unbreakable container for storage
        RIPFOX-40 Plan Fluor 40X, N.A.0.75, W.D.0.66mm, spring loaded, unbreakable container for storage
        RIPFOX-40L Plan Fluor 40X, N.A.0.85, W.D.0.42mm, spring loaded, unbreakable container for storage
        RIPFOX-100 Plan Fluor 100X, N.A.1.30, W.D.0.13mm, oil, spring loaded, unbreakable container for storage
        RIPFOX-100ia Plan Fluor 100X, N.A.1.30, W.D.0.16mm, oil, spring loaded, stopper, unbreakable container for storage
      LWD SAPO Objectives RXR5NXP-SAPO02.5L 2.5X, N.A. 0.07, W.D. 9.40mm, SAPO, infinite, unbreakable container for storage
      RXR5NXP-SAPO05L 5X, N.A. 0.15, W.D. 13.70mm, SAPO, infinite, unbreakable container for storage
      RXR5NXP-SAPO10L 10X, N.A. 0.32, W.D. 11.13mm, SAPO, infinite, unbreakable container for storage
      RXR5NXP-SAPO20L 20X, N.A. 0.55, W.D. 1.20mm, SAPO, infinite, unbreakable container for storage
      RXR5NXP-SAPO40L 40X, N.A. 0.80, W.D. 0.40mm, SAPO, infinite, spring loaded, unbreakable container for storage
      RXR5NXP-SAPO100L 100X, N.A. 1.32, W.D. 0.18mm, SAPO, infinite, oil immersed, spring loaded, unbreakable container for storage
          Please click for More Objectives...
  • Options for in-built filters in main body
    • Options for in-built filters in main body RXR5NX-F1 NCB 11
        RXR5NX-F2 ND-2
        RXR5NX-F3 ND-8
        RXR5NX-F4 ND-32
  • Pointer
    • Pointer/Marker RXR5NX1PTR 1 color green LED dial arrow pointer/marker (visible on all viewing heads), moveable with joystick (control stick), intensity adjustable.
      RXR5NX2PTR Interchangeable 2 color LED (selectable) LED dial arrow pointer/marker (visible on all viewing heads), 360° rotatable dial, moveable with joystick (control stick), intensity adjustable
        RXR5NX3PTR Multi-colour LED 3 colour LED pointer, 360° rotatable, moveable with joystick, intensity adjustable.
        Free hand marking and pointer
  • Power Supply
    • Power Supply RTF620 Integrated 6V-20W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
      RTF630 Integrated 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
      RTF2460 Integrated stabilized 24V/60W based, wide voltage range, 90V-240V, 50/60Hz,
      RSMPS630 Integrated SMPS based, wide voltage range, 90V-240V, 50/60Hz
        RPSLED LED power supply, wide voltage range, 90V-240V, 50/60Hz
  • Viewing Head
    • Viewing Head RXR5NX-B30 Ergonomic Binocular inclined at 30°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD - from 48-76, dioptre adjustment on both eyepieces, FOV upto 26.5mm, height movement adjustment upto 65mm
      RXR5NX-B30i Binocular inclined at 30°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD - from 47-78, dioptre adjustment on one/both eyepieces (±5mm), FOV upto 26.5mm, upto 50mm adjustable viewing height.
        RXR5NXTHT30B Binocular, tilting head between 0°-30°, siedentopf head upto 50mm adjustable viewing height with 30mm (ID) ocular, telescopic 40mm & lifting 45mm, rotatable through 360°, IPD-from 48-76, FOV upto 25/27mm.
        RXR5NX-B45 Binocular inclined at 45°, siedentop head with 30mm (ID) ocular, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepieces, FOV upto 22mm
        RXR5NXBTILT45i Binocular, ergo head, tilting 0° to 45°, siedentopf head with adjustable eyepiece length and tilt, 30mm (ID) ocular, rotatable through 360°, IPD - from 52-75, dioptre adjustment on both eyepieces, FOV upto 25mm, port for camera attachment (fixed between eyepiece)
        RXR5NXBTILT50 Binocular, ergo head, tilting 0° to 40°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD - from 48-76, dioptre adjustment on both eyepieces, FOV upto 26.5mm, port for camera attachment
        RXR5RXTHTB-tilt Binocular head, tilting 0° to 25°, siedentopf head rotatable through 360°, IPD from 47-75, dioptre adjustment on both eyepieces, upto 50mm adjustable viewing height.
        RXR5NXTHTB-tilt30 Binocular head, tilting 5° to 35°, siedentopf head rotatable through 360°, IPD from 47-78, diopter adjustment on both eyepieces, upto 50mm adjustable viewing height
        RXR5NXTi Binocular inclined at 30°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD - from 45-76, dioptre adjustment on both eyepieces, FOV upto 26.5mm
        RXR5NXTTILT30 Trinocular, top/back port for camera, tilting head between 0°-35°, butterfly/siedentopf head upto 50mm adjustable viewing height with 30mm (ID) ocular, rotatable through 360°, 47-78, FOV upto 26.5, 3 position splitting ratio 100:0, 50:50, 0:100, height movement adjustment upto 60mm
        RXR5NXTHT35 Binocular, tilting head between 0°-35°, siedentopf head upto 50mm adjustable viewing height with 30mm (ID) ocular, rotatable through 360°, IPD-from 47-78, FOV upto 26.5mm.
        RXR5NXTTILT35a Trinocular port for camera, Widefield, tilting head between 5°-35°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, 47-78, FOV upto 26.5mm, 3 position splitting ratio 100:0, 20:80/50:50, 0:100, height movement adjustment upto 60mm
        RXR5NXTTILT50 Trinocular, ergo head, tilting 0° to 45°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD – from 48-76, dioptre adjustment on both eyepieces, FOV upto 26.5mm, port for camera attachment, 3 position splitting ratio 100:0, 50:50, 0:100, with eye-point adjustment of 50mm.
        RXR5NXTTILT50i Binocular, ergo head, tilting 0° to 45°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD–52-75mm, adjustable eyepiece length & tilt, dioptre adjustment on both eyepieces, FOV upto 26.5mm, fixed port for camera attachment, 3 position splitting ratio 100:0, 50:50, 0:100, with eye-point adjustment of 50mm.
        RXR5NXTTILT80 Trinocular, ergo head, tilting 0° to 40 °, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepieces, FOV upto 26.5mm, port for camera attachment, 3 position splitting ratio 100:0, 50:50/20:80, 0:100
        RXR5NXTTILT2050 Trinocular, ergo head, tilting 0° to 40°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepieces, FOV upto 26.5mm, port for camera attachment, 2 position splitting ratio 100:0, 50:50/0:100
        RXR5NXT2000 Trinocular inclined at 20°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD – from 48-76, dioptre adjustment on both eyepieces, FOV upto 26.5mm, port for camera attachment, 3 position splitting ratio 100:0, 20:80/50:50, 0:100-suitable for fluorescence, PH, Pol etc.
        RXR5NXT2050 Trinocular inclined at 20°/30°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD - from 55-75, dioptre adjustment on both eyepieces, FOV upto 25mm, port for camera attachment, 2 position splitting ratio 100:0, 50:50 & 0:100 upto 50mm adjustable viewing height for comfortable two position height observation.
        RXR5NXT2500 Trinocular inclined at 25°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD – from 48-76, dioptre adjustment on both eyepieces, FOV upto 26.5mm, port for camera attachment, 3 position splitting ratio 100:0, 80:20/50:50, 0:100-suitable for fluorescence, PH, Pol etc.
        RXR5NXT2500-2 Trinocular inclined at 25°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD – from 48-76, dioptre adjustment on both eyepieces, FOV upto 26.5mm, port for camera attachment, 2 position splitting ratio 100:0, 50:50 suitable for fluorescence, PH, Pol etc.
        RXR5NXT3000 Trinocular inclined at 30°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD – from 48-76, dioptre adjustment on both eyepieces, FOV upto 26.5mm, port for camera attachment, 3 position splitting ratio 100:0, 80:20/50:50, 0:100 - suitable for fluorescence, PH, Pol etc.
        RXR5NXT3050 Ergonomic trinocular inclined at 30°, with integrated eyepiece (undetectable), siedentopf head with 30mm (ID) ocular, eye point height 370-432mm, rotatable through 360°, IPD - from 48-76, dioptre adjustment on both eyepieces, FOV upto 26.5mm, port for one/two camera attachment, 2 position splitting ratio 100:0, 0:100/ 50:50 upto 65mm adjustable viewing height for comfortable two position height observation
        RXR5NXT3050a Ergonomic trinocular inclined at 30°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD - from 47-78, dioptre adjustment on both eyepieces (±5mm), FOV upto 26.5mm, port for camera attachment, 3 position splitting ratio 100:0, 20:80/50:50, 0:100 upto 50mm adjustable viewing height for comfortable two position height observation
        RXR5NXT3050b Ergonomic trinocular inclined at 30°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD - from 47-78, dioptre adjustment on both eyepieces (±5mm), FOV upto 26.5mm, port for camera attachment, 2 position splitting ratio 100:0, 50:50/0:100 upto 50mm adjustable viewing height for comfortable two position height observation
        RXR5NXT3050e Ergonomic Trinocular head, inclined at 30°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD - from 48-76, dioptre adjustment on both eyepieces, FOV upto 25mm, port for camera attachment, 2 position splitting ratio 100:0, 0:100/ 50:50 upto 50mm adjustable viewing height for comfortable two position height observation.
        RXR5NXT3050i Trinocular, top port for camera, tilting head between 0°-40°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD-from 45-75, FOV upto 26.5mm, 3 position splitting ratio 100:0, 50:50, 0:100
        RXR5NXT3080 Trinocular inclined at 30°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepieces, FOV upto 25mm, port for camera attachment, 2 position splitting ratio 100:0 & 20:80/50:50
        RXR5NXT3080i Trinocular inclined at 30°,siedentopf head with 30mm (ID) ocular, rotatable through 360°,IPD - from 55-75, diopter adjustment on both eyepiece,FOV upto 25mm port for camera attachment, 2 position splitting ratio 100:0 & 20:80/50:50
        RXR5NXT303P50 Trinocular inclined at 30°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD – from 48-76, dioptre adjustment on both eyepieces, FOV upto 26.5mm, port for camera attachment, 3 position splitting ratio 100:0, 50:50, 0:100
        RXR5NXT303P5080 Trinocular inclined at 30°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepieces, FOV upto 25mm, port for camera attachment, 3 position splitting ratio 100:0 or 0:100 or 50:50 or 20:80
        RXR5NXT4550 Trinocular inclined at 45°, siedentopf head with 30mm (ID) ocular, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepieces, FOV upto 25mm, port for camera attachment, 2 position splitting ratio 100:0, 0:100/ 50:50.
Touch Control Screen RXR5NXMTOU LCD touchpad for 7 programmable keys, 6 for objective/nosepiece control, 1 toggle key for switching between any 2 objective, 4 side programmable keys (for condenser swing-in/out, nosepiece rotation) image capture button, built in RAM, intensity memorizing function
Motorized XY stage & Z axis focusing • XY stage & Z axis focus motorization
• Motorized control 3 motor axes (XYZ)
• Resolution: 819.200 μ steps/revolution
• Upto 70 motor revolutions/sec
• Manual operation by Joystick or ERGO DRIVE
• Communication via PCI-E interface
Centering Objective RXR5NXPH-COBJ Centering objective for Fluorescence observation
Filter Wheel RXR5NXFW 4/6 position rotating, positive click, to hold different types of filter disks of 36mm dia, grey filter set containing 3 grey filters 0.015, 0.06 and 0.25.
Illumination RXR5NXSLED Spare LED
  RXR5NXSDRV Spare Led driver circuit
  RXR5NXSHAL Spare Halogen bulb
Heating Stage RHS50 Biotherm heating stage More...
Filters  RGF Green plane or frosted
RGF45 Interference Green Contrast Filter Ø 45mm
TL filter magazine with Day light conversation filter
N2, N4 & N16
OBJM Object Marker with ink point
Immersion Oil RIO100 High quality immersion oil 100ml
Packing  RSTYRO Standard Styrofoam packing
Magnification changer 1x & 2x (To achieve the magnification upto 2000x)
Diffuser Automatic sliding low magnification diffuser
Cleaning Kit RCLEAN Anti static cleaning brush, cleaning tissue paper, lens cleaning solution
  RTIS Lens cleaning tissue
  RLCL Lens Cleaning Liquid in spray bottle-100ml
Accessories Built-in NCB11, ND8, ND32 Filters and diffuser
Eyepiece graticular ASTM E 112 for grain analysis comparison
Eyepiece Micrometer 10mm/100mm division and Stage Micrometer 1mm/100 division
Auxiliary Lens for lower magnification
Yellow Filter
Centering Telescope with UW Adapter
Phase Slider Phase slider with birefringence attachment.
RXR5NXPHSL Phase slider for 10X-40X objectives & Phase slider for 100X & GIF Filter

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures

Educational Microscopes

Laboratory Clinical Microscopes

Medical Research Microscopes

Advanced Microscopy System

Industrial Microscopes

Infrared Thermography

Microscope Cameras

Material Science Software

Life Sciences Software

Camera Control Software

Metrology & Metallurgy

About Radical

Support

Contact Info
