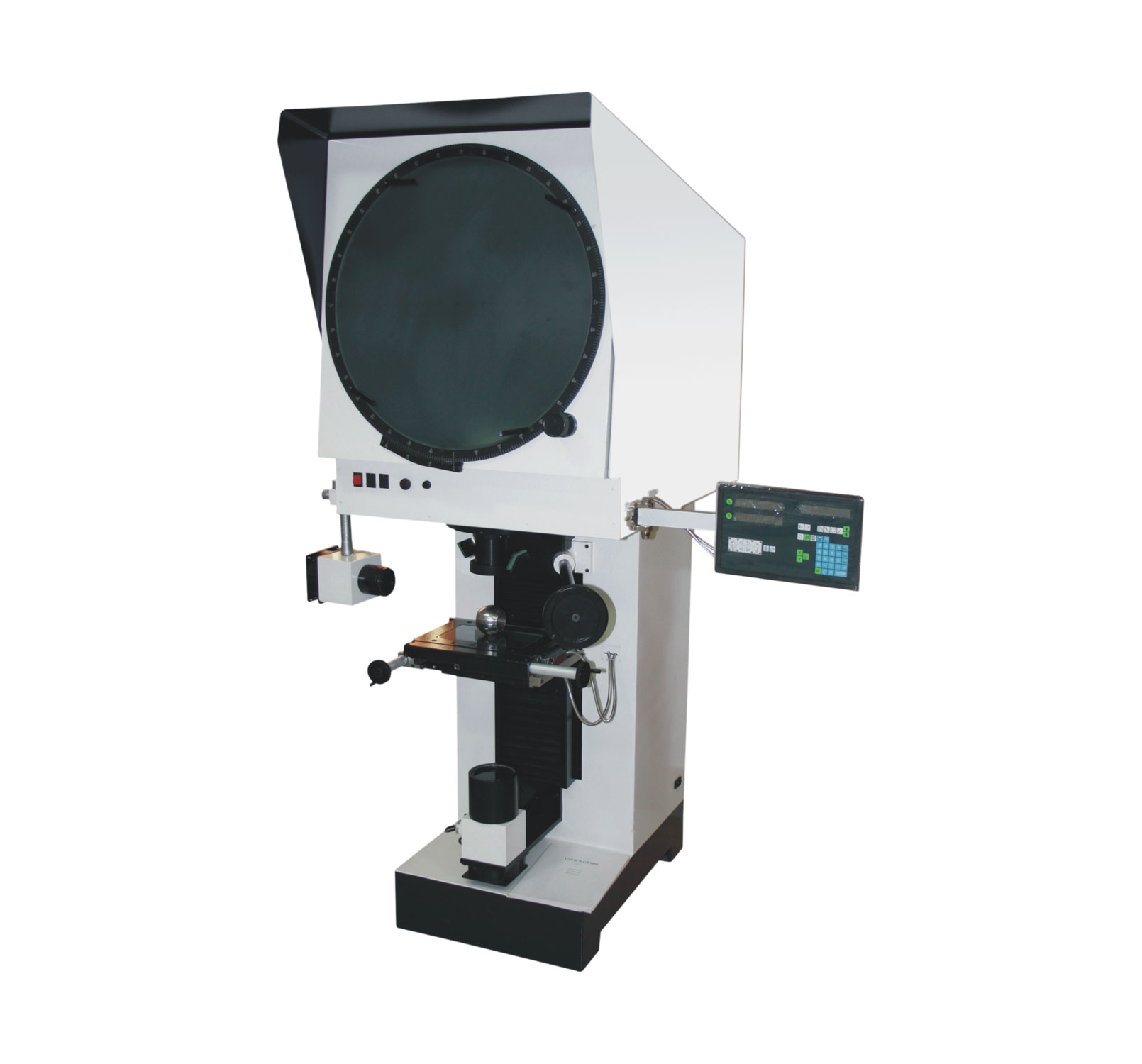

Profile Projector

RPP-500V Series

A dual purpose instrument having halogen projection bulb 12Volt/100Watt or 10watt LED Lamp workable on 220Volt AC. Equipped with an efficient cooling fan inside, 150mm diameter built-in fine grain glass screen. Cross Travel Stage size 125x125 mm. Table Travel upto 25 mm, Micro-Head Standard 0-25mm, least count 0.01 mm. Rotary Measuring Stage Glass 62mm. Vertical focussing by rack and pinion. The light source with halogen lamp LED offers increased contrast, extended life span and improved edge resolution. Lamp is cooled by a silent cooling fan. Light intensity control system allows different intensities as per requirement. Supplied complete with Vinyl cover in card board box.

Screen Antiglare hard glass screen, graduated & rotatable through 360° having least count 1 minute of an arc.
Mirrors Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen.
Contour Illumination Contour Illumination is provided with a 24V/150W halogen lamp having a built in condenser system.
EPI-Illumination A Specially designed LED or 12V/100W halogen light ensures uniform surface illumination system for the above.
Electrical Mains input 220-240 volts AC having built in transformers, On-Off Switch, variable intensity controller for both illumination system, indicator and glass fuse.
Accuracy Projection accuracy ± 0.1% for contour illumination and ± 0.15% for surface illumination.
Screen Size 500mm
Lenses 10x Objective (Standard)
Model No. RPP-500V
Screen Diameter 500mm
Work Stage 350 x 200mm
Stage Travel X-Y axis 150 x 100mm
Focussing Range 125mm
Magnification Standard 10x
Magnification Optional 20x, 25x, 50x, 100x
Protactor Screen 360° Rotation with 2 minutes vernier resolution
Magnification Accuracy ± 0.05% on contour and ± 0.1% on surface
Resolution 0.001mm
Measuring System With Mechanical micrometer 0-25mm/DRO/Data Processor (selectable),(optional PC based software)
Illumination 24V, 150W Halogen, Forced Air cooled, Light intensity controller
Filter colour Green (Yellow - option)
Power Supply AC Single Phase 230V, 50Hz
Range Of Accessories
Over Lay Chart
Swivel Center Support
V-Block With Clamp
Edge detector
Foot switch
fixture
Holder with clamp
D.R.O
Data Processor

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
