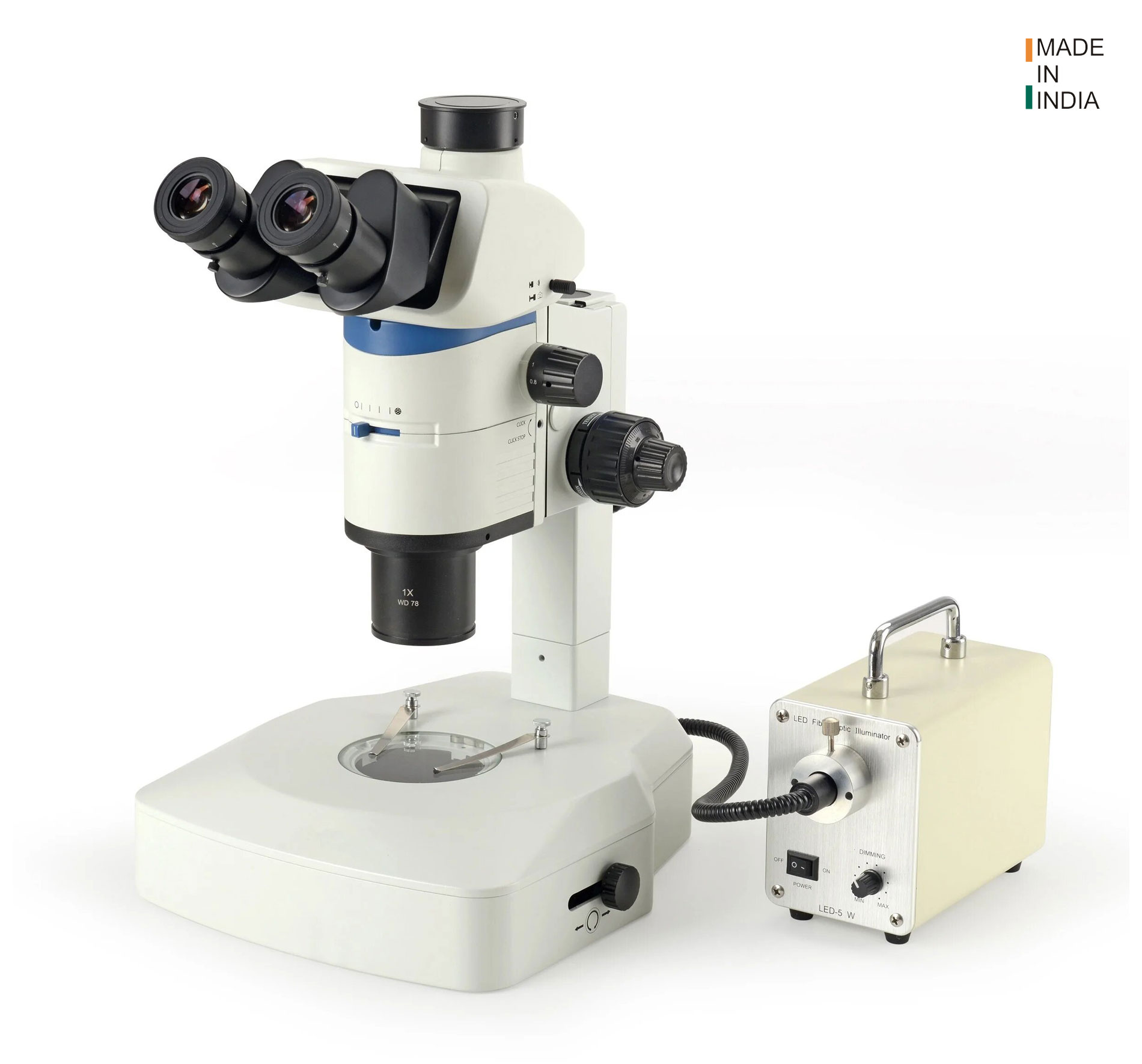

High Resolution Stereo Zoom Microscope

RSMr-X2 Series

Stereo microscope is importantly applied in industry detection and life science. Based on Galileo optical system and man-machine engineering, RSmr-X2 presents a real and perfect micro-image with easy operation, meets the research demands of biomedicine, microelectronics and semiconductor.

Optical system Greenough System
Illumination Top bottom LED, Coaxial, cold light, Diascopic, optional colour temperature
Viewing Head Tilting viewing head for comfortable operation
Eyepiece Extra Wide Field
Stage Large Stage with hand rest
Objectives Apochromatic objective
Zoom Large zoom ratio 15:1
Stand Co-axial coarse and fine focusing stand, universal, customized, LCD on base
Camera Port Single, Dual Port, Aperture diaphragm adjustment
Other Contrast Darkfield, Polarizing, Fluorescence
Motorized Control Motorized Focus and Zoom
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RSMRX2MB Rugged, 360° ergonomic design, touch point treated, anti mould, anti-electrostatic, acid resistant texture painted, rubber feet & stage clips, Built-in as zoom body, zoom drive system with horizontal handle for click-stop for various positions incorporated.
Optical System RSMRX2POS APO chromatic, parallel optics zoom system, lead free, resolution upto 900 lines per mm, distortion free infinity, common main objective.
Standard Zoom Lens RSMRX2ZL Zoom range: 0.8X~10X, zoom ratio: 12.5 : 1; built-in aperture diaphragm; click stop for 0.8X, 1X, 1.5X, 2X, 3X, 4X, 5X, 6X, 8X, 10X
Zoom ratio RSMRX2ZR 12.5:1
Eyepieces RSMRX21023 High eye point,wide field plan eyepiece WF 10X, FOV-23mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment(± 5) on one/both eyepieces with rubber eye guard (suitable for eyeglass wearer)
Objective   1X main objective, working distance 78mm
Viewing head RSMRX2T20 30° inclined trinocular head, 2 position beam splitter 50: 50, 100:0 interpupillary distance 50-76mm; fixed eyepiece tube with lock screw.
Focusing RSMRX2FOS Coarse and fine coaxial focus system, integrated body with focus holder, coarse range: 50mm, fine precision 0.002mm
Illumination RSMRX2LED 5W LED light box (size: 270X100X130mm) with single fiber (500mm), color temperature 5000-5500K; operating voltage 100-240VAC/50-60Hz, output 12V
Illumination Power Light Intensity control and lamp ON/OFF control by external signal (DCO-5V), mechanical adjustment function, power 150W (350VA), rated voltage 100-120V/220-240V/50/60 Hz, dimensions 120(H)X120(H), 235(D)mm, weight approx. 1.5 Kg. with dual flexible light guides.
Accessories RCC Cleaning cloth
RVC Vinyl cover
MANUAL Instruction manual
WARRANTY Warranty card
RPC Power Cord (Country Specific)
  • Auxillary Objectives
    • Auxillary Objectives RSMRX2OBJ0.3 APO 0.3X/WD upto 275mm, N.A0.045
      RSMRX2OBJ0.5 APO 0.5X/WD upto 195mm, N.A 0.05
      RSMRX2OBJ1.0 APO 1.0X/WD upto 90mm, N.A 0.1, object field diameter 2.5 mm to more than 25mm
      RSMRX2OBJ1.25 APO 1.25X/WD upto 60mm, N.A 0.125
      RSMRX2OBJ1.5 APO 1.5X/WD upto 45mm, N.A 0.15
      RSMRX2OBJ2.0 APO 2X/WD upto 32mm, N.A 0.2
      RSMRX2OBJC APO customized objective
      Depth of field   High depth of field up to 80µm for 1X
        High depth of field up to 10mm, field of view 25.4mm to 2.5mm
          Please click for More Objectives...
  • Body/Stand
    • Part Name Part Code Description
      Body/Stand RSMRX2UNV Universal bracket arm, height, angle position adjustable, vertical high 350mm, diameter 35mm, horizontal movement 400mm, no transmitted light counter balance.
        RSMRX2HPB New designed base having inbuilt halogen 6V20W with intensity adjustment and on/off switch. Provision for inbuilt polarizing plate.
        RSMRX2UNV-C Universal bracket arm, height, angle position adjustable, vertical high up to 1000mm, diameter 35mm, horizontal movement 590mm, adjustable X, Y & Z position. with ball bearing for smooth operation, locking ring, grease free run.
  • C-mount
    • C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
        RCMT65X 0.65X Camera Adaptor/Tube/Mount
        RCMT70X 0.7X Camera Adaptor/Tube/Mount
        RCMT01X 1X Camera Adaptor/Tube/Mount
  • Eyepieces
    • Eyepiece RSMRX2EP1516 High eye point, wide field plan eyepiece WF 15X, FOV-16mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (± 5) on one/both eyepieces
      RSMRX2EP2012.5 High eye point, paired, WF 20X, FOV-12.5mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (± 5) on one/both eyepieces
        RSMRX21020 High eye point, WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (± 5) on one/both eyepieces with rubber eye guard (suitable for eyeglass wearer)
        RSMRX21022 High eye point, wide field plan eyepiece WF 10X, FOV-22mm, ESD capability, multi layered coated, high quality, good contrast, abrasion free, aplanatic, lockable, diopter adjustment (± 5) on both eyepieces with rubber eyeguard (suitable for eyeglass wearer)
  • Focusing
    • Focusing RSMRX2FOSPC Coarse and fine coaxial focus system, integrated body with focus holder, coarse range: 50mm, fine precision 0.002mm, Profile column 420mm upgradable to 1000mm
      RSMRX2FOL Fibre optic light source (LED) with double flexible light pipes 500mm length (life hrs. up to 1,00,000)
      RSMRX2FCM Motorized Focus Unit coarse & fine (up 96mm and down 4mm), focus column 420mm.
  • Illumination
    • Illumination RSMRX2LEDTL 3W LED epi-illumination (life hrs. 30,000), transmitted (Integrated in stand), separate intensity controller & on/off switch with additional black & white stage plate
      RSMRX2LEDRL 3W LED epi-illumination (life hrs. 30,000), Reflected/incident , intensity controller & on/off switch with additional black & white stage plate
        RSMRX2LEDR56 Reflected 56 LED, Ring Light, colour temperature 6400K, 24V 6W (life hrs. 10,000)
        RSMRX2LEDR56-1 56 LED, ring light with 4 different segmentation modes, colour temperature 6400K, 24V6W (life hrs. upto 65,000), with separate controls for segmentation and rotation 4modes: full, half, quarter circle, 2 facing quarter circles
        RSMRX2CL Bright high contrast coaxial illumination, effective for observing structure, imperfections on metal surfaces, Magnification factor 1.5x, Flexible part 1000mm l/4 retardation plate for polarization.
        RSMRX2OM Specially Thin designed rectangular base flat LED light Four position turret, (suitable for Transmitted BF & DF/oblique) with intensity controller, having transparent stage glass with LED light having single side coated mirror for heat projecting light in different angles cold source illumination LED life 10,000 hrs
  • Mechanical Stage
    • Mechanical Stage RSMRX2STAGE Stage, X-Y movement, ball guide, 180X155X26mm, travel 35X30mm, size 185X140mm
  • Micrometer/Calibration slide
    • Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
        RCS100 Micrometer slide for calibration, 10mm with 100µm least count
  • Optical System
    • Optical System RSMRX2GOS APO chromatic, greenough optics zoom system, resolution upto 600 lines per mm
  • Packing
    • Packing RWBX Wooden box with separate container for accessories, lock & key, carrying handle
      RSTYRO Standard Styrofoam packing
  • Viewing head
    • Viewing Head RSMRX2BH20 Binocular head, 20° inclined, rotatable 360°, IPD: 48-75mm, intermediate parallel zoom
      RSMRX2BH30 Binocular head, 30° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom
      RSMRX2BHTILT Binocular head, tilting at 0°-40° inclined, rotatable 360°, IPD 48-75mm, intermediate parallel zoom
      RSMRX2TH45 Tilting trinocular viewing head, 0~45 degree adjustable; binocular/trinocular 100:0 or 0:100; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw
      RSMRX2T45 45° inclined trinocular head, 2 position beam splitter 50: 50, 100:0 interpupillary distance 50-76mm; fixed eyepiece tube with lock screw.
      RSMRX2T35 35° inclined trinocular head, 2 position beam splitter 50:50, 100:0 interpupillary distance 50-80mm; fixed eyepiece tube with lock screw.
  • Zoom Ratio
    • Zoom Ratio RSMRX2ZLEN Fully apochromatic encoded zoom, Zoom range: 0.8X~10X, zoom ratio:12.5:1; built-in aperture diaphragm; click stop for 0.8X, 1X, 1.5X, 2X, 3X, 4X, 5X, 6X, 8X, 10X
      RSMR10ZH Zoom- 1:10, 0.8X to 8X continuously zoom with 8 steps, magnification range from 4X to 480X (using different combinations of eyepiece and objectives
      RSMR10-CZH Zoom- 1:10, customized zoom steps (8 position)
      RSMR12ZH Zoom- 1:12, 0.8X to 9.6X continuously zoom with 8 steps, magnification range from 4X to 576X (using different combinations of eyepiece and objectives
      RSMR12ZH0.63 Zoom- 1:12, 0.63X to 8.0X built-in aperture diaphragm; click stop for 0.63X, 1X, 2X, 3X, 4X, 5X, 6X, 8X.
      RSMR12ZH0.63i Zoom- 1:12, 0.63X to 8.0X built-in aperture diaphragm ,continuous without click
      RSMR12ZH Zoom- 1:12, 0.8X to 9.6X continuously zoom with 8 steps, magnification range from 4X to 576X (using different combinations of eyepiece and objectives
      RSMR12.5 Zoom- 1:12.5,  0.8X to 10X continuously zoom with 10 steps, magnification range from 4X to 600X (using different combinations of eyepiece and objectives
      RSMR16 Zoom- 1:16.7, 0.6X to 10X continuously zoom with 10 steps, magnification range from 3X to 600X (using different combinations of eyepiece and objectives) click stop for 0.6X, 1X, 1.5X, 2X, 3X, 4X, 5X, 6X,8X, 10X
        RSMR711 Zoom- 1:16.4, 0.7X to 11.5X continuously zoom with click stop for 0.7X, 0.8X, 1X, 1.25X, 1.6X, 2X, 2.5X, 4.5X, 6.3X, 8X, 10X, 11.5X
Analyzer/Polarizer   Objective mountable, cup-shaped analyzer/polarizer.
Iris diaphragm   Encoded Double Iris diaphragm to increase depth of field to view three dimensional objects.
Objectives RSMRX21X 1X Main objective, W.D. 70mm, NA 0.105,
Camera Tube RSMRCTUBE50 Camera tube/port for attaching Camera, Beam splitter and camera adapter, Switching Ratio left eyepiece: right eyepiece: camera port 100:100:0/100:50:50.
RSMRCTUBE80 Camera tube for attaching single camera, beam splitting 20:80
Oblique Illumination RSMRX8OCC In-built OCC slider
Double Arm Illuminator RSMRX2LGSK2L Fibre optic light source, Hi power LED with double flexible light Pipes/Arms/Gooseneck (life hrs. upto 25,000) for bright observation with high-intensity light without damaging sample with its heat.
Cleaning Kit RCLEAN Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution
Slider RSMRX2OSDR Slider with one side darkfield and rotterman contrast

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
