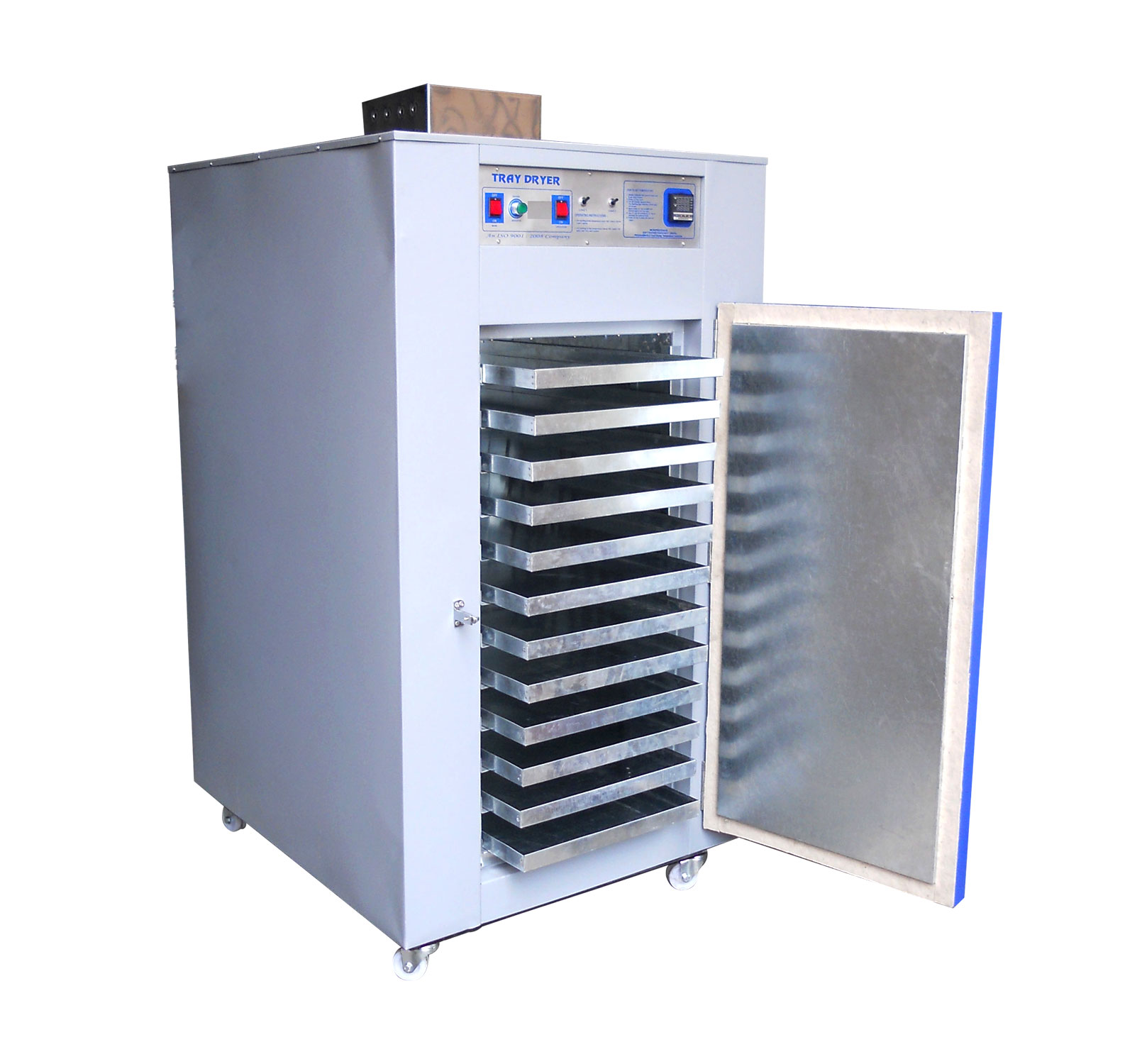

Tray Dryer


Standard Double Wall Fabrication. Outer painted with hammer tone paint finish. The gap between the walls is fitted with special grade glass wool. Heavy duty forced air blowers are Provided to constantly circulate hot air to achieve uniform temperature in the chamber.
Kanthal wire heating elements provided to attain quick and uniform heating in range of 50°C to 250°C +2-3°C controlled by hydraulic type capillary thermostat.
An dial type thermometer is fitted to the unit for reading the chamber temperature. Equipment suitable to be working on 220V AC 50Hz single phase.

Size are available :-
430x840x650 mm
430x840x910 mm
910x840x910 mm
960x1270x1440 mm
960x1700x1700 mm
1. Timer 0-99 hours
2. Digital PID temp. indicator-cum-controller

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
