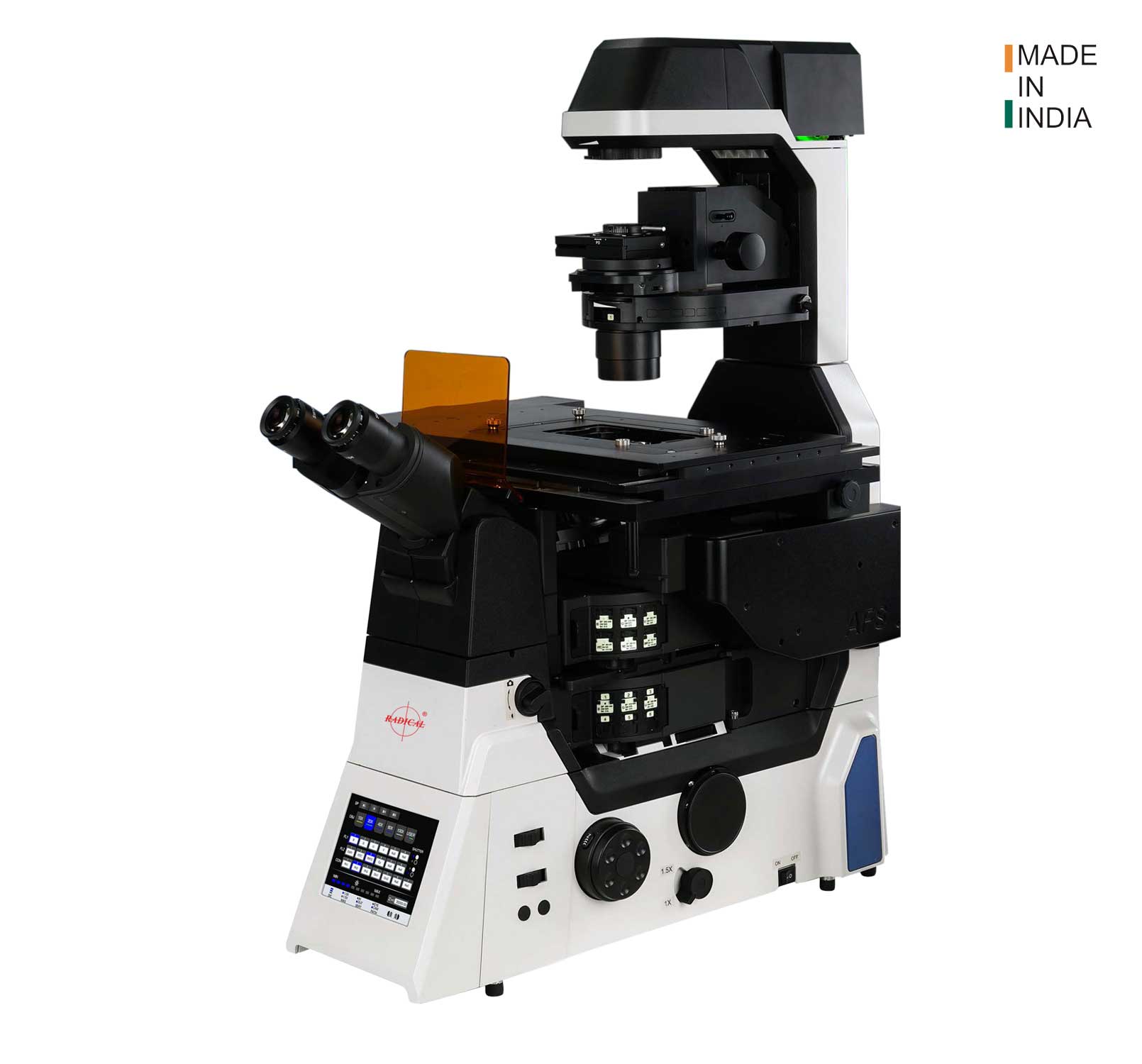

Advanced Research Motorized Tissue Culture Microscope

RTC-7NXF Motorized

As a representative of optical, mechanical, electrical and computational integrated microscopes, the RTC-7NXF motorized research-grade inverted microscope integrates software, electronic control, fluorescent lighting, Phase lining, DIC, and objective lens with correction ring realize three-level electric control system such as single machine, TPC and computer workstation. Facilitate life science imaging research for life sciences. Superior optical performance and flexible structural design, the RTC-7NXF provides you with high-definition wide-field images for life sciences. Technical support is provided by various researches and applications such as cell biology, pathological analysis, and genetics. The modular design of the RTC-7NXF is scalable and you can upgrade as needed to achieve multiple observations.

BRIGHTFIELD
FLUORESCENCE
PHASE CONTRAST
Body Rugged, ergonomic design, touch point treated
Optical system NIS 60 infinite optical system (IOS), Color corrected (CCIS), anti-fungal, anti-bacterial coated (multi-layered hard coated)
Illumination Halogen/LED, intensity adjustable, battery backup, auto cut-off
Viewing Head Ergonomic Sidentopf Binocular/Trinocular Head, built in bertrand lens
Camera Port Both side
Mechanical Stage 3 layers mechanical stage with flexible knob
Objectives LWD infinity Flotar/SAPO/APO objectives
Condenser Flexible long working distance turret condenser
Nosepiece Sextuple nosepiece having built in DIC slot with ball-bearing, rubber/metal grip & click stop
Eyepiece Extra wide field, high point with diopter adjustment
Focusing Feather touch ultra precise coaxial (low position), both side, coarse & fine with tension control & upper limit stopper
Median Lens Multiple Magnification(user choice)
Fluorescence Attechment Turret filter stucture with high function filter
Power Supply 90V-240V/50Hz AC (SMPS)
Microscopy Techniques Brightfield, fluorescence, phase contrast, hoffman phase, 3D emboss contrast, DIC
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RT7NXMMB Rugged, waterproof, ergonomic modular design, multiple camera ports, touch point treated, (rigid and vibration-free) acid resistant texture painted, intensity controller & on/off switch, rubber feet, slot for ana/pol, transmitted diffusion/filters LBD/ND6/ND25, filter holder, collector, scattering filter, automatic re-adjustable illumination intensity etc, inbuilt diaphragm for different contrast methods. In-built power unit for halogen/led
front panel can show status of bright field observation, phase contrast observation, DlC or fluorescence observation, built-in upper port, split ratio 100:0, 0:100, built-in left side port, split ratio 0:100, 50:50, 100:0, there are two layers of light path up and down fluorescent system can be added
Optical System RT7NXMiOS Infinity colour corrected optical system
Illumination RT7NXML5WL3 Motorized Condensor, 4 filters;
Fluorescence illuminator RT7NXMFL6100 Motorized turret with 8 positions, built-in shutter, 5-hole electro-optic group, standard brightfield/light barrier, optional attenuation filter set ND8/ND25/ ND50 - fluorescent filter set: B1/G1/UV1 100W mecury lamp house with OSRAM mecury bulb
Viewing Head RT7NXMB45 Tilting 20-45° adjustable binocular head inverted image, interpupillary distance 50mm - 76mm
Nosepiece RT7NXM6N Motorized brightfield Sextuple nosepiece(with DIC slot)
Eyepiece RT7NXMEP1022 High eyepoint wide field plan eyepiece PL10X22mm, diopter adjustable, reticle optional,
RT7NXMEP1516 High eyepoint wide field plan eyepiece PL15X16mm, diopter adjustable
Mechanical Stage RT7NXM4MS Manual mechanical stage, 300mm(X) x 240mm(Y), moving range is 135mm(X) x 85mm(Y), thickness is 30mm, lower universal right side handle with lock function during locking, moving range 50mm(X) x 50mm(Y) it can use with 35mm petri dish holder, culture flask holder, sliced holder, Ø110mm replaceable disc with clips.
  Motorized stage, moving range 114mm(X) x 75mm(Y), resolution 0.01µm, repeatability ± 2µm, moving speed not less than 1.5mm/s, with specimen rack, addltlonal grooves for petri dish. 100-240V electric control box and rocker.
Objectives RT7NXMPL LWD Plan semi-apochromatic objectives (2X/4X/10X/20X/40X/60X)
  RT7NXMPL LWD Plan semi-apochromatic phase contrast objectives (4X/10X/20X/40X/60X)
Condenser RT7NXMCON Motorized turret condensor with 7 positions N.A 0.55, W.D 27mm, 3 positions for ø30mm(phase contrast observation). 4 positions for 38mm(DlC) with motorized aperture,electric turntable, electric polarizer
Focusing RXF10m Coaxial focus system, z-axis motorized focusing system, coarse range:10.5mm, fine focus display precision:10nm
Lamp House RT7NXM 12V 100W halogen lamp house
Standard Accessories RCC Cleaning cloth
  RVC Vinyl cover
  RAK Allen keys
  RF5A Fuses - 2 no's
  RT7NXMIM Instruction manual
  WARRANTY Warranty card
  RBF Blue Filter (frosted & Plain)
  RPC Power Cord (country Specific)
Part Name Part Code Description
Illumination RT7NX9H50 Halogen 12V-50W, life 2000 hrs.
  RT7NX9H100 Halogen 12V-100W, life 2000 hrs.
  RT7NX9L3WL3 LED 3W, cool illumination, life 30000 hrs., with 4500K colour temprature, Lumens equivalent 50W halogen
  RT7NX9LBB Battery backup from 2-12 hours for LED (Internal/External)
  RT7NX9L5W LED 5W, cool illumination, life 30000 hrs., with 4500K colour temprature, Lumens equivalent 100W halogen
  RT7NX9ACUT Intelligent ECO infrared sensing system
  RT7NX9L3WL6 LED 3W cool illumination, life 65,000 hrs., with 4500K colour temprature, Lumens equivalent 50W halogen
  RT7NX9L3WL8 LED 3W cool illumination, life 82,000 hrs., with 4500K colour temprature, Lumens equivalent 50W halogen
  RT7NX9L5WL6 LED 5W cool illumination, life 65,000 hrs., with 4500K colour temprature, Lumens equivalent 100W halogen
  RT7NX9L5WL8 LED 5W cool illumination, life 82,000 hrs., with 4500K colour temprature, Lumens equivalent 100W halogen
  RT7NX9LWL15 LED 15W cool illumination, life 30,000 hrs., with 4500K colour temprature, Lumens equivalent 100W halogen
  RT7NX9L-C Extra long life LED upto 1,00,000 hrs with 4500K colour temprature, 3W/5W
  RT7NX9SOLAR Solar power battery charger for LED
Fluorescence Attachment RT7NX9FL4LED LED cooled fibre fluorescence lamp house (life 25,000hrs.), four position turret structure with high position filter including 1 for brightfiled,LED Module white 540-580nm, 0 pixel shift technology centre adjustable filed diaphragm and 3 holes filter slot for refleced illumination, easy to change (push & click)
  RT7NX9FL6LED LED cooled fibre fluorescence lamp house, precentered, (life 30,000hrs.), six position turret structure with high position filter including 1 for brightfiled, centre adjustable filed diaphragm and 3 holes filter slot for refleced illumination, with standard BG & UV filter, easy to change (push & click) other filters on demand
  RT7NX9FL Filter turret rotating position turret with capacity to accommodate 6 fluorescence filter block (Inbuilt 4/5 position light intensity filter wheel) instant switching between BF or FL mode via button, diaphragm centrable aperture & filed diaphragm, 3 slots for ND filter/Pol/balancer. 100W mercury with intelligent power supply, life span of 20000Hrs.
  RT7NX9FL-LED Filter turret rotating position turret with capacity to accommodate 6 fluorescence filter block (Inbuilt 4/5 position light intensity filter wheel) instant switching between BF or FL mode via button, feature to replicate illumination power of same wave lenght, diaphragm centrable aperture & filed diaphragm, noise terminator mechanism, 3 slots for ND filter/Pol/balancer. LED with intelligent power supply, life span of 25000 hrs, automatic LED Fluorescence illumination intencity recognition fuction.
  RT7NX9FL6120 120W, cooled fibre, Mercury/Metal Helide fluorescence lamp house, with life hrs of 2,000, six position turret structure with high position filter including 1 for brightfiled, centre adjustable filed diaphragm and 3 holes filter slot for refleced illumination, easy to change (push & click), with standard BG & UV filter, other filters on demand
  RT7NX9FL6130 130W cooled fibre, Mercury/metal helide fluorescence lamp house, with life hrs of 2,000, six position turret structure with high position filter including 1 for brightfiled, centre adjustable filed diaphragm and 3 holes filter slot for refleced illumination, easy to change (push & click), with standard BG & UV filter, other filters on demand
  RT7NX9FL6200 200W cooled fibre, Mercury/metal helide, fluorescence lamp house, with life hrs of 2,000, six position turret structure with high position filter including 1 for brightfiled, centre adjustable filed diaphragm and 3 holes filter slot for refleced illumination, easy to change (push & click), with standard BG & UV filter, other filters on demand
    Motorized Flourescent turret optionally available
Viewing Head RT7NX9TST-C50 Trinocular inclined at 45°, sidentopf head, rotatable through 360°, IPD - from 47-78, diopter adjustment on both eyepiece, top & both side port for camera attachment, splitting ratio100(EP):0(camera)/ 50(EP):50(camera)/0(EP):100(camera) with 0.7x relay lens placed at side of microscope body, builtin bertrand lens.
  RT7NX9TST-C50-1 Hinged trinocular (with boehmite), 45° inclination, pitch 47-78mm
  RT7NX9TST-C80 Trinocular inclined at 45°, sidentopf head, rotatable through 360°, IPD - from 48-76, diopter adjustment on both eyepiece, both side port for camera attachment, splitting ratio 100(EP):0(camera)/ 20(EP):80(camera)/0(EP):100(camera) with 0.7x relay lens placed at side of microscope body, builtin bertrand lens.
    Motorized Beamsplitter optionally available
Body Port   Turntable port switching (left/right port/ visual observation), split ratio: left/eyepiece= 100/0; right/visual=80/20; optional/visual=0/100
Left Camera Port LCP Port for camera attachment, splitting ratio 0(EP):100(camera) and 80:20 with 20mm FOV for camera
Right Camera Port RCP Port for camera attachment, splitting ratio 50(EP):50(camera)
Nosepiece RT7NX9-5N Inward tilted with positive click stop, Precise Quintuple revolving on multiple ball bearing
    Motorized Nosepiece optionally available
Eyepiece RT7NX9EP1020M WF 10X, FOV-20mm, Micrometer(10/100mm), multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RT7NX9EP1020P WF 10X, FOV-20mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RT7NX9EP1020  Paired, WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RT7NX9EP1022M WF 10X, FOV-22mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RT7NX9EP1022P WF 10X, FOV-22mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RT7NX9EP1023 Paired, WF 10X, FOV-23mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RT7NX9EP1025  Paired, WF 10X, FOV-25mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable, high eye point, (with provision for graticule insertion)
  RT7NX9EP1025M WF 10X, FOV-25mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RT7NX9EP1025P WF 10X, FOV-25mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RT7NX9EP1515 Paired, WF 15X, FOV-15mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RT7NX9EP2010 Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RT7NX9EP-C Cutomized Eye-piece of 5X/10x/12x/15x/16x/20x with different types of reticles/graticules
  RT7NX9ECUP Eyecups (pair)
Mechanical Stage RT7NX9MS-RK Rackless, rectangular right/left hand low drive control, horizontal, hard ceramic coating, double slide holder, stage size-customized as per requirement, X-Y movement-customized as per requirement
  RT7NX9MS-C Rectangular, anodized or ceramic hard coated, customized stage size (standard) 215(X)×250 (Y)mm-can be customized, Attachable mechanical stage (standard): 130 (X)×85 (Y)mm-can be customized, having stopper function, hard ceramic coated, accepts different types of micro-testplate, petri dish (35mm) glass slide holder & culture flask holder, universal holder for holding all types of plates
    Motorized stage movement optionally available
Condenser RABC-SW N.A. 0.3 dismountable W.D. 72/75mm with 3 position slide for PH10x/20, PH40, centerable annulus/phase ring & centring telescope Bracket can be remove from optical path to accommodate large flask (Upto 190mm W.D)
  RT7NX9CON4 Long working distance turret condenser N.A. 0.40, dismountable, working distance 50mm, 5-positions for BF,PH,POL, DIC, PlasDIC, DIC, HMC. Varel contrast and Hoffman modulation (optional)
  RT7NX9CON5 Long working distance turret condenser N.A. 0.30, dismountable, working distance 72mm, 5-positions for BF, PH, POL, DIC etc
  RT7NX9CON7 Long working distance turret condenser N.A. 0.55, dismountable, working distance 26mm, 7-positions for phase, DIC, brightfield
Objectives RT7NX9PL05i Infinity, long working distance, plan achromat 5X, N.A. 0.13, W.D. 11.8mm, unbreakable container for storage
  RT7NX9PL60i LWD 60X, N.A. 0.80, W.D. 0.30mm, plan achromatic, infinite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
  RT7NX9PL100i LWD 100X, N.A. 1.31, W.D. 0.28mm, plan achromatic, infinite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
Phase Objectives RT7NX9PH10i LWD PH10X, N.A. 0.25, W.D. 7.94mm, phase, plan achromatic, infinite, unbreakable container for storage
  RT7NX9PH20i LWD PH20X, N.A. 0.4, W.D. 7.66mm, phase, plan achromatic, infinite, unbreakable container for storage
  RT7NX9PH40i LWD PH40X, N.A. 0.60, W.D. 3.71mm, phase, plan achromatic, infinite, spring loaded, unbreakable container for storage
  RT7NX9PH40i-CC LWD PH40X, N.A. 0.60, W.D. 3.4mm, phase, plan achromatic, infinite, having correction collar for cover glass thickness correction from 0-2mm, spring loaded, unbreakable container for storage
  RT7NX9PH60i LWD PH60X, N.A. 0.80, W.D. 0.30mm, phase, plan achromatic, infinite, oil immered, spring loaded, unbreakable container for storage
  RT7NX9PH63i LWD PH63X, N.A. 0.80, W.D. 1.8mm, phase, plan achromatic, infinite, oil immered, spring loaded, unbreakable container for storage
SEMI APO Objectives RT7NX9SAPO04i LWD 4X, N.A. 0.16, W.D. 13.0mm, SAPO, Infinite, unbreakable container for storage
  RT7NX9SAPO5i LWD 5X, N.A. 0.10, W.D. 15.2mm, SAPO, Infinite, unbreakable container for storage
  RT7NX9SAPO10i LWD 10X, N.A. 0.40, W.D. 3.1mm, SAPO, Infinite, unbreakable container for storage
  RT7NX9SAPO20i LWD 20X, N.A. 0.75, W.D. 0.6mm, SAPO, Infinite, unbreakable container for storage
  RT7NX9SAPO40i 40X, N.A. 0.95, W.D. 0.18mm, SAPO, Infinite, spring loaded, unbreakable container for storage
  RT7NX9SAPO40L LWD 40X, N.A. 0.75, W.D. 0.51mm, SAPO, Infinite, spring loaded, unbreakable container for storage
  RT7NX9SAPO50i LWD 50X, N.A. 0.9, W.D. 0.35mm, SAPO, Infinite, spring loaded, unbreakable container for storage
  RT7NX9SAPO60i LWD 60X oil, N.A. 1.35, W.D. 0.15mm, SAPO, Infinite, oil immered, spring loaded, unbreakable container for storage
  RT7NX9SAPO100i LWD 100X oil, N.A. 1.40, W.D. 0.13mm, SAPO, Infinite, oil immered, spring loaded, unbreakable container for storage
SEMI APO Objectives Phase RT7NX9PSAPO10i LWD 10X, Phase,  N.A. 0.40, W.D. 3.1mm, SAPO, Infinite, unbreakable container for storage
  RT7NX9PSAPO20i LWD 20X, Phase, N.A. 0.75, W.D. 0.6mm, SAPO, Infinite, unbreakable container for storage
  RT7NX9PSAPO40i 40X, Phase, N.A. 0.95, W.D. 0.18mm, SAPO, Infinite, spring loaded, unbreakable container for storage
  RT7NX9PSAPO40L LWD 40X, Phase, N.A. 0.75, W.D. 0.51mm, SAPO, Infinite, spring loaded, unbreakable container for storage
  RT7NX9PSAPO50i LWD 50X, phase, N.A. 0.9, W.D. 0.35mm, SAPO, Infinite, spring loaded, unbreakable container for storage
  RT7NX9PSAPO60i LWD60X oil, Phase, N.A. 1.35, W.D. 0.15mm, SAPO, Infinite, oil immered, spring loaded, unbreakable container for storage
  RT7NX9PSAPO100i 100X oil, Phase, N.A. 1.40, W.D. 0.13mm, SAPO, Infinite, oil immered, spring loaded, unbreakable container for storage.


Please click for More Objectives...

Focusing RXF10 Co-axial knobs (both sides), tension control, upper limit stopper, coarse range-9mm, high sensitivity focus drive with 0.10 mm per revoluation, Fine adjustment 1µm/Div.
  RXF10C Co-axial knobs (both sides), tension control, upper limit stopper, coarse range-13mm, high sensitivity focus drive with 0.10 mm per revoluation, fine adjustment 1µm/Div.
  RXF20C Co-axial knobs (both sides), tension control, upper limit stopper, coarse range-customized upto 18mm, high sensitivity focus drive with 0.20 mm per revoluation, Fine adjustment 2µm/Div.
  RXF25 Co-axial knobs (both sides), tension control, upper limit stopper, coarse range-9mm, high sensitivity focus drive with 0.25 mm per revoluation, Fine adjustment 2.5µm/Div.
    Motorized Focusing optionally available
Slider RT7NX9PH20-SL Phase slider ring for 20X, centrable, with two handle
  RT7NX9PH40-SL Phase slider ring for 40X, centrable, with two handle
  RT7NX9PH-SL Phase slider ring for 10/20, 40X & 100X, centrable, with two handle
  RT7NX9DF-SL Darkfield slider, centrable, with two handle
Heating Stage RHS50 Biotherm heating stage
Customized Stage RT7NX94MS-C Rectangular, anodized or ceramic hard coated, customized stage size (standard ) 215(X)×250 (Y)mm-can be customized, Attachable mechanical stage (standard ) : 130 (X)×85 (Y)mm-can be customized, hard ceramic coated, accepts different types of micro-testplate, petri dish (35mm) glass slide holder & culture flask holder, universal holder for holding all types of plates
Filters  RGF Green plane or frosted
Power supply RTF620 6V-20W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
  RTF630 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
  RSMPS630 SMPS based, wide voltage range, 90V-240V, 50/60Hz
  RPSLED LED power supply, wide voltage range, 90V-240V, 50/60Hz
Immersion oil RIO Immersion oil (10ml)
  RIO100 High quality immersion oil 100ml
Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
  RCS100 Micrometer slide for calibration, 10mm with 100µm least count
C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
  RCMT65X 0.65X Camera Adaptor/Tube/Mount
  RCMT70X 0.7X Camera Adaptor/Tube/Mount
  RCMT01X 1X Camera Adaptor/Tube/Mount
Packing  RABX Aluminum box with separate container for accessories, lock & key, carrying handle
  RSTYRO Standard Styrofoam packing
  RWBOX Wooden box to cover the microscope
Cleaning Kit RT7NX9CLK Anti static cleaning brush, Cleaning tissue paper, lens cleaning solution
Holders RT7NX9-HOL Petridish holder 65mm, petridish holder 90mm terasaki holder for terasaki holder and dia 65 dish, slide glass holder for glass slides dia 54 dish and hemocytometer, universal holder for terasaki plate holder and glass slide, dia 35-65 dish, test tubes and hemocytometer
Hoffman Kit RT7NX9-HFKIT 10x, 20x, 40x Hoffman Condenser, Special Objective
Emboss Contrast RT7NX9-EMB Condenser and Eyepiece with Emboss Contrast 10x, 20x, 40x, Universal Emboss Contrast Slide
Filters RT7NX9FLTLBD LBD color teemputerature change filter(φ45mm)
  RT7NX9FLTGRN IF550 green interference filter(φ45mm)
  RT7NX9-CTELE Centering telescop φ30
  RT7NX9-GPLATE Glass plate
  RT7NX9-MPLATE Metal  plate(kidney hole)
  RT7NX9-RULERS Mechanical mobile ruler, moving range120(X)*78(Y)mm
  RT7NX9-EXTPLATE Stage extension plate
  RT7NX9-PDHOL φ35 Petri dish holder
  RT7NX9-SLHOLD Slides holder(φ54 and 26.5x76.5)
  RT7NX9-TERAHOL Teraseki holder(φ65 and 56X81.5)
Standard Accessories RCOV ONE Coverglass cap D=0.17mm
  DICKIT DIC kit with DIC Prism for 10x, 20x, 40x & 60x, polariser/analyser & DIC annuals

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
