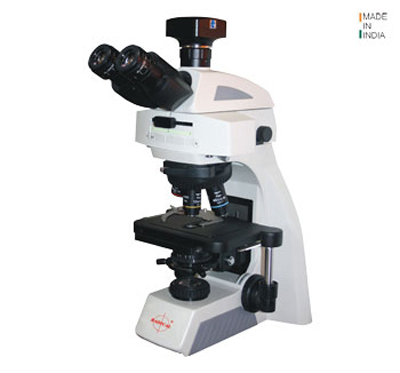

Digital Research Microscope

RXLr-4NX

RXLr-4NX series has been developed with long term use and great durability in mind. Microscope is easy to operate, robust and durable with infinity optics translating to excellent price/performance ratio meeting the demanding clinical needs. With quality optics microscope is suitable for brightfield,phase contrast,Darkfield & Floursecence techniques It is adapted to the most sophisticated environmental conditions in medical lab.

BRIGHTFIELD
DARKFIELD
FLUORESCENCE
PHASE CONTRAST

Body Rugged, single die cast, ergonomic design, touch point treated with hook for power chord
Optical system Infinite optical system (IOS), colour corrected (CCIS), anti-fungal, anti-bacterial coated (multi-layered hard coated)
Koehler`s Illumination Koehler`s halogen/LED, intensity adjustable, battery backup, auto cut-off, one click Enter standby status Double Clicks: Light lock or unlock Rotation: Adjust brightness
Viewing Head Ergonomic Sidentopf Binocular/Trinocular Head
Mechanical Stage Rackless, refocusing, right/left hand control, hard coated surface, double layer, single/double slide holder,low position coaxial movement
Objectives Japanese Infinity Semi Plan/Plan/Flotar/S-APO/APO objectives
Condenser Abbe with iris diaphragm & filter slot. brightfiled, darkfiled, phase contrast
Nosepiece Coded quintuple with ball-bearing, slot for polarizer & analyser, rubber/metal grip & click stop
Eyepiece Extra wide field, high point with diopter adjustment
Focusing Feather Touch Ultra Precise Coaxial (low position), both side, Coarse & Fine with tension control & upper limit stopper
100x Water-immersion Objective The water -immersion objective uses water as a medium , reducing the damage to the body and environmental pollution.
Multifunctional Digital Head Built-in camera, supporting Android, IOS, Windows operating system, wired and Wifi modes The image under the microscope can be output to the external device in real time, and there is no data line connection, and the operator can move more freely.
Mobile devices By scanning the QR code on the microscope, you can view the microscopic image on your phone and tablet.
Motorized Z-axis motorized focussing
Power Supply 90V-240V/50Hz AC (SMPS)
Microscopy Techniques Polarizing, darkfield, fluorescence, phase contrast
Certification EU CE, ISI, ISO, TUV
Part Name Part Code Description
Body RXR4NXMB Rugged, single die cast, ergonomic design, interchangable, touch point treated, acid resistant texture painted, illumination intensity controller & on/off switch, hinged door at bottom/push pull system at base for easy replacement of LED/halogen, rubber feet, slot for Ana/Pol,(student proof)
Optical system RXR4NXIOS Universal infinite optical system (IOS), NIS45/NIS60 colour corrected (CCIS), anti-fungal, anti-bacterial coated (multi-layered hard coated)
Koehler`s Illumination RXR4NXL3WL3 3W S-LED (LCD display magnification, timing sleep, brightness indication and Lock, etc.), optional battery backup
Viewing Head RXR4NXT30 Infinite, siedentopf trinocular viewing head, inclined at 30°, interpupillary 47-78mm, 360° rotatable, splitting ratio 100:0, 50:50, upto 50mm adjustable viewing height, port for camera
Fluorescence attachment RXR4NXFL2LED 3W LED, two wave range (B, G, U, V can be combined), Fly-eye lens illumination
Photo Tube RXR4NXPT01X 1x photo attachment
RXR4NXPT50X 0.5x photo attachment
Mechanical Stage RXR4NXMS Rectangular right/left hand low drive control, horizontal, hard coating, double slide holder, rackless/synchronous belt stage 230mmx150mm, moving range 79mmx54mm, with vernier reading on both axis.
Objectives RXR4NX04i 4X, N.A 0.10, W.D 30mm, plan achromatic, infinite, unbreakable container for storage
RXR4NX10i 10X, N.A 0.25, W.D 6.1mm, plan achromatic, infinite, unbreakable container for storage
RXR4NX20i 20X, N.A 0.45, W.D 2.1mm, plan achromatic, infinite, unbreakable container for storage
RXR4NX40i 40X, N.A 0.65, W.D 0.65mm, plan achromatic, spring loaded, infinite, unbreakable container for storage
RXR4NX100i 100X, N.A 1.25, W.D 0.23mm, plan achromatic, oil immered, Infinite, spring loaded, unbreakable container for storage
RXR4NX100w 100X, N.A 1.1, W.D 0.17mm, plan achromatic, water immered, Infinite, spring loaded, unbreakable container for storage
Condenser RABC Aplantic/acromatic abbe condenser N.A 1.25 with aspheric lens, for brightfield, Having uniform illumination for entire FOV, separate movement from focussing (rack & pinion), with iris diaphragm, with centre adjustable, for magnification 2x-100x, corrected for colour and spherical aberration with aberration with snab-in blue day light filter, Rack and pinion movements on stainless steel guides. colour cord condenser
Slider RXR4NXPHM-SL Bright Field - phase contrast plate (4x-100 universal)
  RXR4NXDF Bright Field - Dark Field plate
Nosepiece RXR4NX5N Inward tilted, precise quintuple nosepiece (Non-coding)revolving on multiple ball bearing, click stop mechanism for smooth and accurate alignment, having ribbed grip for easy rotation slot for Pol/DIC
  RXR4NX5NC Backward quintuple nosepiece(coding) It can memorize the illumination brightness when using each objective. When nosepiece is rotated the light intensity gets automatically adjusted to reduce visual fatigue and improve work efficiency.
Eyepiece RXR4NX1022 Paired, high eye point WF 10X, FOV-22mm, multilayered coated, Lockable, high quality, good contrast, Anti-fungal coating, abrresion free, Aplantic, precentered, built-in diopter adjustment on both eyepiece (±5mm) rubber eyecups.
Focusing RXR4NXF20 Coaxial Coarse and fine adjustment, coarse stroke 37.7mm per rotation, upper limit stopper, fine stroke 0.2mm per rotation, fine division 0.002mm, moving range 30mm. Left side coarse & fine knobe and right side fine knob only, fine Focus knob with graduations.
Filter RXR4NXGF Green plane or frosted
Analyzer/Polarizer RXR4NXPOLANA Simple polarization set
Part Name Part Code Description
Body RXR4NXMB20 Rugged, single die cast, ergonomic design, touch point treated, illumination intensity controller & on/off switch, hinged door at bottom/push pull system at base for easy replacement of LED/halogen, rubber feet, (student proof)
  RXR4NXACUT Time adjustable sensor based auto-cutoff.
Koehler`s Illumination RXR4NXH20 Halogen 6V-20W, life 2000 hrs.
  RXR4NXH30 Halogen 6V-30W, life 2000 hrs.
  RXR4NXL3WL3 Uniform colour LED 3W, life 30000 hrs., Lumens equivalent 6V-20W
  RXR4NXLBB Battery backup from 2-12 hours for LED (internal/external)
  RXR4NXL5WL3 Uniform colour LED 5W, life 30000 hrs., Lumens equivalent 6V-30W
  RXR4NXACUT Auto-cutoff
  RXR4NXL36WL6 White-X LED 3.6W life 100000 hrs., Lumens Illumination equivalent 50W. colour temp. 6300.
  RXR4NXL3WL6 Uniform colour LED 3W life 65000 hrs., Lumens equivalent 6V-20W, transmitted axis with adjustable field diaphragm
  RXR4NXL3WL8 Uniform colour LED 3W life 82000 hrs., Lumens equivalent 6V-20W
  RXR4NXL5WL6 Uniform colour LED 5W life 65000 hrs., Lumens equivalent 6V-30W
  RXR4NXL5WL8 Uniform colour LED 5W life 82000 hrs. , Lumens equivalent 6V-30W
  RXR4NXL10WL3 Uniform colour 10W S-LED, life 30000 hrs (LCD display magnification, timing sleep, brightness indication and Lock, etc.) intesity adjustable, constant color temprature.
  RXR4NXL-C Extra long life LED upto 1,00,000 hrs 3W/5W
  RXR4NXSOLAR Solar power battery charger for LED. A USB charging port at the microscope back is used to charge microscope battery either through AC power or through solar panel/computer usb port. The 2600v MAH lithium battery give continous power for at least 6 hrs. at 5.5 vild DC. The microscope battery can also charged by a car USB port.
  RXR4NXMIRR Concave daylight mirror
Fluorescence Attachment RXR4NXFL3100SL Slider 3 positions, 100W hg, std fluorescence filter B & G, others on request.
  RXR4NXFL3100LED 3 position slider with 100W high pressure mercury lamp/LED illumination, having orange coloured plastic screen to safeguard the operator from UV light, intesity adjustable
  RXR4NXFL4100 Turret 4 filter holder, 100W hg, std fluorescence filter B & G, others on request.
  RXR4NXFL6100 Turret 6 filter holder, 100W hg, std fluorescence filter B & G, others on request.
  RXR4NXFL2LED Turret 2  filter holder, LED, std fluorescence filter B & G, others on request.
  RXR4NXFL6LED Turret 6 filter holder, LED, std fluorescence filter B & G, others on request.
  RXR4NXFL1LED Dual LED,  with battery backup, std. B fluorescence filter, others on request.
Viewing Head RXR4NXB30 Infinite, siedentopf binocular viewing head, inclined at 30°, interpupillary 47-78mm, upto 50mm adjustable viewing height with diaopter adjustment in one/both ocular.
  RXR4NXB45 Infinite, siedentopf binocular viewing head, inclined at 45°, interpupillary 47-78mm, upto 50mm adjustable viewing height.
  RXR4NXWIFI Wireless digital head with built-in 5 million pixels, inclinable binocular viewing head
  RXR4NXTST-C50 Trinocular inclined at 30°, swivelling Sidentopf Head, rotatable through 360°, IPD - from 48-76, Diopter adjustment on both Eye Piece, port for camera attachment, splitting ratio 50(EP):50(camera), upto 50mm adjustable viewing height.
  RXR4NXTST-C80 Trinocular inclined at 30°, swivelling Sidentopf Head, rotatable through 360°, IPD - from 48-76, Diopter adjustment on both Eye Piece, port for camera attachment, splitting ratio 20(EP):80(camera), upto 50mm adjustable viewing height.
Nosepiece RXR4NX-4N Inward tilted, fixed precise quadruple revolving (with an rubber/metallic ring grip) on multiple ball bearing
  RXR4NX5NC Backward quintuple precentered nosepiece (coding) It can memorize the illumination brightness when using each objective. When nosepiece is rotated the light intensity gets automatically adjusted to reduce visual fatigue and improve work efficiency.
  RXR4NX-4NLCD Inward tilted, precise quadruple revolving (with an rubber/metallic ring grip) on multiple ball bearing, with light intensity memory function, LCD display on body for light intensity in percentage, colour temperature, colour temperature correction knob & objective in use
  RXR4NX-5NLCD Inward tilted, Precise quadruple revolving (with an rubber/metallic ring grip) on multiple ball bearing, with light intensity memory function,  LCD display on body for light intensity in percentage, color temperature, color temperature correction knob  & objective in use
Eyepiece RXR4NX1020 Paired, high eye point WF 10X, FOV-20mm, multilayered coated, high quality, good contrast, abrresion free, aplantic, precentered, built-in diopter adjustment on both eyepiece (±5mm)
  RXR4NXEP1020M WF 10X, FOV-20mm, Micrometer(10/100mm), multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RXR4NXEP1020P WF 10X, FOV-20mm, Pointe/cross hair, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RXR4NXEP1022  Paired, WF 10X, FOV-22mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RXR4NXEP1022M WF 10X, FOV-22mm, Micrometer (10/100mm), multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RXR4NXEP1022P WF 10X, FOV-22mm, Pointer/cross hair, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RXR4NXEP1515 Paired, WF 15X, FOV-18mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RXR4NXEP2010 Paired, WF 20X, FOV-10mm, multilayered coated, high quality, good contrast, abresion free, aplantic, lockable
  RXR4NXEP-C Cutomized eyepiece of 5X/10x/12x/15x/16x/20x with different types of reticles/graticules
  RXR4NXECUP Eyecups (pair)
  RXR4NX EF-CUP Focusable Eyeguard
    Filar micrometer
Mechanical Stage RXR4NXMS-C Rectangular/square, supper hard & scratch resistant, anodized, easy slide gliding control with spring in left lever, stainless steel single /dual slide holder, left/right hand low drive control, co-axial movement knob, two way linear guide, stage size-customized as per requirement, X-Y Movement - customized as per requirement
  RXR4NXMS-RK Rectangular/square, rackless, supper hard & scratch resistant, easy slide gliding control with spring in left lever, stainless steel dual slide holder, left/right hand low drive control, co-axial movement knob, two way linear guide, stage size-customized as per requirement, X-Y movement-customized as per requirement on wire, precision 0.1mm by attached vernier, tension adjustable
Objectives RXR4NXPL02i 2X, N.A. 0.06, W.D. 7.50mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
  RXR4NXPL05i 5X, N.A. 0.16, W.D. 18.5mm, plan achromatic, infinite, parfocal & precentered, unbreakable container for storage
  RXR4NXPL60i 60X, N.A. 0.80, W.D. 0.30mm, plan achromatic, infinite, parfocal & precentered, oil immered, spring loaded,, unbreakable container for storage
  RXR4NXPL63i 63X, N.A. 0.84, W.D. 0.28mm, plan achromatic, infinite, parfocal & precentered, oil immered, spring loaded, unbreakable container for storage
  RXR4NXPL63i 63X, N.A.0.95, W.D.0.15mm, plan achromatic, infinite, parfocal & precentered, dry, spring loaded, unbreakable container for storage
  RXR4NXP-100iDF 100X, N.A. 1.25, W.D. 0.18mm, plan achromatic, infinite, oil immered, spring loaded, darkfield, unbreakable container for storage
Phase objectives RXR4NXP-PH04i PH4X, N.A. 0.10, W.D. 30mm, phase, plan achromatic, infinite, unbreakable container for storage
  RXR4NXP-PH10i PH10X, N.A. 0.25, W.D. 6.1mm, phase, plan achromatic, infinite, unbreakable container for storage
  RXR4NXP-PH20i PH20X, N.A. 0.4, W.D. 2.10mm, phase, plan achromatic, infinite, unbreakable container for storage
  RXR4NXP-PH40i PH40X, N.A. 0.65, W.D. 0.65mm, phase, plan achromatic, infinite, spring loaded, unbreakable container for storage
  RXR4NXP-PH60i PH60X, N.A. 0.80, W.D. 0.30mm, phase, plan achromatic, infinite,  oil immered, spring loaded, unbreakable container for storage
  RXR4NXP-PH63i PH63X, N.A. 0.84, W.D. 0.28mm, phase, plan achromatic, infinite,  oil immered, spring loaded, unbreakable container for storage
  RXR4NXP-PH100i PH100X, N.A. 1.25, W.D. 0.18mm, phase, plan achromatic, infinite, oil immered, spring loaded, unbreakable container for storage
SEMI APO/Flotar/Fluor Objectives RXR4NXP-SAPO04i 4X, N.A. 0.13, W.D. 17.1mm, SAPO, infinite, unbreakable container for storage
  RXR4NXP-SAPO10i 10X, N.A. 0.3, W.D. 16mm, SAPO, infinite, unbreakable container for storage
  RXR4NXP-SAPO20i 20X, N.A. 0.5, W.D. 2.1mm, SAPO, infinite, unbreakable container for storage
  RXR4NXP-SAPO40i 40X, N.A. 0.75, W.D. 0.72mm, SAPO, infinite, spring loaded, unbreakable container for storage
  RXR4NXP-SAPO60i 60X, N.A. 0.80, W.D. 0.3mm, SAPO, infinite, oil immered, spring loaded, unbreakable container for storage
  RXR4NXP-SAPO63i 63X, N.A. 0.85, W.D. 0.28mm, SAPO, infinite, oil immered, spring loaded, unbreakable container for storage
  RXR4NXP-SAPO100i 100X, N.A. 1.3, W.D. 0.20mm, SAPO, infinite, oil immered, spring loaded, unbreakable container for storage.


Please click for More Objectives...

Focusing RXR4NXF2.0 Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.20 mm per revoluation, fine adjustment 2µm/Div, fine Focus knob with graduations.
  RXR4NXF1.0 Co-axial, tension control, upper limit stopper, high sensitivity focus drive with 0.10 mm per revoluation, fine adjustment 1µm/Div, fine Focus knob with graduations.
  RXR4NXF20B Both Side Coaxial Coarse and fine adjustment, coarse stroke 37.7mm per rotation, upper limit stopper, fine stroke 0.2mm per rotation, fine division 0.002mm, moving range 30mm, fine Focus knob with graduations.
Condenser RX4SWCON Abbe condenser N.A. 0.9/1.25 swingout, for brightfield, separate movement from focussing (rack & pinion), with iris diaphragm, with centre adjustable, for magnification 2x-100x
RXR4NXUCON Universal condenser for BF upto 100x/PH upto 100x/DF upto 40x observation abbe N.A. 0.9/1.25 (turret type 5 position), separate movement from focussing (rack & pinion), filter holder
  RXR4NXCDF-1 Darkfield condensor N.A 0.8-0.95, W.D 4mm (dry) for objective 20x-40x
  RXR4NXCDF-2 Darkfield condensor N.A 1.2-1.43, W.D 1.5mm (oil) for objective 20x-100x
Slider RXR4NXPH20-SL Phase slider ring for 20X
  RXR4NXPH40-SL Phase slider ring for 40X
  RXR4NXPH1040-SL Phase slider ring for 10x/40X
  RXR4NXPHM-SL Phase slider ring for 10/20, 40X & 100X
  RXR4NXDF-SL Darkfield slider
Analyzer/Polarizer RXR4NXPOLANA Set of analyzer and polarizer
Heating Stage RHS50 Biotherm heating stage
Filters  RGF Green plane or frosted
Power Supply  RTF630 6V-30W Transformer based, wide voltage range, 90V-240V, 50/60Hz,
  RSMPS620 Built-in, SMPS based, wide voltage range, 90V-  240V, 50/ 60Hz
   RSMPS630 SMPS based, wide voltage range, 90V-240V, 50/60Hz
Immersion oil RIO100 High quality immersion oil 100ml
Micrometer/Calibration slide RCS10 Micrometer slide for calibration, 1mm with 10µm least count
  RCS100 Micrometer slide for calibration, 10mm with 100µm least count
C-mount RCMT50X 0.5X Camera Adaptor/Tube/Mount
  RCMT65X 0.65X Camera Adaptor/Tube/Mount
  RCMT70X 0.7X Camera Adaptor/Tube/Mount
  RCMT01X 1X Camera Adaptor/Tube/Mount
Packing  RWBX Wooden box with separate container for accessories, lock & key, carrying handle
  RSTYRO Standard Styrofoam packing
Cleaning Kit RCLEAN Anti static cleaning brush, Cleaning tissue paper, Lens cleaning solution

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
