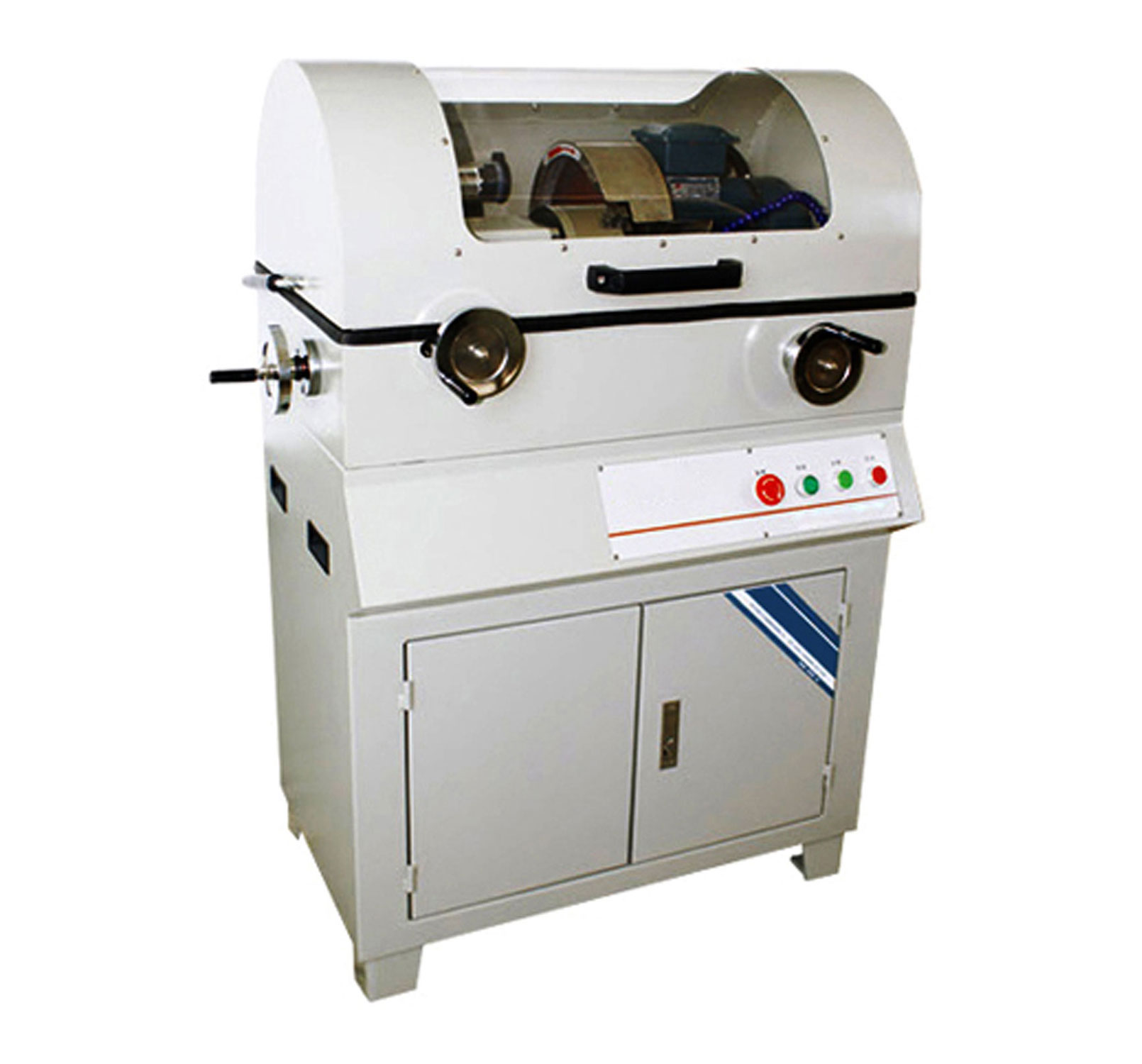

Abrasive Cut Off Machine RACM-4
Abrasive Cut Off Machine

RACM-4

The machine is suitable for cutting general irregular metallurgical sample materials in order to observe the material microstructure. This machine adopted by double cover fully enclosed structure. It guarantees to cutting samples under absolute security condition. Equipped cooling system can clear up the heat produced during cutting so that it will avoid the metallographic structure deforming of specimen because of heating influence. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Max cutting section 65mm
Grinding wheel 250X1.5X32mm
Motor 1.5kw
Rotating speed 2800r/min
power supply 380V,50Hz
Dimensions 990X610X1300mm Appx.
  RACM-4 RACM-50 RACM-55 RACM-80
Eyepiece 1 Pair High eye point wide field plan eyepiece PL10X/20mm
Objectives Infinity Plan Achromatic Objective 2X, 4X,10X, 20X,40X(SL), 60X(SL)& 100x(SL) Oil
Infinity Plan S-APO Objective 2X, 4X,10X, 20X,40X(SL), 60X(SL)& 100x(SL) Oil
Infinity Plan Fluotar Objective 4X,10X, 20X,40X(SL), 60X(SL)& 100x(SL) Oil
Observation
Head
30° inclined trinocular head, interpupillary distance adjustable : 52-75mm,
diopter adjustable: +/-5 on R&L Oculars, 2 Position (0:100 & 50:50)
30° Inclined Binocular Head, Interpupillary distance adjustable : 54-75mm, diopter adjustable: +/-5 on
Nosepiece Reversed Quintuple Nosepiece, Slot for POL/DIC
Frame Coaxial Coarse and Fine Focusing Control, with Upper Limit Stoper & Tension Control adjustment,
range : 2mm, Fine Focus LC 0.002mm
Mechanical Stage Refocusing type Rackless Mechanical Stage, Hard Ceramic Coated Surface, Double Slide Holder,
Size(XY) 175×145mm, Travel (XY) 74×50mm, Vernier Markings : 0.1mm
Condenser Abbe Condenser N.A. 1.25 (4X-100X)
Transmitted Illumination 100-240V built-in wideband voltage, 3W LED/6V30W illumination, intensity adjustable
Fluorescent Illumination xxxxx
Range Of Accessories
*Phase Contrast
*Darkfield
*Polarizing
*Fluorescence
*Dual Viewing Head

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
