Forensic Comparison Microscope

RCM-505 Series

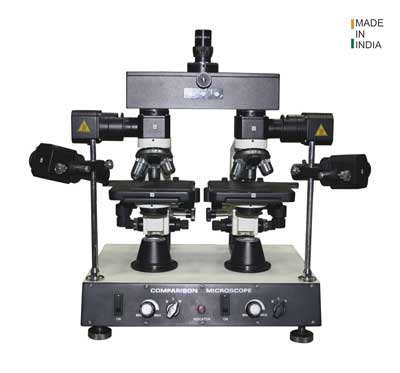

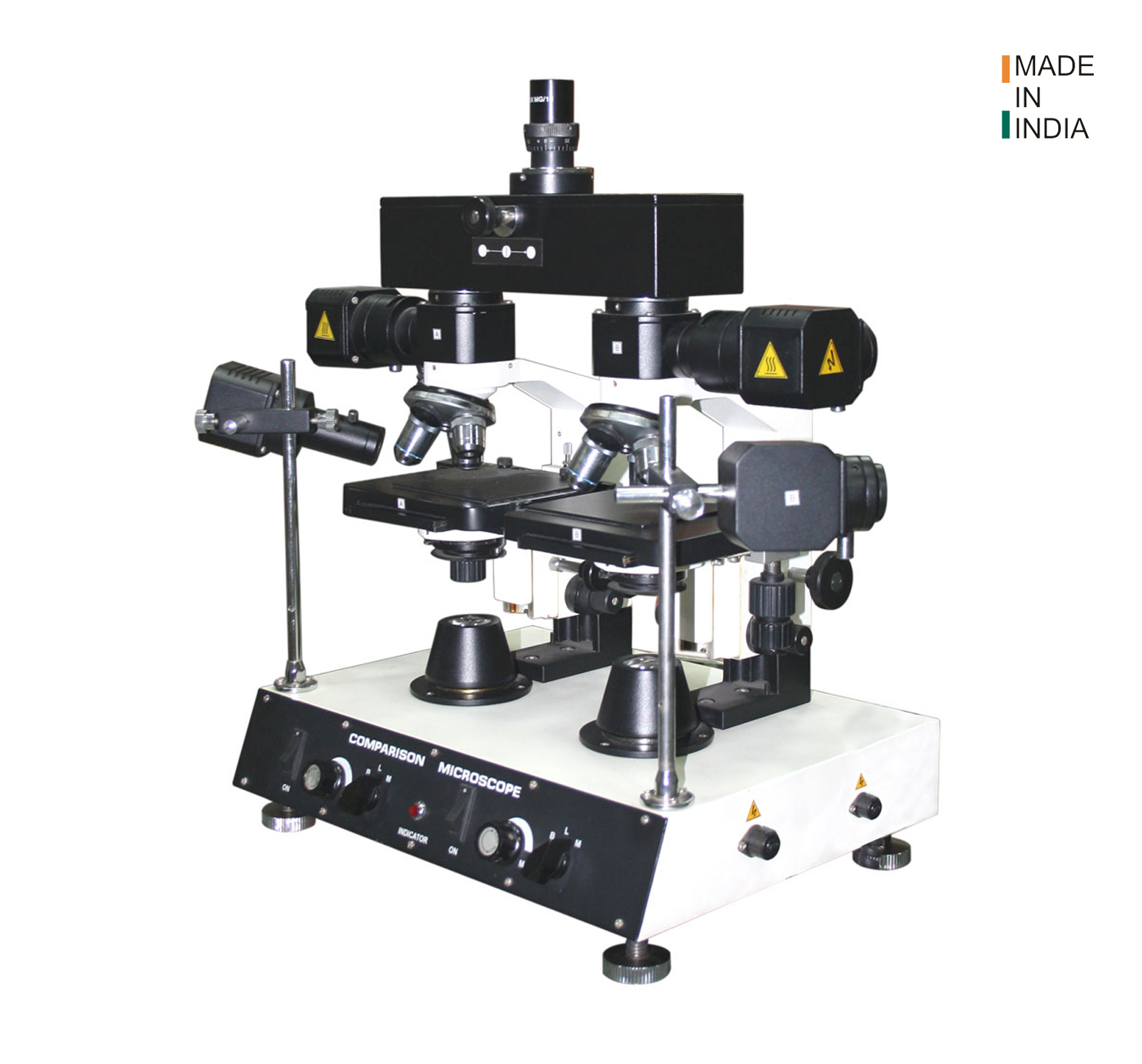

Radical Forensic Comparison Microscope were developed about four decades ago in consultation with the leading Scientists and Criminologists of world repute, thereafter The instruments are being continually updated. Comparison Microscope are the most advanced & versatile instruments invented for comparative Micro study in Forensic Science, geology, Metallurgy, Mineralogy, Crystallography and Chemical Microscopy. By means of this sophisticated instrument, two micro samples can be studied under one Eye. It combines the latest opto-mechanical developments in light microscopy. This instrument consist of two microscopes & their split images can be viewed simultaneously, with The image from one being on the left side & the other image on the right side.

Optical system Colour corrected anti-fungal, anti-bacterial coated (multi-layered hard coated)
Illumination Reflected, transmitted and inclined koehler`s halogen/LED, intensity adjustable, battery backup, auto cut-off
Viewing Head Monocular/Trinocular with comparison bridge
Stage Stages to hold objects like bullets, coins, Industrial materials etc. and another plate to hold Materials like currency notes, cartons, stamps, finger Prints etc
Objectives Long working distance
Magnification Upto 600X
Stand Ultra Precise Coaxial (low position), both side, Coarse & Fine with tension control & upper limit stopper
Eyepiece Wide field with dioptric adjustment
Certification EU CE, ISI, ISO, TUV
Model RCM-505 RCM-505T
Head Monocular with comparison bridge Trinocular with comparison bridge
Body Two microscope mounted on heavy and rugged metal base attached with a comparison bridge to split the two images of microscopes
Total Magnification 20X - 600X
Nosepieces Quadruple revolving nosepieces
Eyepiece WF10X, Huygenian 15X, H10X micro & H5X cross
Objective 4X, 10X and 40XSL
Mechanical Stages 120x120mm, Supplied with stages to hold objects like bullets, coins, Industrial materials etc. and another plate to hold Materials like currency notes, cartons, stamps, finger Prints etc
Illumination Reflected, transmitted and inclined halogen 6V-20W, seperate intensity controllers & ON/OFF switches
Optional Accessories Photo micrographic Attachment Projection Screen Attachment, Semi Plan Objectives 2.5x, 20x, 60x, & Oil Immersion 100x, Spare Eyepieces, USB Camera with Necessary software etc.
Total weight 45kg

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
