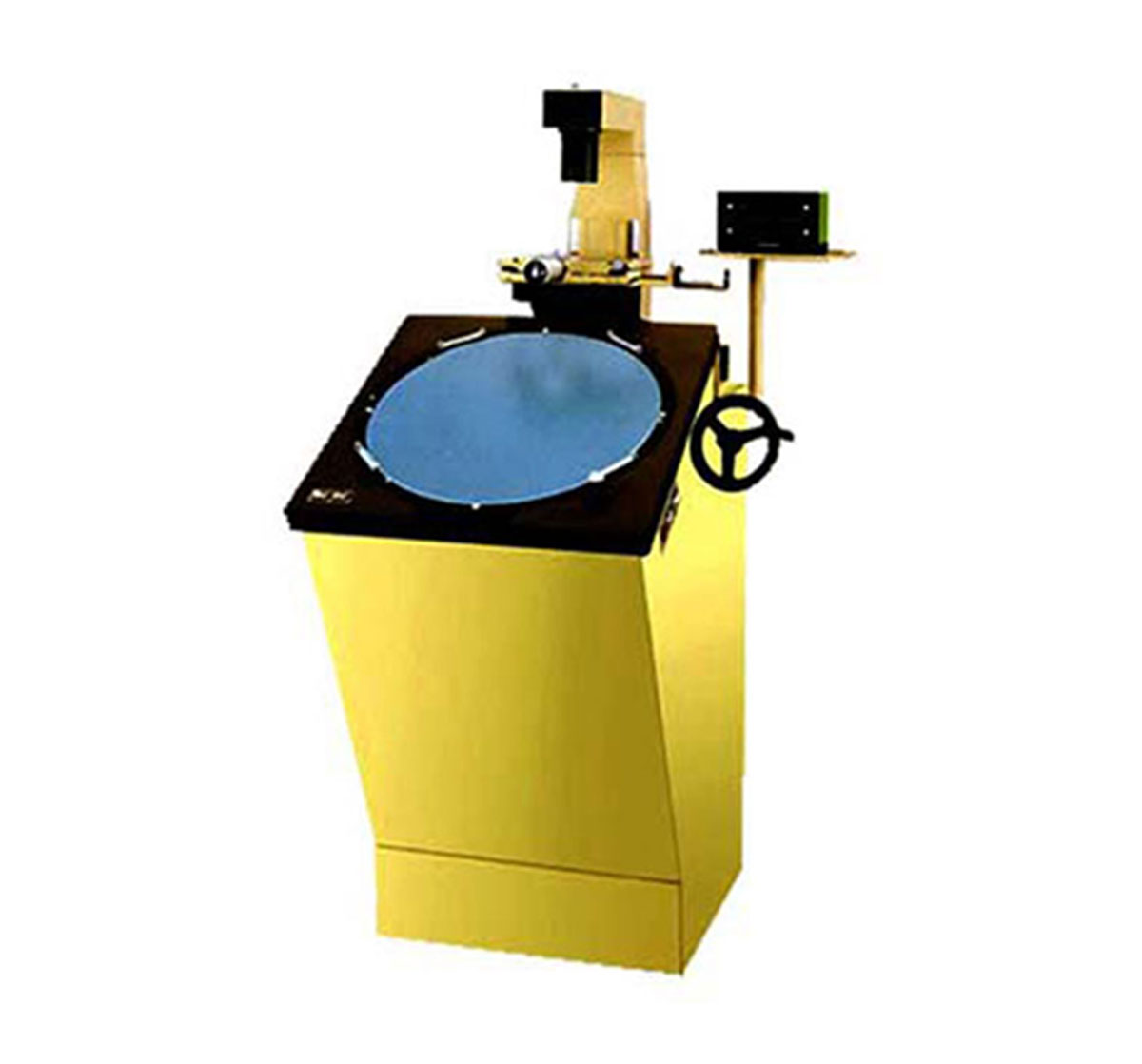

Profile Projector

RPP-44 Series

Antiglare hard glass screen, graduated & rotatable through 360° having least count 1 minute of an arc. Provided with four clips to hold overlay charts and drawings. Mirrors:- Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen. Contour Illumination:- Contour Illumination is provided with a 24V/150W halogen lamp having a built in condenser system. The illumination can be adjusted through a solid state transformer. EPI-Illumination:- A Specially designed 12V/100W halogen light ensures uniform surface illumination system for the above. This provides shadow less light on the optical axis for inspection of cavities etc.

Screen Antiglare hard glass screen, graduated & rotatable through 360° having least count 1 minute of an arc.
Mirrors Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen.
Contour Illumination Contour Illumination is provided with a 24V/150W halogen lamp having a built in condenser system.
EPI-Illumination A Specially designed LED or 12V/100W halogen light ensures uniform surface illumination system for the above.
Electrical Mains input 220-240 volts AC having built in transformers, On-Off Switch, variable intensity controller for both illumination system, indicator and glass fuse.
Accuracy Projection accuracy ± 0.1% for contour illumination and ± 0.15% for surface illumination.
Screen Size 400mm
Lenses 10x Objective (Standard)
Model No. RPP-44 RPP-44DM RPP-44DR RPP-44DP
Projection Screen 400mm
Illumination Contour illumination 24V/150W Halogen Lamp & Surface Illumination 12V/100W Halogen Lamp.
X-Y Range 50x50mm*
(with the use of gauge blocks)
200x100mm
Z-axis Manual
Effective Table Area 125x125mm 275x180mm
Measuring Unit Micrometer Heads 0-25mm Digital Micrometer Heads 0-25mm Built in Linear Scales
Resolution 0.01mm 0.001mm 0.001mm/ 0.00005"
X-Y Counter No Yes
Angle Counter Optional Yes
Rotary Measuring
Stage
Yes Optional
Maximum Workpiece height 116mm 110mm
M2D Software No Optional
Dimensions/Weight 50x84x104cm/150 Kgs.
Turret Optional
Measuring of Geometric Elements No Distance, Circle, Angle Point, line, circle, distance, ellipse, rectangular hole, slotted hole, intersection and intersecting angle and point & angle, plus a number of functions for evaluation
Range Of Accessories
Over lay chart
Rotary table
Swivel center support
V-block with clamp
Edge detector
Foot switch
Standard scale
Projection lens
Holder with clamp
Tilting Center fixture
D.R.O
Data Processor
Large customised Stage
M2D Software
