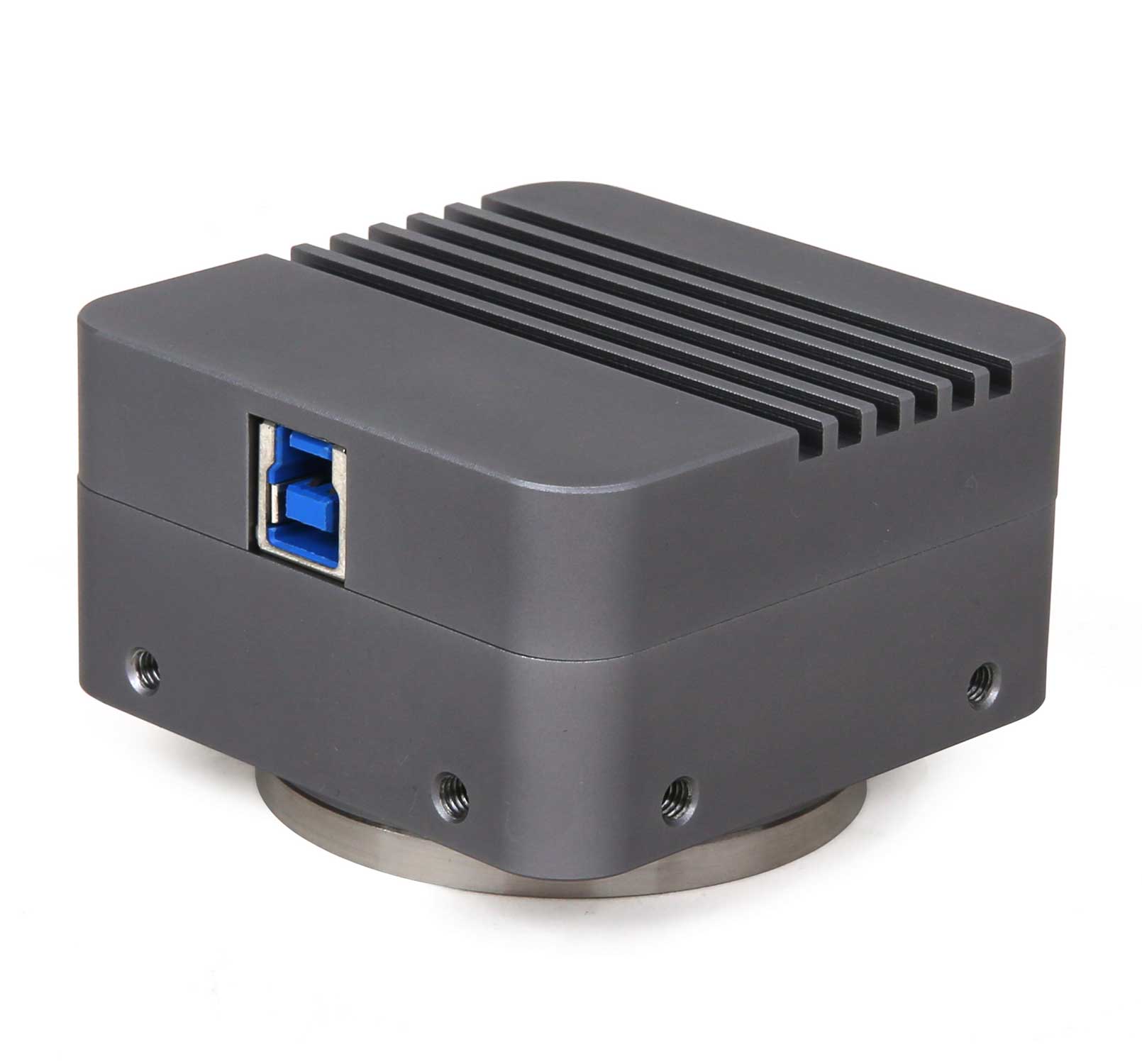

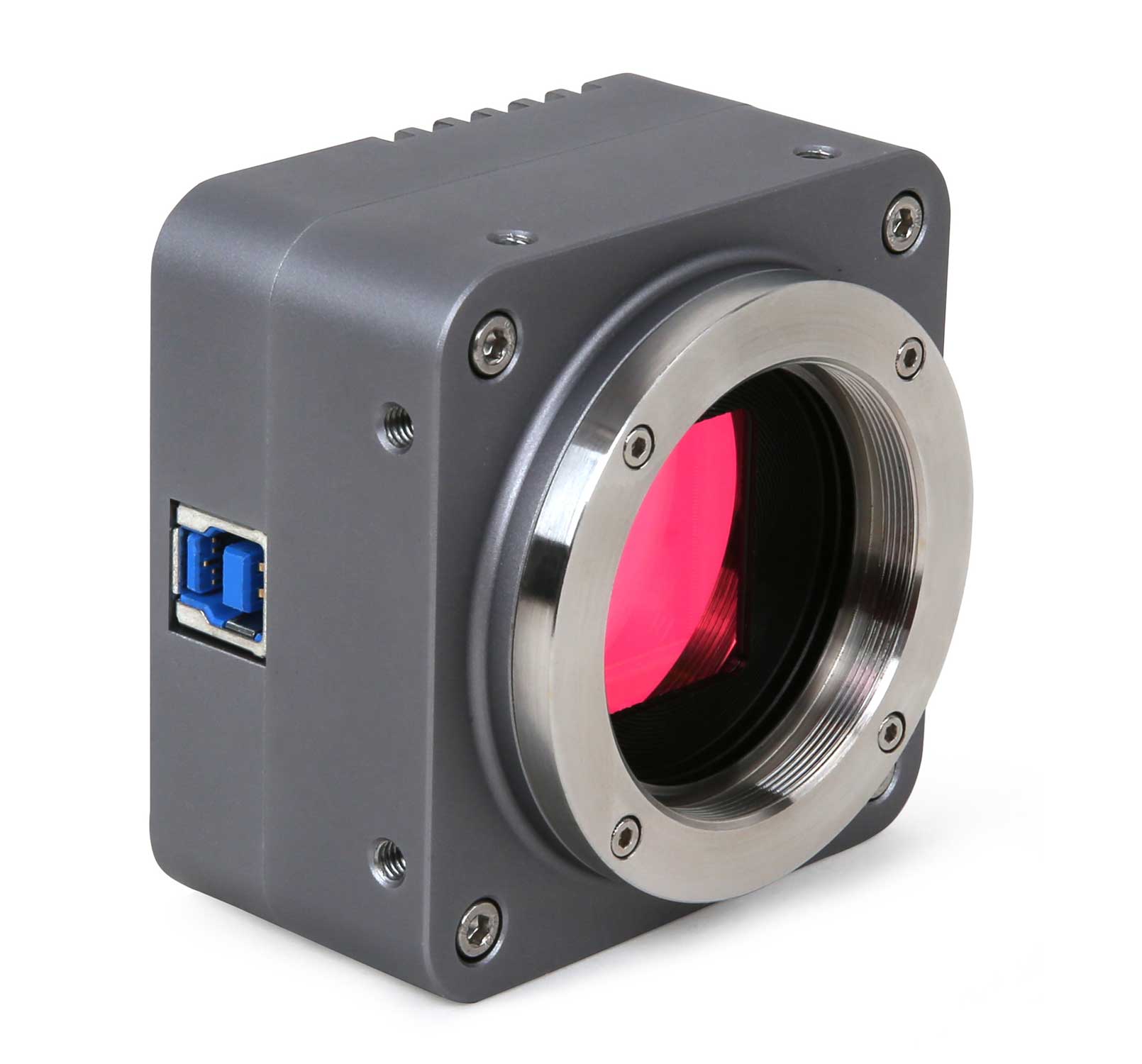

ProCAM CMOS HST-BE Series adopt SONY Exmor or GSENSE CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface. CMOS HST-BE Series hardware resolutions range from 4.2M to 10M and come with the integrated CNC aluminum alloy compact housing.
CMOS HST-BE Series integrated with 12~16 bit Ultra-fine Hardware Image Signal Processor Video Pipline(Ultra-fineTM HISPVP) for Demosaic, Adjustments, Automatic Exposure, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-fineTM HISPVP and greatly accelerating the processing speed.
CMOS HST-BE Series comes with advanced video & image processing application ProCAM; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
The CMOS HST-BE Series can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
| Model | ProCAM HST-BE-1.3MP | ProCAM HST-BE-4.2MP | ProCAM HST-BE-10.3MP |
|---|---|---|---|
| Sensor Size | 1" (12.49x9.99) (Mono) | 1.2" (13.31x13.31) (Mono) | 4/3" (17.47x12.86) (Colour/Mono) |
| Pixel Size | 9.76µm x 9.76µm | 6.5µm x 6.5µm | 4.63µm x 4.63µm |
| Resolution/Frame Rate (Live, Capture & Record) |
1280x1024: 30FPS(16bit) 640x512: 30FPS 8 Bit/HDR16 Bit |
2048x2048: 45FPS 1024x1022: 45FPS 8 Bit/12 Bit |
3704x2778: 30FPS 4096x2160: 34.5FPS 2760x2072: 39.5FPS 2048x1080: 62FPS 1360x720: 86FPS 8 Bit/12 Bit |
| Sensitivity | 2.57x108(e-/((W/m2).s)) Peak QE 89% @610nm 40(e-/s/pix) | 8.1x10^7 (e-/((W/m2).s)) Peak QE 64.2% @550nm 13(e-/s/pix) | 419mv with 1/30s 0.12mv with 1/30ss QE 89% @610nm |
| Exposure Time | 0.05ms~60s | 0.01ms~60s | 0.1ms~15s |
| Gain | Upto 25X | ||
| Dynamic Range | 75dB | ||
| SN Ratio | 46dB | ||
| Binning | 1x1, 2x2, 3x3 | ||
| AD Conversion | 8 Bit / 12 Bit | ||
| Operating Mode | Continuous output | ||
| Scanning Mode | Progressive Scan | ||
| Spectral Range | 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used | ||
| Exposure Control | Manual/Auto/Area | ||
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment | ||
| Image Processing | GAMMA/Contrast/Black Level/Noise Reduction/3D Noise Reduction/Hue Wheel variation/Sharpness/Saturation | ||
| Quantum Efficiency | Upto 89% @ 610nm | ||
| Picture Format | JPEG/BMP/PNG/RAW | ||
| Color Rendering Technique | Ultra Fine Color Engine | ||
| Software interface | Radical ProCAM Software | ||
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); | ||
| Shutter | Electronic rolling shutter(Global shutter optional) | ||
| Image Data Format | 12 bit RAW Format (12x3=36 bit RGB) color filter RGB bayer | ||
| Recording System | Still Picture and Movie | ||
| Cooling System* | Natural | ||
| Data Interface | USB3.0 (B Type), with 2.5 cable, LV-TV Tube adopter, image capture button on microscope body or though single mouse click | ||
| Lens Mount | 0.5X C Mount, Compatible C-Mount with microscope & sizing adapter tube | ||
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X), Linux | ||
| Technology | On-sensor light guide technology for reducing scattering of light inside the senor | ||
| Dimensions/Weight | Metallic square body 68mm, height 43mm/(Exclude Lens Mount)/Approx.180g | ||
| Temp./Humidity | Operation: -10~50°C /storage: -20°C ~ 60°C/ Working: 10%~90% RH (No Condensation) 10% ~ 60% | ||
| Storage Temperature | -20 °C~ 60 °C | ||
| Power Supply | DC 5V over PC USB Port | ||
