CCD High Speed Cameras
CCD High Speed Cameras



With innovative SpeedXT core technology provides an improvement in live image speed of high-resolution CCD cameras. The user is enabled to facilitate precise focusing and very easy positioning of specimens without interlace effects – a clear advantage in the analysis of moving objects and for optimal task management in laboratories. Easy connection and data transfer is ensured by USB 2.0 interface. Brilliant images in proven CCD quality with superior colour reproduction can be achieved immediately through an overall faster workflow.

  • outstanding live image speed
  • Excellent image quality and high resolution
  • Perfect color reproduction
  • CCD microscope camera
  • 45 fps
  • USB 2.0 interface
  • 3.4 x 3.4 µm pixel size
  • 2/3“sensor
  • 12 bit
  • Software included

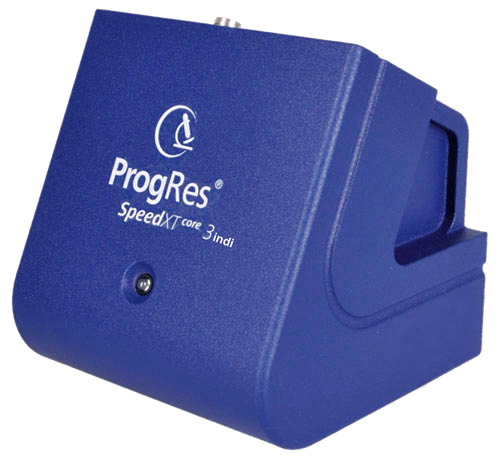

ProgRes SpeedXTcore indi Camera Type ProgRes SpeedXTcore 3 indi ProgRes SpeedXTcore 5 indi
Image Sensor 1/1.8” CCD 2/3” CCD
Color/Monochrome Color
Sensor Resolution(Max) 2080 x 1542 pixel[3.2MP] 2580 x 1944 pixel [5.0Mpix]
Pixel Size 3.45 µm2
A/D Convserion 12 Bit
Dynamic range 61 dB
Exposure times 30 µs...180s
Analog gain 1x..5x
Max.frame rate(image size) 17 fps [2080 x 1542]* 30 fps [1040 x 770]* 13 fps [2580 x 1944]* 45 fps [640 x 484]
Image resolution Binning: Progr.scan: 2× ... 5× (SDK) 688 x 512 2× ... 5× (SDK) 2576 × 1944 | 1288 × 972 | 640 × 484
Cooling No
Digital Interface USB 2.0, USB 3.0 conform
Optical Connection C-mount 0.5x /.63x recommended C-mount .63x recommended
Trigger In/Out NO
Voltage supply USB Powered
Power consumption Approx. 2.5W
Ambient conditions Temperature: +5°C....+35°C /Humidity: 5%....80% not condensing
Stock conditions Temperature: -10°C....+70°C
Dimensions (LxWxH) /Weight 89mm x 84mm x 93mm /approx 700g
Software Radical Capture Pro PC/MAC(Twain for PC),SDK on request
Hardware requirements Microsoft Windows XP / Vista / Windows 7/8/10 (32 & 64 bit) CPU: 3 GHz or 2 GHz multicore
RAM: min. 1 GB l graphics: min. 256 MB l interface: IEEE1394 Firewire a (OHCI Standard), USB 2.0 or USB 3.0

As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
For complete updated specifications, please do ask for latest brochures
